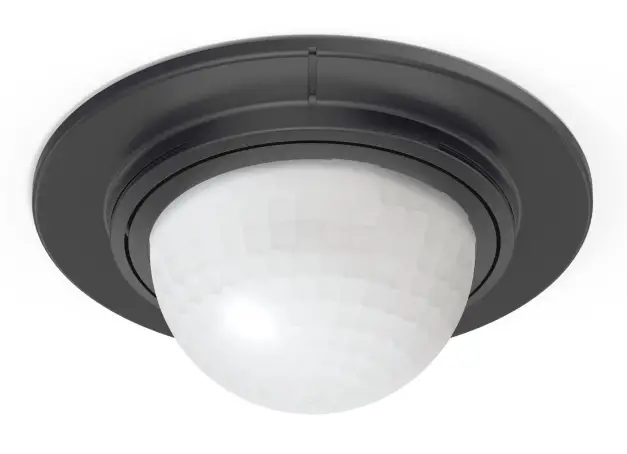

niko 350-530311 Motion Detector
Motion detector for corridors, 360°, KNX, 40 m, for flush-mounting box

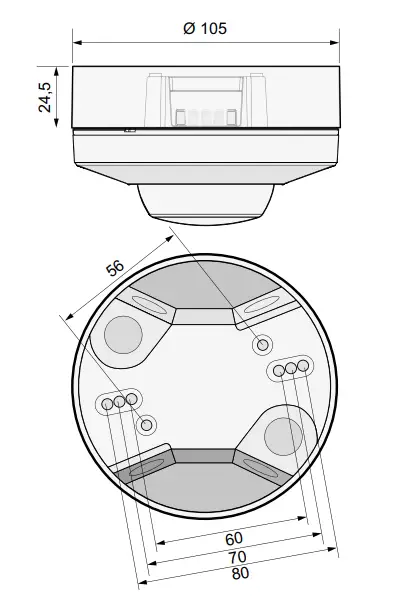

Surface-mounting box 350- 992901 (accessory) Ø 105

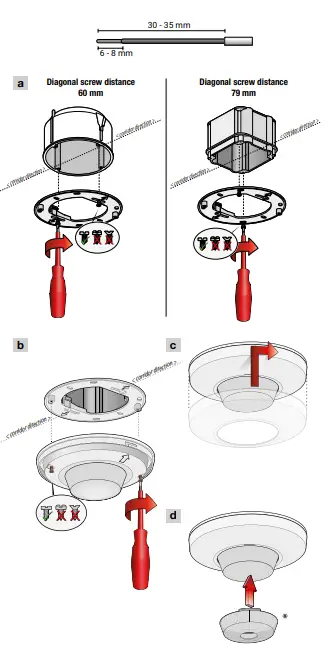

Flush-mounting box with spring clips 991999 (accessory)

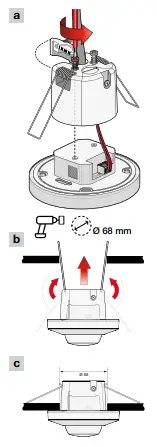

Flush-mounting box with spring clips (accessory)

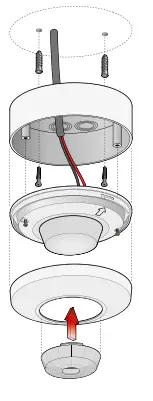

Surface mounting with surface-mounting box (accessory)
Installation

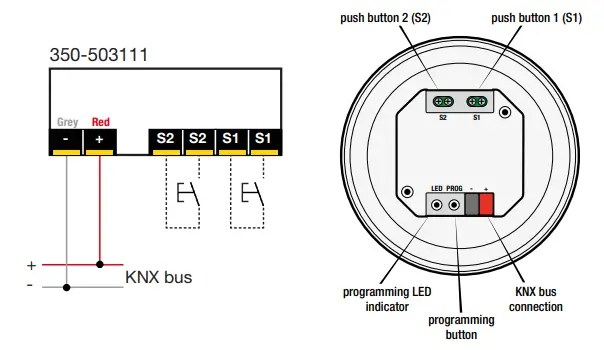

Wiring

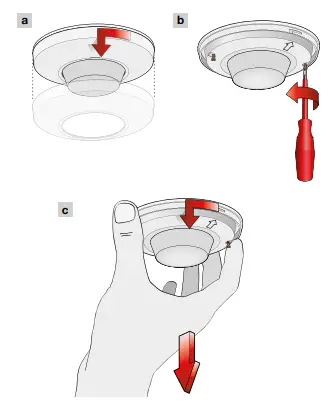

Dismantling
LED behavior
| 60 s | Warm-up when detector is using the factory settings |
| 60 s | Warm-up when detector has been programmed |
| 3 s, 2 s | Test mode: 3 s on, 2 s off |
| 2 s | The detector received a signal from the IR remote control |
| 10 s 3 s | Learn-in mode (range: 10 – 2000 lux) |
| Programming mode: ready for ETS programming |

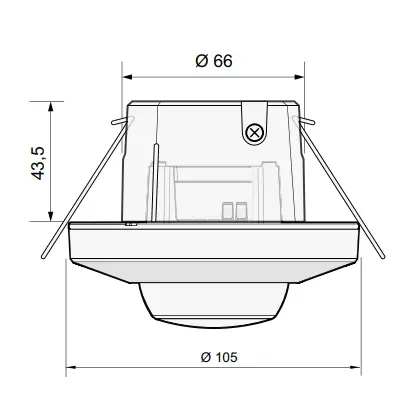

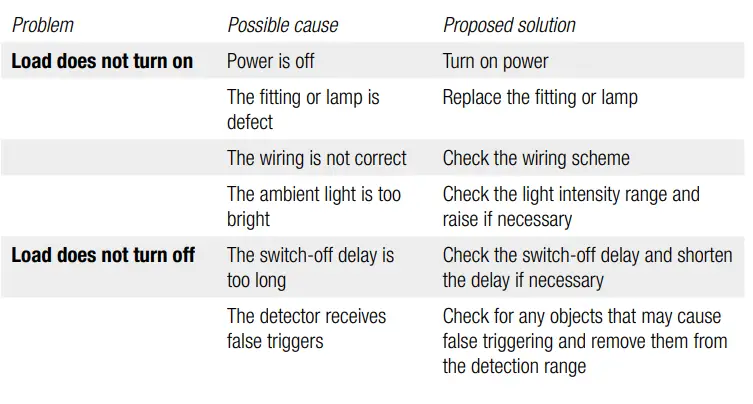

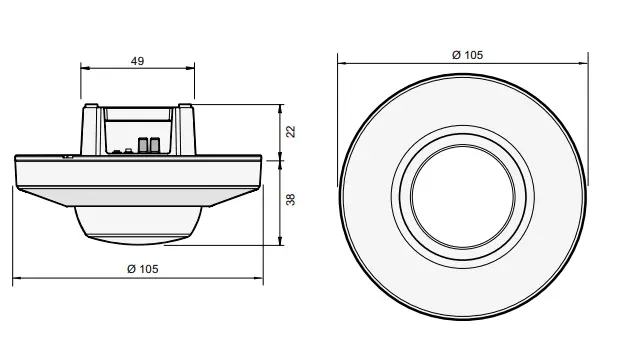

TroubleshootingDimensions
Specifications
- Article number 350-530311
- Configuration master or slave
- Input voltage 30 Vdc via KNX-bus
- Maximum power consumption 10 mA
- Light intensity range 10 – 2000 lux, ∞
- Number of channels 2 channels
- Switch-off delay 30 s – 1 h
- Detection angle 360°
- Detection range (PIR) up to 40 m in diameter from a height of 2,5 m
- Ambient temperature -20 – +45 °C
- Mounting method flush-mounting box
- Mounting height 2 – 2,5 m
- Colour white (RAL 9010)
- Dimensions visible (HxWxD) 105 x 105 x 38 mm
- Dimensions (HxWxD) 105 x 105 x 60 mm
- Wire capacity ø 0,8 mm
- Protection degree IP20
- Protection degree (with surface mounting box 350-992901) IP54
- Marking CE
Detection area
Support & contact
- nv Niko sa
- Industriepark-West 40
- BE 9100 Sint-Niklaas, Belgium
- [email protected]
- www.niko.eu
- +32 3 778 90 80 [email protected]
