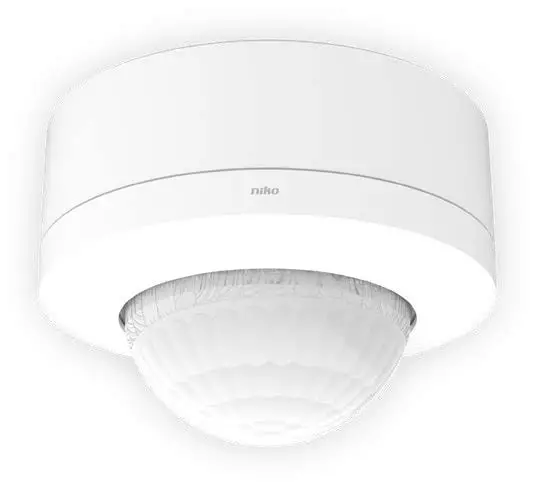

niko 353-802111 Motion Detector Installation Guide
Motion detector
353-802111
Motion detector M42HC, 230 V, master; high ceiling, 18-53 m, 3600, for surface mounting

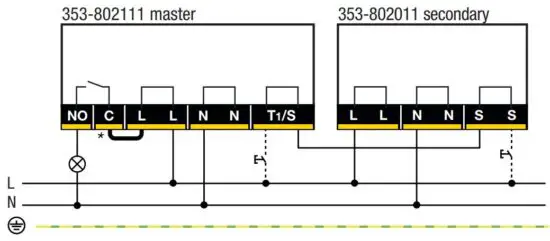

Wiring
230 V – OFF
* remove if you want to use the contact as a dry contact (potential-free)

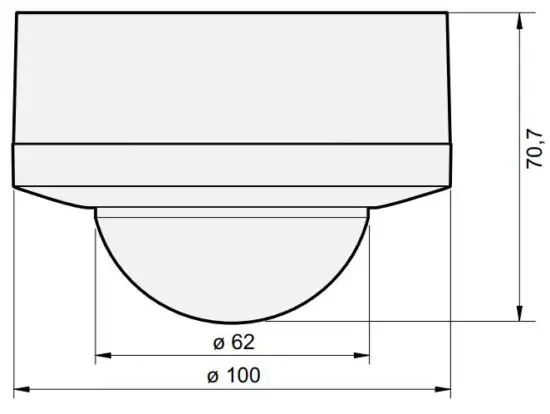

Dimensions

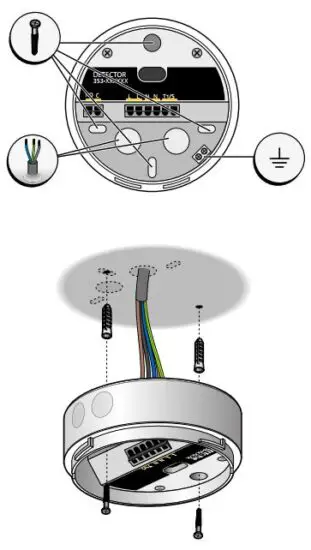

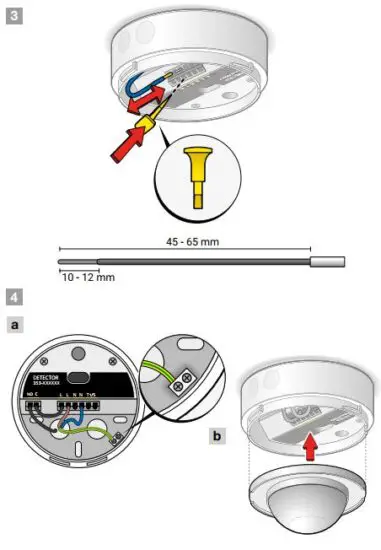

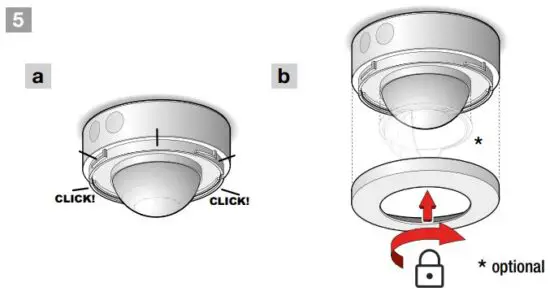

Installation
230 V – OFF
If a grommet needs to be replaced, please make sure the new grommet is halogen-free.

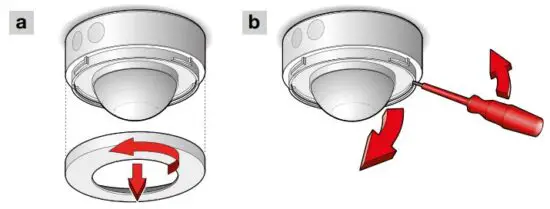

Dismantling
230 V – OFF

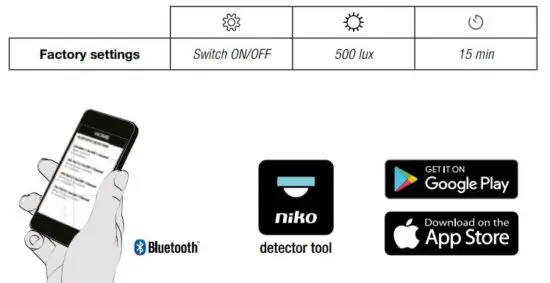

App settings
230 V – ON

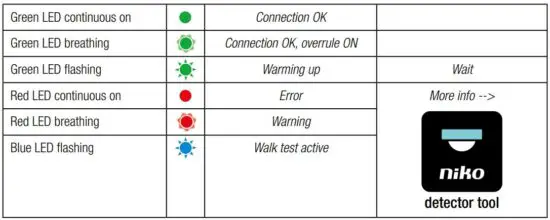

LED behaviour
230 V – ON

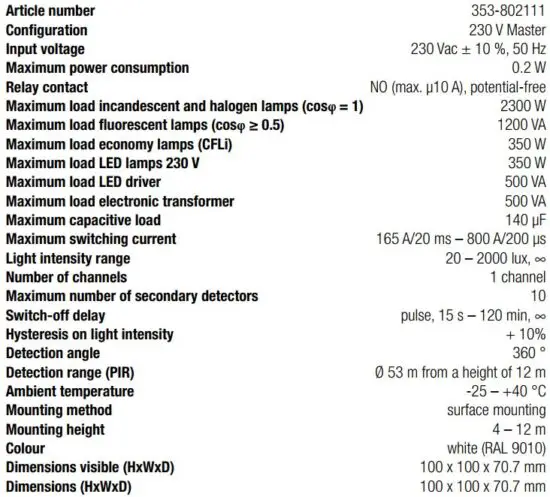

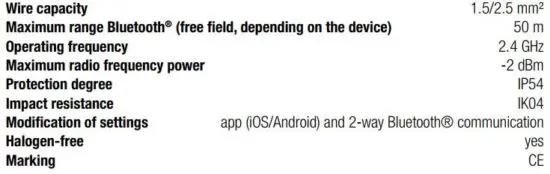

Specifications

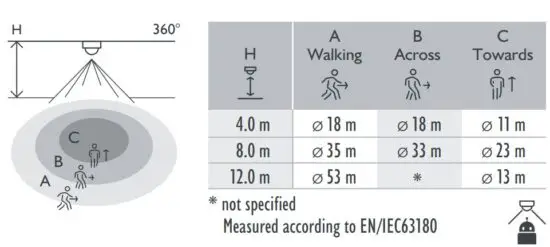

Detection area

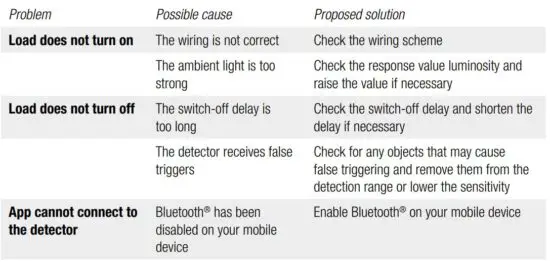

Troubleshooting
Support & contact
nv Niko sa
Industriepark West 40
9100 Sint-Niklaas, Belgium
www.niko.eu
+32 3 778 90 80 [email protected]
Niko prepares its manuals with the greatest care and strives to make them as complete, correct and up to date as possible. Nevertheless, some deficiencies may subsist. Niko cannot be held responsible for this, other than within the legal limits. Please inform us of any deficiencies in the manuals by contacting Niko customer services at [email protected].
