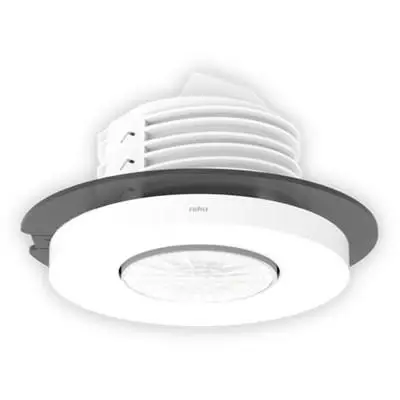

niko 350-601121 Presence Detector
Presence detector P42MR, 230 V, master, 12-13 m, 360°, Snap Fit, for flush mounting.

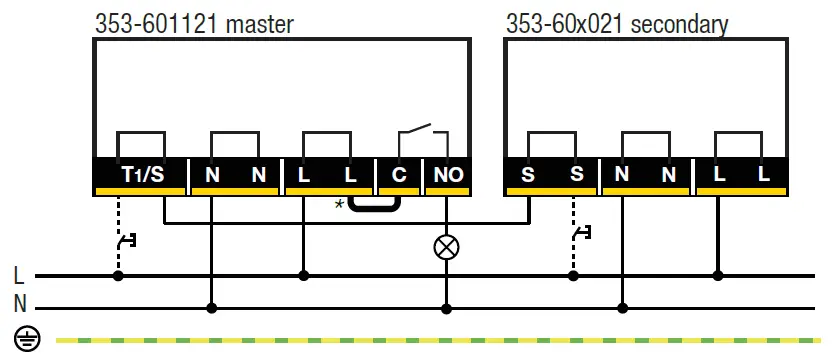

Wiring
Remove if you want to use the contact as a dry contact (potential-free)

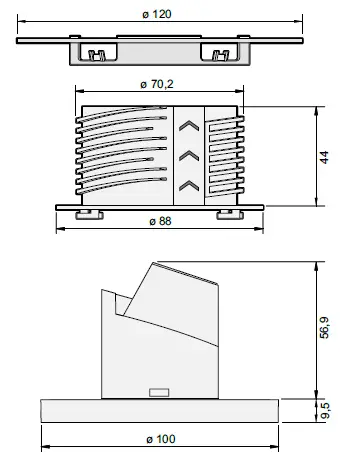

Dimensions

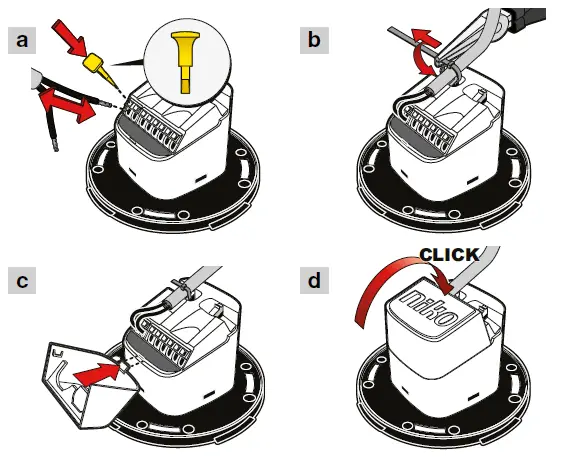

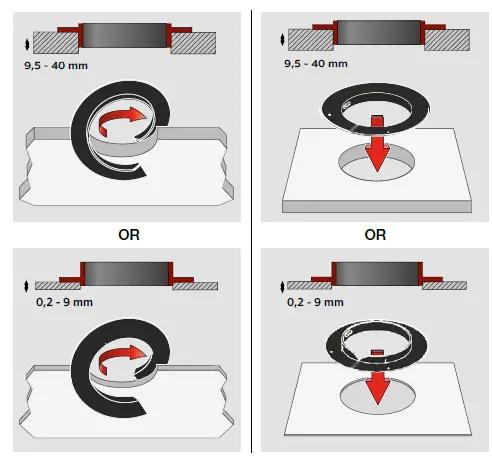

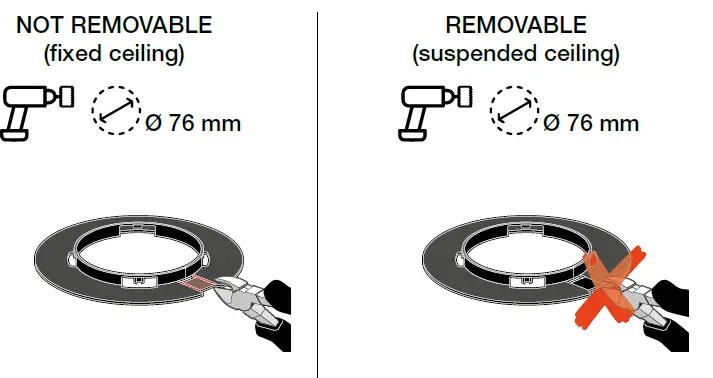

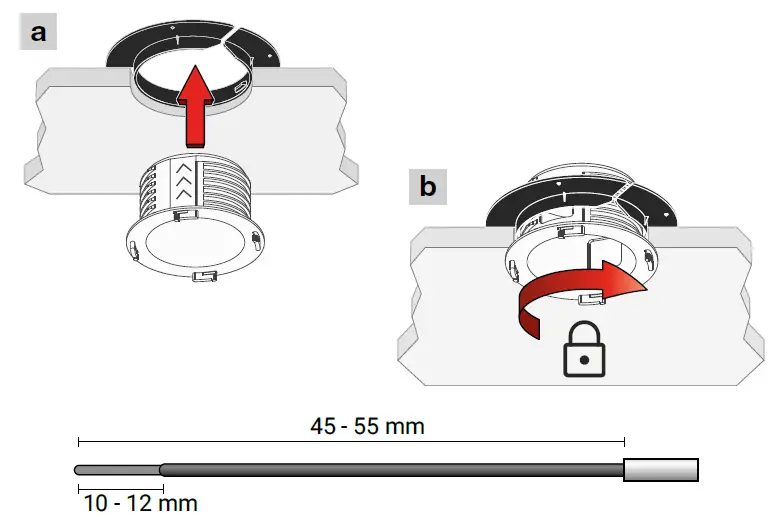

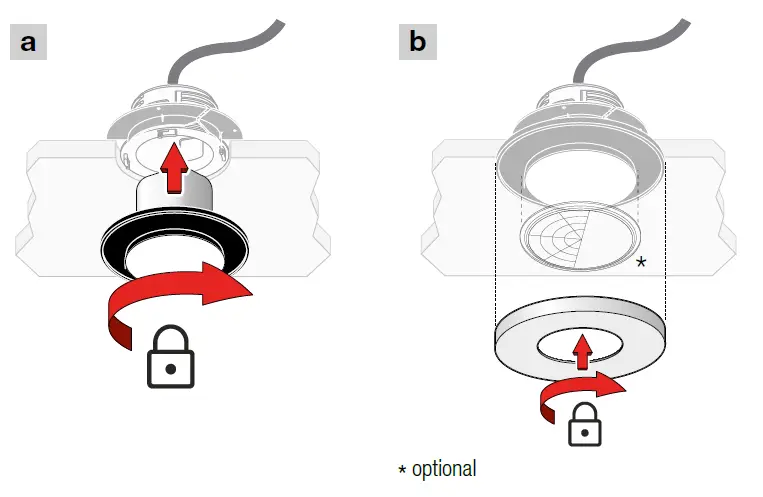

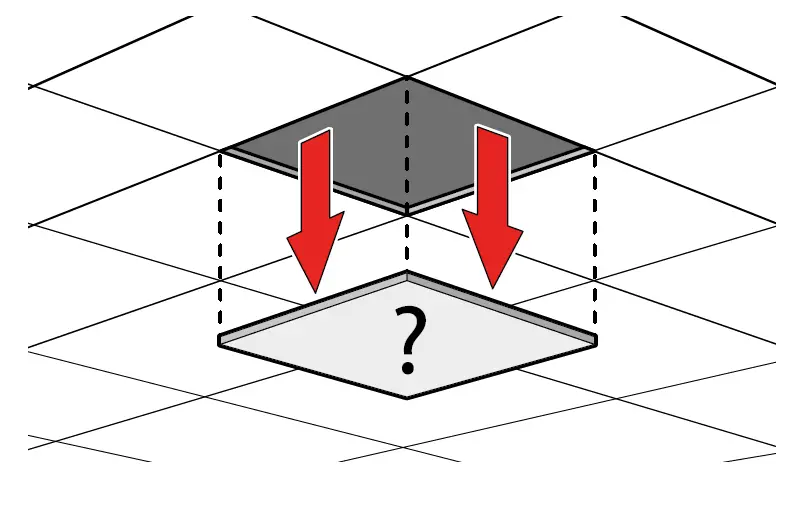

Installation
App settings
| Factory settings | Switch ON/OFF | 500 lux | 15 min |
LED behaviour
| Green LED continuous on |  | Connection OK | |
| Green LED breathing |  | Connection OK, overrule ON | |
| Green LED flashing |  | Warming up | Wait |
| Red LED continuous on |  | Error | More info –> detector tool |
| Red LED breathing |  | Warning | |
| Blue LED flashing |  | Walk test active |
Specifications
- Article number 353-601121
- Configuration 230 V Master
- Input voltage 230 Vac ± 10 %, 50 Hz
- Maximum power consumption 0.2 W
- Relay contact NO (max. μ10 A), potential-free
- Maximum load incandescent and halogen lamps (cosφ = 1) 2300 W
- Maximum load fluorescent lamps (cosφ ≥ 0.5) 1200 VA
- Maximum load economy lamps (CFLi) 350 W
- Maximum load LED lamps 230 V 350 W
- Maximum load LED driver 500 VA
- Maximum load electronic transformer 500 VA
- Maximum capacitive load 140 μF
- Maximum switching current 165 A/20 ms or 800 A/200 μs
- Light intensity range 20 – 2000 lux, ∞
- Number of channels 1 channel
- Maximum number of secondary detectors 10
- Switch-off delay pulse, 15 s – 120 min, ∞
- Hysteresis on light intensity + 10%
- Detection angle 360°
- Detection range (PIR) Ø 12 m from a height of 3 m
- Ambient temperature -25 – +40 °C
- Mounting method flush mounting with Snap Fit mounting bracket
- Mounting height 2 – 3.5 m
- Drill diameter 76 mm
- Minimum flush mounting depth 56.9 mm
- Colour white (RAL 9010)
- Dimensions visible (HxWxD) 100 x 100 x 9.5 mm
- Dimensions (HxWxD) 120 x 120 x 66.4 mm
- Wire capacity 1.5/2.5 mm²
- Maximum range Bluetooth® (free field, depending on the device) 50 m
- Operating frequency 2.4 GHz
- Maximum radio frequency power -2 dBm
- Protection degree IP20
- Impact resistance IK02
- Modification of settings app (iOS/Android) and 2-way Bluetooth communication
- Halogen-free yes
- Marking CE

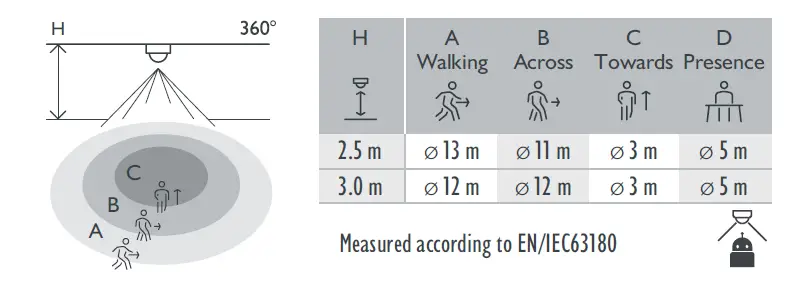

Detection area

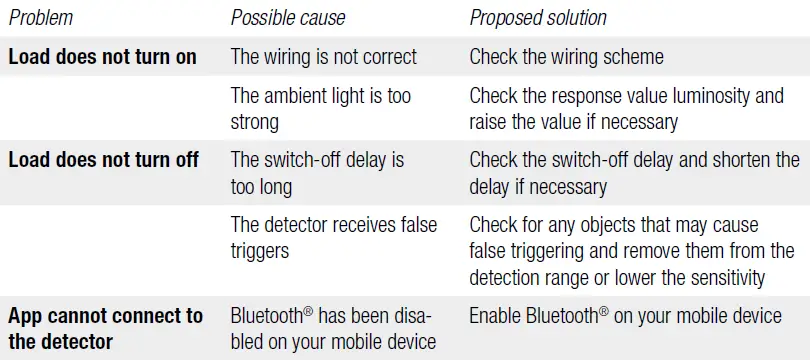

Troubleshooting
