Niko 353-600021 Presence Detector User Manual

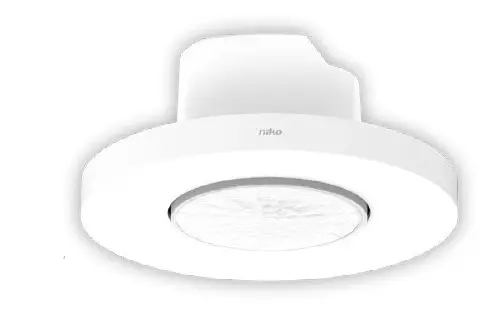

Niko 353-600021 Presence Detector

NOTE: Presence detector P41MR, 230 V, secondary, 12-13 m, 360°, for flush-mounting box

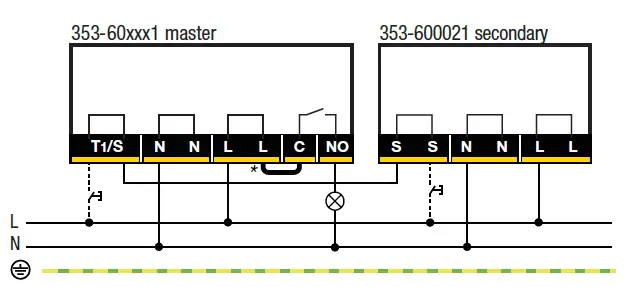

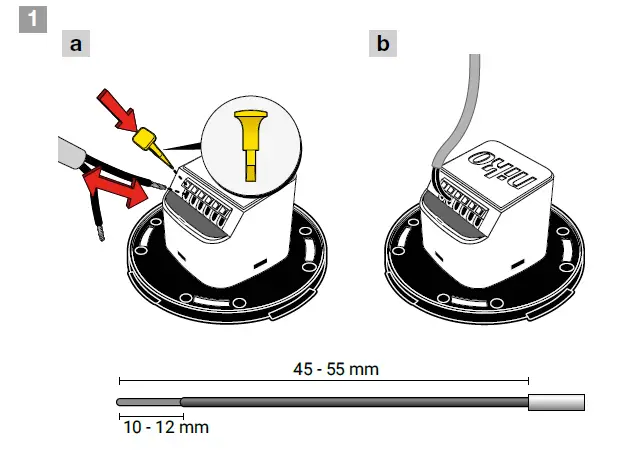

Wiring

remove if you want to use the contact as a dry contact (potential-free)

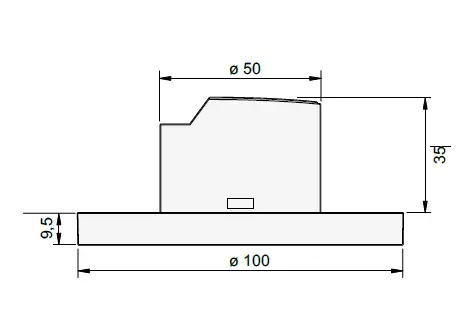

Dimensions

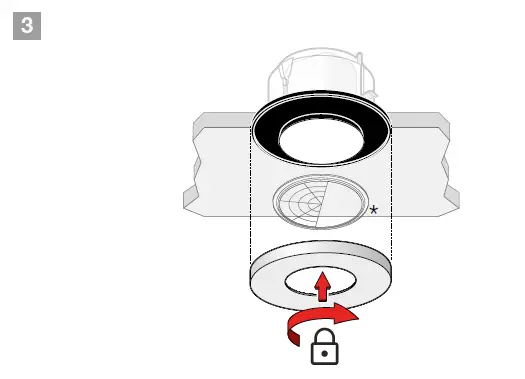

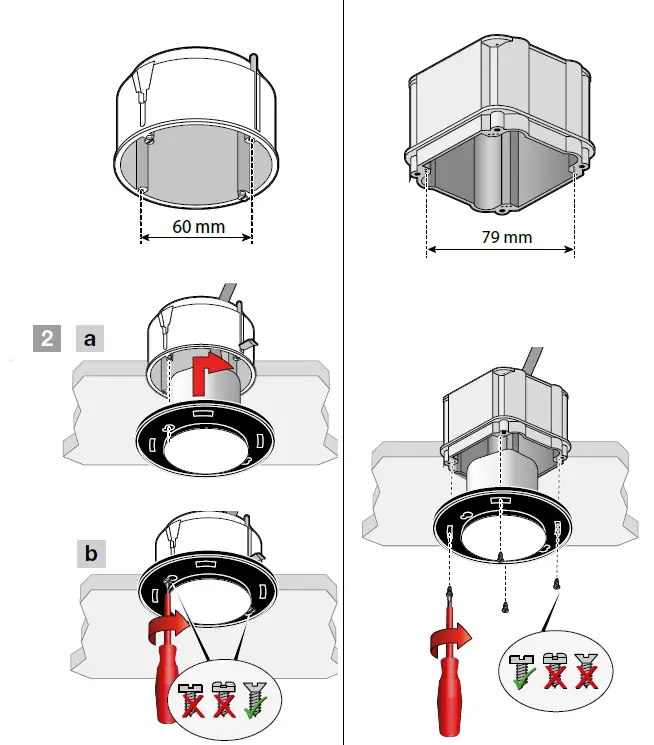

Installation

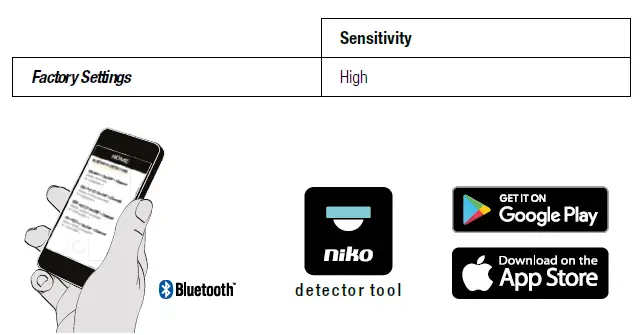

App settings

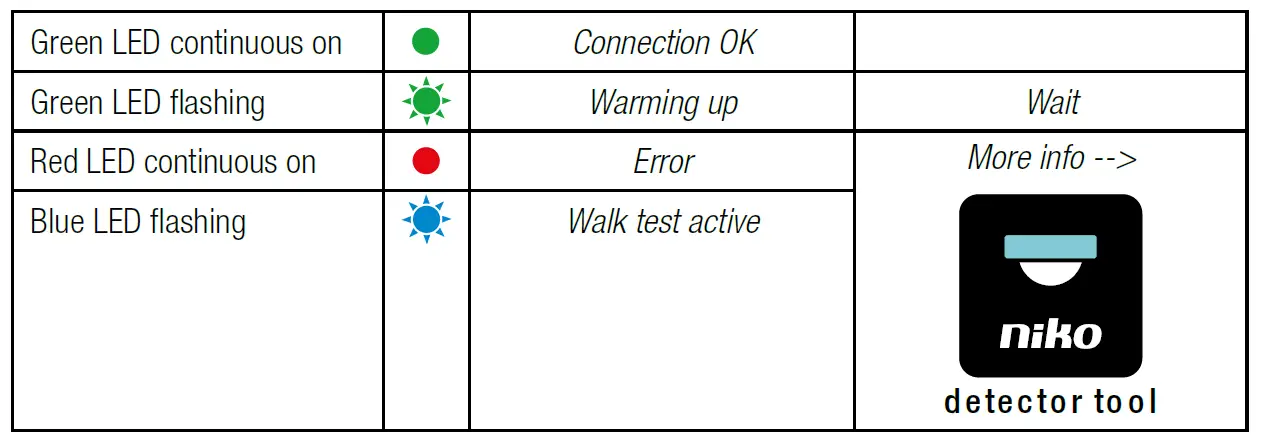

LED behavior

Specifications

• Article number
  353-600021
• Configuration
  230 V Secondary detector
• Input voltage
  230 Vac ± 10 %, 50 Hz
• Maximum power consumption
  0.2 W
• Detection angle
  360°
• Detection range (PIR)
  Ø 12 m from a height of 3 m
• Ambient temperature
  -25 – +40 °C
• Mounting method
  flush-mounting box
• Mounting height
  2 – 3.5 m
• Colour
  white (RAL 9010)
• Dimensions visible (HxWxD)
  100 x 100 x 9.5 mm
• Dimensions (HxWxD)
  100 x 100 x 44.5 mm
• Wire capacity
  1.5/2.5 mm²
• Maximum range Bluetooth® (free field, depending on the device)
  50 m
• Operating frequency
  2.4 GHz
• Maximum radio frequency power
  -2 dBm
• Protection degree
  IP20
• Impact resistance
  IK02
• Modification of settings
  app (iOS/Android) and 2-way Bluetooth® communication
• Halogen-free
  yes
• Marking
  CE

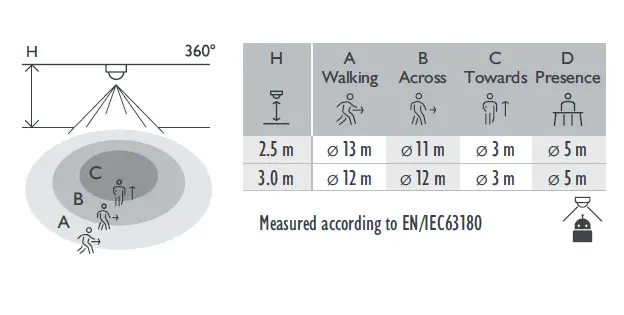

Detection area

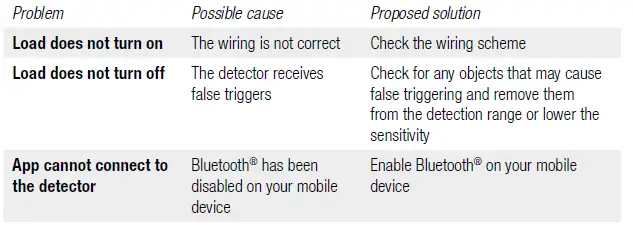

Troubleshooting
