353-751021 Surface Mounted Presence Detector
Instruction Manual
4-year warranty
Ø 76 mm

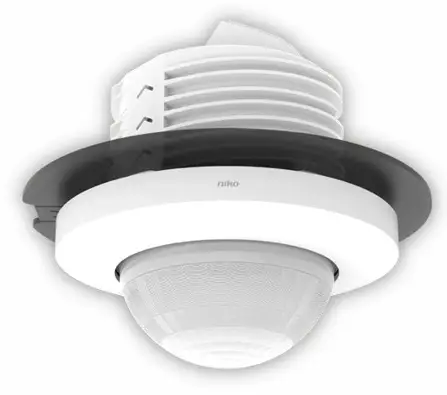

Presence detector P46LR, DALI-2, secondary and BMS, 32-37 m, 360°, SnapFit, or flush mounting

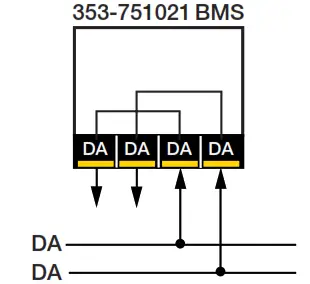

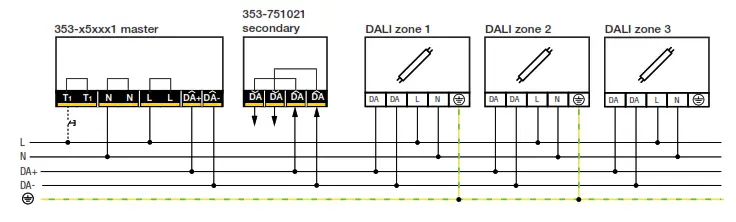

Wiring
230 V/DALI power – OFF
Secondary
BMS

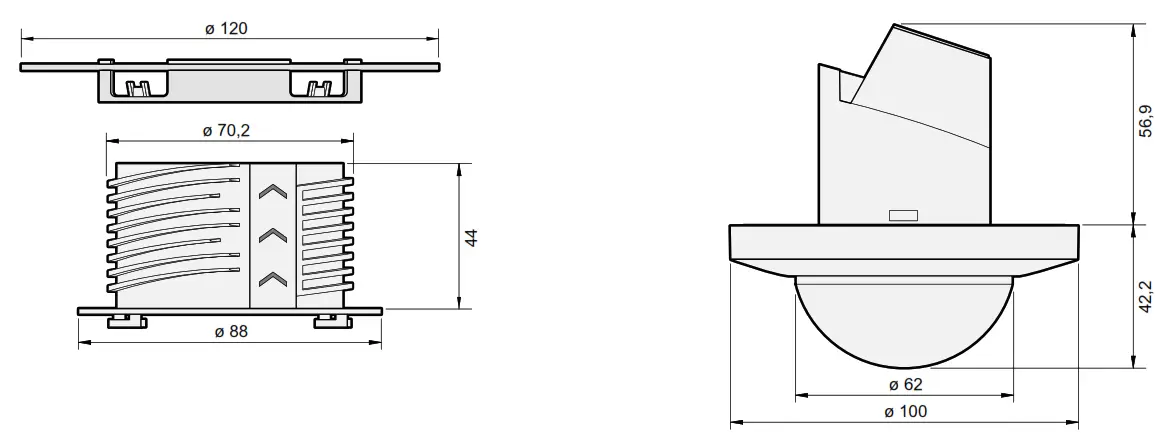

Dimensions

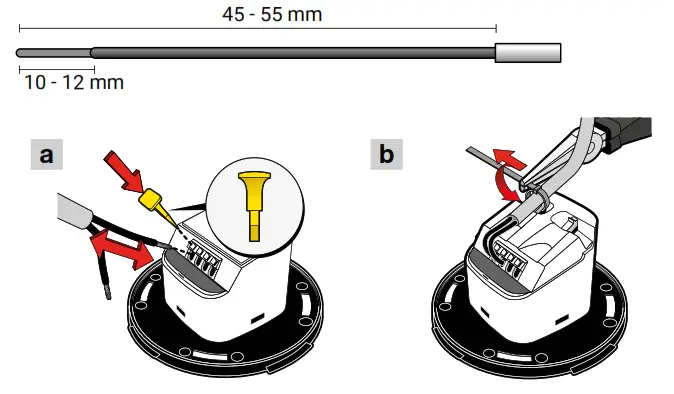

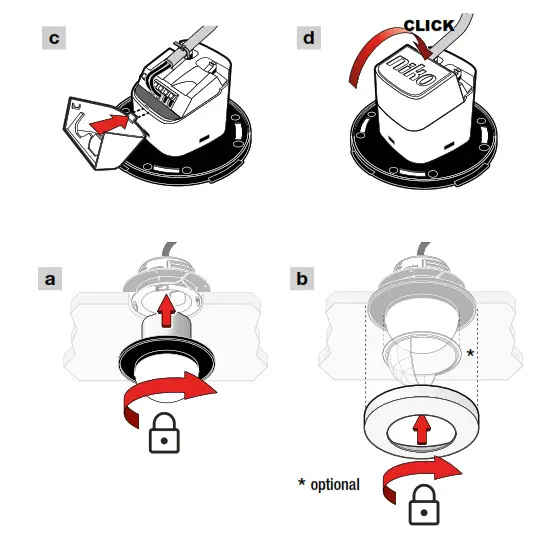

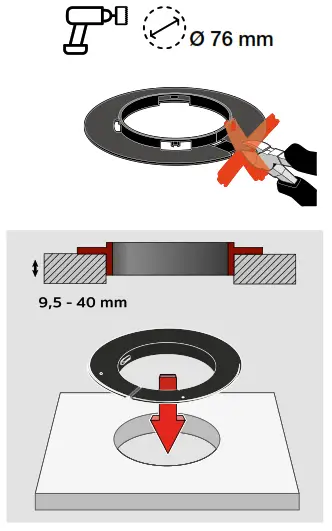

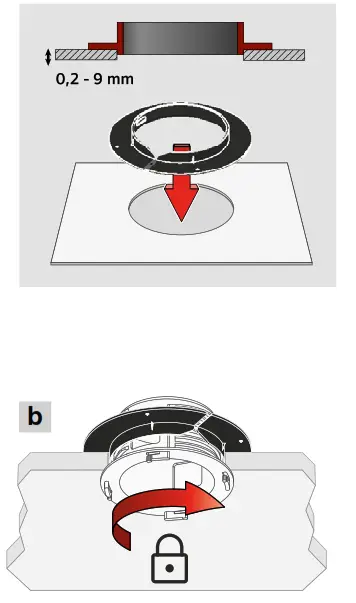

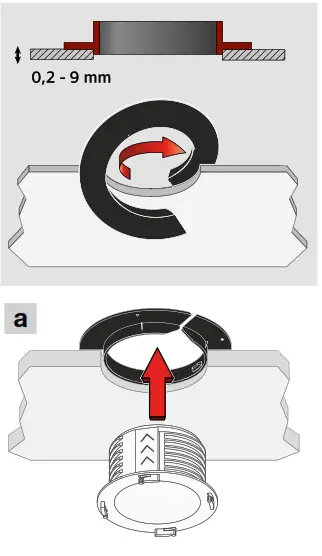

Installation

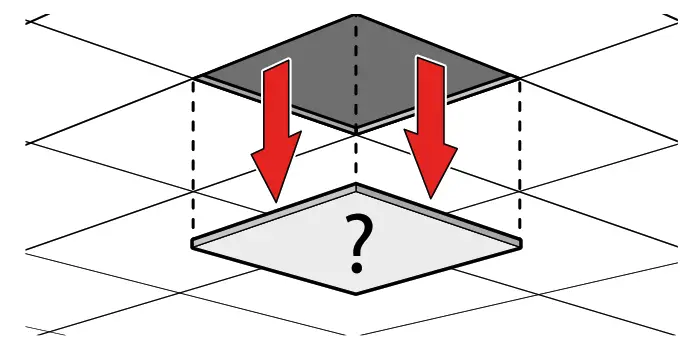

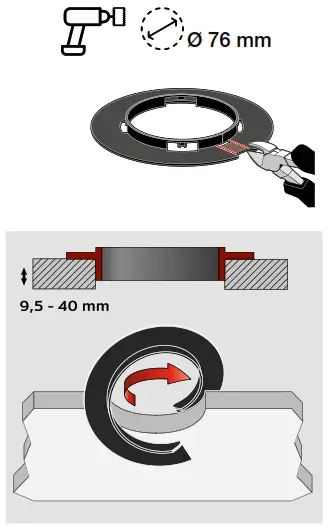

| NOT REMOVABLE (fixed ceiling) | REMOVABLE (suspended ceiling) |
 |  |
 |  |

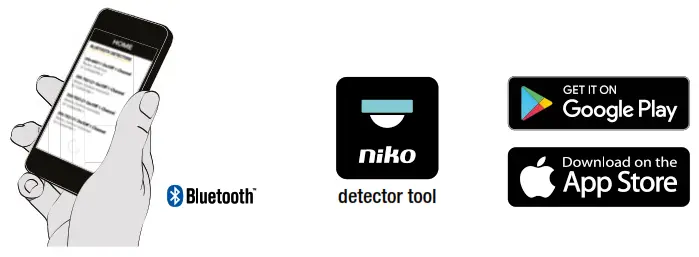

App settings
230 V/DALI power – ON
| Sensitivity | |
| Factory Settings | High |
Settings by BMS software
DALI power – ON
DALI BMS-instellingen
| Table memory bank 2 | |||
| Address | Description | Default value | Memory type |
| 0x00 | Address and last accessible memory location | 0x03 | ROM |
| 0x01 | Indicator byte (manufacture definable) | 0x00 | any |
| 0x02 | Memory bank lock byte (00×55 = Read Only else Read/ Write) | 0xFF | RAM |
| 0x03 | HR sensitivity segment A (MR, LR and HC detectors) 4 = MAX 3 = HIGH 2 = LOW 1 =MIN 0 = OFF | 0x03 | NVM |
| 0x04 | PR sensitivity segment B (LR and HC detectors) 4 = MAX 3 = HIGH 2 = LOW 1 =MIN 0 = OFF | 0x03 | NVM |
| 0x05 | PR sensitivity segment C (LR and HC detectors) 4 = MAX 3 = HIGH 2 = LOW 1 =MIN 0 = OFF | 0x03 | NVM |
| 0x06 | LUX range 0 = NORMAL 0 – 1023 lux, 10-bit 1 = HIGH 0 – 10360 lux, 14 bit | Ox00 | NVM, |
LED behavior
230 V/DALI power – ON
| Green LED continuously on |  | Connection OK | |
| Green LED flashing |  | Warming up | Wait |
| Red LED continuously on |  | Error | More info –> |
| Blue LED flashing |  | Walk test active |
Specifications
| Article number | 353-751021 |
| Configuration | DALI-2 secondary/BMS |
| Input voltage | via the DALI bus |
| Maximum current consumption | 28.1 mA |
| Nominal current consumption (12 V, 25°C) | 8.1mA |
| Maximum startup time DALI | < 1200 ms |
| Maximum PIR detection startup time | 70 s |
| Light intensity range | 0 – 10360 lux (see DALI BMS settings) |
| Detection angle | 360° |
| Detection range (PIR) | ø 37 m from a height of 3 m |
| Ambient temperature | -25 – +40 °C |
| Mounting method | flush mounting with SnapFit mounting bracket |
| Mounting height | 2 – 3.5 m |
| Drill diameter | 76 mm |
| Minimum flush mounting depth | 56.9 mm |
| Colour | white (RAL 9010) |
| Dimensions visible (HxWxD) | 100 x 100 x 42.2 mm |
| Dimensions (HxWxD) | 120 x 120 x 99.1 mm |
| Wire capacity | 1.5/2.5 mm² |
| Protection degree | IP20 |
| Impact resistance | IK04 |
| Modification of settings | pp (iOS/Android) and 2-way Bluetooth ® communication/BMS software |
| Maximum range Bluetooth ® (free field, depending on the device) | 50 m |
| Operating frequency | 2.4 GHz |
| Maximum radio frequency power | – 2 dBm |
| Halogen-free | yes |
| Marking | CE |

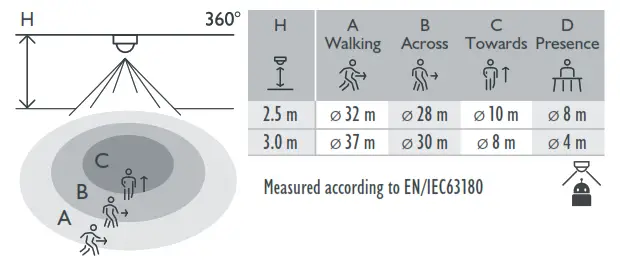

Detection area
Troubleshooting
| Problem | Possible cause | Proposed solution |
| The load does not turn on | The wiring is not correct | Check the wiring scheme |
| The load does not turn off | The detector receives false triggers | Check for any objects that may cause false triggering and remove them from the detection range or lower the sensitivity |
| The app cannot connect to the detector | Bluetooth ® has been disabled on your mobile device | Enable Bluetooth ® on your mobile device |
Support & contact
NV Niko sa
Industriepark West 40
9100 Sint-Niklaas, Belgium
www.Niko.eu
+32 3 778 90 80
[email protected]
