Manual
Presence detector
353-600121

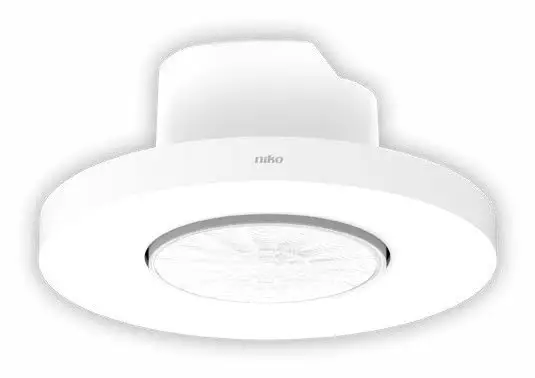

Presence detector P42MR, 230 V, master, 12-13 m, 360°, for flush-mounting box

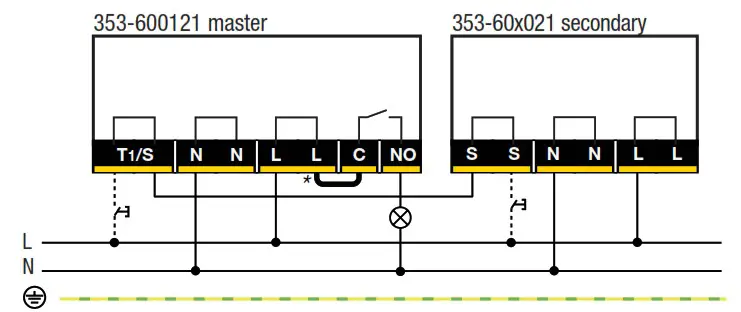

Wiring
230 V – OFF
* remove if you want to use the contact as a dry contact (potential-free)

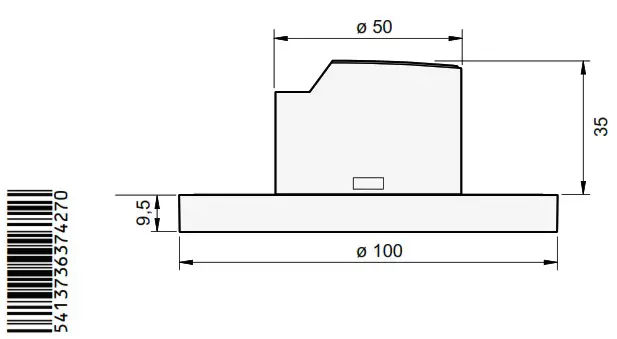

Dimensions

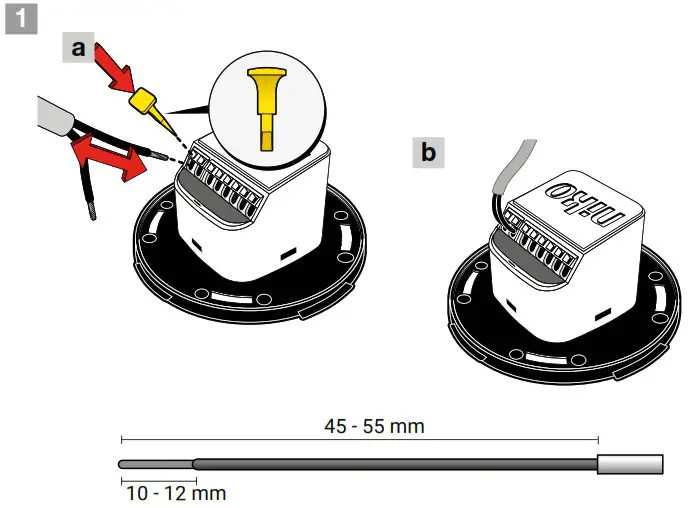

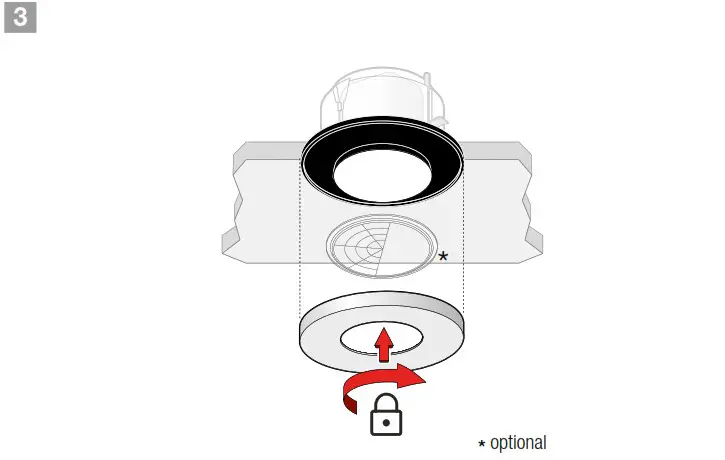

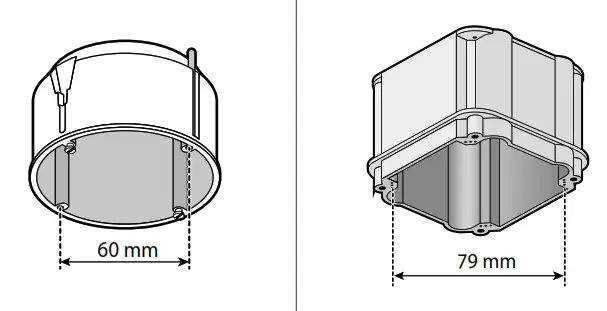

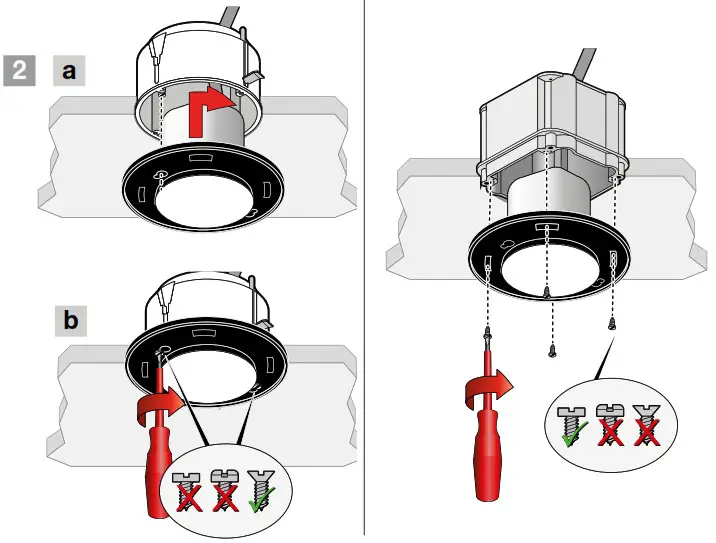

Installation
230 V – OFF

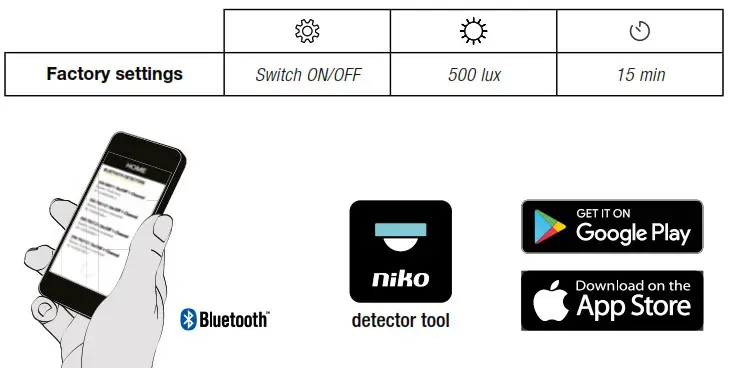

App settings
230 V – ON
LED behaviour
230 V – ON
| Green LED continuous on |  | Connection OK | |
| Green LED breathing |  | Connection OK, overrule ON | |
| Green LED flashing |  | Warming up | Wait |
| Red LED continuous on |  | Error | More info –> |
| Red LED breathing |  | Warning | |
| Blue LED flashing |  | Walk test active |
Specifications
| Article number | 353-600121 |
| Configuration | 230 V Master |
| Input voltage | 230 Vac ± 10 %, 50 Hz |
| Maximum power consumption | 0.2 W |
| Relay contact | NO (max. µ10 A), potential-free |
| Maximum load incandescent and halogen lamps (cosφ | 2300 W |
| Maximum load fluorescent lamps (cosφ ≥ 0.5) | 1200 VA |
| Maximum load economy lamps (CFLi) | 350 W |
| Maximum load LED lamps 230 V | 350 W |
| Maximum load LED driver | 500 VA |
| Maximum load electronic transformer | 500 VA |
| Maximum capacitive load | 140 µF |
| Maximum switching current | 165 A/20 ms or 800 A/200 µs |
| Light intensity range | 20 – 2000 lux, ∞ |
| Number of channels | 1 channel |
| Maximum number of secondary detectors | 10 |
| Switch-off delay | pulse, 15 s – 120 min, ∞ |
| Hysteresis on light intensity | 10% |
| Detection angle | 360° |
| Detection range (PIR) | Ø 12 m from a height of 3 m |
| Ambient temperature | -25 – +40 °C |
| Mounting method | flush-mounting box |
| Mounting height | 2 – 3.5 m |
| Colour | white (RAL 9010) |
| Dimensions visible (HxWxD) | 100 x 100 x 9.5 mm |
| Dimensions (HxWxD) | 100 x 100 x 44.5 mm |
| Wire capacity | 1.5/2.5 mm² |
| Maximum range Bluetooth ® (free field, depending on the device) | 50 m |
| Operating frequency | 2.4 GHz |
| Maximum radio frequency power | -2 dBm |
| Protection degree | IP20 |
| Impact resistance | IK02 |
| Modification of settings | app (iOS/Android) and 2-way Bluetooth® communication |
| Halogen-free | yes |
| Marking | CE |

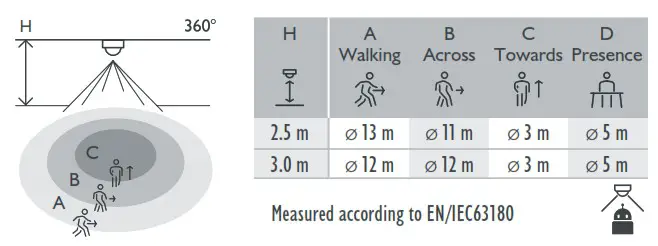

Detection area
Troubleshooting
| Problem | Possible cause | Proposed solution |
| Load does not turn on | The wiring is not correct | Check the wiring scheme |
| The ambient light is too strong | Check the response value luminosity and raise the value if necessary | |
| Load does not turn off | The switch-off delay is too long | Check the switch-off delay and shorten the delay if necessary |
| The detector receives false triggers | Check for any objects that may cause false triggering and remove them from the detection range or lower the sensitivity | |
| App cannot connect to the detector | Bluetooth ® has been disabled on your mobile device | Enable Bluetooth ® on your mobile device |
