Instruction Manual

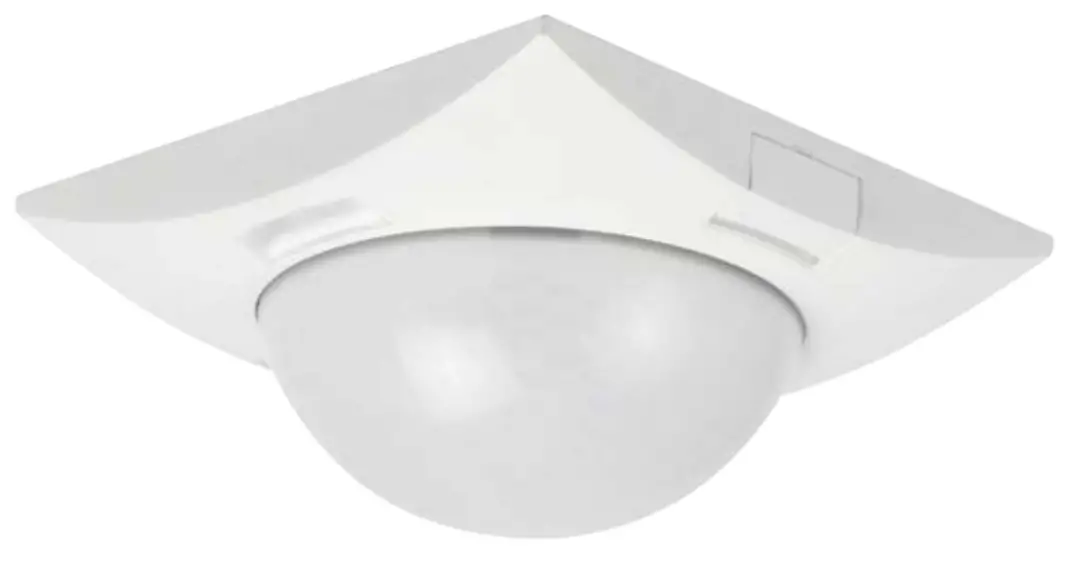

Swiss Garde 360 Presence KNX UP
| JAN | Model | EAN |
| 3505100250319 | SG360P KNX UP | 3.5051E+12 |
| 3505100250203 | SG360P KNX UP | 3.5051E+12 |
Presence detectors 360° KNX for ceiling flush-mounting
The family of Swiss Garde 360 Presence KNX UP presence detectors is characterized by the following outstanding features:
- 1 light output for switching, dimming, or scenery selection.
- 1 HVAC channel controls heating, ventilation, and air conditioning. This output can be used for presence detection. Additionally, alarm systems with parametrizable switch-on delay can be implemented.
- 1 Threshold switch in lux with hysteresis setting
- 1 brightness output in lux (2 Byte)
- 4 Pyro detectors and 4 PIR sensors with a 360° detection area can be activated individually or in groups.
Important notice
The presence detectors Swiss Garde 360 Presence KNX UP is suitable for ceiling mounting indoors only (IP20, class II). In case of errors such as continuous light, uncontrolled switching, etc., please consult page 7 „troubleshooting“.
Function
The presence detector Swiss Garde 360 Presence KNX UP reacts to heat radiation of moving bodies. A person approaching the monitored area automatically triggers the connected light. If no motion is detected again, the light will automatically switch off after a delay time configured in ETS. In case of activated standby, the light will stay on at reduced intensity during the set time period (mode dimming complete/ constant light control).
Installation
Connect the presence detector as follows: red wire (+) to be connected to the red terminal black wire (-) to be connected to the grey terminal
Application notes
A detailed description of the communication objects and all parametrizable functions can be found in the following separate document:
Swiss Garde 360 Presence KNX UP
APPLICATION NOTES
SG360P KNX UP (351- 25031, 25020N)

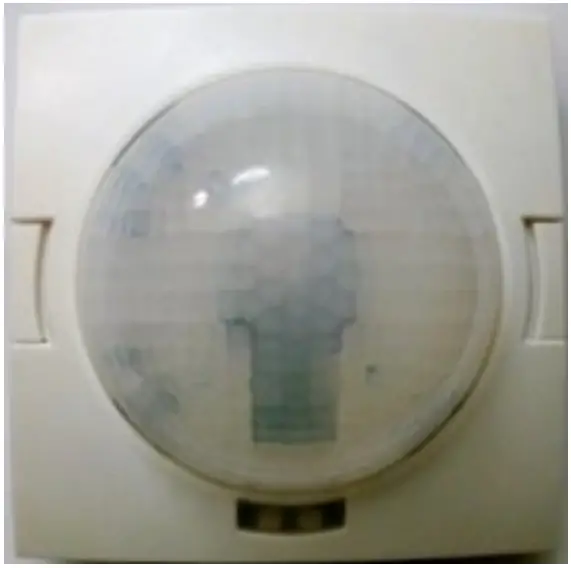

Frontal view

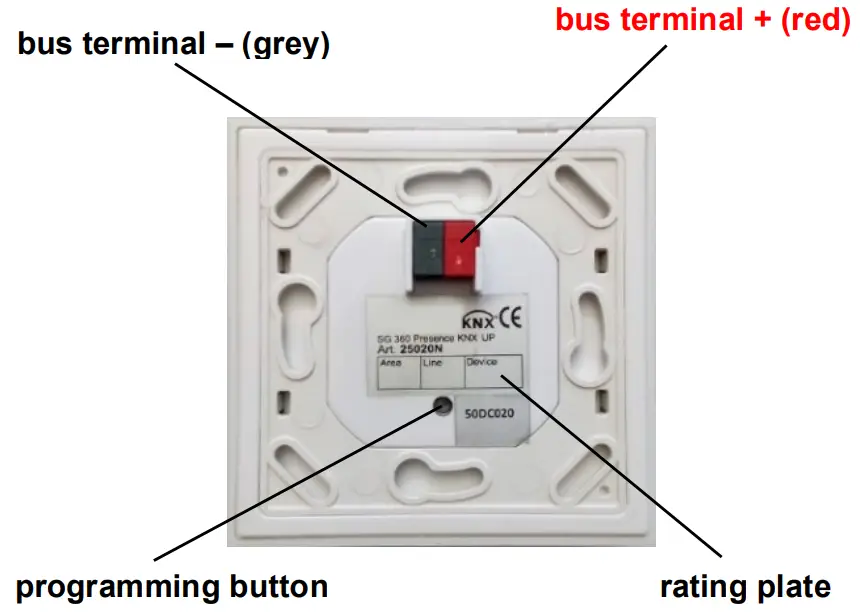

Rearview

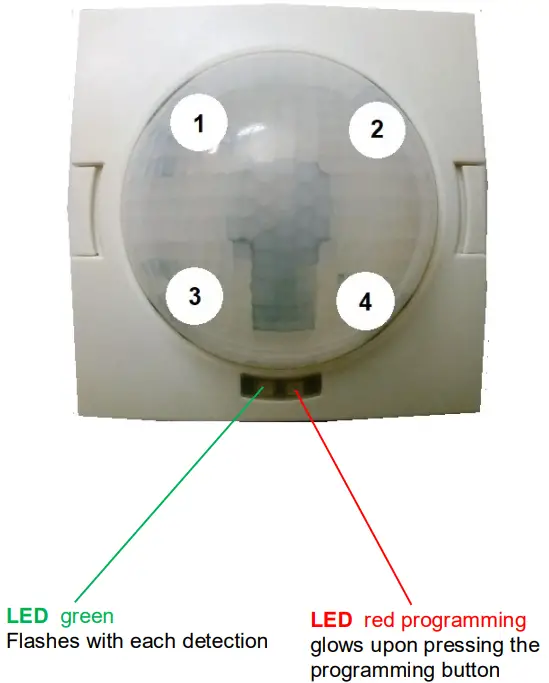

PIR sensors numbering
The PIR sensors 1 2 3 4 can be activated via ETS individually or in groups, using the above numbering scheme.
After KNX/EIB bus connection: the detector takes approx. 1 min. to reach a stable working condition!

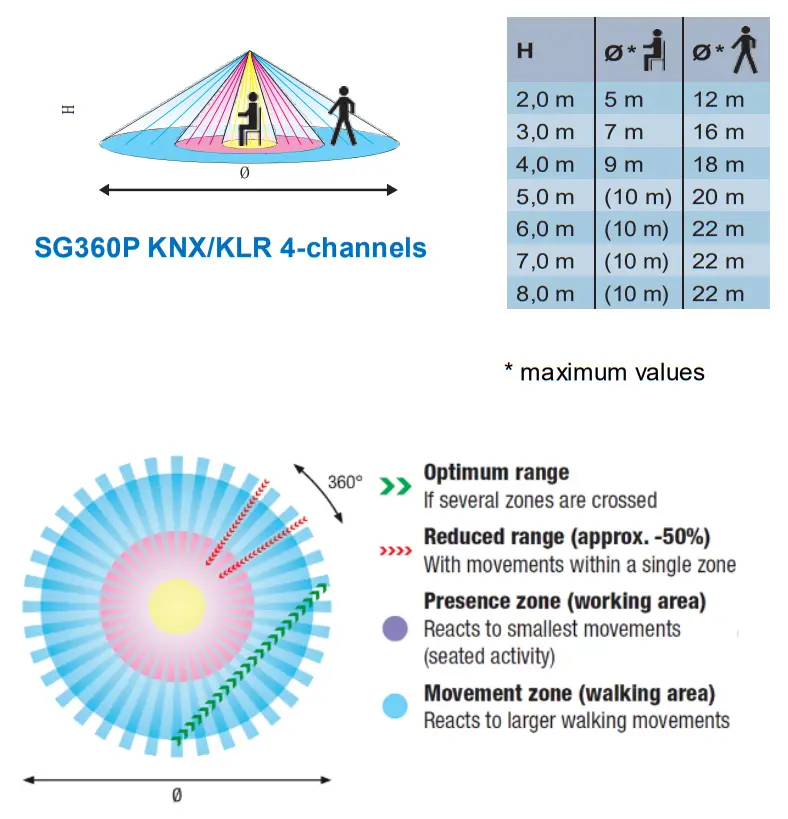

Detection range
The 360° omnidirectional detection range as well as the dense detection area allow for an optimal function. The range depends on the mounting height as well as the angle of approach (high sensitivity when crossing a switching segment). Since the device registers the temperature differences between the source of heat and the ambient temperature, the detection range may vary depending on site conditions (floor heating, etc.).
Troubleshooting
| Error | Cause/remedies |
| load doesn`t switch ON | • twilight value set to high • check light/luminaire/fuses |
| Detector triggers ON and off without reason or the light never turns OFF: | • check the detection area for potential causes of false triggering: animals, heating, etc. may all doing faulty switching • check distances to lamps (heat- reflection or direct light influence) • detector is too sensitive, reduce the detection range sensitivity (1…10) via ETS. |
| Turns the ON during day- time: | • twilight adjustment set to high: set to a lower value via ETS (menu light) |

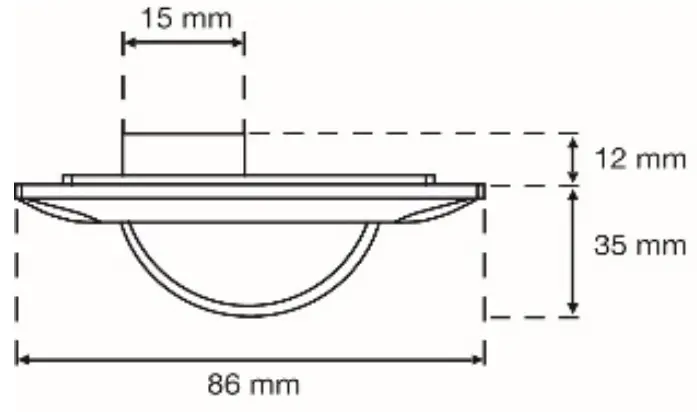

Device dimensions
Technical data
| nominal voltage: | 24V DC (21 – 30V DC) |
| power consumption: | 0,4 W |
| PIR- sensors: | 4 Pyro detectors |
| sensitivity: | adjustable via ETS in 10 steps brightness sensor with linear output |
| light measuring: | value readable (5 – 2000lux, 2 Byte) |
| lux value: | motion and brightness |
| switching criteria: | 360°, ceiling mounted |
| detection range: | Ø7m presence, Ø16m motion |
| range height= 3m: | *(Ø10m presence), Ø22m motion |
| range height= 8m: | 2m – 8m |
| recom. mounting height: | ceiling mounting |
| mounting: | AP- housing |
| available accessory: | IP 20, indoor mounting, class II |
| protection rating: | – 20°C bis +40 °C |
| temperature range: dimensions: | 88 x 88 x 35 mm |
* maximum values
Warnings regarding installation
The installation of products that will permanently be part of the electrical installation and which include dangerous voltages should be carried out by a qualified installer and in accordance with the applicable regulations. This user manual must be presented to the user. It should be included in the electrical installation file and it should be passed on to any new owners. Additional copies are available on the Niko website or via Niko customer services.
CE marking
This product complies with all of the relevant European guidelines and regulations. For radio equipment, Niko LLC declares that the radio equipment in this manual conforms with the 2014/53/ EU directive. The full text of the EU declaration of conformity is available at www.niko.eu under the product reference, if applicable.
Environment
This product and/or the batteries provided cannot be disposed of in the non-recyclable waste. Take your discarded product to a recognized collection point. Just like producers and importers, you too play an important role in the promotion of sorting, recycling, and reuse of discarded electrical and electronic equipment. To finance rubbish collection and waste treatment, the government levies recycling charges in certain cases (included in the price of this product).
PM25020NR21503_EN
