Altronix T2mk7716d Trove2 Enclosure 16-door Panel Kit Installation Guide

Altronix T2MK7716D Trove2 Enclosure 16-Door Panel Kit Installation Guide

Altronix Trove2/Mercury Kits with PTC Outputs

T2MK34D
Fully assembled 4 door kit includes:

• Trove2 enclosure with
  TM2 Altronix/Mercury backplane
• (1) AL600ULXB – Power Supply/Charger
• (1) ACM4CB – PTC Access Power Controller
• (1) VR6 – Voltage Regulator
• (1) PDS8CB – Dual Input PTC Power Distribution Module

T2MK38D
Fully assembled 8 door kit includes:

• Trove2 enclosure with
  TM2 Altronix/Mercury backplane
• (1) AL600ULXB – Power Supply/Charger
• (1) ACM8CB – PTC Access Power Controller
• (1) VR6 – Voltage Regulator
• (1) PDS8CB – Dual Input PTC Power Distribution Module

T2MK78D
Fully assembled 8 door kit includes:

• Trove2 enclosure with
  TM2 Altronix/Mercury backplane
• (1) AL1024ULXB2 – Power Supply/Charger
• (1) ACM8CB- PTC Access Power Controller
• (1) VR6 – Voltage Regulator
• (1) PDS8CB – Dual Input PTC Power Distribution Module

T2MK7516D
Fully assembled 16 door kit includes:

• Trove2 enclosure with TM2 Altronix/Mercury
  backplane and TMV2 door backplane
• (1) AL1024ULXB2 – Power Supply/Charger
• (1) AL1012ULXB – Power Supply/Charger
• (2) ACM8CB – PTC Access Power Controllers
• (1) PD16WCB – PTC Power Distribution Module

T2MK7716D
Fully assembled 16 door kit includes:

• Trove2 enclosure with TM2 Altronix/Mercury backplane and TMV2 door backplane
• (2) AL1024ULXB2 – Power Supply/Chargers
• (2) ACM8CB – PTC Access Power Controllers
• (1) VR6 – Voltage Regulator
• (1) PDS8CB – Dual Input PTC Power Distribution Module

All components of these Trove kits are UL Listed sub-assemblies.
Please refer to the included corresponding Sub-Assembly Installation Guides for further information.

Installation Guide

All registered trademarks are property of their respective owners.

• Rev. TMKDL111121
• Installing Company:
• Service Rep. Name:
• Address:

• Phone:

Overview:
Altronix Trove Mercury kits are pre-assembled and consist of Trove2M2 enclosure with factory installed Altronix power supply/charger(s) and sub-assemblies.
These kits also accommodate various combinations of Mercury boards for up to sixteen (16) doors in a single enclosure.

Configuration Chart:

Installation Instructions

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction.

Product is intended for indoor use only.

1. Remove backplane(s) from enclosure. Do not discard hardware.
2. Mark and predrill holes in the wall to line up with the top three keyholes in the enclosure. Install three upper fasteners and screws in the wall with the screw heads protruding. Place the enclosure’s upper keyholes over the three upper screws, level and secure. Mark the position of the lower three holes. Remove the enclosure. Drill the lower holes and install the three fasteners. Place the enclosure’s upper keyholes over the three upper screws. Install the three lower screws and make sure to tighten all screws.

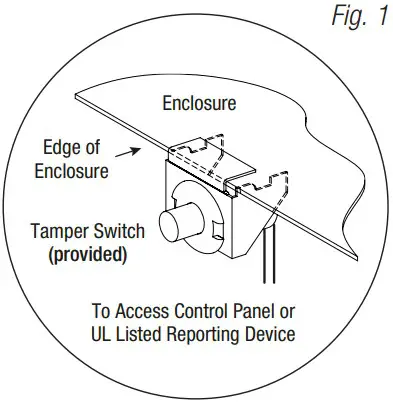

3. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) in desired location, opposite
   hinge. Slide the tamper switch bracket onto the edge of the enclosure approximately 2” from the right side
   (Fig. 1, pg. 2). Connect tamper switch wiring to the Access Control Panel input or the appropriate UL Listed
   reporting device. To activate alarm signal open the door of the enclosure.
4. Refer to the ULXB Power Supply/Charger Installation Guide for AL600ULXB, AL1012ULXB and AL1024ULXB2 and Sub-Assembly Installation Guide for the following models: ACM4CB, ACM8CB, PDS8CB, VR6 for further installation instructions.
5. Fasten snap on spacers onto metal pems configuration of backplane depending on the Mercury access controller (Fig. 2-5, pg. 3-6).
6. Position Mercury access controller module over corresponding spacers and depress onto snap on spacers (Fig. 2-5, pg. 3-6).
7. Mount back plane to enclosure with hardware.


T2MK34D and T2MK38D Configuration of Mercury Boards:

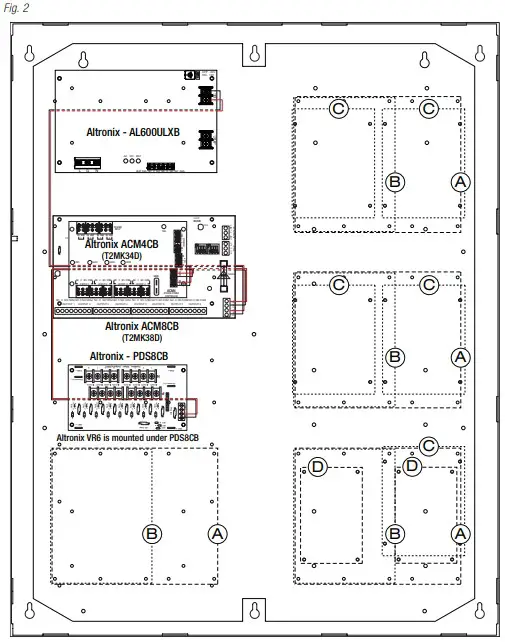

1. Fasten snap on spacers onto metal pems configuration (A), (B), (C) or (D) of backplane depending on the access controller (Fig. 2, pg. 3).

2. Position access controller module over corresponding spacers and depress onto snap on spacers (Fig. 2a, pg. 3).

3. Mount backplane to enclosure with hardware.

Access Controller Position Chart for the Following Models:

T2MK78D: Configuration of Mercury Boards:

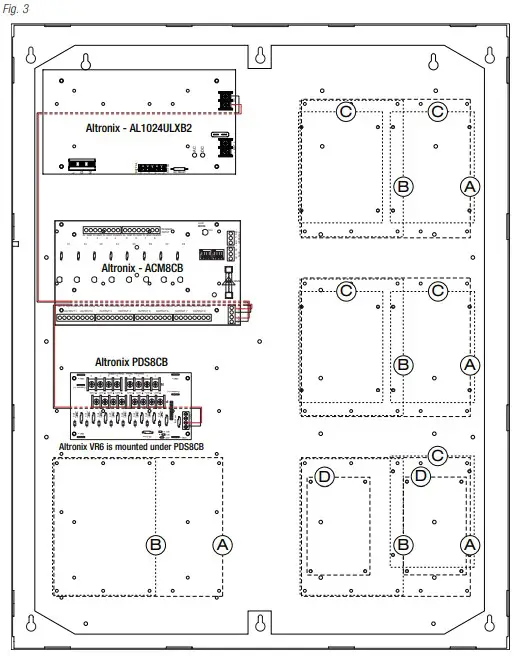

1. Fasten snap on spacers onto metal pems configuration (A), (B), (C) or (D) of backplane depending on the access controller (Fig. 3, pg. 4).

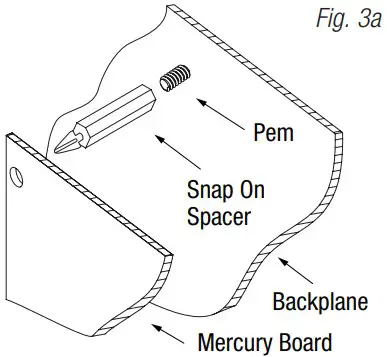

2. Position access controller module over corresponding spacers and depress onto snap on spacers (Fig. 3a, pg. 4).

3. Mount back plane to enclosure with hardware.

Access Controller Position Chart for the Following Models:

T2MK7516D: Configuration of Mercury Boards:

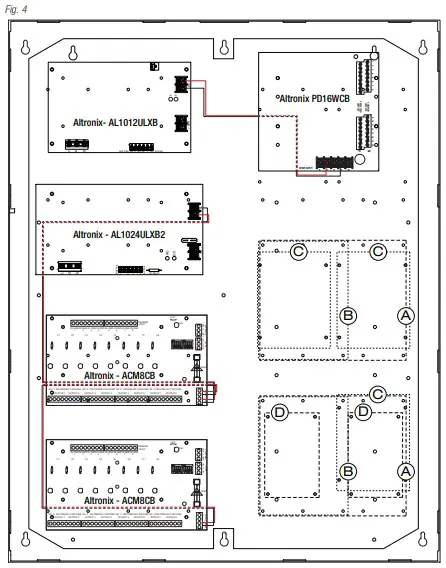

1. Fasten snap on spacers onto metal pems configuration (A), (B), (C) or (D) of backplane depending on the access controller (Fig. 4, pg. 5).

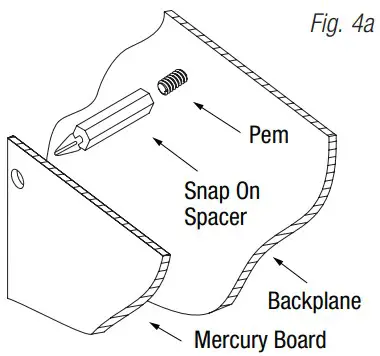

2. Position access controller module over corresponding spacers and depress onto snap on spacers (Fig. 4a, pg. 5).

3. Mount backplane to enclosure with hardware.

Access Controller Position Chart for the Following Models:

T2MK7716D: Configuration of Mercury Boards:

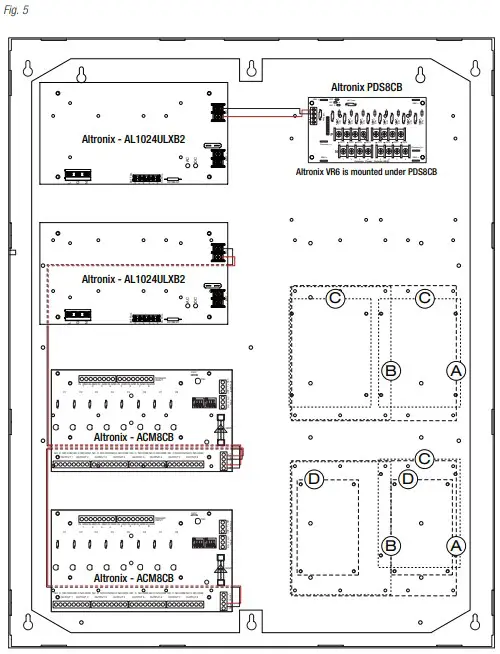

1. Fasten snap on spacers onto metal pems configuration (A), (B), (C) or (D) of backplane depending on the access controller (Fig. 5, pg. 6).

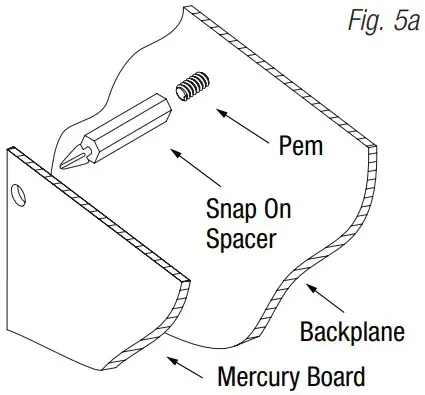

2. Position access controller module over corresponding spacers and depress onto snap on spacers (Fig. 5a, pg. 6).

3. Mount backplane to enclosure with hardware.

Access Controller Position Chart for the Following Models:

TMV2 (T2MK7516D and T2MK7716D):
TMV2 accommodates a variety of Mercury boards with or without Altronix sub-assemblies for access systems

Configuration of Mercury and/or Altronix Boards

Mercury Access Controllers:

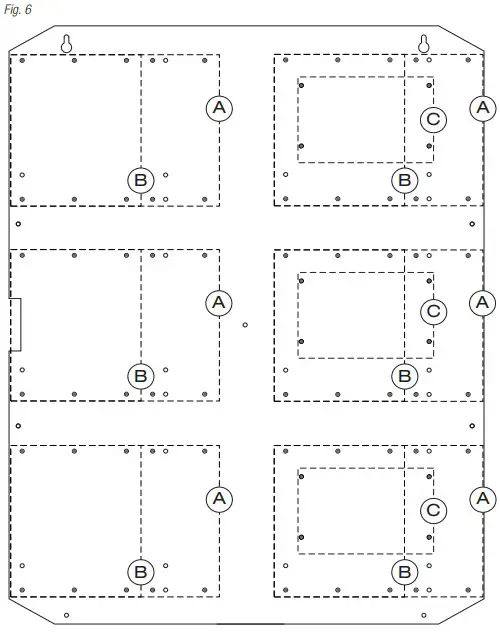

1. Fasten spacers onto metal pems configuration (A) (B) of backplane depending on the access controller (Fig. 6, pg. 7).

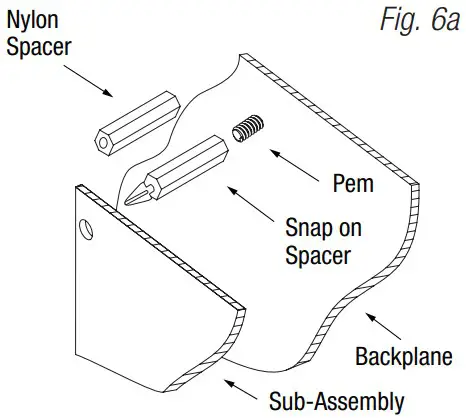

2. Position access controller module over corresponding spacers and depress onto snap on spacers (Fig. 6a, pg. 7).
3. Mount backplane to enclosure with hardware.


Altronix Sub-Assemblies and/or Adapters:

1. Fasten spacers to pems which match the hole pattern (C) for Altronix Sub-Assemblies (Fig. 6, 6a, pg. 7).
2. Mount boards to spacers utilizing pan head screws provided with the product (Fig. 6, pg. 7)


Access Controller Position Chart for the Following Models:

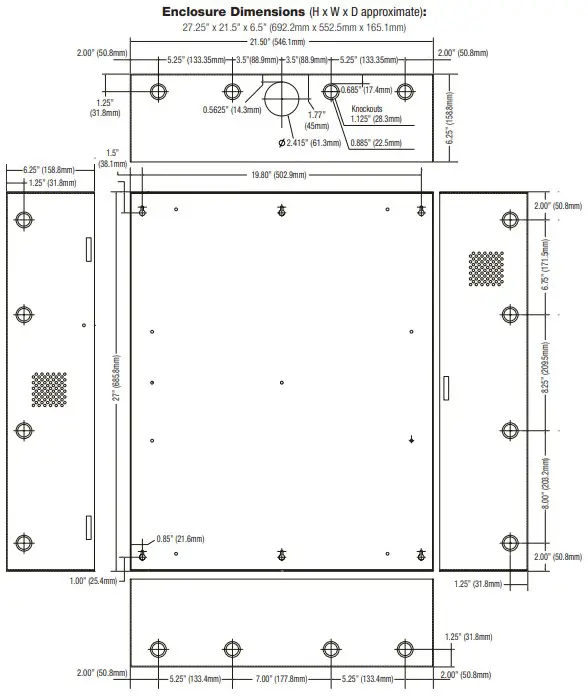

Dimensions

Support

Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
web site: www.altronix.com | e-mail: [email protected] | Lifetime Warranty
