Monogram Zk1sn189nlh Series Stainless Steel Door Panel Kit Installation Guide

Installation Instructions
Stainless Steel Door Panel Kit

ZK1SN189NLH Series Stainless Steel Door Panel Kit

Before you begin – Read these instructions completely and carefully.
Note to Installer: Be sure to leave these instructions with the Consumer.

WARNING
Tip Over Hazard.
These appliances are top heavy, especially with any doors open, and must be secured to prevent tipping forward which could result in death or serious injury. Read and follow the entire installation instructions for securing the appliance with the anti-tip system before installing door panel kit.

Note to Consumer: Keep these instructions with your Installation Instructions for future reference.

WARNING
Door Trim Pinch Point Hazard
Improper installation can lead to a finger pinch point hazard between the side door trim and the cabinets when operating the door, especially with children. To minimize this risk you must follow the installation instructions for cabinet dimensions, trim assembly, and door stop angle.

This kit provides for the installation of the Stainless Steel Door Panel Assemblies and Stainless Steel Toe Kicks

Tools and Materials Required:
T10, T20 and T30 Torx driver / bits

INSTALL STAINLESS PANEL

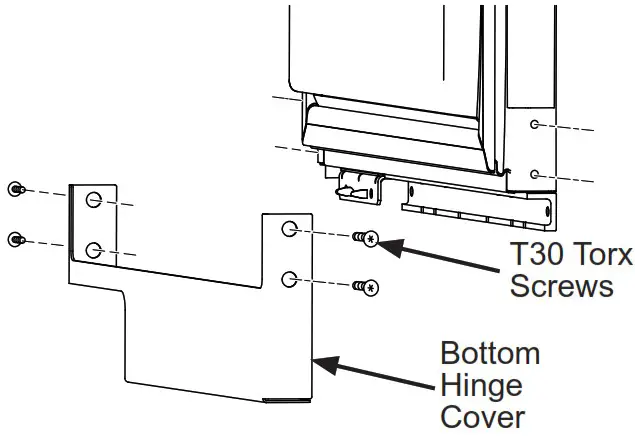

• Remove bottom hinge cover and retain the 4 T30 Torx screws for later installation.

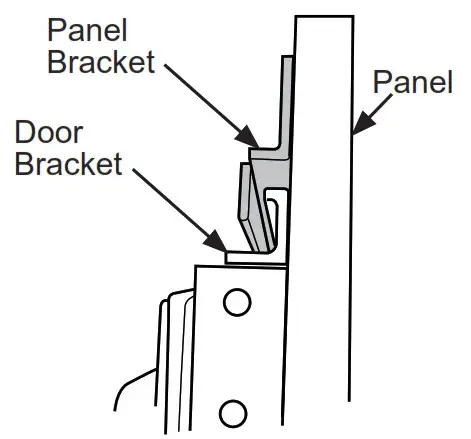

• Open door to 90°. Slide the panel onto the door with the panel brackets interlocking on top and bottom with the door brackets (make sure not to slide the panel into the cabinetry surround). Center the panel on the door, then slowly close the door while watching to make sure the panel does not contact the surrounding cabinetry.

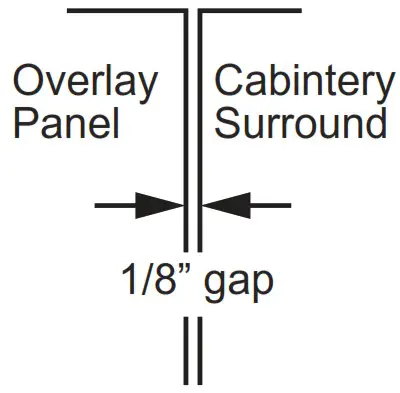

• With the door fully closed, carefully slide the panel towards the cabinetry with the goal gap of 1/8”.
  FOLLOW THE REMAINDER OF THE STAINLESS DOOR PANEL INSTALLATION INSTRUCTIONS IN THE UNIT INSTALLATION INSTRUCTIONS TO ADJUST AND SECURE THE DOOR PANEL.

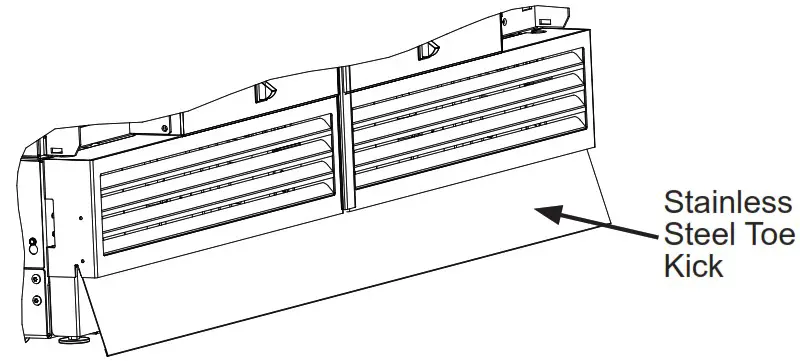

INSTALL TOE KICK

• Insert Toe Kick into the slot in the Front Access Cover by rotating it toward you.
• Push the bottom portion of the Toe Kick towards the product and slide into place.


Instructions for this kit are also included in the full installation instructions included with the unit.
For the full owner’s manual, visit our website at monogram.com.

31-1000699 Rev. 0
01-23 GEA
Printed in the United States
