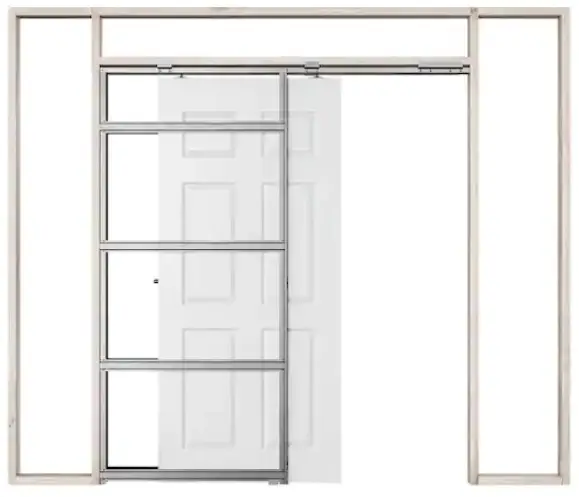

HOMEDEPOT RUSGC008132032 80 Inch Steel Single Pocket Door Frame System User Guide

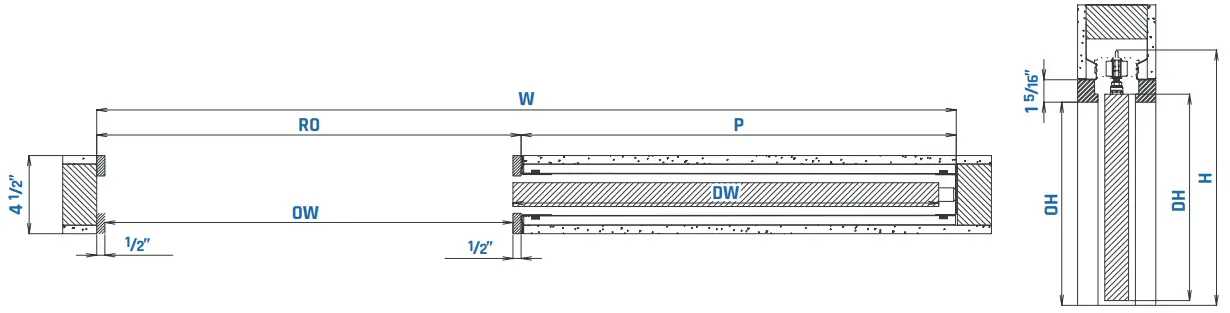

Dimension
SIZE CHART | ||||||||
| DW | OH | STUD | RO | P | W | H | OW | OH |
| 24″ | 80″ | 2×4 | 24″ | 24 5/8″ | 48 5/8″ | 82 3/4″ | 23″ | 79 7/8″ |
| 28″ | 80″ | 2×4 | 27 5/8″ | 28 5/8″ | 56 1/4″ | 82 3/4″ | 26 3/4″ | 79 7/8″ |
| 30″ | 80″ | 2×4 | 29 3/4″ | 30 5/8″ | 60 3/8″ | 82 3/4″ | 28 3/4″ | 79 7/8″ |
| 32″ | 80″ | 2×4 | 31 3/4″ | 32 5/8″ | 64 3/8″ | 82 3/4″ | 30 3/4″ | 79 7/8″ |
| 34″ | 80″ | 2×4 | 33 3/4″ | 34 5/8″ | 68 3/8″ | 82 3/4″ | 32 3/4″ | 79 7/8″ |
| 36″ | 80″ | 2×4 | 35 5/8″ | 36 5/8″ | 72 1/4″ | 82 3/4″ | 34 5/8″ | 79 7/8″ |
Support
Rocket Door Frames Inc.
75 Jackson Street, Suite 100
Newnan, Georgia 30263
T: 770-252-2661
F: 888-570-3758
[email protected]
www.rocketdoorframes.com
