Finesse™ Quick Install™
Frameless sliding bath door
5325EZ-57

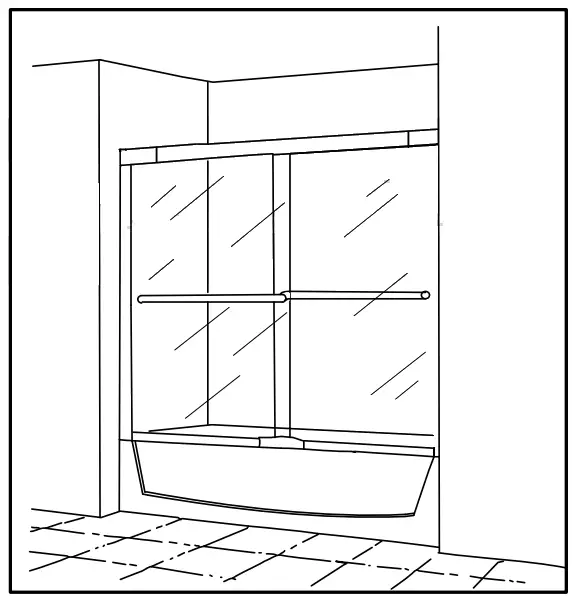

5325EZ-57 Frameless Sliding Bath Door
Features
- Frameless.
- 1/4″ (6 mm) thick tempered glass.
- CleanCoat®+ glass coating creates a hydrophobic barrier that repels water, soap scum, and residue, saving time and protecting shower doors 10 times longer than riginal CleanCoat. (Based on 2021 internal wear/abrasion testing using a microfiber cloth.)
- Interior and exterior towel bars complete the look of this door.
- Tempered glass ensures enhanced safety and durability.
Material
- Anodized aluminum prevents rust and corrosion.
Technology
- Quick Install system.
Installation
- Out-of-plumb adjustability simplifies installation.
- Not for use in hospitality.
- For residential use only.
Included Components
Additional Components: Hardware kit hex wrench
Codes/Standards
ANSI Z97.1
CPSC 16CFR 1201
STERLING® Warranty – Bath and Shower Doors
See website for detailed warranty information.
Available Glass Options
Code Description
Clear
Lake Mist™

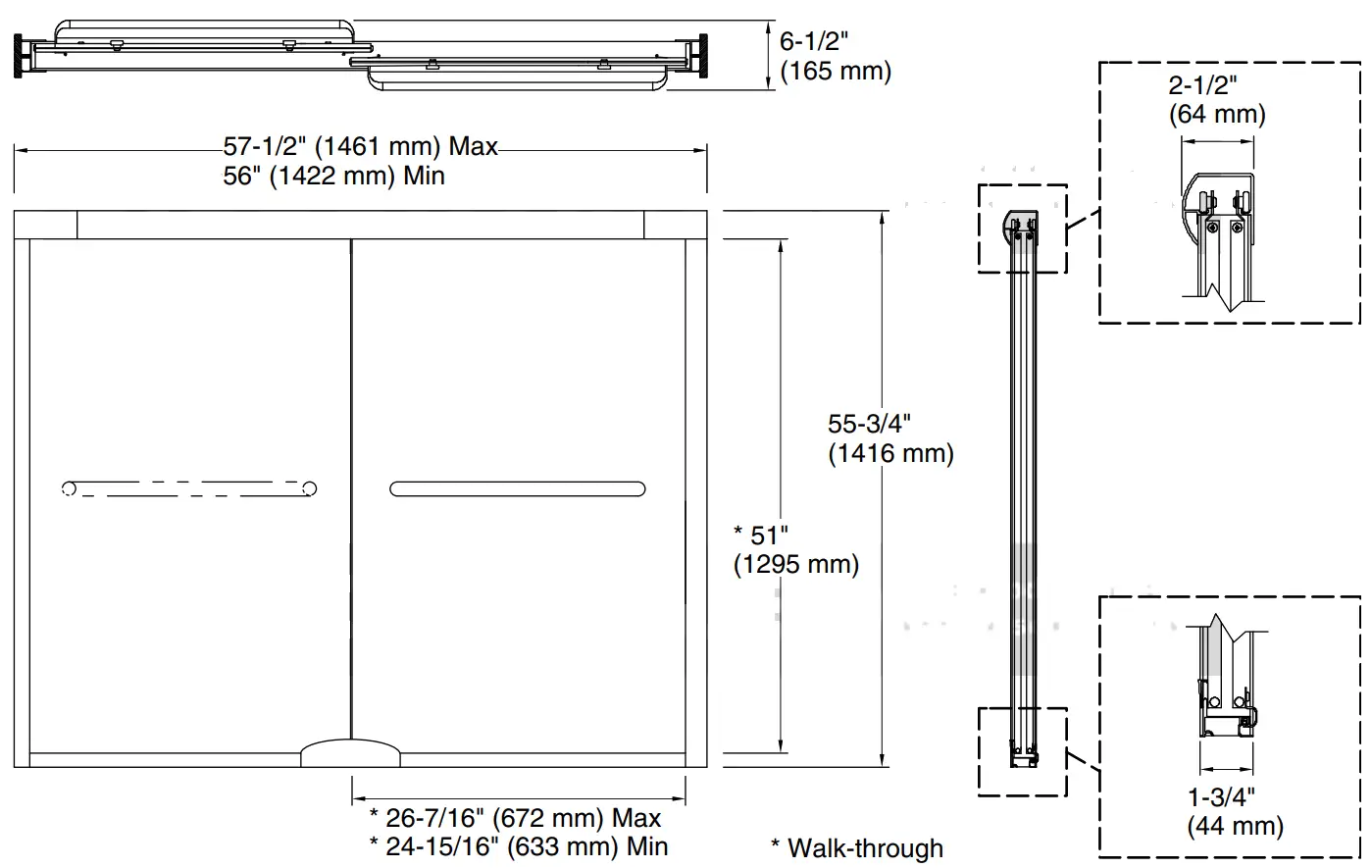

Technical Information
All product dimensions are nominal.
| Installation type: | For bath installation |
| Opening Width Min: | 56″ (1422 mm) |
| Opening Width Max: | 56″ (1422 mm) |
| Walk-through – Min: | 24-15/16″ (633 mm) |
| Walk-through – Max: | 26-7/16″ (672 mm) |
| Glass thickness: | 1/4″ (6 mm) |
| Glass coating: | CleanCoat® |
Notes
Install this product according to the installation guide.
The vertical opening should be a minimum of 57-3/4″ (1467 mm) to allow for installation clearance.
1-800-STERLING (1-800-783-7546)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.sterlingplumbing.com.
8-23-2022 21:39 – US/CA
