STERLING 5975-59 Deluxe Framed Sliding Shower Door

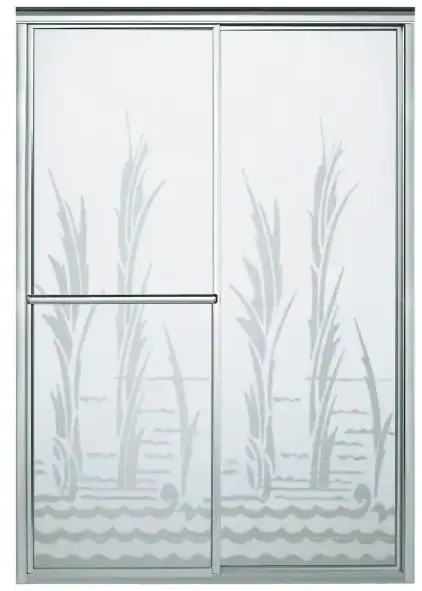

STERLING-5975-59-Deluxe-FramedSliding-Shower-Door-PRODUCT

Features

  • Framed, 1/8″ (3 mm) thick tempered glass.
  • Towel bar.
  • Tempered glass ensures maximum safety and durability.

Material

  • Anodized aluminum prevents rust and corrosion.

Installation

  • Out-of-plumb adjustability simplifies installation.
  • Not for use in hospitality.
  • For residential use only.

Recommended Products/Accessories

  • K-23723 Faucet cleaner

Included Components

  • Additional Components: Hardware kit

Codes/Standards

  • ANSI Z97.1
  • CPSC 16CFR 1201

STERLING® Warranty – Bath and

Shower Doors
See the website for detailed warranty information.
Available Colors/Finishes
Color tiles are intended for reference only.

Color Code Description

  • S Silver
  • N Nickel
  • N Nickel
  • N Nickel
  • S Silver

Available Glass Options

Code Description

Birchwood®
Ellipse
Rain
Templar™

DimensionSTERLING-5975-59-Deluxe-FramedSliding-Shower-Door-FIG-1

Technical Information

All product dimensions are nominal.

  • Installation type: For shower base installation
  • Opening Width – Min: 54-3/8″ (1381 mm)
  • Opening Width – Max: 59-3/8″ (1508 mm)
  • Walk-through – Min: 23-9/16″ (598 mm)
  • Walk-through – Max: 28-9/16″ (725 mm)
  • Base-To-Wall: 1/2″ (13 mm)
  • Radius – Max:
  • Glass thickness: 1/8″ (3 mm)

Notes
Install this product according to the installation guide. The vertical opening should be a minimum of 71-3/8″ (1813 mm) to allow for installation clearance.

  • 1-800-STERLING (1-800-783-7546)
  • Kohler Co. reserves the right to make revisions without notice to product specifications.
  • For the most current Specification Sheet, go to www.sterlingplumbing.com.
  • 12-29-2021 10:14 – US//CA
