QUOIZEL QP5584BN Haven 1-Light Matte Black Pendant
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING
- RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
- RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.
CAUTION
- For your safety, read the instructions completely before beginning installation.
- If in doubt about electrical installation, consult a licensed electrician.
- Turn off electricity to fixture before replacing the bulb(s).
TOOLS REQUIRED
CARE AND MAINTENANCE
Wipe clean using a soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish. If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00 am – 5:00 pm EST), or visit us online at www.quoizel.com.

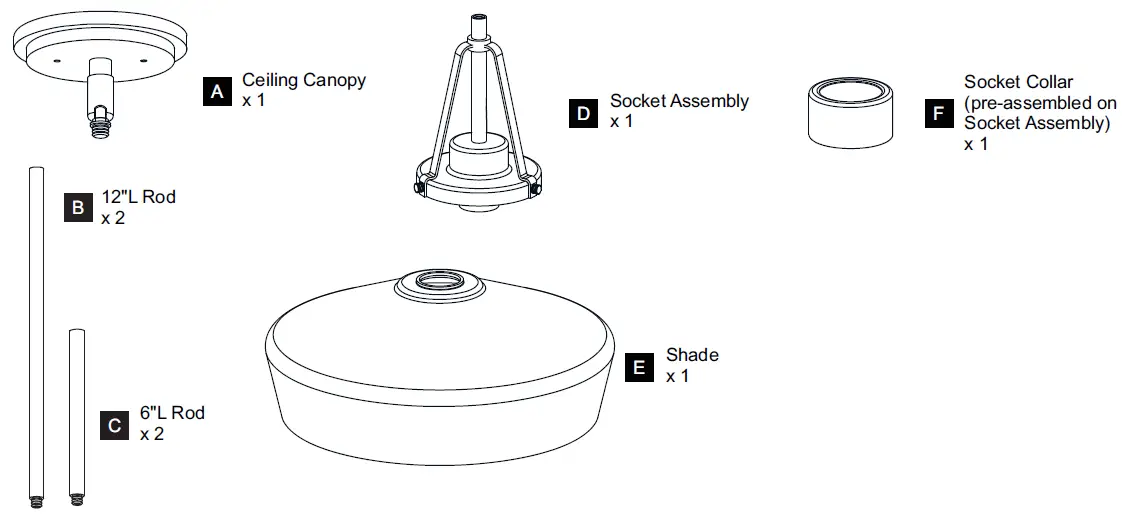

PACKAGE CONTENTS
MOUNTING HARDWARE
INSTALLATION

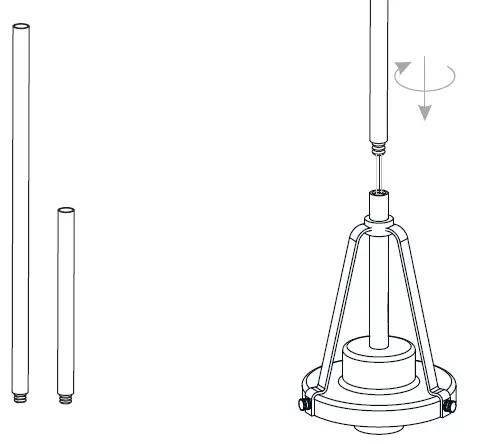

Install Rods
- Optional Rods:
- 8 Feet Ceiling:
- (2) 12″L Rod.
- 9 Feet Ceiling:
- (2) 6″L Rods + (2) 12″L Rods.

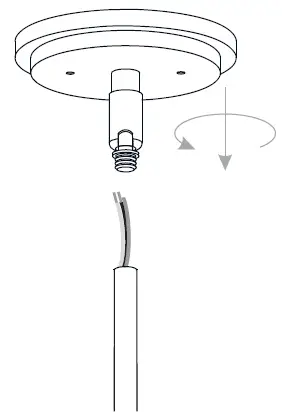

Install Ceiling Canopy to Upper Rod

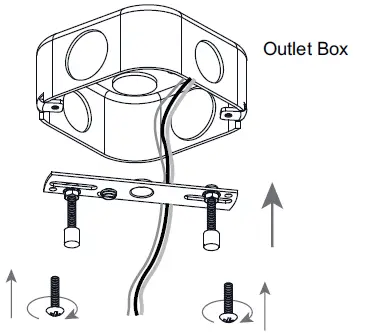

Install Crossbar Assembly

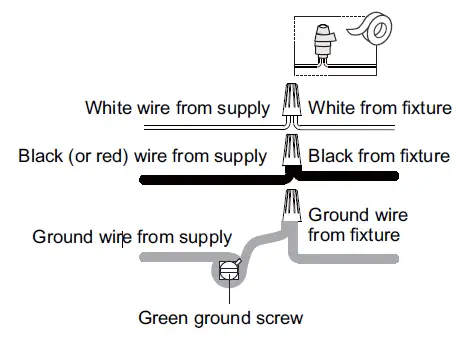

Wiring

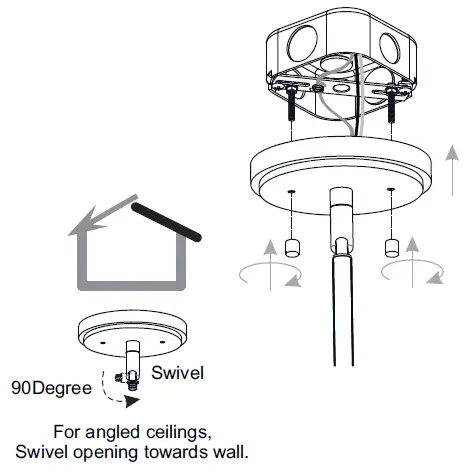

Install Ceiling Canopy to Crossbar Assembly

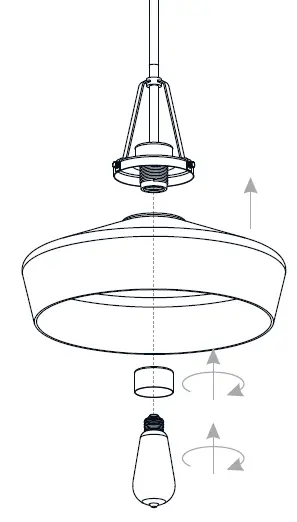

Install Shade and Bulb
Install the correct bulb referring to fixture markings and/or labels for maximum wattage.
Recommended Bulb Type (not included):
