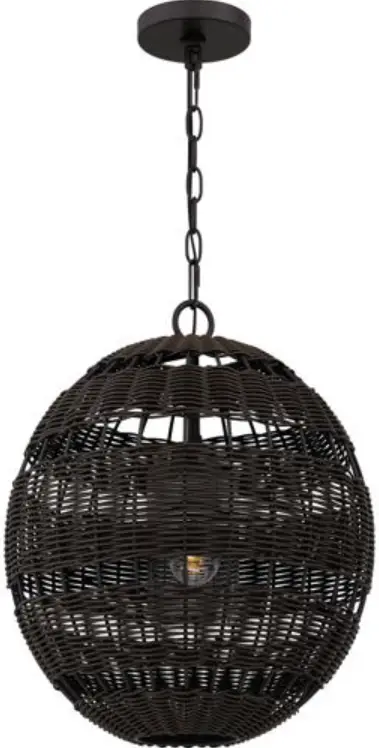

QUOIZEL QP5571WT and QP5571AWH 16 Inch Antique Pendant Ceiling Light Installation Guide

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, install or operate the product.

WARNING

• RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
• RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.

CAUTION

• For your safety, read instructions completely before beginning installation.
• If in doubt about electrical installation, consult a licensed electrician.
• Turn off electricity to fixture before replacing the bulb(s).

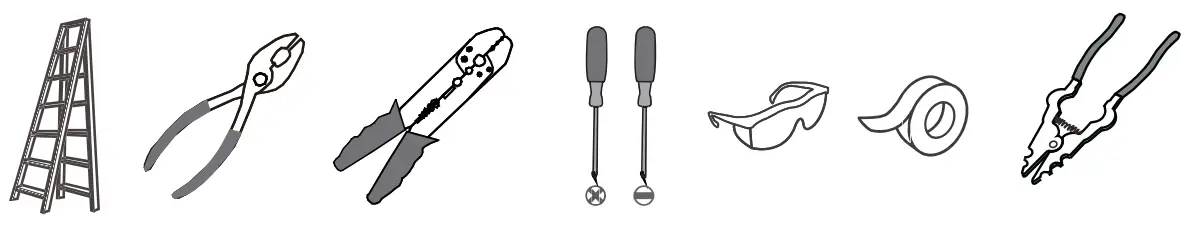

TOOLS REQUIRED

CARE AND MAINTENANCE

• Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
• If you need further assistance call Quoizel Customer Care at 1-800-645-3184(9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com

PACKAGE CONTENTS

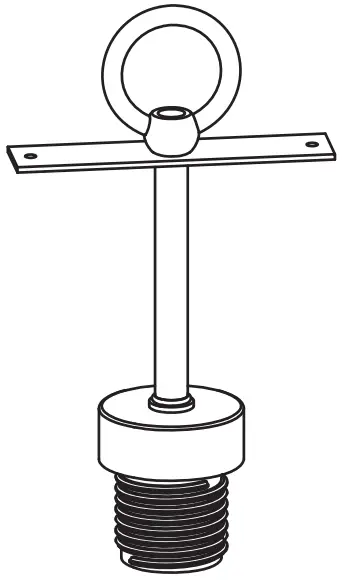

• Socket Assembly X 1

• Socket Collar [Pre-assembled to Socket Assembly] X 1

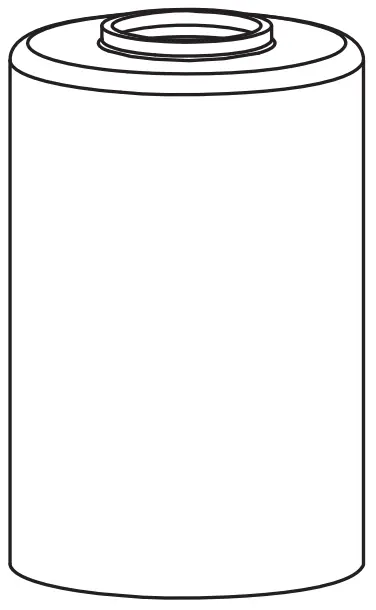

• Glass Shade X 1 C

• Mounting Screw [Preassembled to Rattan Shade] X 2

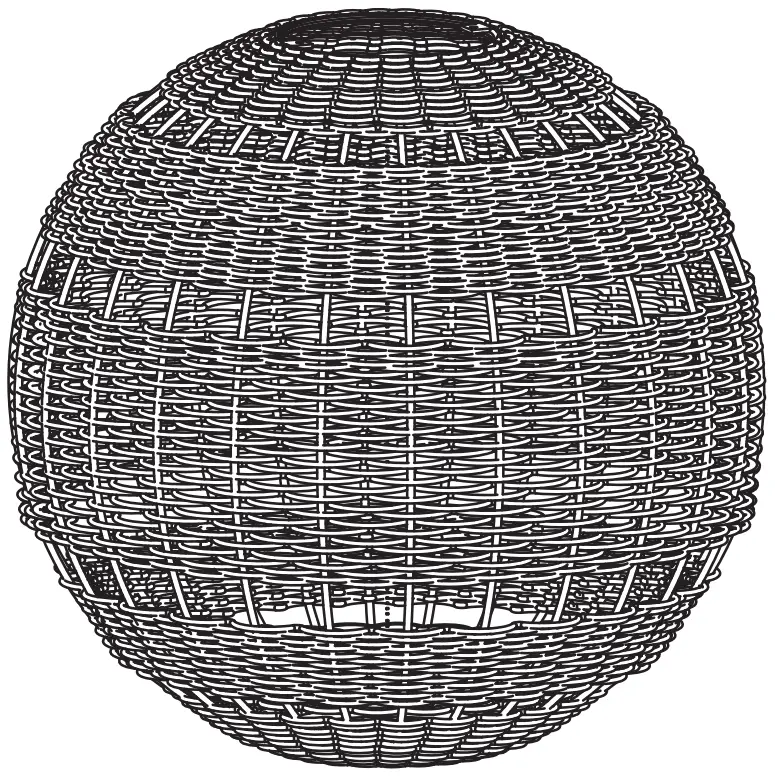

• Rattan Shade X 1


MOUNTING HARDWARE

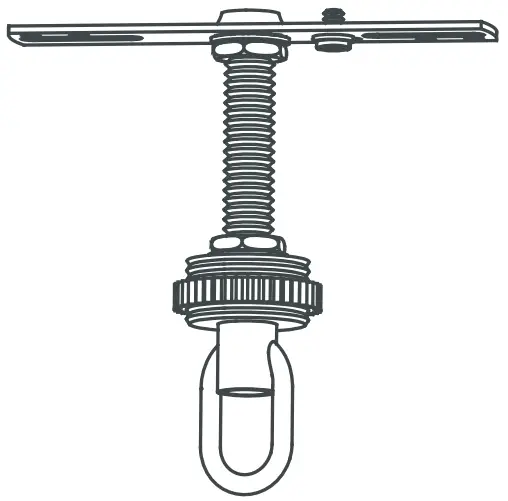

• Crossbar Assembly X 1

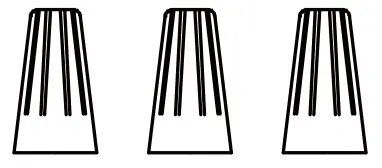

• Wire Connector X 3

• Outlet Box Screw X 2

• Quick Link X 2

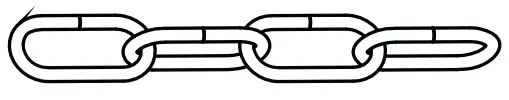

• Fixture Chain DD X 1

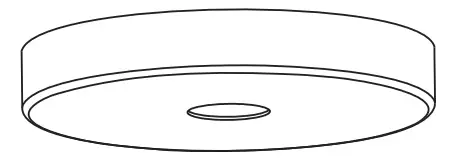

• Ceiling Canopy X 1


INSTALLATION

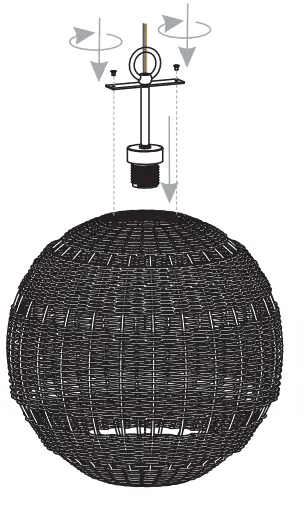

Install Socket Assembly to Rattan Shade

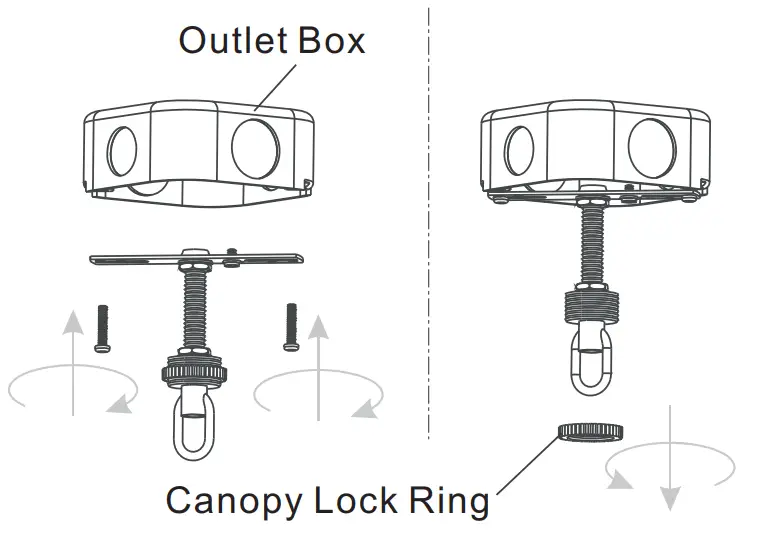

Install Crossbar Assembly

Install Fixture Chain

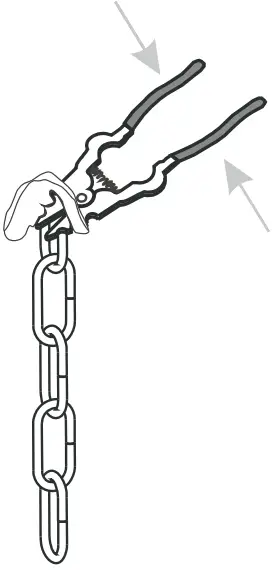

OPTIONAL: Adjust Chain as desired, using pliers and soft cloth (neither included).

Suggested chain length for Ceiling height:

• 8 feet ceiling: use 9 link of chain and 2 quick links.
• 9 feet ceiling: use 19 links of chain and 2 quick links
• 10 feet ceiling: use 29 links of chain and 2 quick links

Ceiling Canopy shape is varies depends on item purchased.

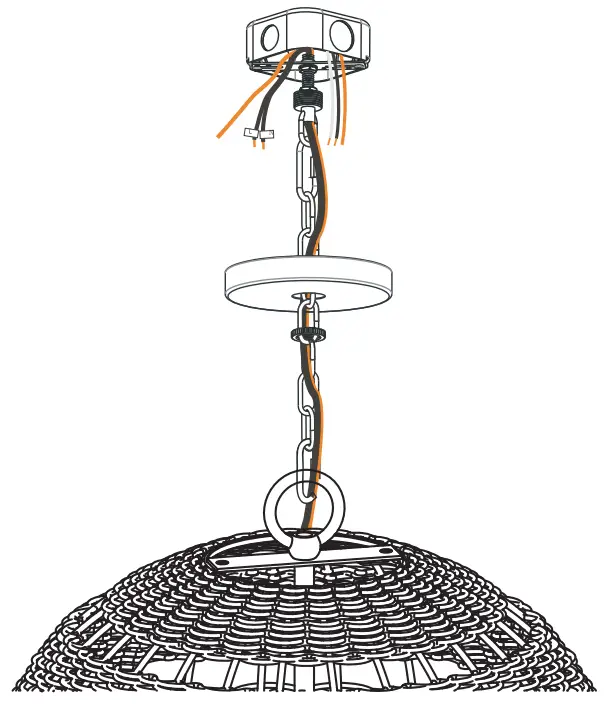

Pull Supply Wires

Pull the supply wires with ground wire through the chain alternate links.

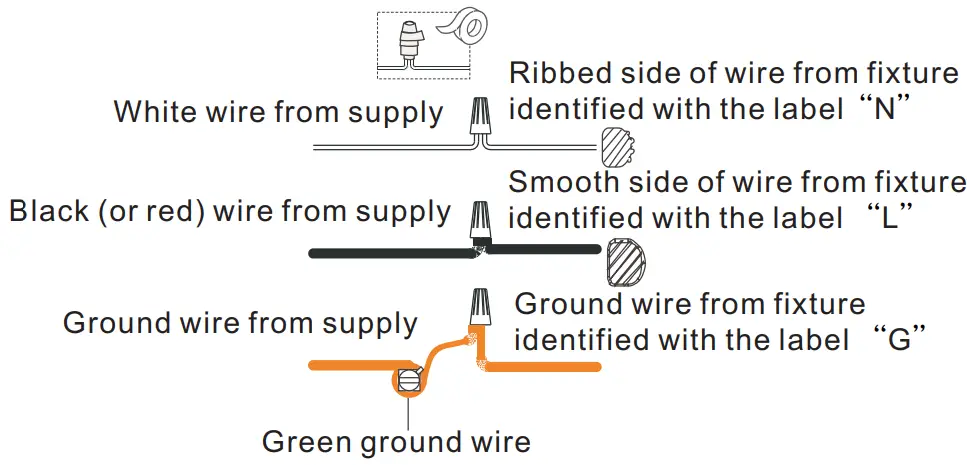

Wiring

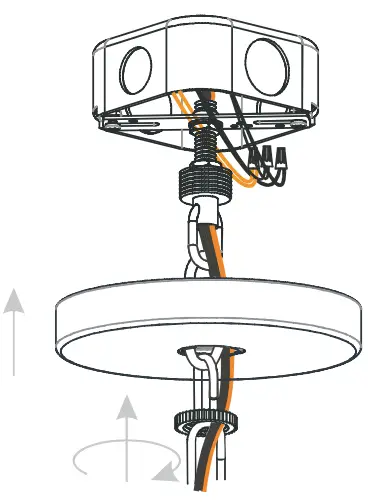

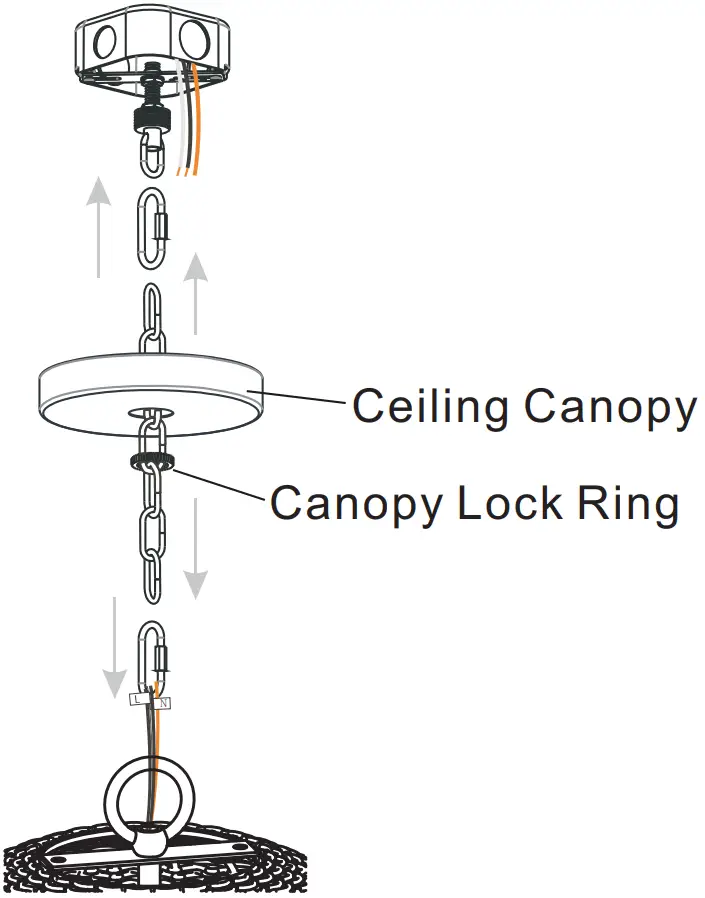

Install Ceiling Canopy

Ceiling Canopy shape is varies depends on item purchased.

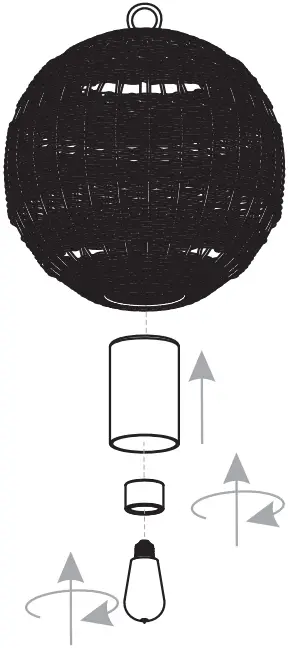

Install Glass Shade and Bulb

Install the correct bulb referring to fixture markings and/or labels for maximum wattage.

Recommended Bulb Type (not included):

• BULB BASE TYPE Medium (E26)


• BULB TYPE TYPE A


Your installation is now complete! Restore electricity and save this sheet for future reference.
