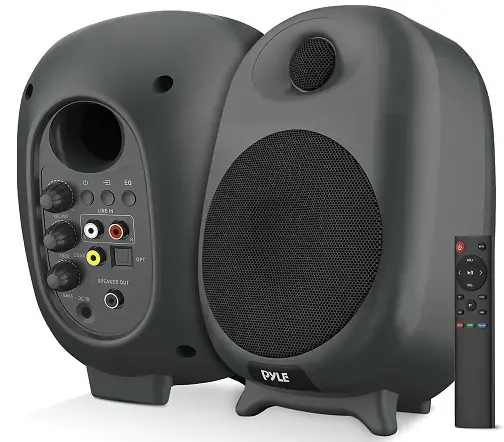

PYLE PBKSR40WT Desktop Wireless BT Bookshelf Speakers

Please read all instructions before using this for the best performance of this product. Save these instructions for future reference.

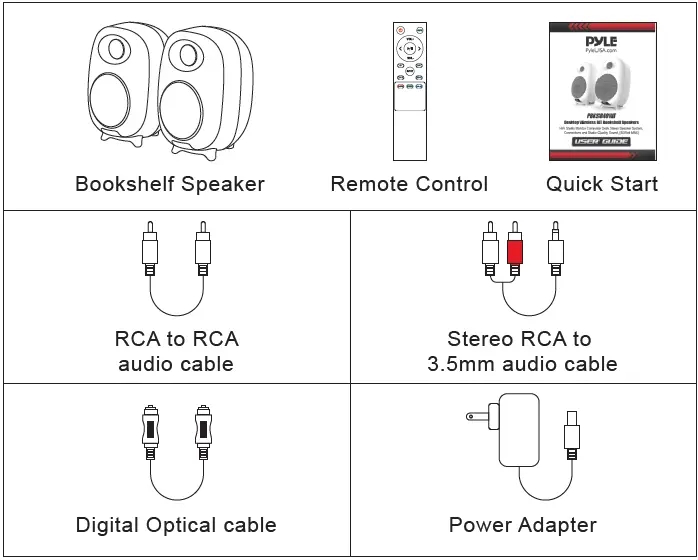

Box Contents

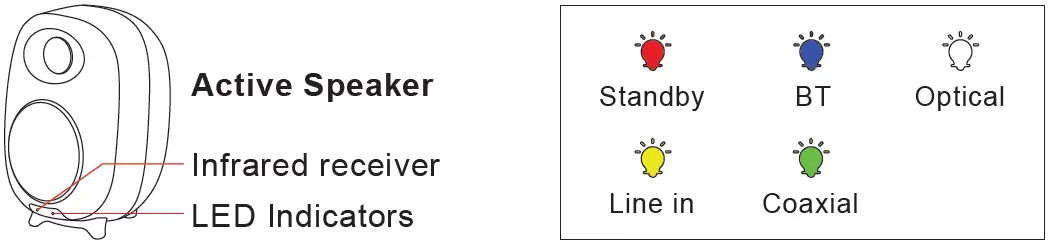

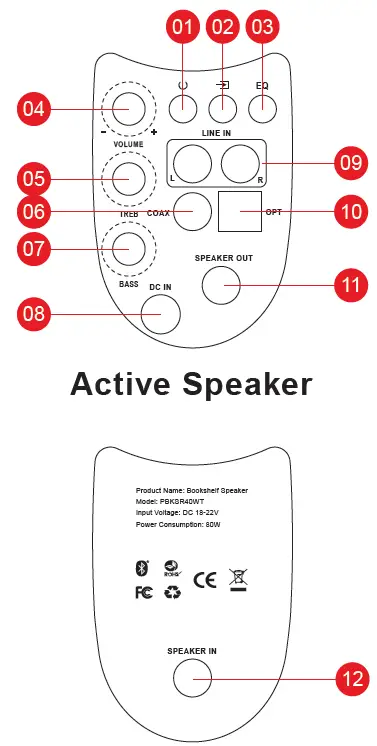

LED Indicators and Button Introduction

1. Power switch
2. Input selection
   1. Press in to navigate between audio sources: BT -> Optical -> Coaxial -> LINE IN
      03. Sound effects
      1. Press in to navigate between audio sources: Music -> Dialogue -> Movie
3. Volume control
4. Treble control
5. Coaxial input port
6. Bass control
7. Power port
8. Line in the input port
9. Optical input port
10. Left speaker audio output
11. Left speaker audio in

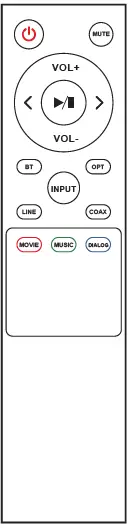

Know Your Remote

	Power button		Mute/Unmute
	Volume up		Volume down
	Previous track		Next track
	Play/pause		Bluetooth mode
	Optical mode		Input mode
	Line mode		Coaxial mode
	Movie mode		Music mode
	Dialogue mode

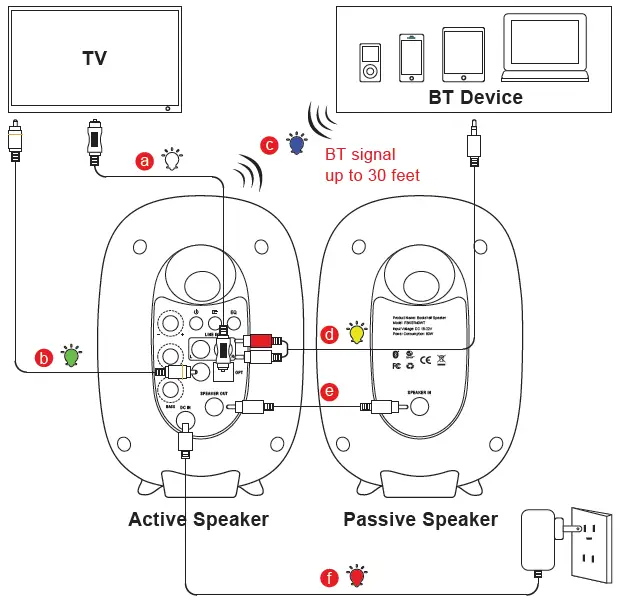

Connection Diagram

• a Digital Optical cable (supplied)
• b Coaxial cable (not supplied)
• c BT
• d Stereo RCA to 3.5mm audio cable (supplied)
• e RCA to RCA audio cable (supplied)
• f Power Adapter (supplied)

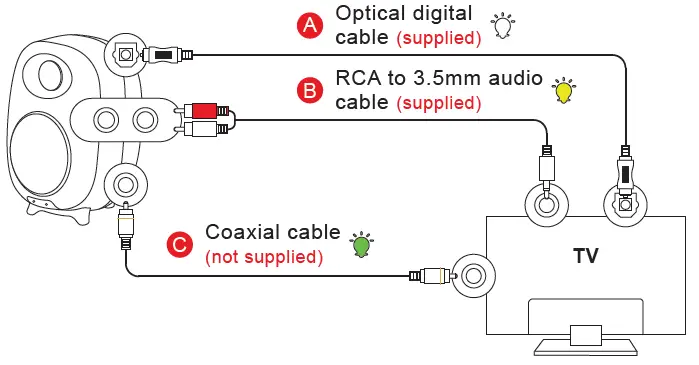

Connecting with a TV

Active Speaker

1. A Method 1. Connecting using an Optical cable.
   Select Optical mode and set the TV’s audio output to “PCM”.(More information on PCM page)
2. B Method 2. Connecting using a RCA to 3.5mm cable. Select RCA mode.
3. C Method 3. Connecting using a Coaxial cable.
   Select Coaxial mode and set the TV’s audio output to “PCM”. (More information on PCM page).

Setting “PCM” on your TV
When all cables are connected properly, and LED indicator lights are properly if there is no sound from the tv or Soundbar, please set your tv as below:

1. Press “Menu” on the TV’s remote control.
2. Press the arrow keys on the remote to scroll to “Audio Settings.”
3. Press “OK” on the remote control.
4. Scroll to “Advanced Audio” and press “OK”. Some televisions may not have an”Advanced Audio” menu and may list various audio settings instead.
5. Scroll to “Audio Output Mode” or “Digital Audio Output Mode” and press “OK”.
6. Scroll until “PCM” is displayed as the current audio output.
7. Press “OK” to save the settings.

Connecting a Wireless BT Device

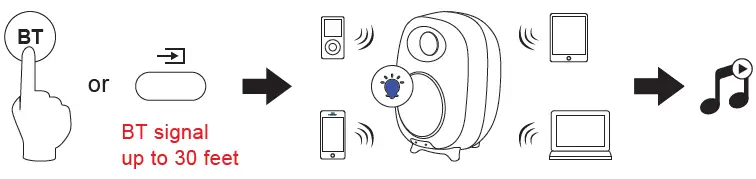

• Press the “BT” button on the remote or press the “ ” button on the back panel of the active speaker, and the LED indicator blinks blue.
• Turn on Wireless BT on the BT device.
• Select “PyleUSA” and connect it. When your BT device is connected, the LED indicator blinks blue slowly.
• Play music files from the device, connected via BT, through the bookshelf speaker.

Troubleshooting

No sound

• Check if the power indicator light is ON.
• Try to turn up the volume using either the master volume control or the remote control.
• Ensure the audio cables are firmly connected and the input is set correctly on the speakers.
• Check if there is a signal output from the audio source.

Cannot connect via Wireless BT

• Make sure the speaker is switched to BT input, in another audio input mode BT can not be paired or connected. Disconnect from any BT device by pressing and holding the volume dial in BT mode, then try again.
• Effective BT transmission range is 10 meters, make sure the operation is within the range.
• Try another BT device for connection.

The PBKSR40WT Bookshelf Speaker does not turn on
Check if the mains power is connected or if the wall outlet is switched on.

Specifications

Questions? Comments?

We are here to help!
Phone: (1) 718-535-1800 Email: [email protected].
