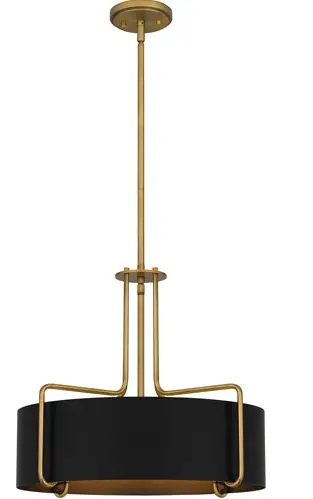

QUOIZEL QP5596AB Alexa 4 Light 20 Inch Aged Brass Pendant Ceiling Light

QUOIZEL-QP5596AB-Alexa -4-Light-20-Inch-Aged-Brass-Pendant-Ceiling-Light-PRODUCT

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING

  • RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
  • RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.

CAUTION

  • For your safety, read the instructions completely before beginning installation.
  • If in doubt about electrical installation, consult a licensed electrician.
  • Turn off the electricity to fixture before replacing the bulb(s).

TOOLS REQUIRED

QUOIZEL-QP5596AB-Alexa -4-Light-20-Inch-Aged-Brass-Pendant-Ceiling-Light-FIG1

CARE AND MAINTENANCE

  • Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixtures as they may damage the finish.

If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00 am – 5:00 pm EST), or visit us online at www.quoizel.com.

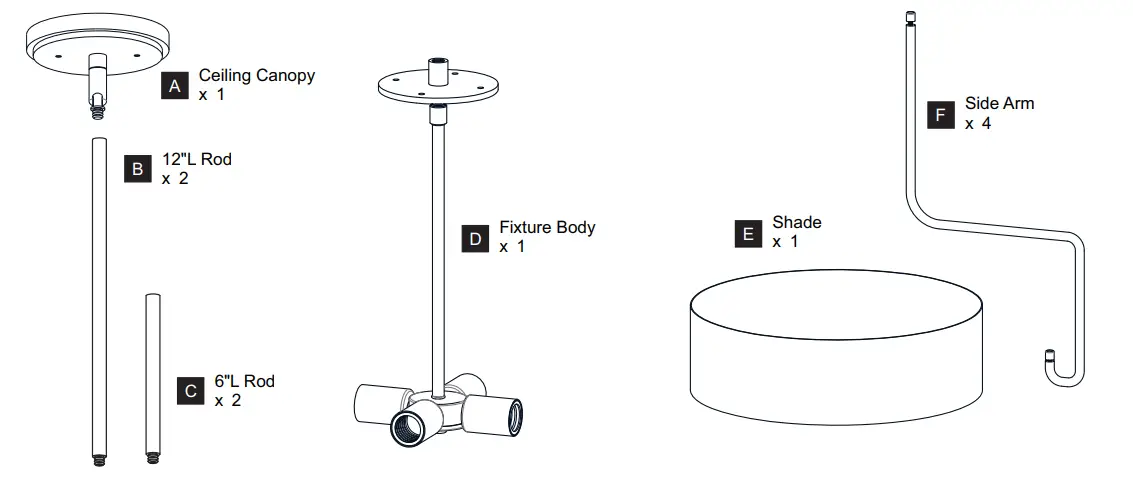

PACKAGE CONTENTS

QUOIZEL-QP5596AB-Alexa -4-Light-20-Inch-Aged-Brass-Pendant-Ceiling-Light-FIG2

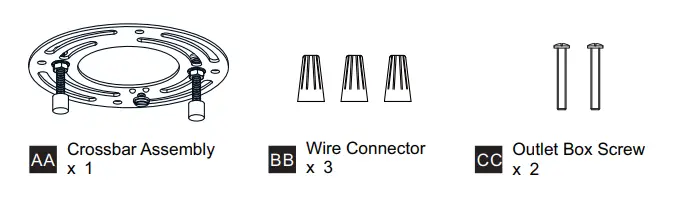

MOUNTING HARDWARE

QUOIZEL-QP5596AB-Alexa -4-Light-20-Inch-Aged-Brass-Pendant-Ceiling-Light-FIG3

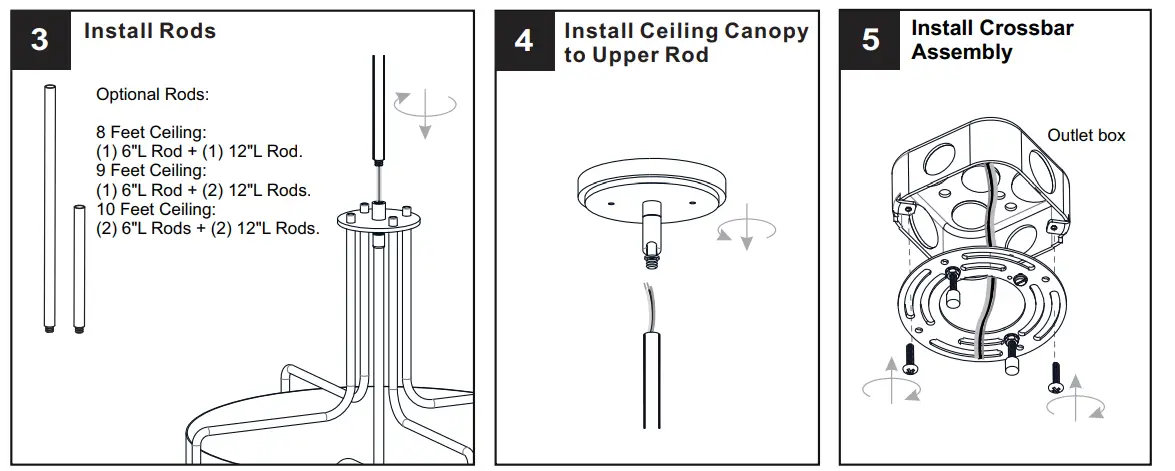

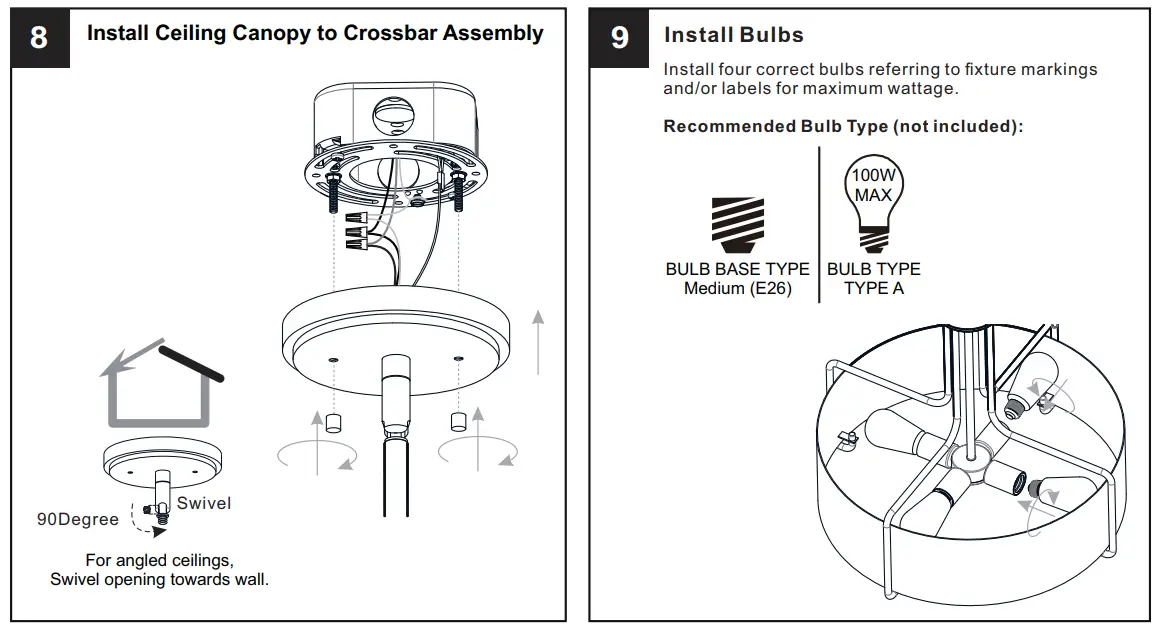

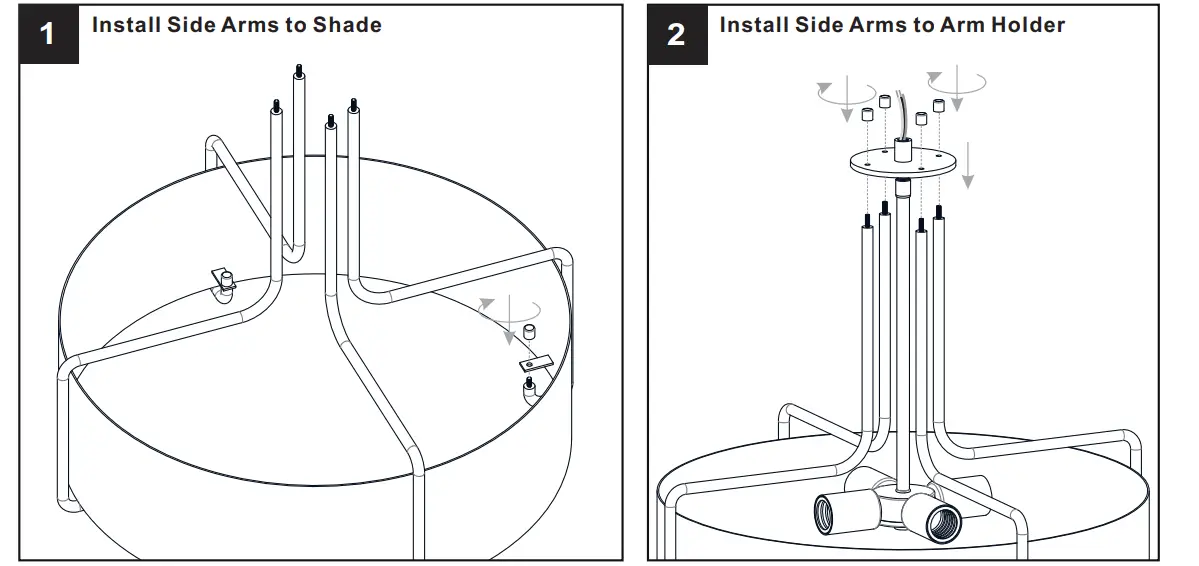

INSTALLATION

QUOIZEL-QP5596AB-Alexa -4-Light-20-Inch-Aged-Brass-Pendant-Ceiling-Light-FIG4QUOIZEL-QP5596AB-Alexa -4-Light-20-Inch-Aged-Brass-Pendant-Ceiling-Light-FIG5QUOIZEL-QP5596AB-Alexa -4-Light-20-Inch-Aged-Brass-Pendant-Ceiling-Light-FIG6QUOIZEL-QP5596AB-Alexa -4-Light-20-Inch-Aged-Brass-Pendant-Ceiling-Light-FIG7

Your installation is now complete! Restore electricity and save this sheet for future reference.
