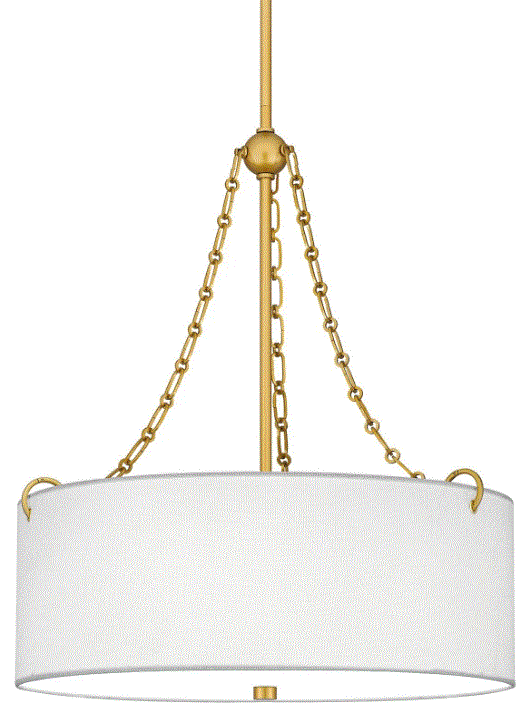

QUOIZEL QOP5606MBK 4-Light Painted Brass Shaded Pendant
Product Information
The QOP5606MBK and QOP5606PB are lighting fixtures manufactured by Quoizel. These fixtures are designed to be installed in indoor spaces and come with a variety of mounting hardware and installation instructions. The package contents include a fixture loop, rods, shade, diffuser, mounting hardware, crossbar assembly, wire connector, outlet box screw, ceiling canopy, and quick link.
Product Safety Information
Before installing the fixture, it is important to read and understand the safety information provided in the user manual. The user manual provides guidelines on how to install the fixture safely and avoid any potential hazards.
Product Care and Maintenance
To ensure the longevity of the fixture, it is important to perform regular care and maintenance. If you need further assistance or have any questions, you can contact Quoizel Customer Care at 1-800-645-3184 (9:00am – 5:00pm EST), or visit their website at www.quoizel.com.
Product Usage Instructions
- Begin by installing the center rod and socket assembly.
- Next, install the stem with hex nut.
- Install the shade onto the fixture.
- Install the diffuser and finial.
- Install the rods. The number of rods required depends on the ceiling height. For an 8-foot ceiling, use one 6L rod. For a 9-foot ceiling, use one 6L rod and one 12L rod. For a 10-foot ceiling, use one 6L rod and two 12L rods.
- Install the fixture loop.
- Install the crossbar assembly onto the outlet box.
- Install the quick link and pull the supply wires.
- Connect the wires. The white wire from the supply should be connected to the ribbed side of the wire from the fixture identified with the label N. The black or red wire from the supply should be connected to the smooth side of the wire from the fixture identified with label L. The ground wire from the supply should be connected to the ground wire from the fixture identified with the label G.
- Install the ceiling canopy. Note that the shape of the ceiling canopy may vary depending on the item purchased.
- Install the bulbs. Install four correct bulbs referring to fixture markings and/or labels for maximum wattage. The recommended bulb type is medium (E26) type A with a maximum wattage of 100W.
- Restore electricity and save the user manual for future reference.
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING
- RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
- RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.
CAUTION
- For your safety, read instructions completely before beginning installation.
- If in doubt about electrical installation, consult a licensed electrician.
- Turn off electricity to fixture before replacing the bulb(s).
TOOLS REQUIRED
CARE AND MAINTENANCE
- Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
- If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com.

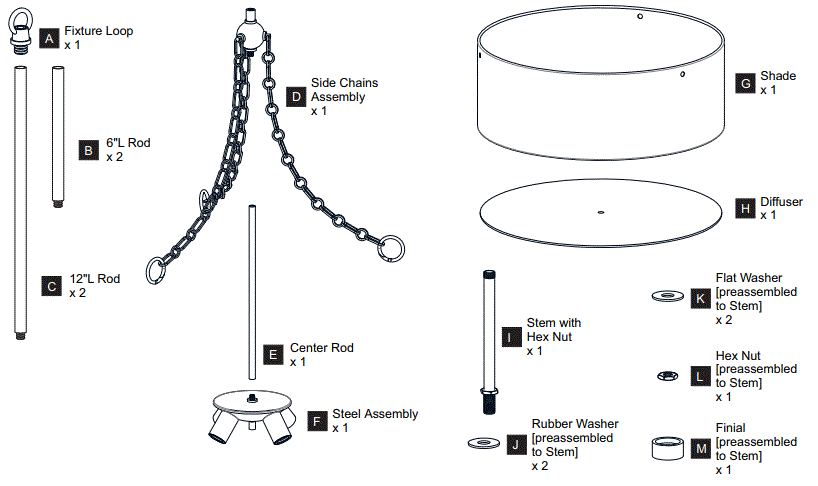

PACKAGE CONTENTS

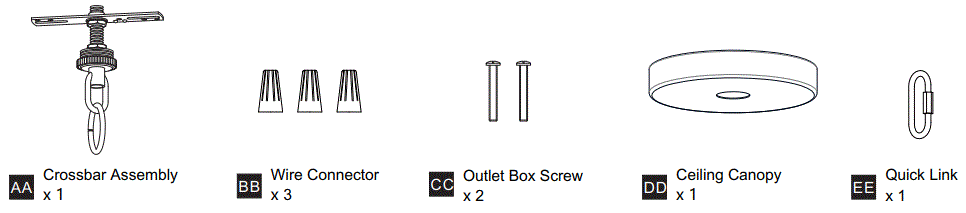

MOUNTING HARDWARE
INSTALLATION

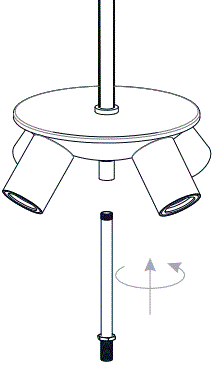

Install Center Rod and Socket Assembly

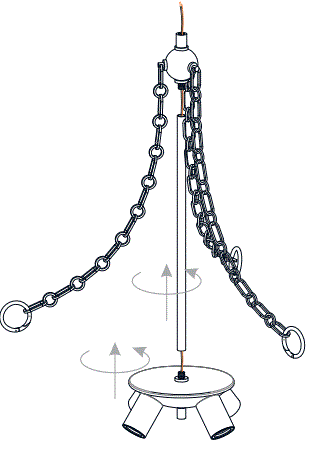

Install Stem with Hex Nut

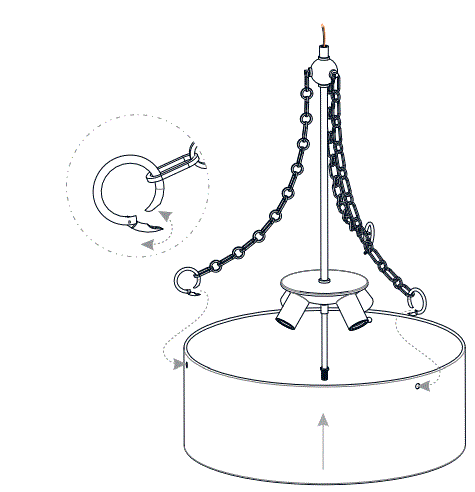

Install Shade

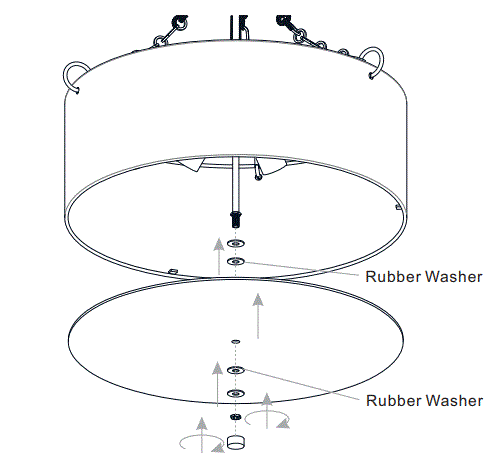

Install Diffuser and Finial

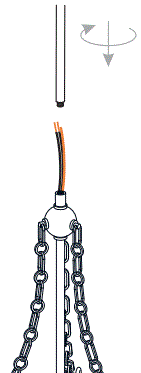

Install Rods
Optional Rods
- 8 Feet Ceiling:
- (1) 6″L Rod.
- 9 Feet Ceiling:
- (1) 6″L Rod + (1) 12″L Rod.
- 10 Feet Ceiling:
- (1) 6″L Rod + (2) 12″L Rods.

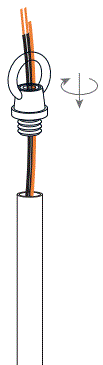

Install Fixture Loop

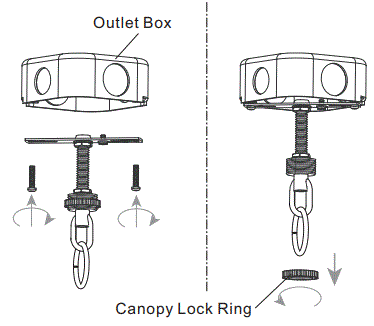

Install Crossbar Assembly

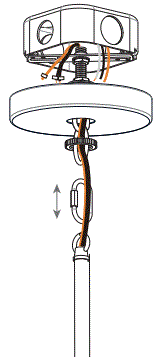

Install Quick Link and Pull Supply Wires

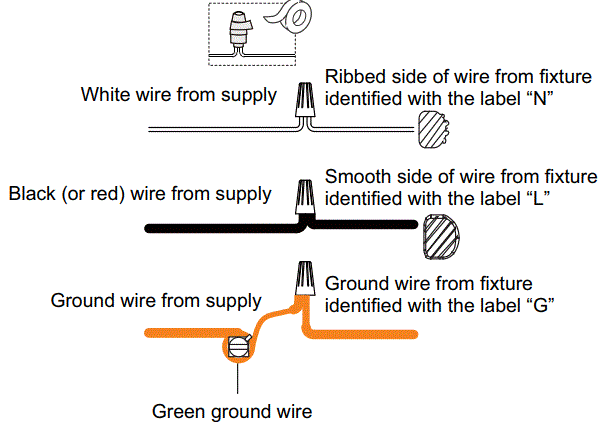

Wiring

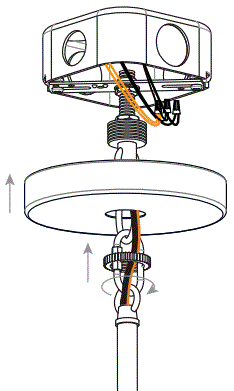

Install Ceiling Canopy
- Ceiling Canopy shape is varies depends on item purchased.

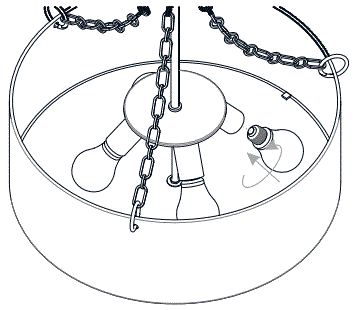

Install Bulbs
- Install four correct bulbs referring to fixture markings and/or labels for maximum wattage.
Recommended Bulb Type (not included)
Your installation is now complete! Restore electricity and save this sheet for future reference.
