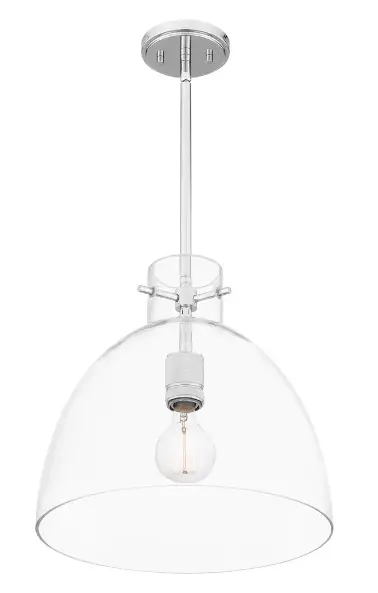

QPP5639C Warnock 1 Light Polished Chrome Shaded Pendant
Product Information
The QPP5639C and QPP5639MBK are fixtures that come with mounting
hardware, a fixture body, a glass shade, a steel collar, a socket
collar, a crossbar, mounting screws, wire connectors, and outlet
box screws. The fixture is height-adjustable and comes with a
safety clip and cord. The recommended bulb type is medium (E26)
with a 100W maximum wattage.
Product Usage Instructions
- Adjust Cord Length: The fixture height is adjustable from 17 to
103 inches. To adjust the cord length, unlock the set screw on the
cord relief and slide the safety clip to adjust the cord length
according to the desired hanging height. Always tighten the set
screw after adjustment. - Install Crossbar: Install the crossbar to the outlet box using
the mounting screws. - Wiring: Connect the white wire from the supply to the white
wire from the fixture and the black (or red) wire from the supply
to the black wire from the fixture. Connect the ground wire from
the supply to the ground wire from the fixture using the green
ground screw. - Install Ceiling Canopy to Crossbar: Install the ceiling canopy
to the crossbar using the provided screws. - Install Glass Shade and Bulb: Install the glass shade to the
fixture body and then install the bulb. Use the recommended bulb
type and refer to fixture markings and/or labels for maximum
wattage. - Restore Electricity: After installation is complete, restore
electricity and save this sheet for future reference.
INSTALLATION GUIDE FOR QPP5639C and QPP5639MBK
SAFETY INFORMATION
Released Date: 2022-02-18
Please read and understand this entire manual before attempting to assemble, install or operate the product. WARNING · RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box. · RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture. CAUTION · For your safety, read instructions completely before beginning installation. · If in doubt about electrical installation, consult a licensed electrician. · Turn off electricity to fixture before replacing the bulb(s). TOOLS REQUIRED
CARE AND MAINTENANCE
· Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com.
PACKAGE CONTENTS
MOUNTING HARDWARE
Fixture Body A x1
B
Glass Shade x 1
C
Steel Collar x 1
D
Socket Collar x 1
AA
Crossbar x1
BB
Mounting Screw x2
Wire Connector CC x 3
DD
Outlet Box Screw x2
– 1 of 2 –
INSTALLATION
1 Adjust Cord Length: Fixture Height Adjustable 17″ to 103″
Unlock set screw on the cord relief and slide the safety clip to adjust the cord length according to desired hanging height. Always tighten the set screw after adjustment.
Safety Clip
Cord
2 Install Crossbar
Outlet Box
Cord Relief
Set Screw
3 Wiring
White wire from supply Black (or red) wire from supply
White wire from fixture Black wire from fixture
Ground wire from supply
Ground wire from fixture
Green ground screw
4 Install Ceiling Canopy to Crossbar
5 Install Glass Shade and Bulb
Install the correct bulb referring to fixture markings and/or labels for maximum wattage.
Recommended Bulb Type (not included):
100W MAX
BULB BASE TYPE BULB TYPE
Medium (E26)
TYPE A
Your installation is now complete! Restore electricity and save this sheet for future reference.
– 2 of 2 –
Quoizel | Artisans In Lighting
