INSTALLATION GUIDE
FOR QP5600MBK and QSF5600MBK
Released Date: 2022-03-05
SAFETY INFORMATION
SAFETY INFORMATIONPlease read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING
- RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
- RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.
CAUTION
- For your safety, read instructions completely before beginning installation.
- If in doubt about electrical installation, consult a licensed electrician.
- Turn off electricity to fixture before replacing the bulb(s).

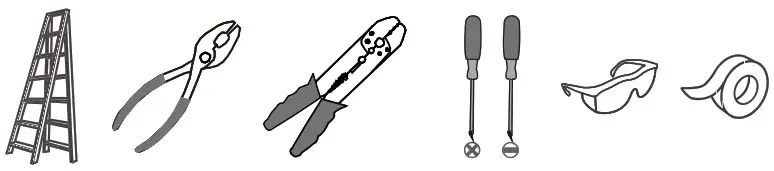

TOOLS REQUIRED
CARE AND MAINTENANCE
- Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com.

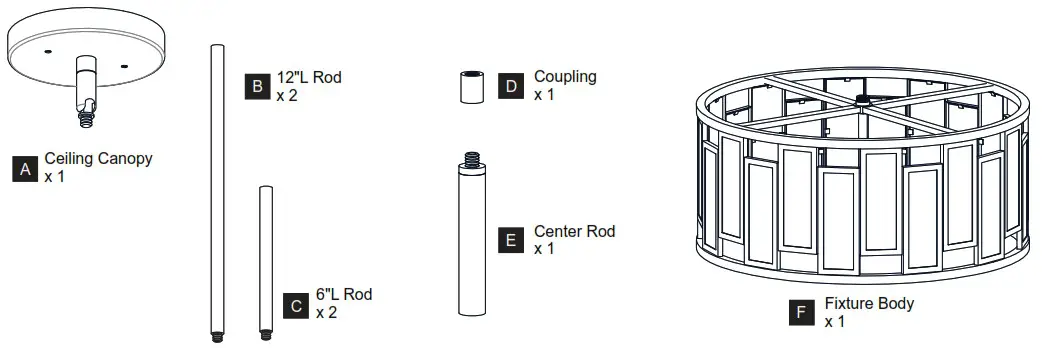

PACKAGE CONTENTS

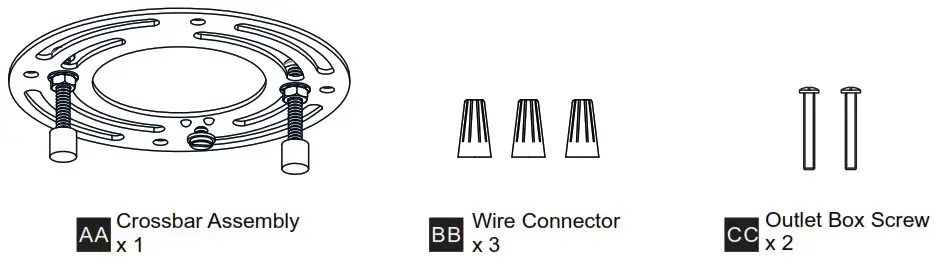

MOUNTING HARDWARE
INSTALLATION
OPTION 1:
PENDANT – QP5600MBK

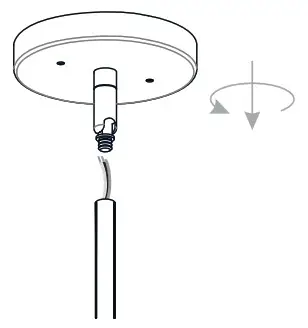

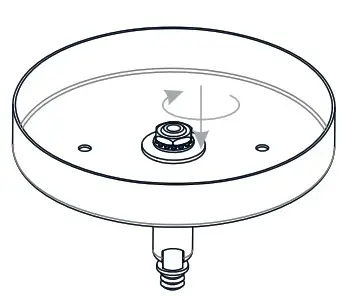

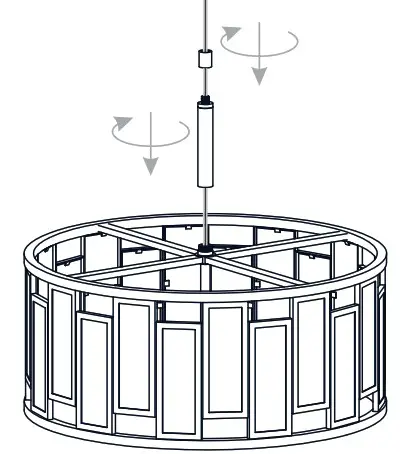

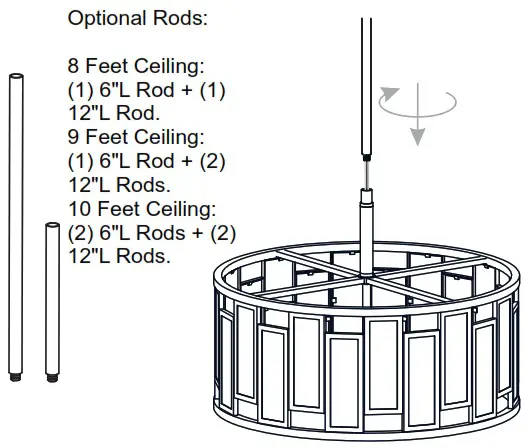

| 1. Install Center Rod and Coupling | 2. Install Rods | 3. Tighten Hex Nut inside of the Ceiling Canopy |
 |  |  |

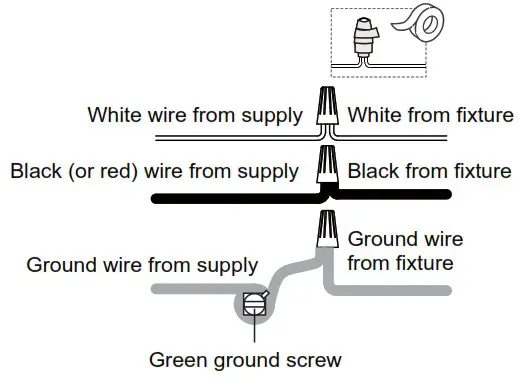

| 4. Install Ceiling Canopy to Upper Rod | 5. Install Crossbar Assembly | 6. Wiring |
 |  |  |

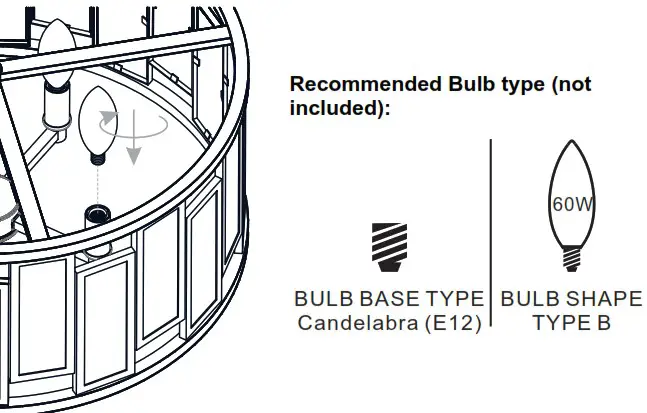

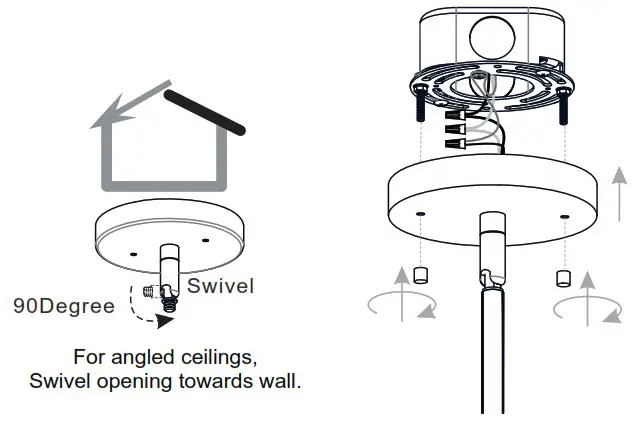

| 7. Install Ceiling Canopy to Crossbar Assembly | 8. Install Bulbs Install four correct bulbs referring to fixture markings and/or labels for maximum wattage. |
 |  |
Your installation is now complete! Restore electricity and save this sheet for future reference.
IMPORTANT: This CONVERTIBLE fixture can be mounted as pendant light or semi-flush light. DO NOT CUT SUPPLY WIRES if you intend to use it as pendant light.
OPTION 2: SEMI-FLUSH – QSF5600MBK

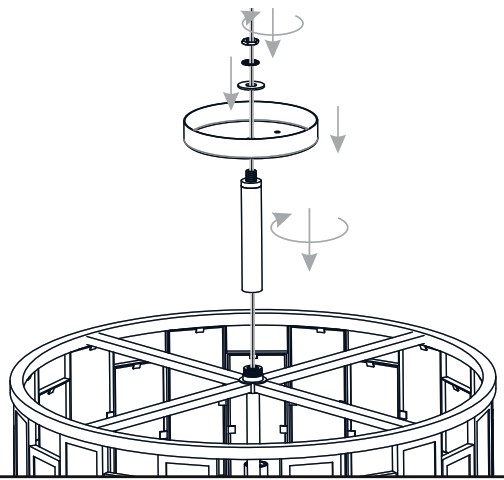

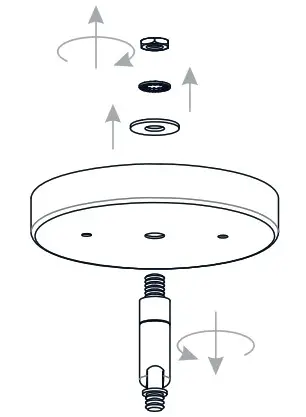

| 1. Remove Swivel | 2. Install Center Rod and Ceiling Canopy |
 * Set aside the swivel since it is not required for the semi-flush installation. |  |

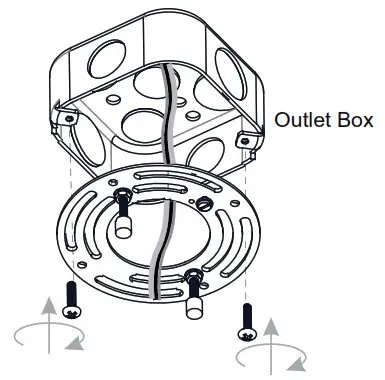

| 3. Install Crossbar Assembly | 4. Wiring |
 |  |

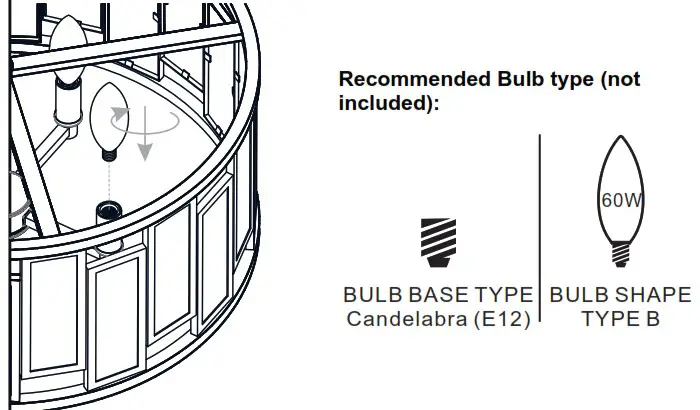

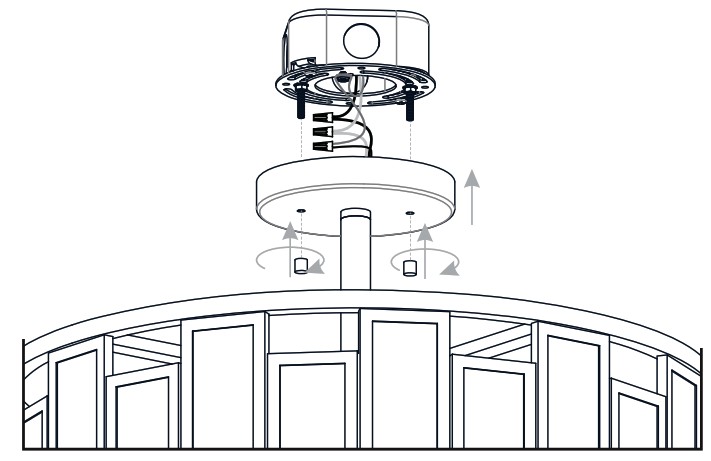

| 5. Install Ceiling Canopy to Crossbar Assembly | 6. Install Bulbs Install four correct bulbs referring to fixture markings and/or labels for maximum wattage. |
 |  |
