QUOIZEL OTN1512MBK Otten 1-Light Matte Black Shaded Pendant
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING
- RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
- RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.
CAUTION
- For your safety, read instructions completely before beginning installation.
- If in doubt about electrical installation, consult a licensed electrician.
- Turn off electricity to fixture before replacing the bulb(s).

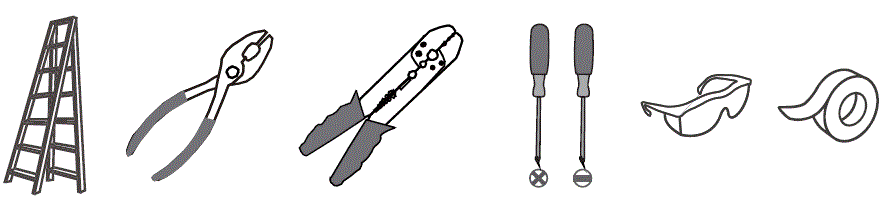

TOOLS REQUIRED
CARE AND MAINTENANCE
- Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
- If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am – 5:00pm EST), or visit us online at www.quoizel.com.

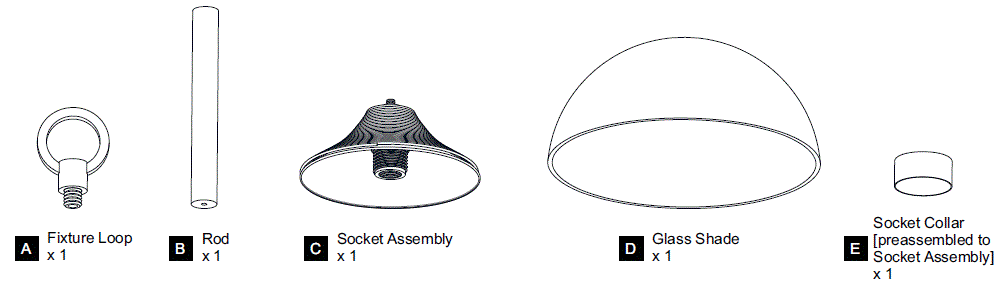

PACKAGE CONTENTS

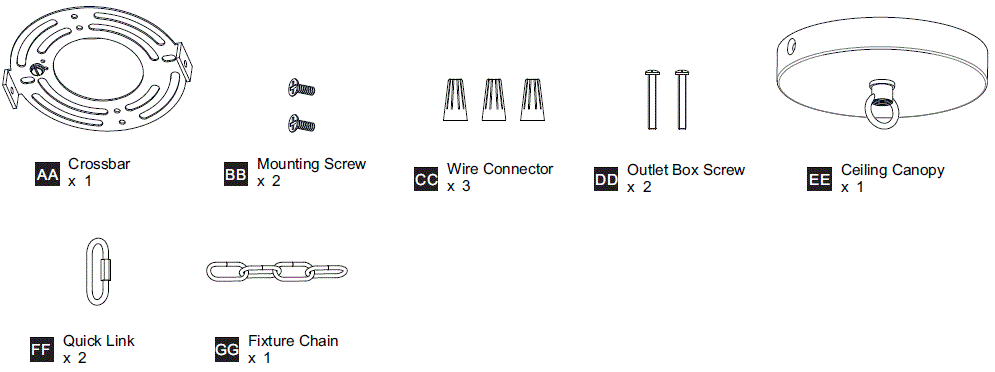

MOUNTING HARDWARE

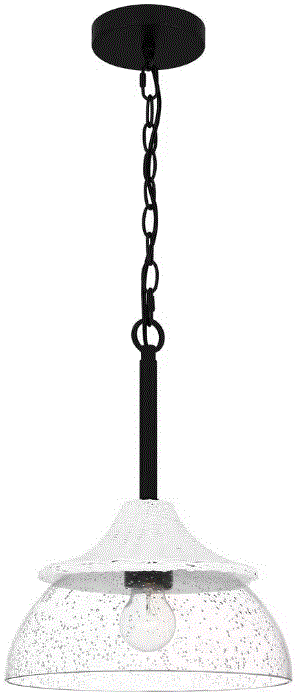

PENDANT – OTN1512MBK
INSTALLATION

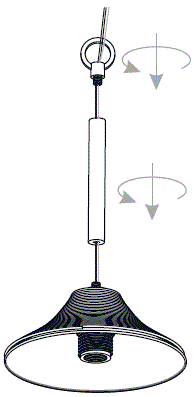

Install Rod and Fixture Loop
Tighten Hex Nut inside of Ceiling Canopy

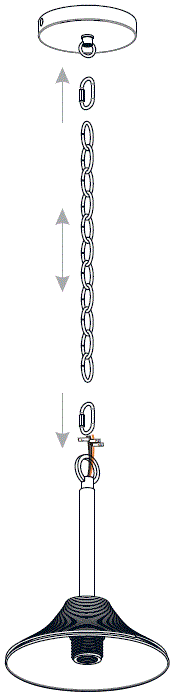

Install Fixture Chain
Suggested chain length for Ceiling height
- 8 feet ceiling: use 13 links of chain and 2 quick links
- 9 feet ceiling: use 23 links of chain and 2 quick links
- 10 feet ceiling: use 33 links of chain and 2 quick links.
Pull Supply Wires
- Pull the supply wires with ground wire through the chain alternate links.

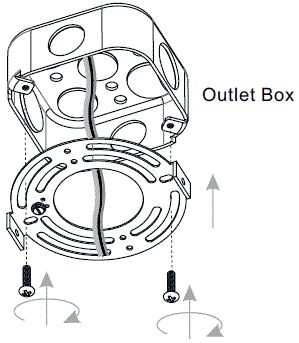

Install Crossbar

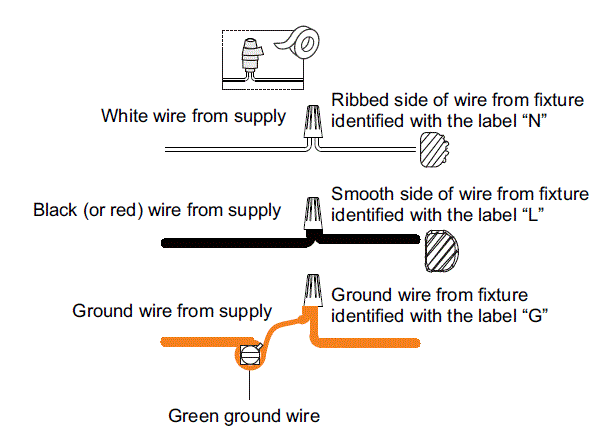

Wiring

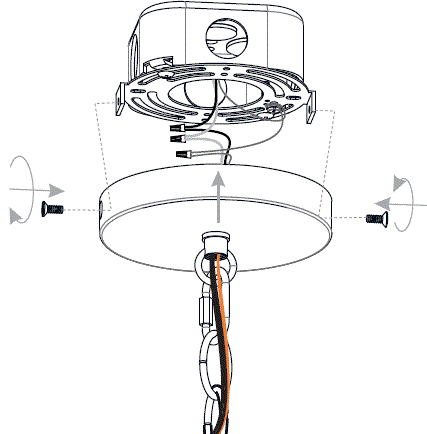

Install Ceiling Canopy to Crossbar

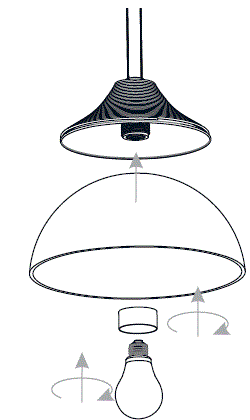

Install Glass Shade and Bulb
- Install the correct bulb referring to fixture markings and/or labels for maximum wattage.
Recommended Bulb Type (not included):
Your installation is now complete! Restore electricity and save this sheet for future reference.
IMPORTANT: This CONVERTIBLE fixture can be mounted as pendant light or semi-flush light. DO NOT CUT SUPPLY WIRES if you intend to use it as pendant light.
SEMI-FLUSH – OTN1712MBK

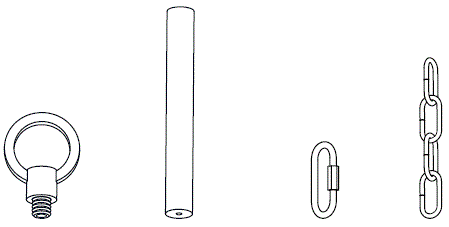

- Set aside Fixture Loop , Rod, Quick Link and Fixture Chain since they are not required for the semi-flush installation.
INSTALLATION INSTRUCTIONS

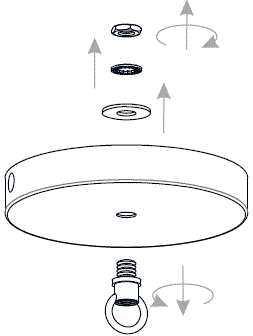

Remove Loop from Ceiling Canopy
- Set aside the Loop with nipple since they are not required for the semi-flush installation.

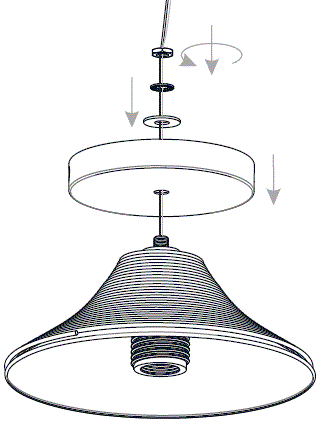

Install Ceiling Canopy to Socket Assembly

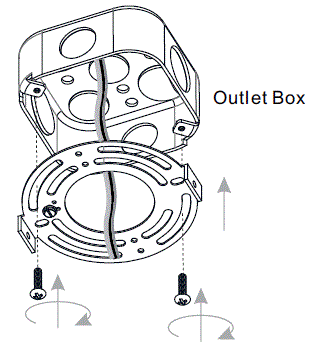

Install Crossbar

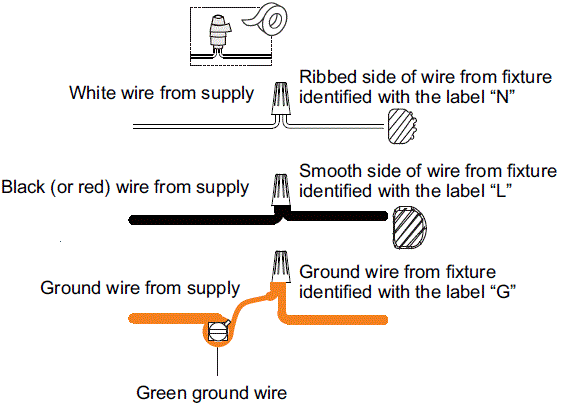

Wiring
- Cut supply wires and leave approximately 8″ from ceiling canopy.

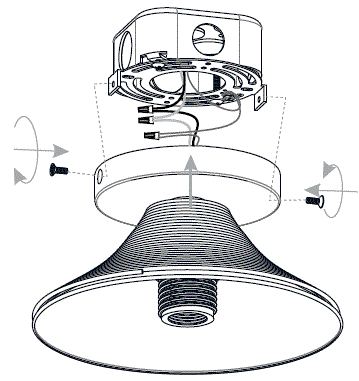

Install Ceiling Canopy to Crossbar

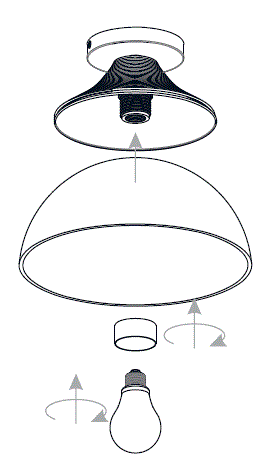

Install Glass Shade and Bulb
- Install the correct bulb referring to fixture markings and/or labels for maximum wattage.
Recommended Bulb Type (not included)
Your installation is now complete! Restore electricity and save this sheet for future reference.
