BYN2824AB Bryn 5 Light Antique Nickel Pendant
Installation Guide

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING

• RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
• RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.

CAUTION

• For your safety, read instructions completely before beginning installation.
• If in doubt about electrical installation, consult a licensed electrician.
• Turn off electricity to fixture before replacing the bulb(s).

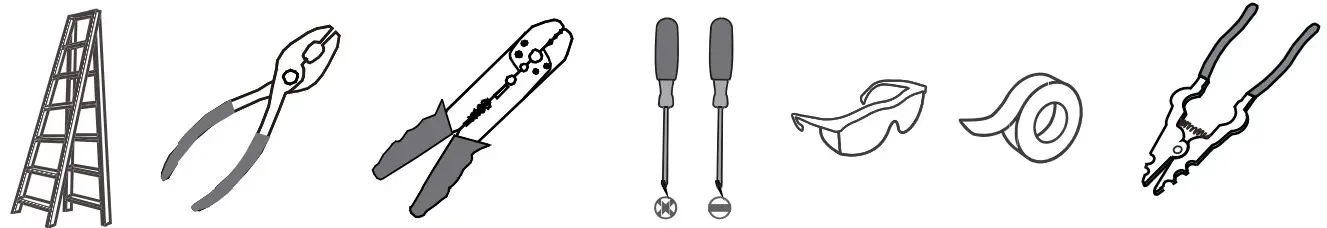

TOOLS REQUIRED

CARE AND MAINTENANCE

• Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
• If you need further assistance call Quoined Customer Care at 1-800-645-3184(9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com

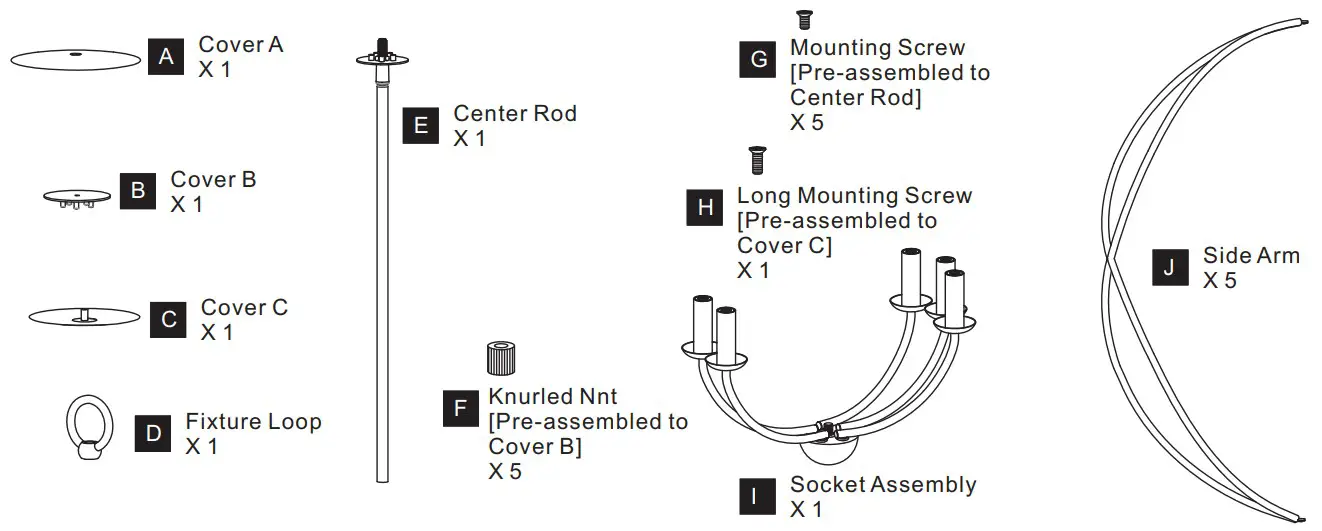

PACKAGE CONTENTS

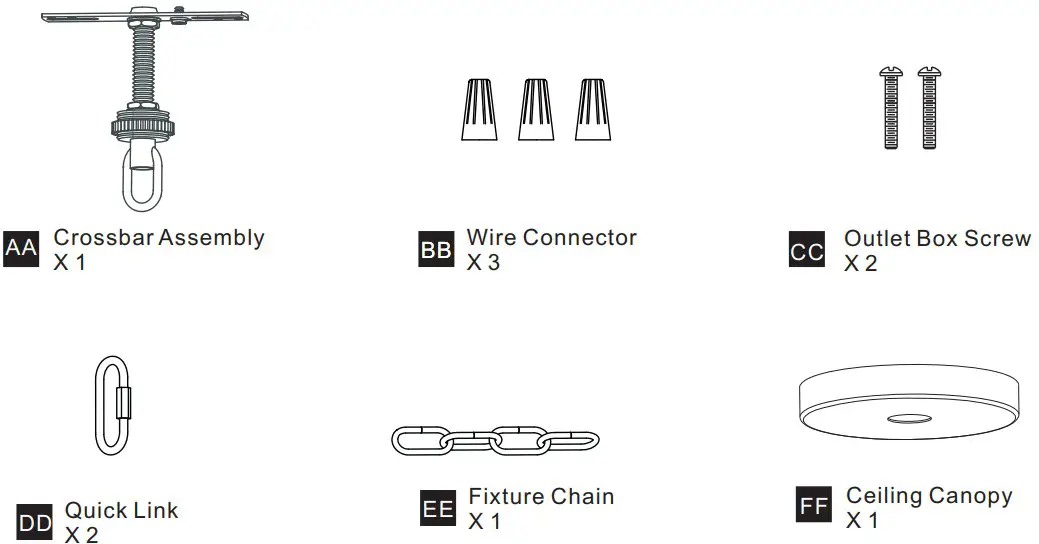

MOUNTING HARDWARE

INSTALLATION

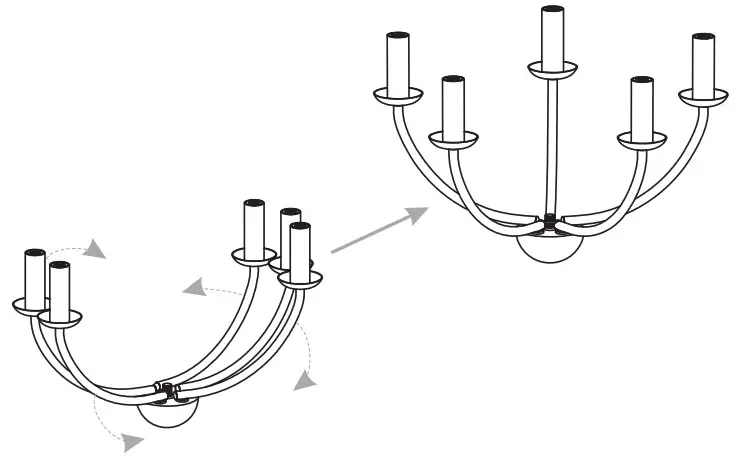

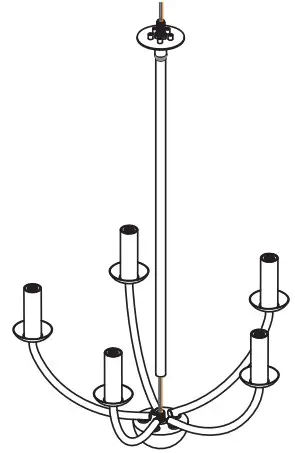

1. Unfold Arms
2. Install Socket Assembly

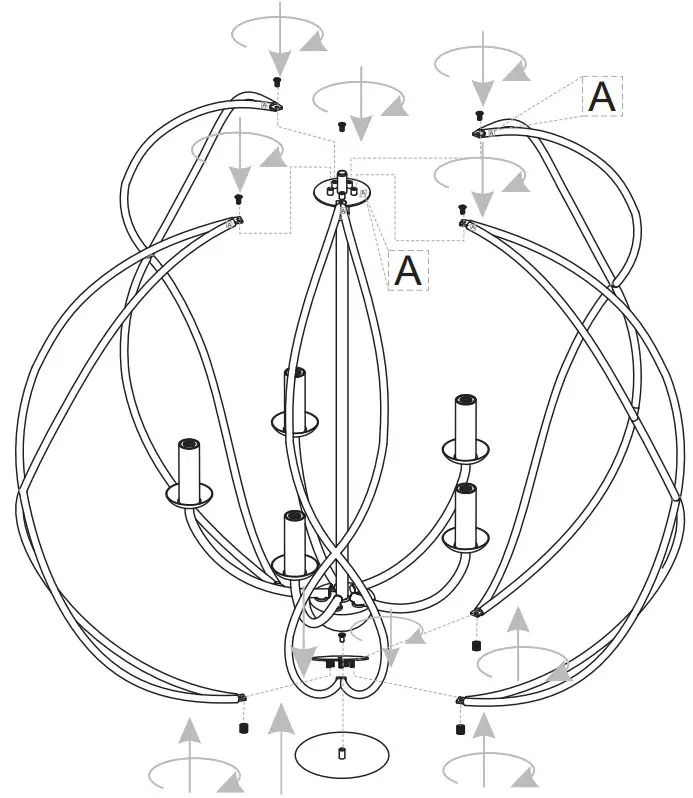

3. Pull Side Arms
   * Line up labels “A” on Center rod and side arms during assembly.

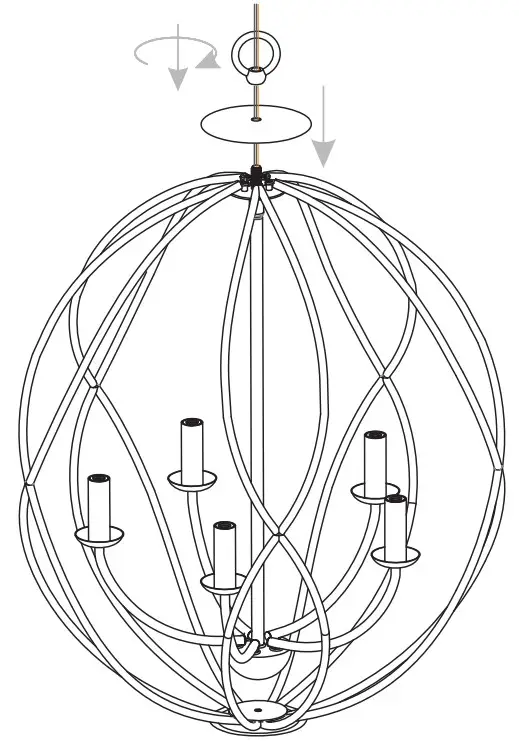

4. Pull Cover A to Fixture Loop

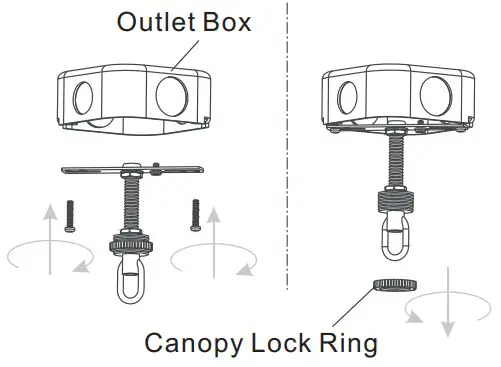

5. Install Crossbar Assembly
6. Install Fixture ChainOPTIONAL: Adjust Chain as desired, using pliers and soft cloth (neither included).
   Suggested chain length for Ceiling height:
   8 feet ceiling: use 5 links of chain and 2 quick links 9 feet ceiling: use 15 links of chain and 2 quick links 10 feet ceiling: use 25 links of chain and 2 quick links

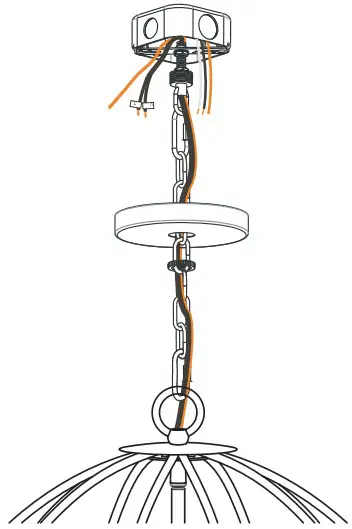

7. Pull Supply Wires
   Pull the supply wires with ground wire through the chain alternate links.

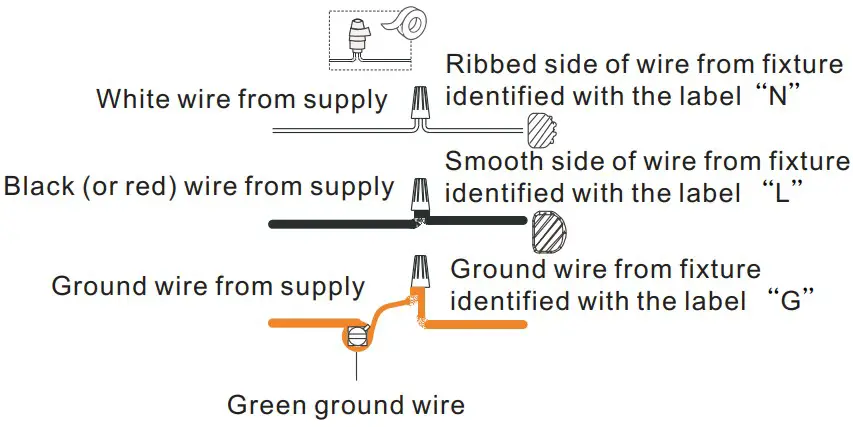

8. Wiring

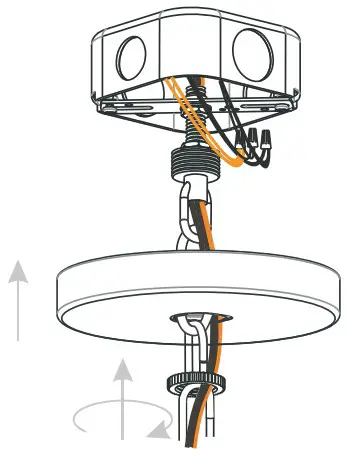

9. Install Ceiling Canopy
   * Ceiling Canopy shape is varies depends on item purchased.

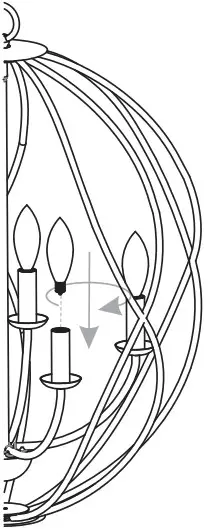

10. Install Bulbs

Install five correct bulbs referring to fixture markings and/or labels for  maximum wattage.

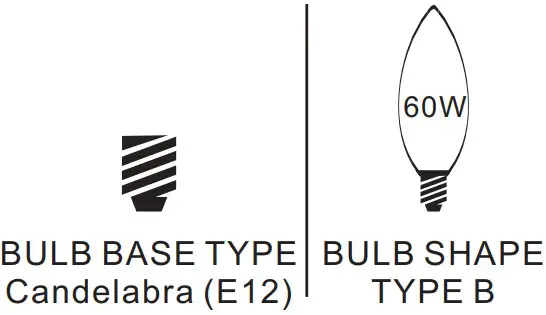

Recommended Bulb Type (not included):

Your installation is now complete! Restore electricity and save this sheet for future reference.
