PRC1508BN 1 Light 8 inch Brushed Nickel Mini Pendant Ceiling Light
INSTALLATION GUIDE FOR PRC1508BN and PRC1508MBK
Released Date: 2022-04-15
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING
- RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
- RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.
CAUTION
- For your safety, read instructions completely before beginning installation.
- If in doubt about electrical installation, consult a licensed electrician.
- Turn off electricity to fixture before replacing the bulb(s).
TOOLS REQUIRED
CARE AND MAINTENANCE
Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com.

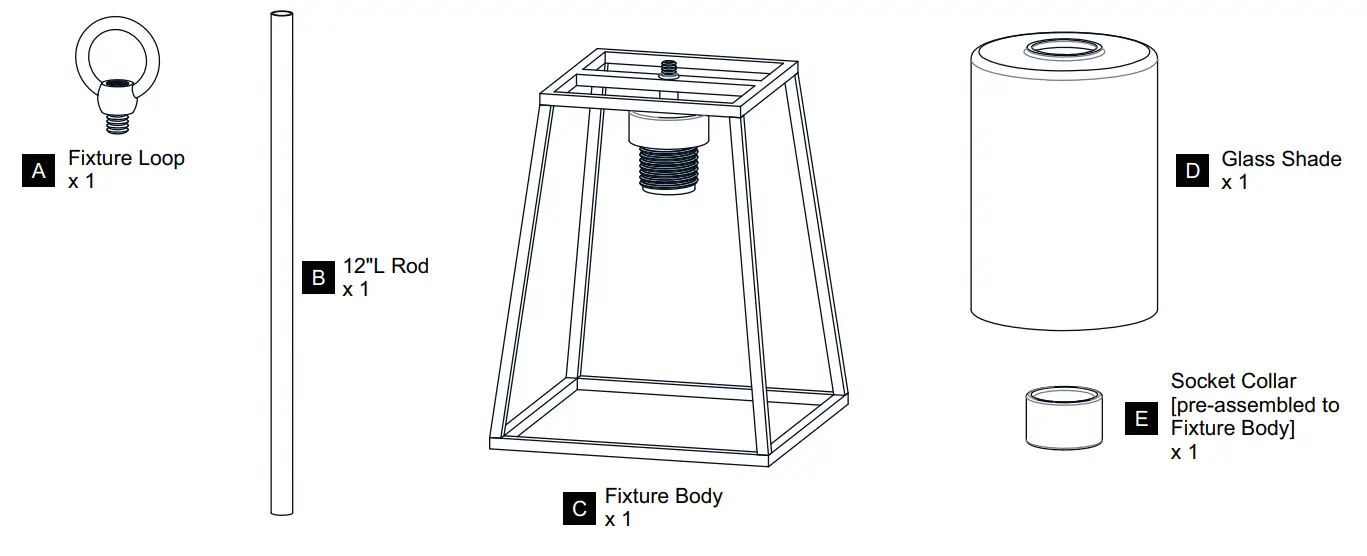

PACKAGE CONTENTS

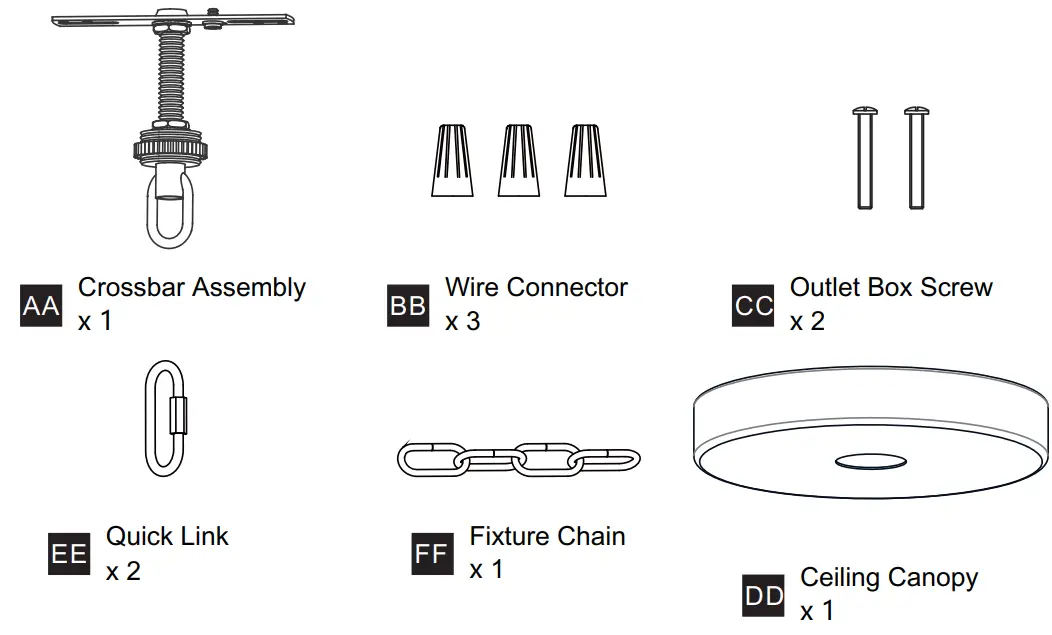

MOUNTING HARDWARE
INSTALLATION

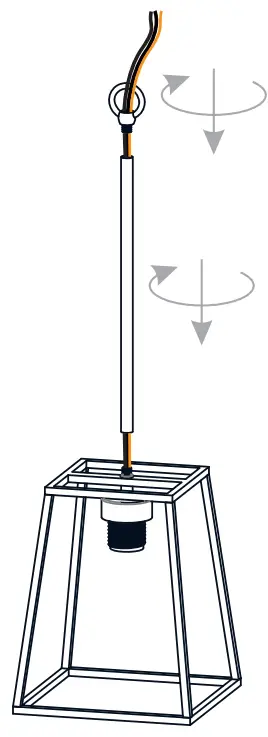

Thread Fixture Loop, 12″L Rod to Fixture Body

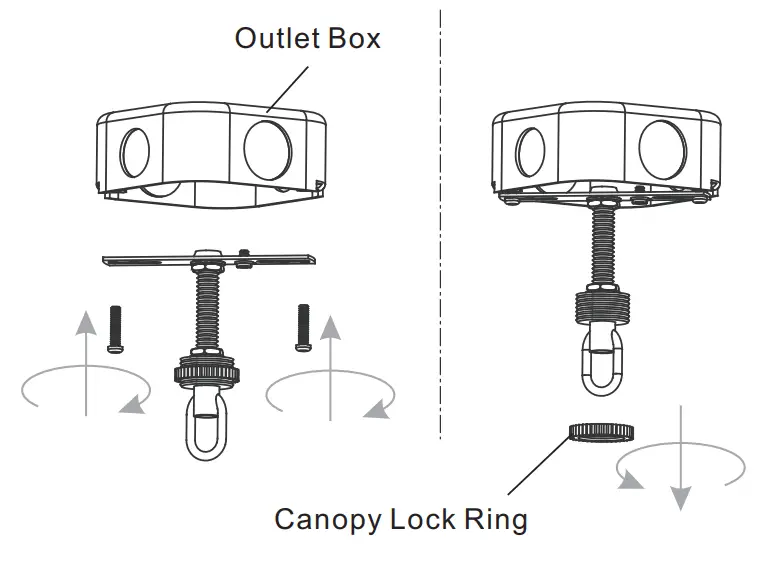

Install Crossbar Assembly

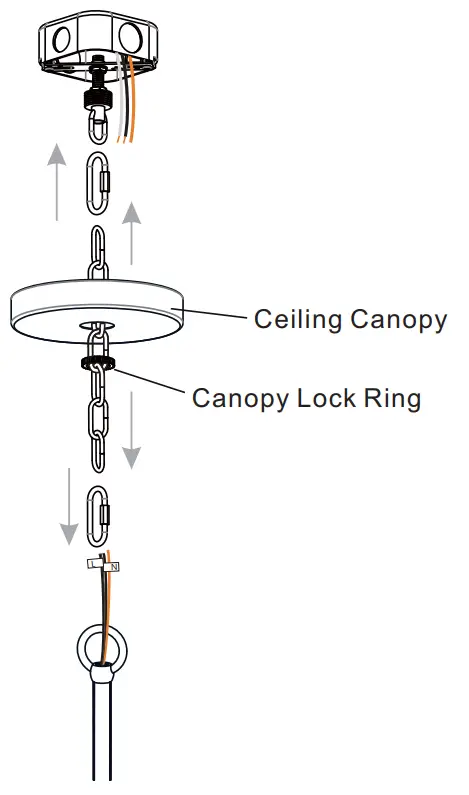

Install Fixture Chain

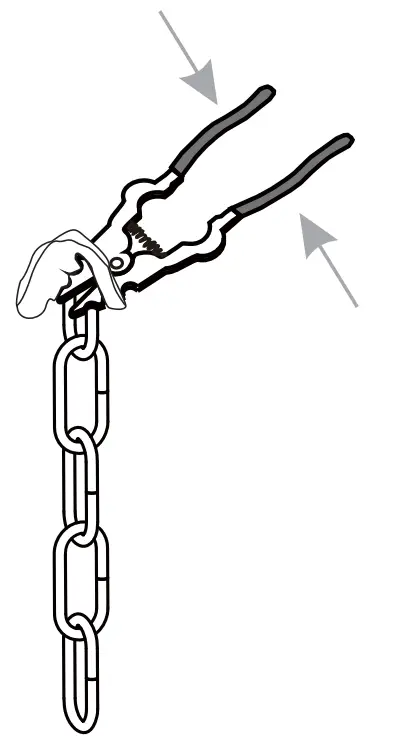

OPTIONAL: Adjust Chain as desired, using pliers and soft cloth (neither included).
Suggested chain length for
Ceiling height: 8 feet ceiling: use 10 links of chain and 2 quick links
9 feet ceiling: use 20 links of chain and 2 quick links
10 feet ceiling: use 30 links of chain and 2 quick links.
* Ceiling Canopy shape is varies depends on item purchased.

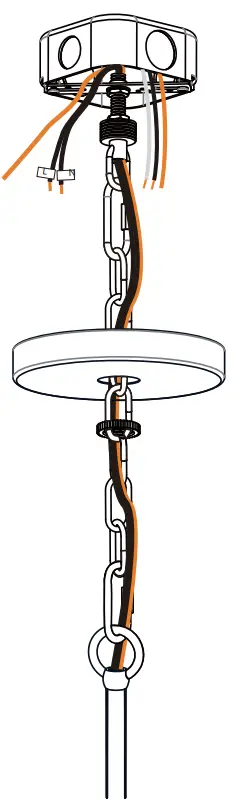

Pull Supply Wires

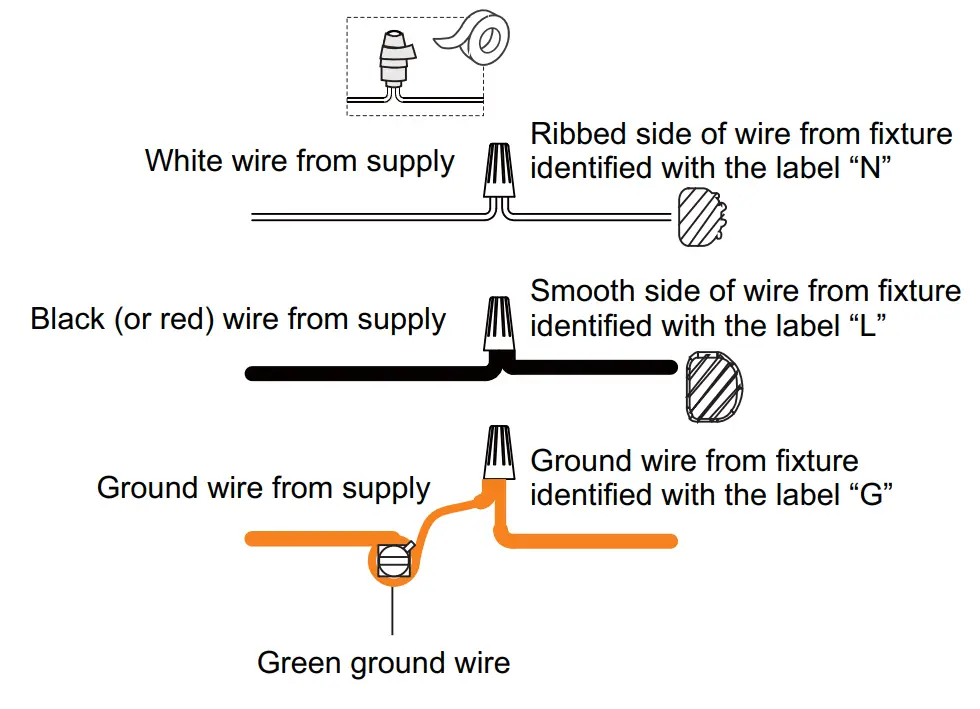

Wiring

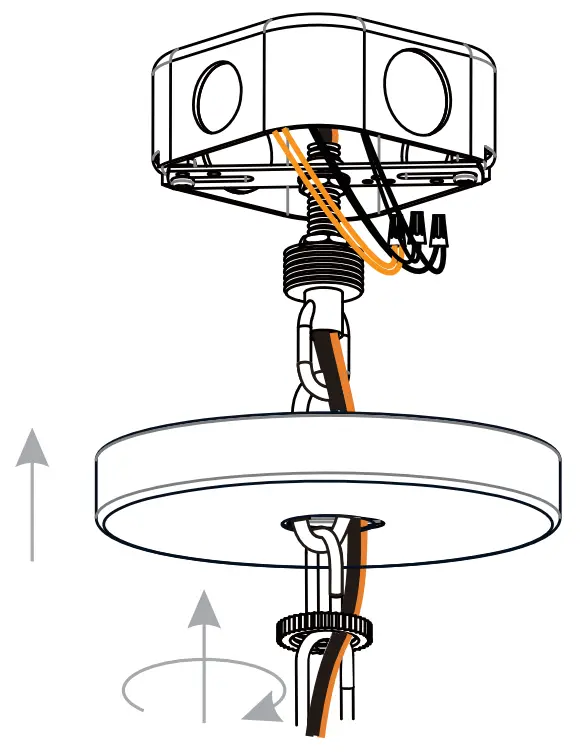

Install Ceiling Canopy
Ceiling Canopy shape is varies depends on item purchased.

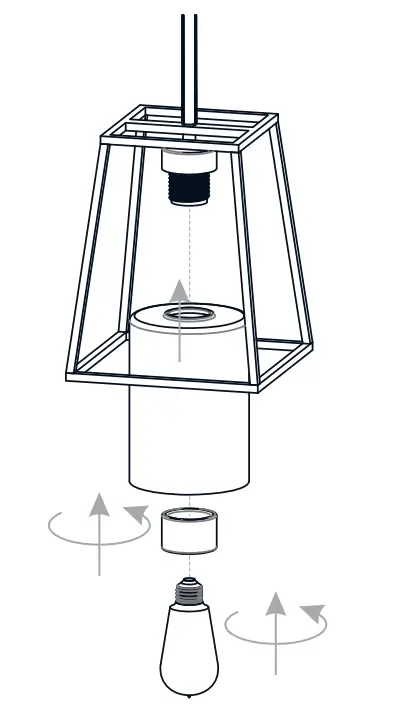

Install Glass Shade and Bulb
Install the correct bulb referring to fixture markings and/or labels for maximum wattage.

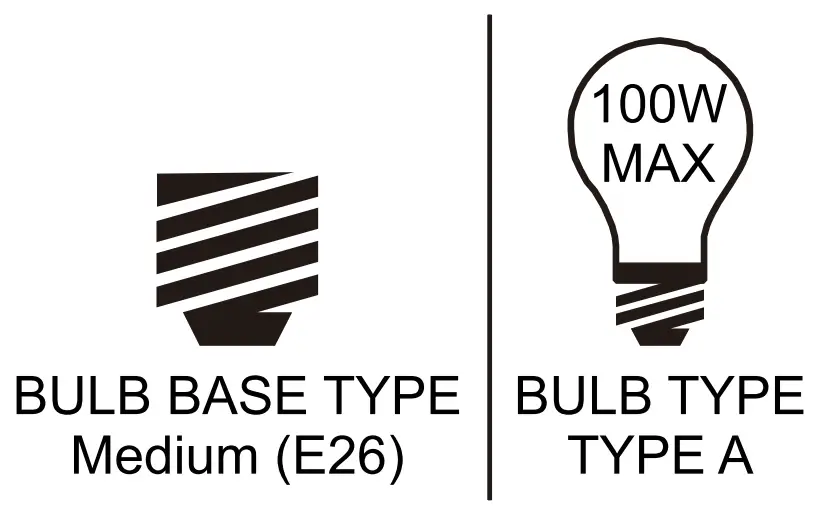

Recommended Bulb Type (not included):
Your installation is now complete! Restore electricity and save this sheet for future reference.
Quoizel | Artisans In Lighting
