INSTALLATION GUIDE
FOR GDN2820BN and GDN2820CG
SAFETY INFORMATION
SAFETY INFORMATIONPlease read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING
- RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
- RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.
CAUTION
- For your safety, read the instructions completely before beginning installation.
- If in doubt about electrical installation, consult a licensed electrician.
- Turn off electricity to fixture before replacing the bulb(s).
TOOLS REQUIRED
CARE AND MAINTENANCE
- Wipe clean using a soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00 am – 5:00 pm EST) or visit us online at www.quoizel.com.

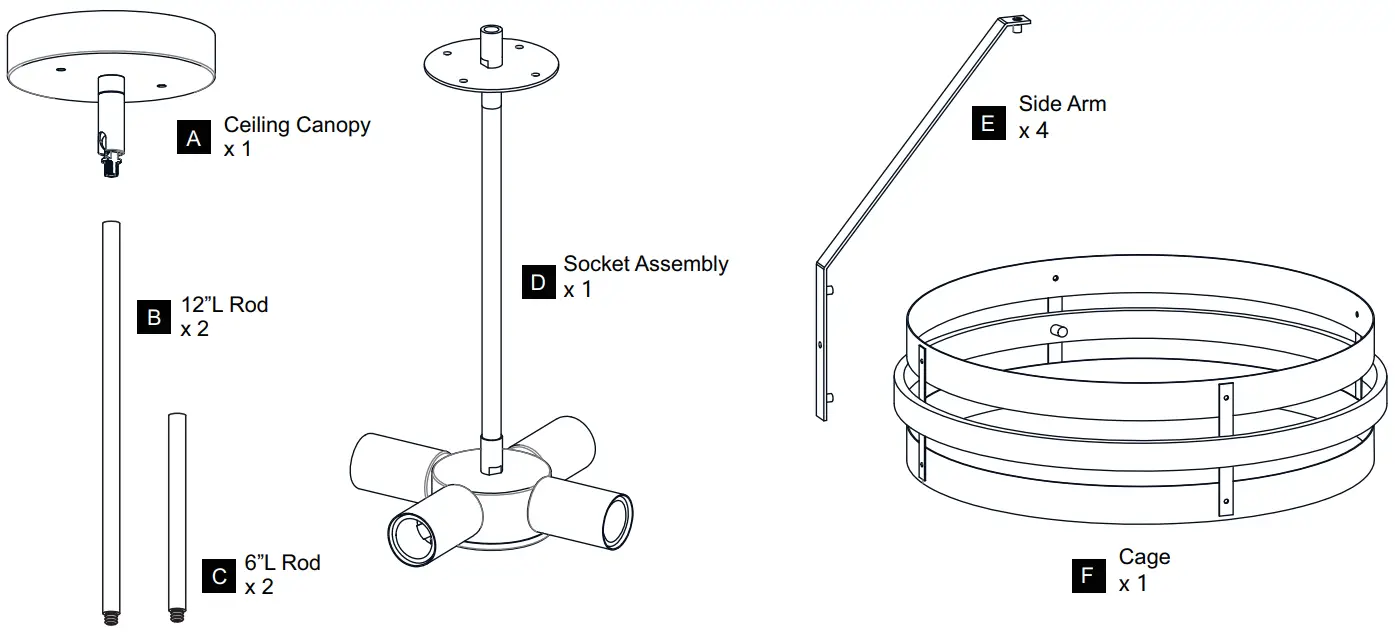

PACKAGE CONTENTS

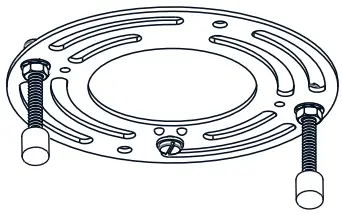

MOUNTING HARDWARE
 |  |  |
| AA – Crossbar Assembly x1 | BB – Wire Connector x3 | CC – Outlet Box Screw x2 |
INSTALLATION

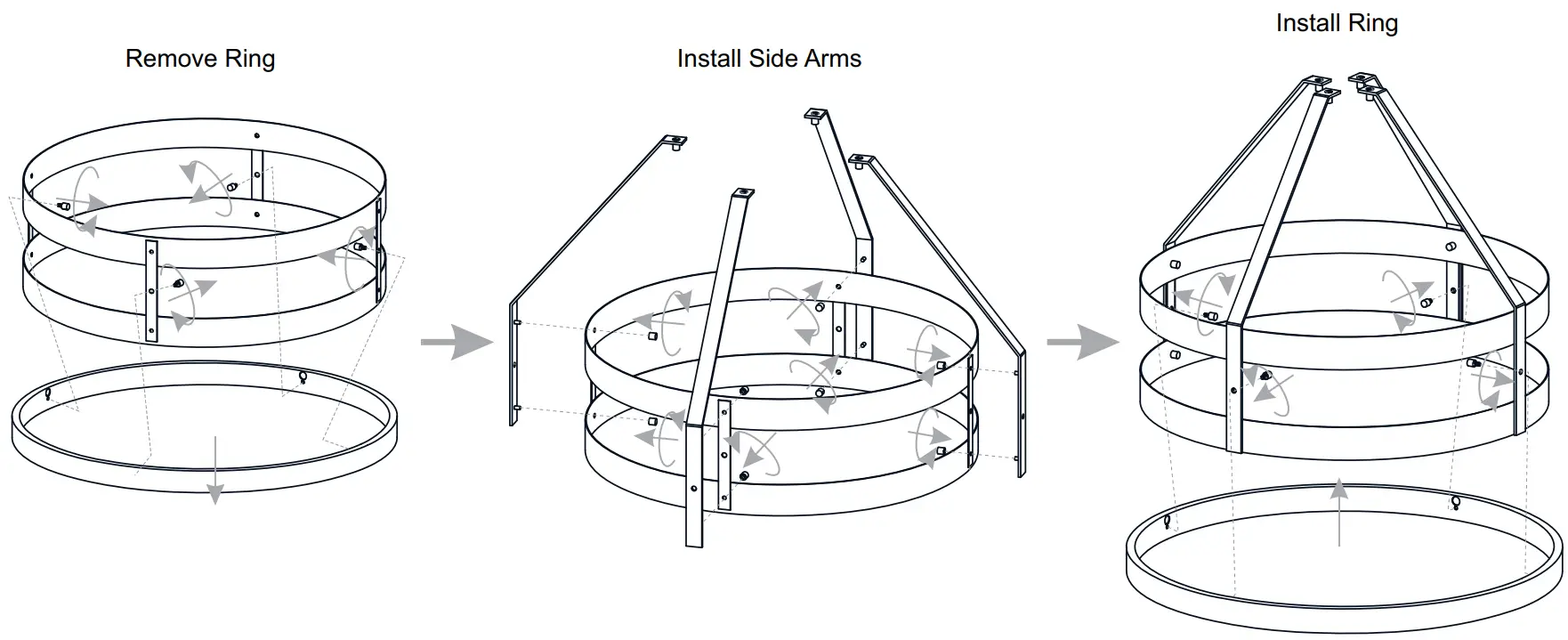

- Install Side Arms to Cage

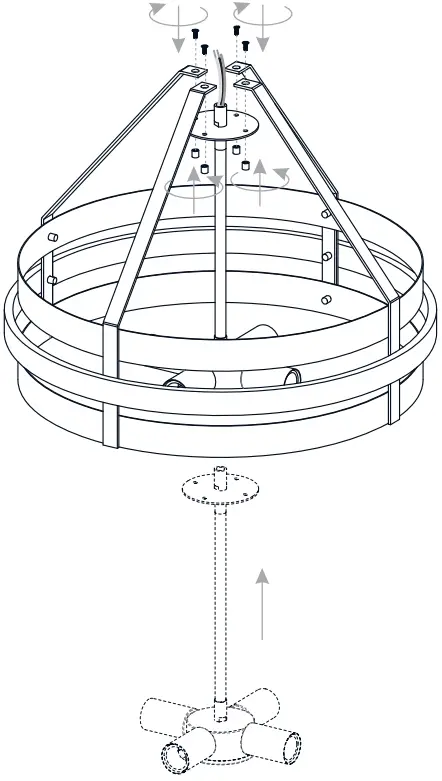

- Install Side Arms to Top Assembly

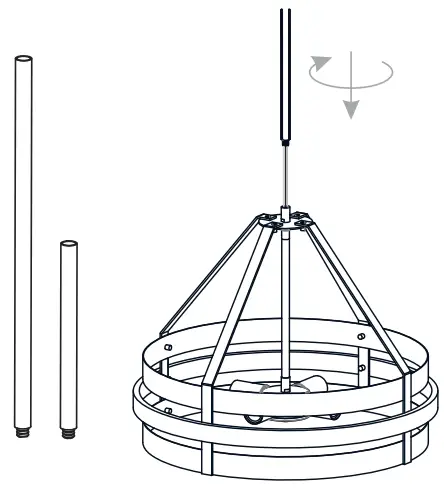

- Install Rods
Optional Rods:
8 Feet Ceiling:
(1) 6″L Rod + (1) 12″L Rod.
9 Feet Ceiling:
(1) 6″L Rod + (2) 12″L Rods.
10 Feet Ceiling:
(2) 6″L Rods + (2) 12″L Rods.

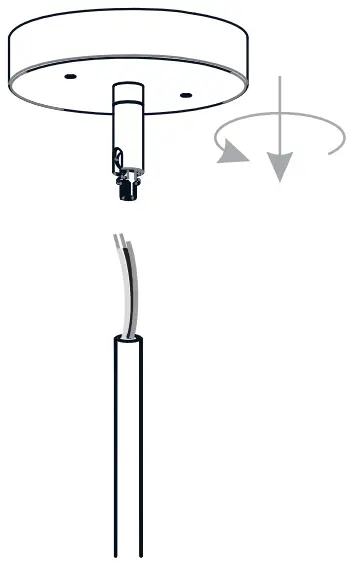

- Install Ceiling Canopy to Upper Rod

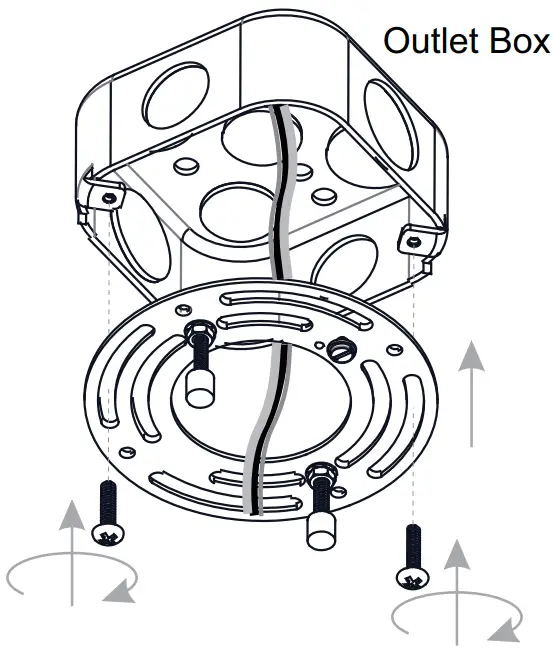

- Install Crossbar Assembly
- Wiring

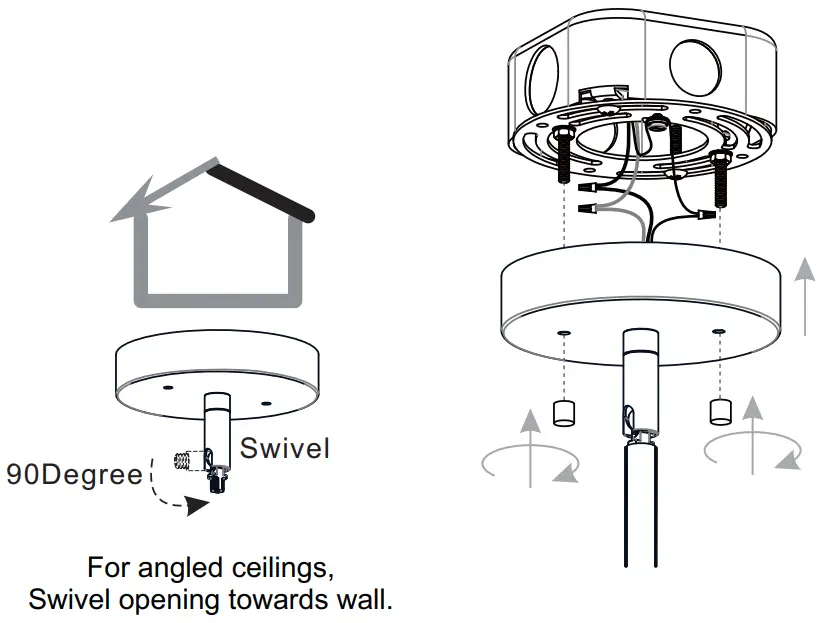

- Install Ceiling Canopy to Crossbar Assembly
- Install Bulbs
Install four correct bulbs referring to fixture markings and/or labels for maximum wattage.
Recommended Bulb Type (not included):
BULB BASE TYPE
Medium (E26)BULB TYPE
TYPE A
Your installation is now complete! Restore electricity and save this sheet for future reference.
Released Date: 202 -023-23
Quoizel | Artisans In Lighting
