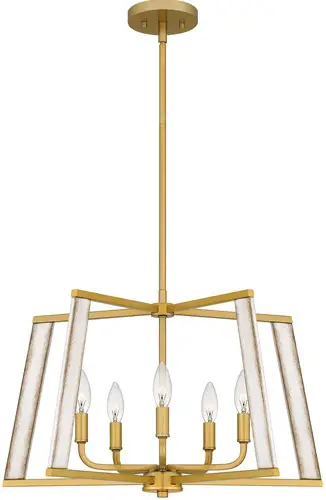

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, install or operate the product.

WARNING

• RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
• RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture

CAUTION

For your safety, read instructions completely before beginning installation.
If in doubt about electrical installation, consult a licensed electrician.
Turn off electricity to fixture before replacing the bulb(s)

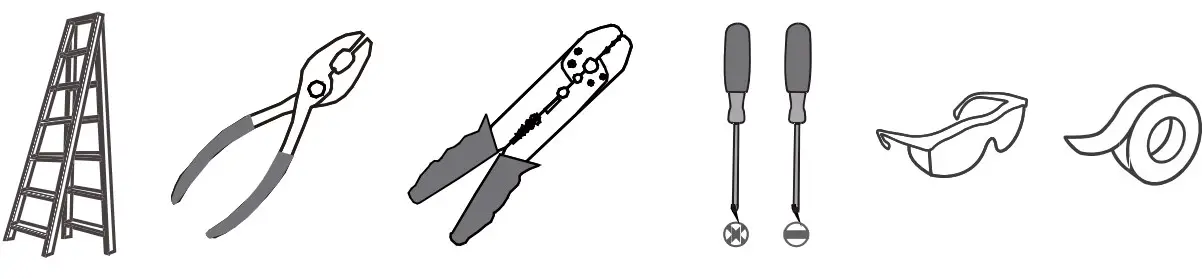

TOOLS REQUIRED

CARE AND MAINTENANCE

Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.

If you need further assistance call Quoizel Customer Care at 1-800-645-3184(9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com

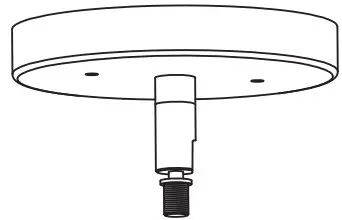

PACKAGE CONTENTS

• 12″L Rod C X 2

• 6″L Rod X 2

• 6″L Rod X 2

• Coupling X 1

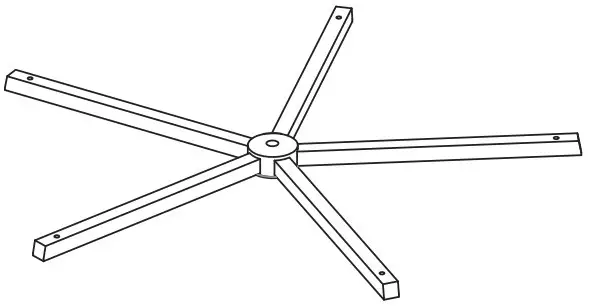

• Top Cross Tube X 1

• Center Rod X 1

• Mounting Screw [Pre-assembled to Side tube] X 10

• Side Tube X 5

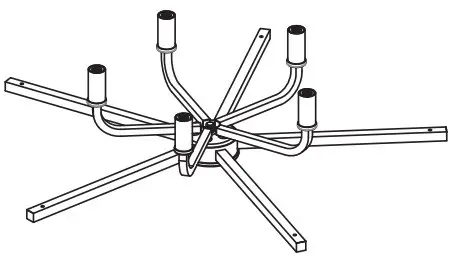

• Fixture Body X 1


MOUNTING HARDWARE

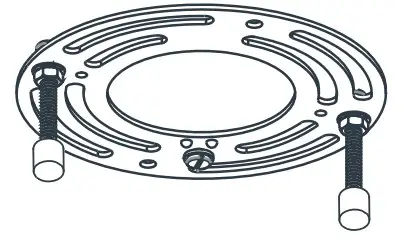

• A BB CC Crossbar Assembly X 1

• Wire Connector X 3

• Outlet Box Screw X 2


INSTALLATION

1. Install Top Cross Tube to Fixture Body

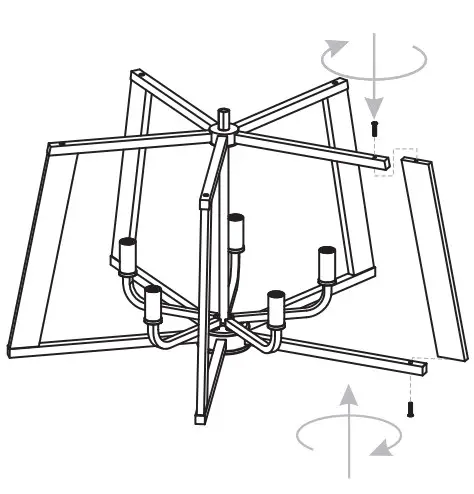

2. Install Side Tube

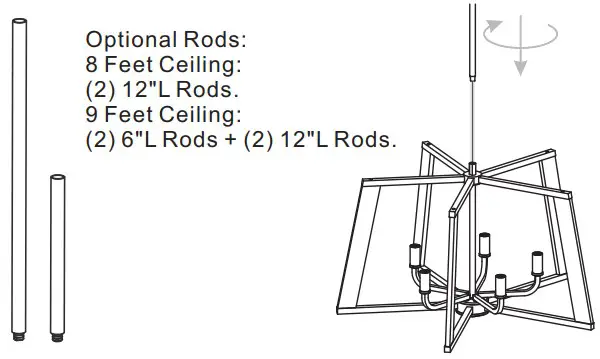

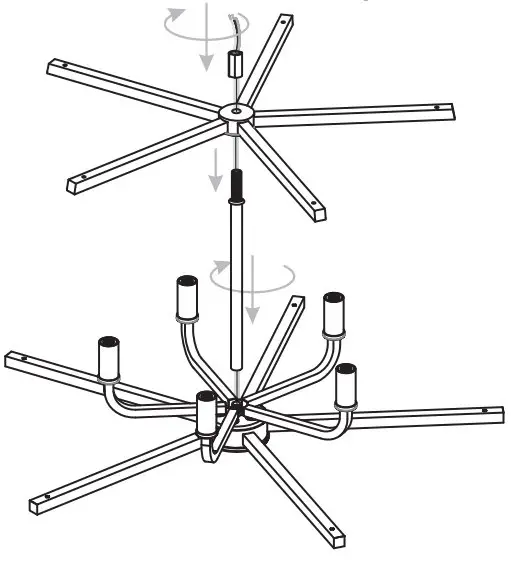

3. Install Rods

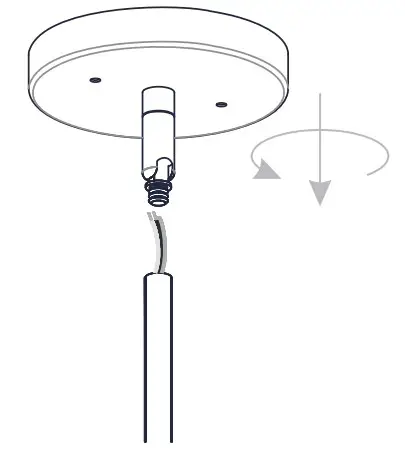

4. Install Ceiling Canopy to Upper Rod

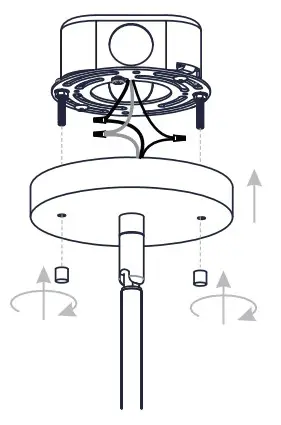

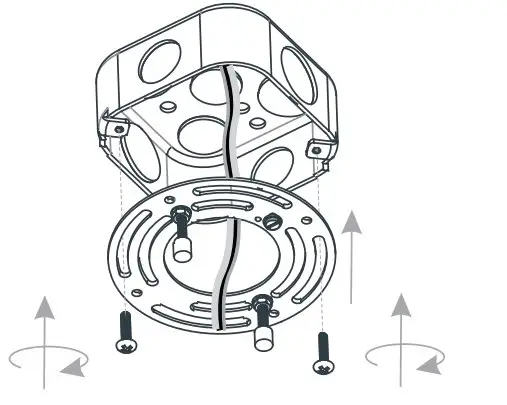

5. Install Crossbar Assembly

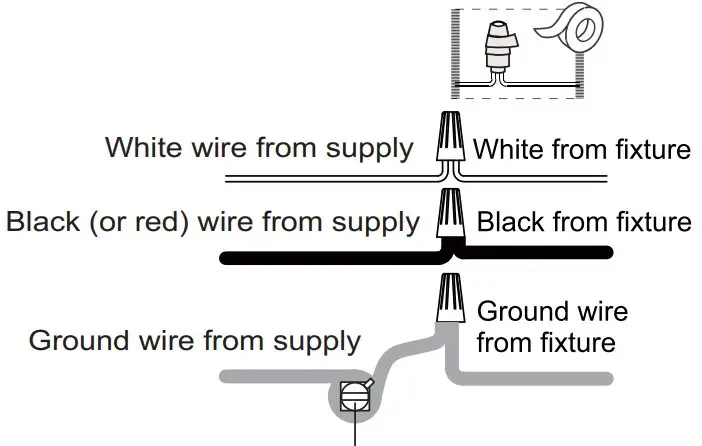

6. Wiring

   Green ground screw
7. Install Ceiling Canopy to Crossbar Assembly

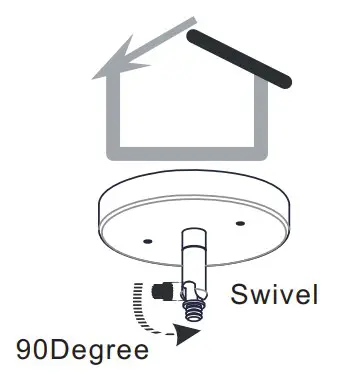

   For angled ceilings, Swivel opening towards wall.
8. Install Bulbs
   Install five correct bulbs referring to fixture markings and/or labels for maximum wattage.
   Recommended Bulb Type (not included):

   BULB BASE TYPE Candelabra (E12)

   BULB SHAPE TYPE B
