Quoizel Bga5021bn 24 Inch Brigitta 6 Light Brushed Nickel Chandelier Ceiling Light Installation Guide

QUOIZEL BGA5021BN 24 Inch Brigitta 6 Light Brushed Nickel Chandelier Ceiling Light

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, install or operate the product.

WARNING
RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box. RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.

CAUTION
For your safety, read instructions completely before beginning installation. If in doubt about electrical installation, consult a licensed electrician. Turn off electricity to fixture before replacing the bulb(s).

TOOLS REQUIRED

CARE AND MAINTENANCE

Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish. If you need further assistance call Quoizel Customer Care at 1-800-645-3184(9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com

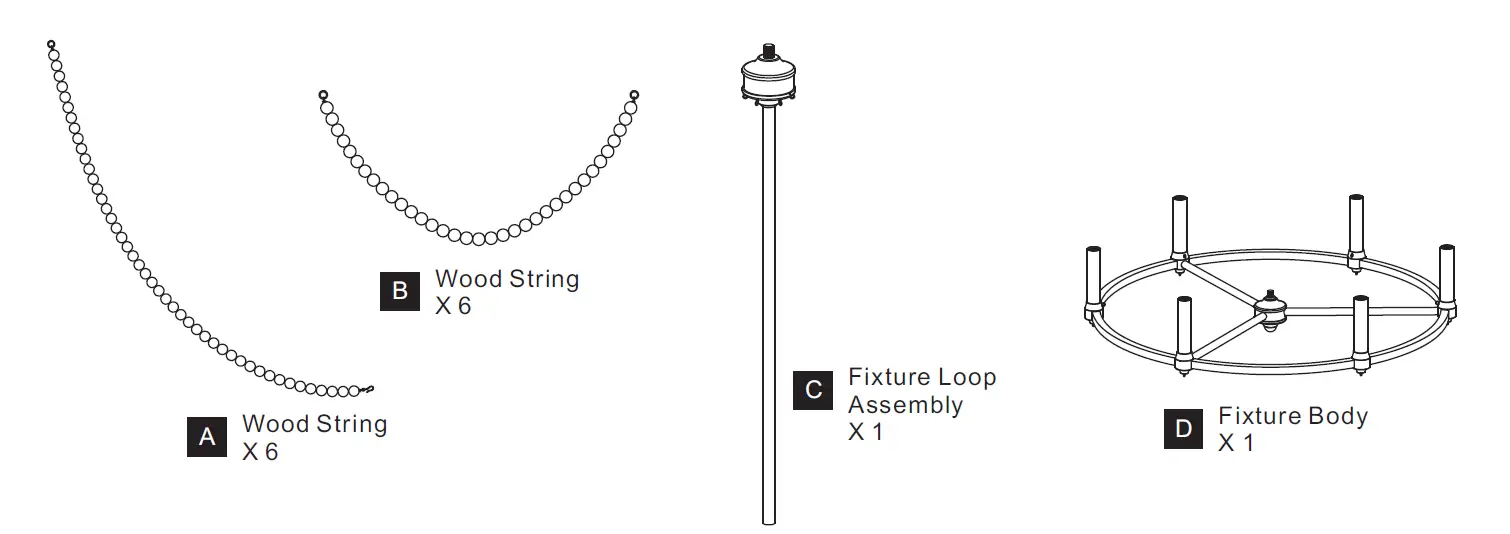

PACKAGE CONTENTS

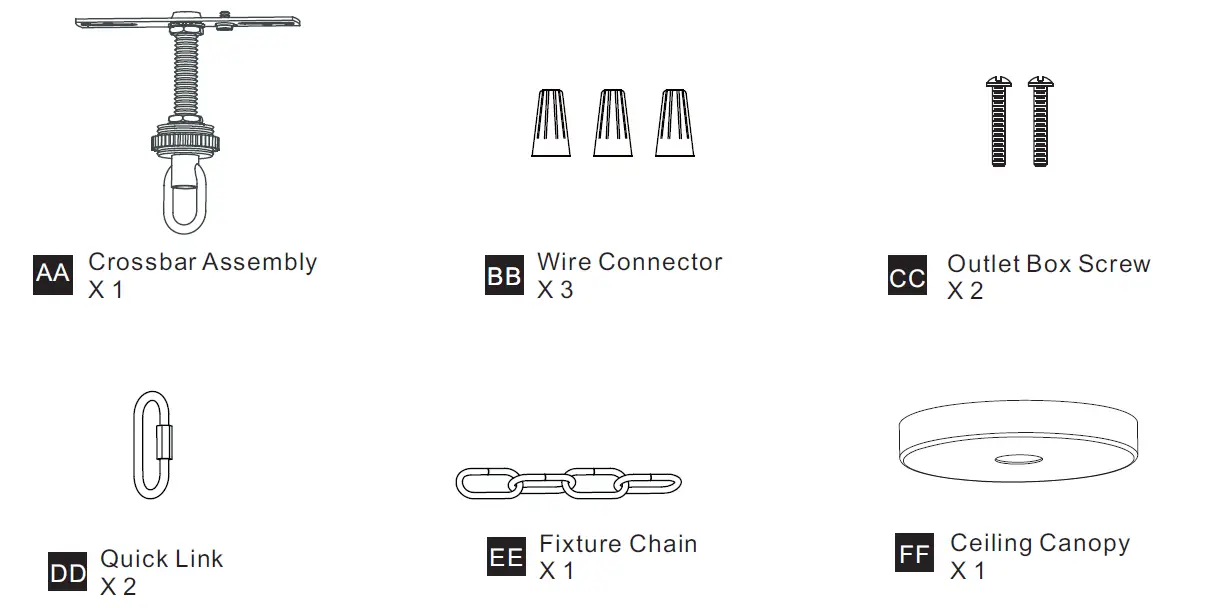

MOUNTING HARDWARE

INSTALLATION

1. Install Fixture Loop Assembly

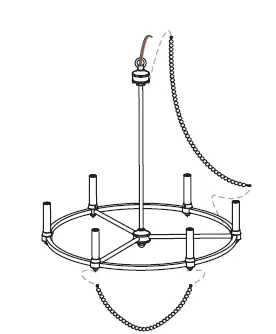

2. Install Wood String

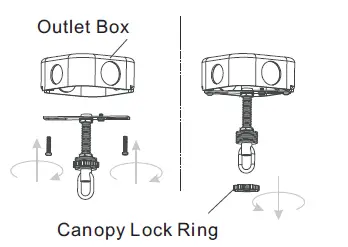

3. Install Crossbar Assembly
4. Install Fixture Chain
   OPTIONAL: Adjust Chain as desired, using pliers and soft cloth (neither included). Suggested chain length for
   Ceiling height: 8 feet ceiling: use 2 links of chain and 2 quick links . 9 feet ceiling: use 12 links of chain and 2 quick links 10 feet ceiling: use 22 links of chain and 2 quick link

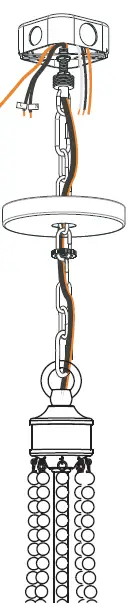

5. Pull Supply WiresPull the supply wires with ground wire through the chain alternate links

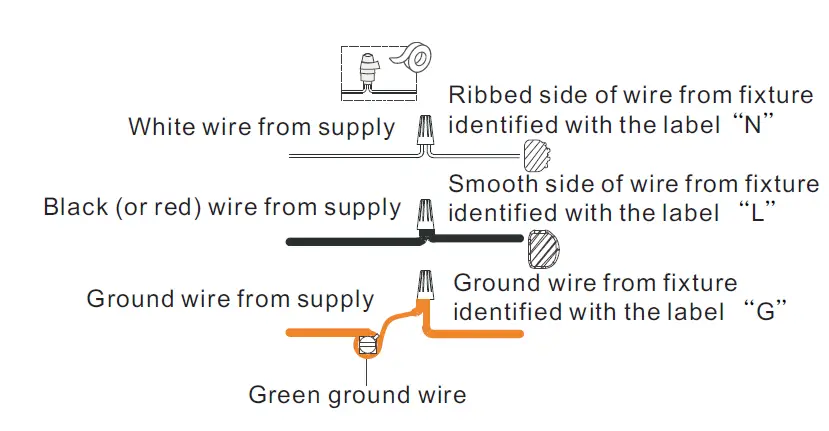

6. Wiring

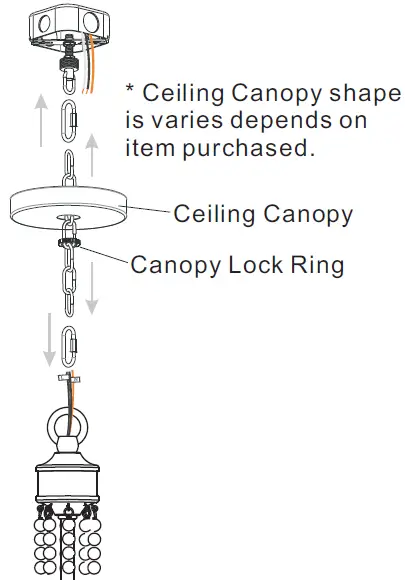

7. Install Ceiling Canopy

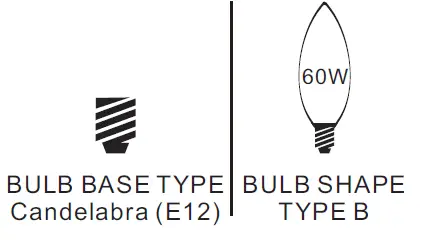

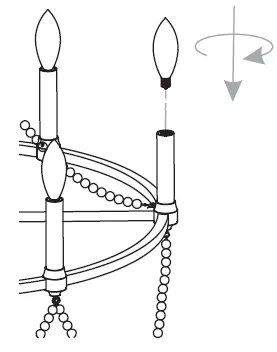

8. Install BulbsInstall six correct bulbs referring to fixture markings and/or labels for maximum wattage Recommended Bulb Type (not Included):

Your installation is now complete! Restore electricity and save this sheet for future reference
