INSTALLATION GUIDE FOR KEL5025NWS
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING
- RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
- RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.
CAUTION
- For your safety, read the instructions completely before beginning installation.
- If in doubt about electrical installation, consult a licensed electrician.
- Turn off electricity to fixture before replacing the bulb(s).
TOOLS REQUIRED
CARE AND MAINTENANCE
- Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00 am – 5:00 pm EST), or visit us online at www.quoizel.com.

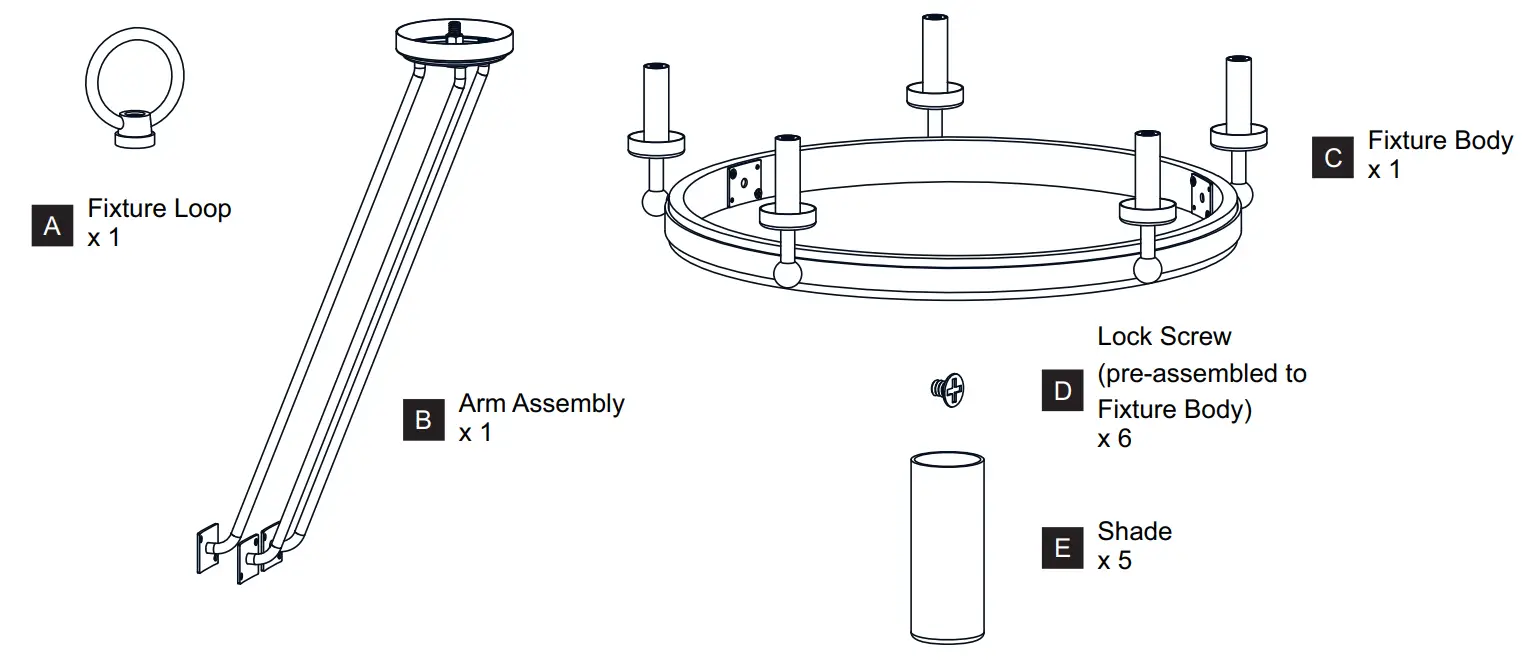

PACKAGE CONTENTS

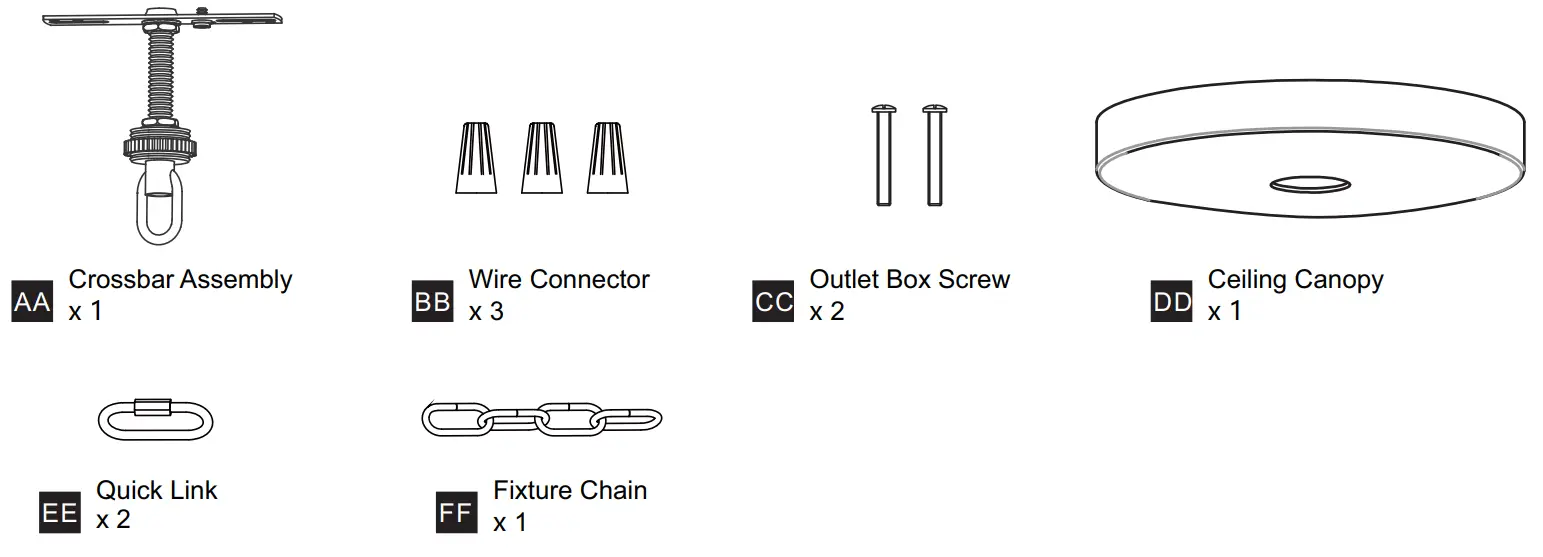

MOUNTING HARDWARE
INSTALLATION

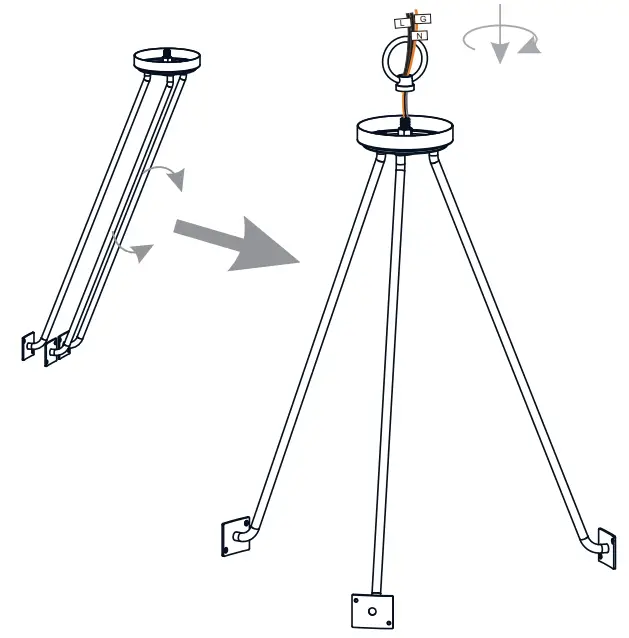

- Unfold Side Arms and Install Fixture Loop
- Install Arm Assembly to Fixture Body
- Install Crossbar Assembly

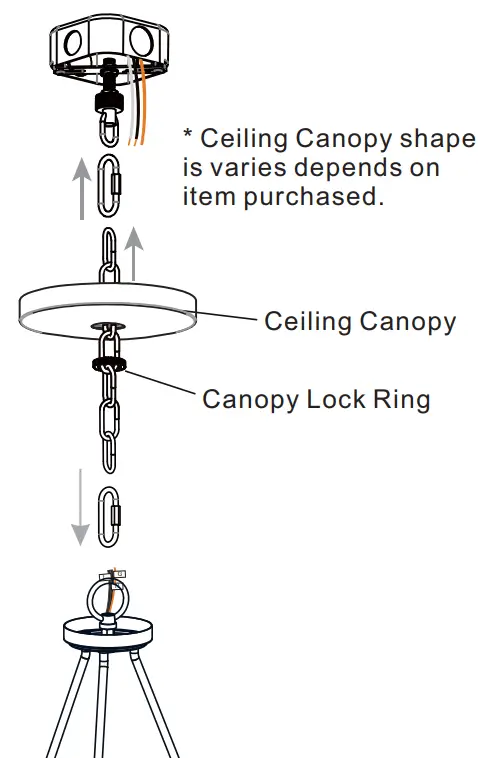

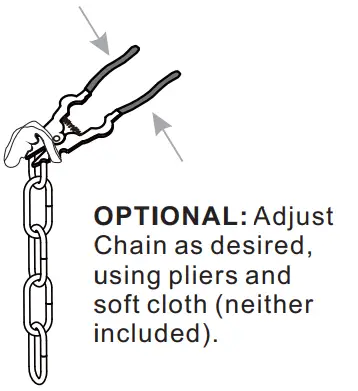

- Install Fixture Chain
Suggested chain length for Ceiling height:
8 feet ceiling: use links of 6 chain and 2 quick links
9 feet ceiling: use 1 link of 6 chains and 2 quick links
10 feet ceiling: use 2 links of 6 chains and 2 quick links.

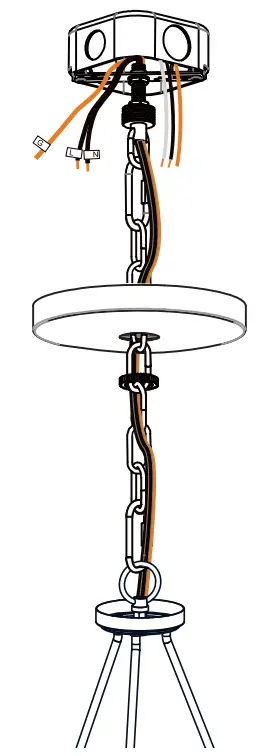

- Pull Supply Wires
Pull the supply wires with ground wire through the chain alternate links.
- Wiring

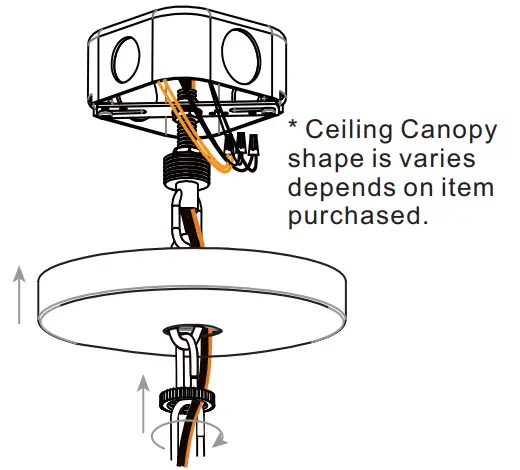

- Install Ceiling Canopy

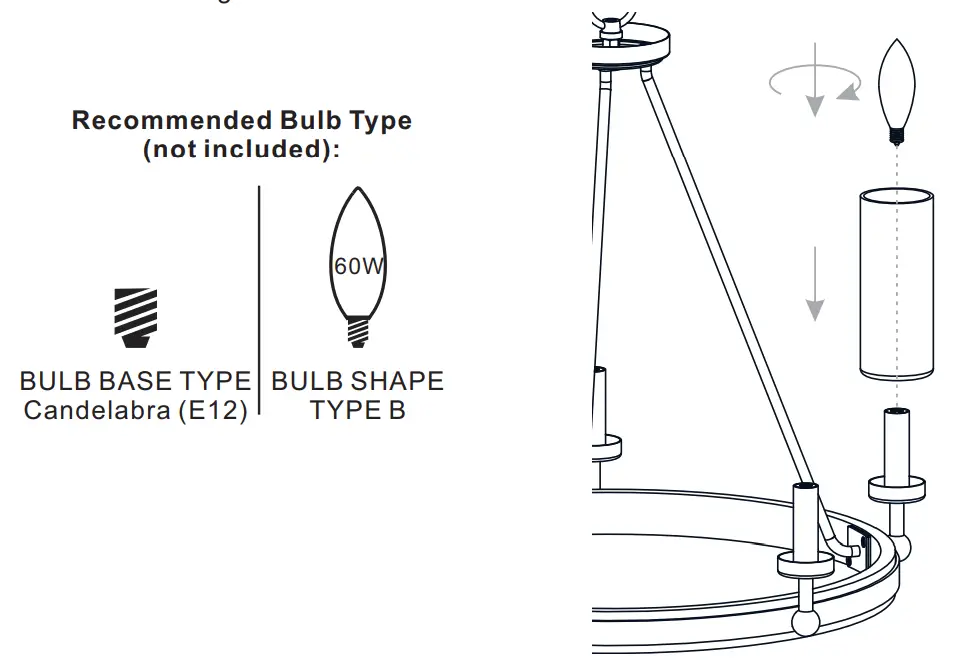

- Install Shades and Bulbs
Install correct bulbs referring to fixture markings and/or labels for six maximum wattage.
Your installation is now complete! Restore electricity and save this sheet for future reference.
