INSTALLATION GUIDE FOR AEL5024MB
and AEL5024AWH
Released Date: 2022-01-26
SAFETY INFORMATION
SAFETY INFORMATIONPlease read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING
- RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
- RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.
CAUTION
- For your safety, read the instructions completely before beginning installation.
- If in doubt about electrical installation, consult a licensed electrician.
- Turn off electricity to fixture before replacing the bulb(s).

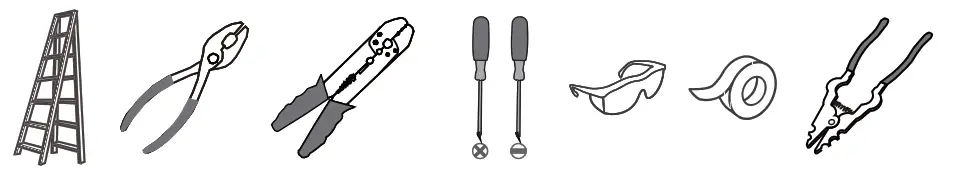

TOOLS REQUIRED
CARE AND MAINTENANCE
- Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00 am – 5:00 pm EST) or visit us online at www.quoizel.com.

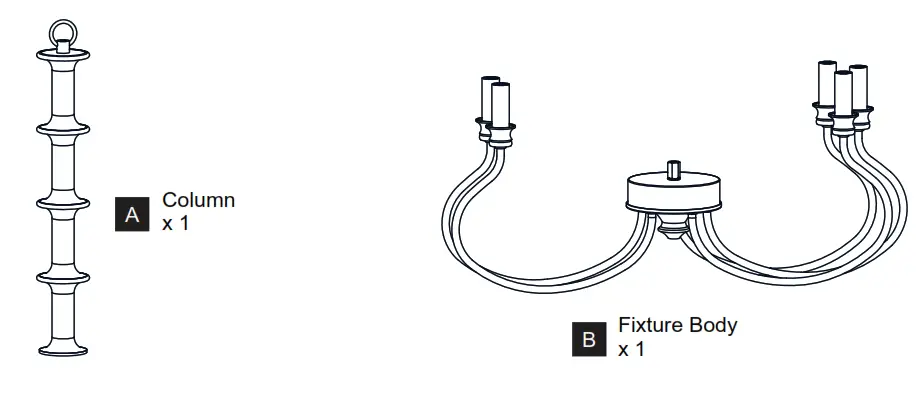

PACKAGE CONTENTS

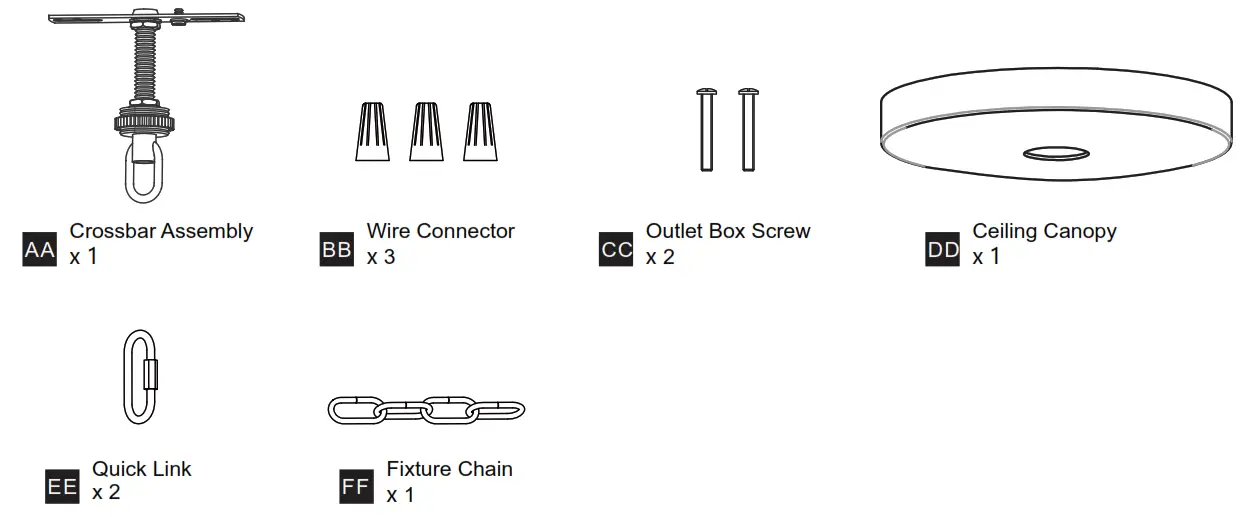

MOUNTING HARDWARE
INSTALLATION

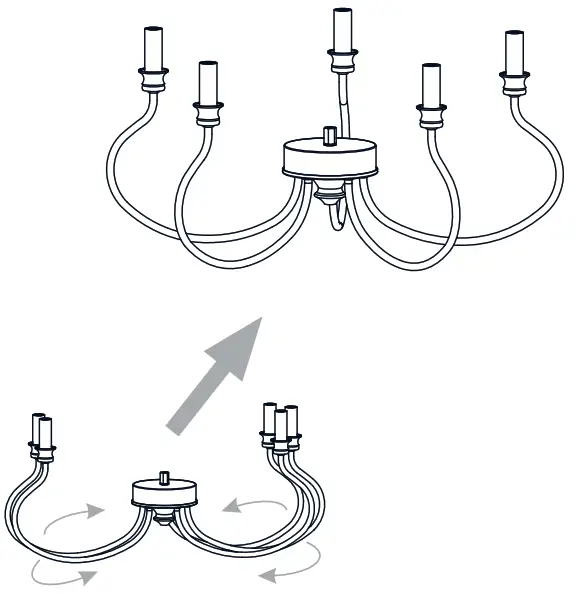

- Unfold Arms

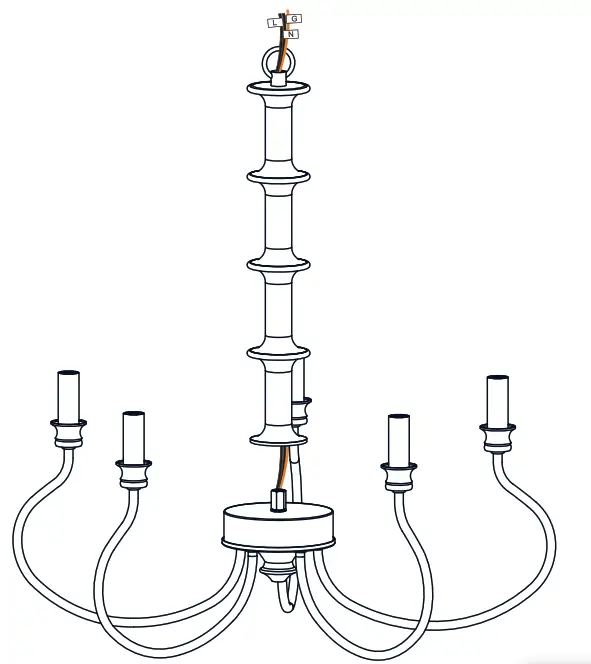

- Install Arm Assembly
- Install Crossbar Assembly

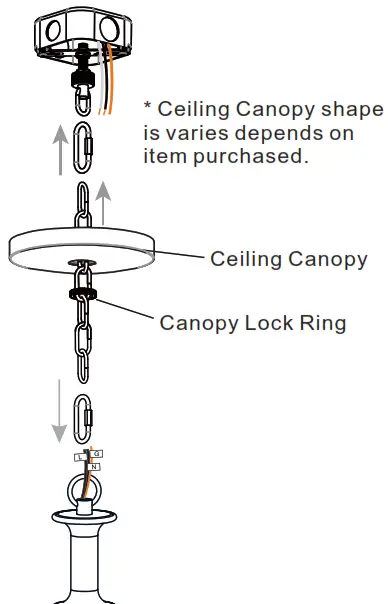

- Install Fixture Chain

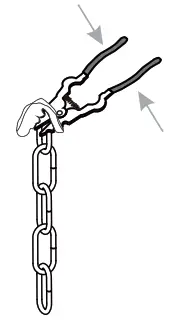

OPTIONAL: Adjust the Chain as desired, using pliers and a soft cloth (neither included).
Suggested chain length for Ceiling height:
8 feet ceiling: use links of 7 chains and 2 quick links 9 feet ceiling: use 1 link of 7 chains and 2 quick links 10 feet ceiling: use 2 links of 7 chains and 2 quick links.

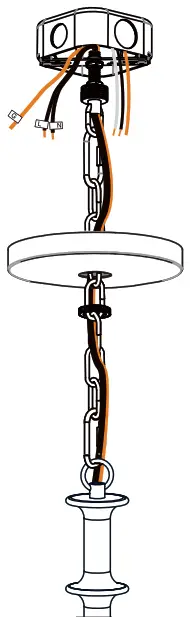

- Pull Supply Wires
Pull the supply wires with ground wire through the chain alternate links.

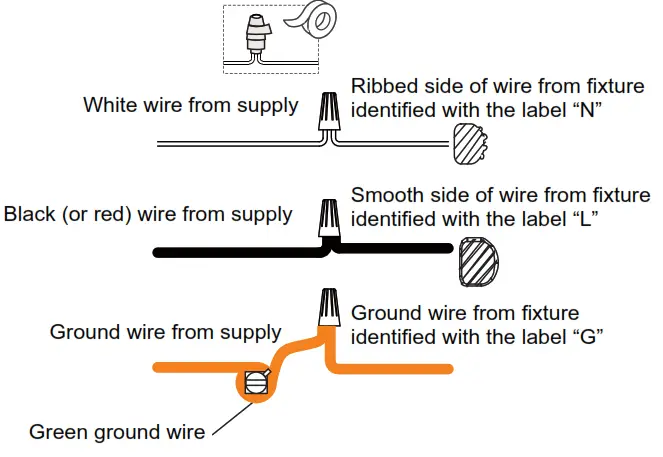

- Wiring

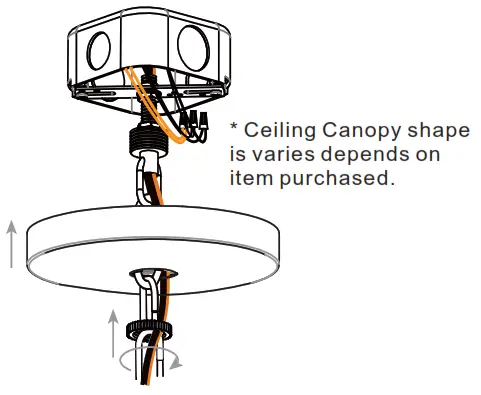

- Install Ceiling Canopy

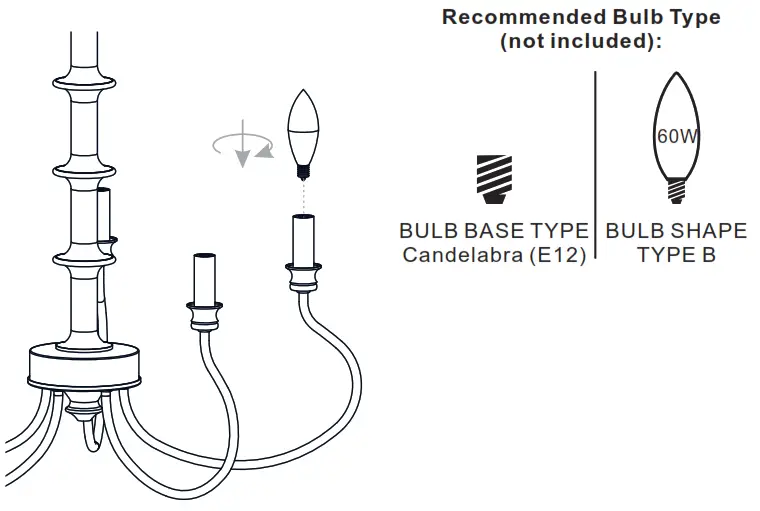

- Install Bulbs
Install five correct bulbs referring to fixture markings and/or labels for maximum wattage.
Your installation is now complete! Restore electricity and save this sheet for future reference.
