PRC5026MBK 5 Light 26 inch Matte Black Chandelier Ceiling Light
Installation Guide

PRC5032BN 8 Light 32 inch Brushed Nickel Chandelier Ceiling Light

INSTALLATION GUIDE FOR PRC5026BN and PRC5026MBK
Released Date: 2022-04-15

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING

• RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
• RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.

CAUTION

• For your safety, read instructions completely before beginning installation.
• If in doubt about electrical installation, consult a licensed electrician.
• Turn off electricity to fixture before replacing the bulb(s).

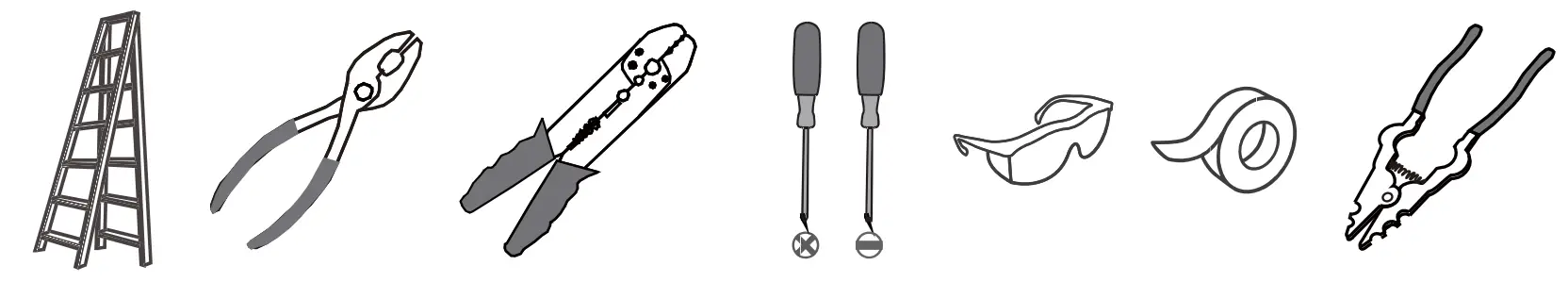

TOOLS REQUIRED

CARE AND MAINTENANCE

Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com.

PACKAGE CONTENTS

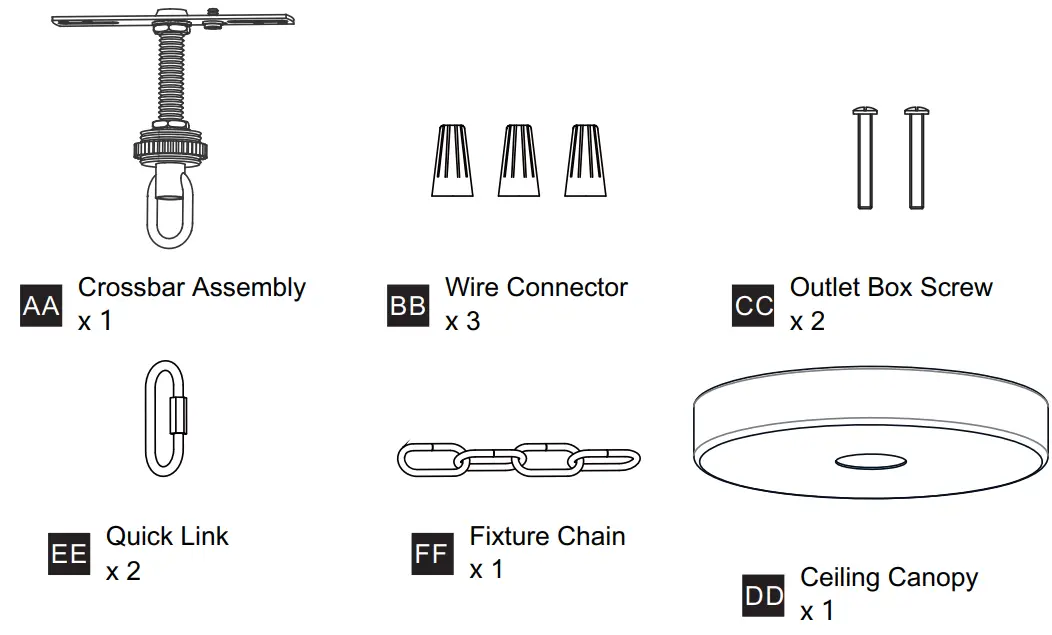

MOUNTING HARDWARE

INSTALLATION

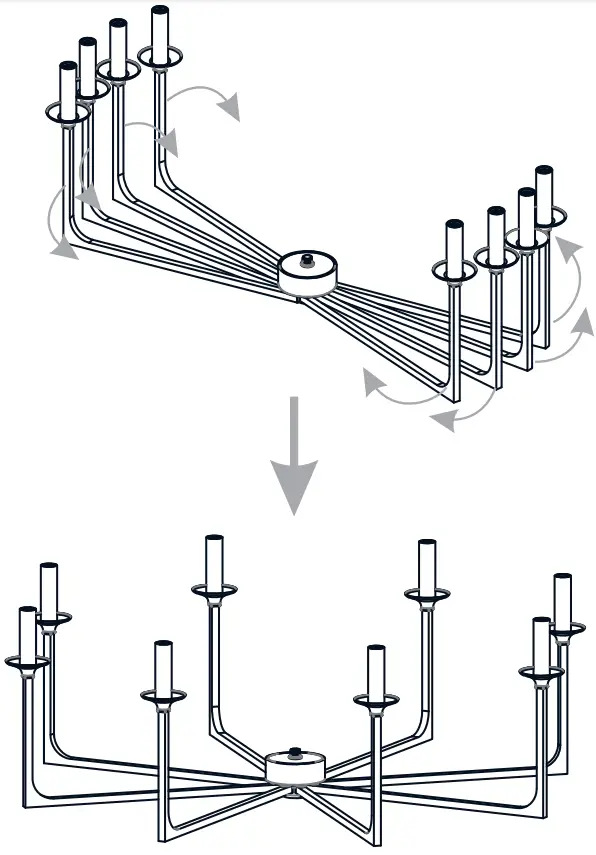

Unfold Support Arms
Install Fixture Loop with Rod

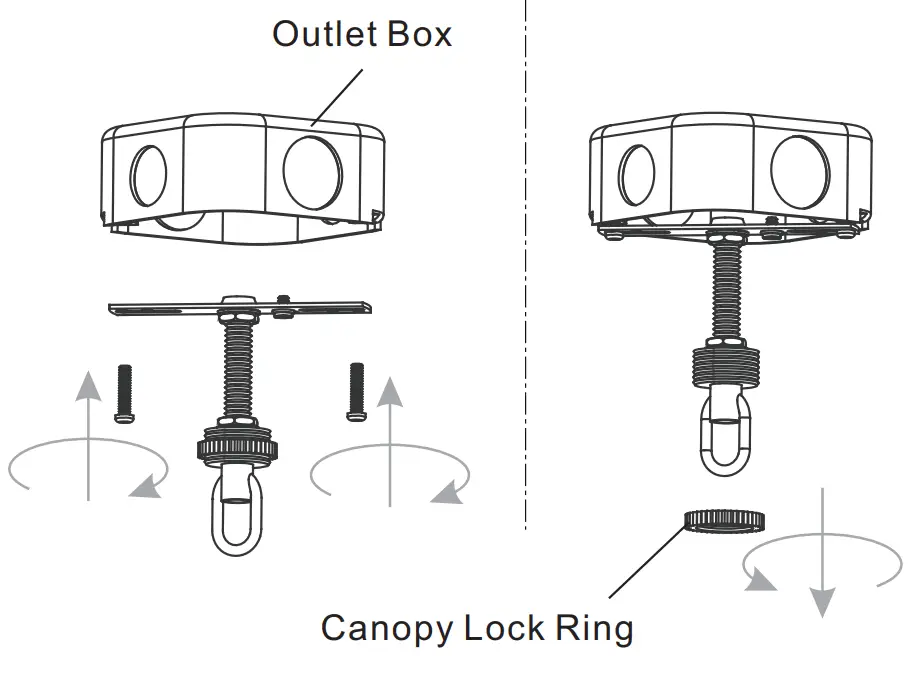

Install Crossbar Assembly

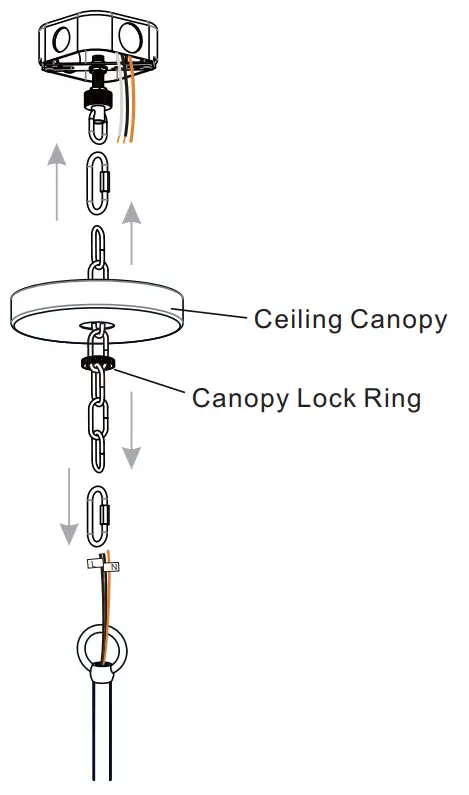

Install Fixture Chain

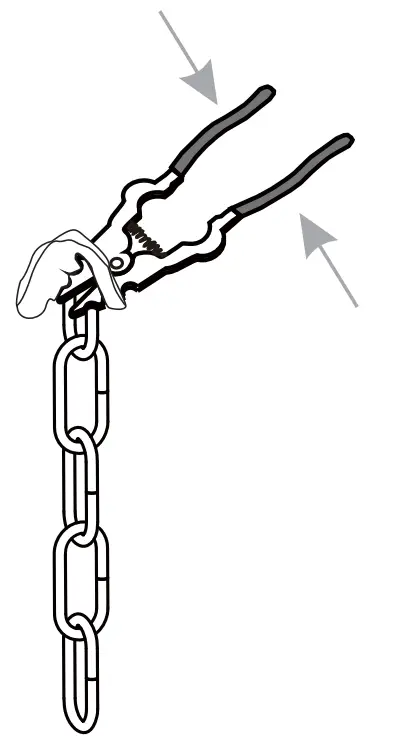

OPTIONAL: Adjust Chain as desired, using pliers and soft cloth (neither included).
Suggested chain length for
Ceiling height:
8 feet ceiling: use links of chain and 2 quick links
9 feet ceiling: use links of chain and 2 quick links
10 feet ceiling: use links of026 chain and 2 quick links.* Ceiling Canopy shape is varies depends on item purchased.

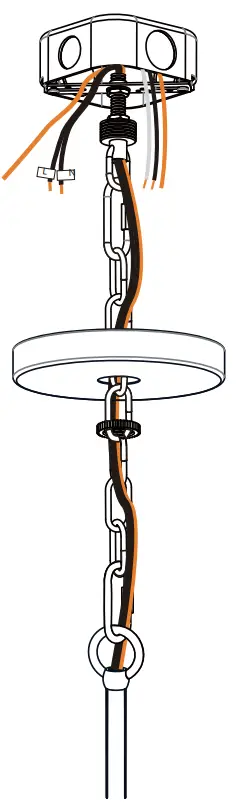

Pull Supply Wires
Pull the supply wires with ground wire through the chain alternate links.

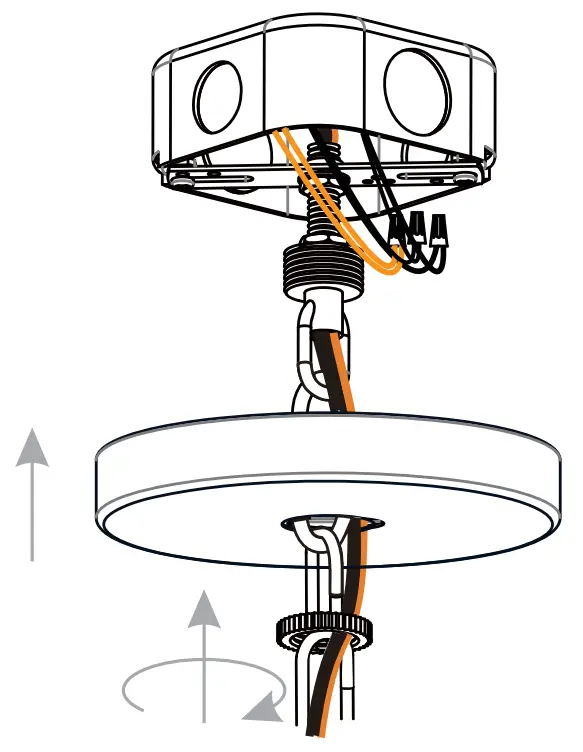

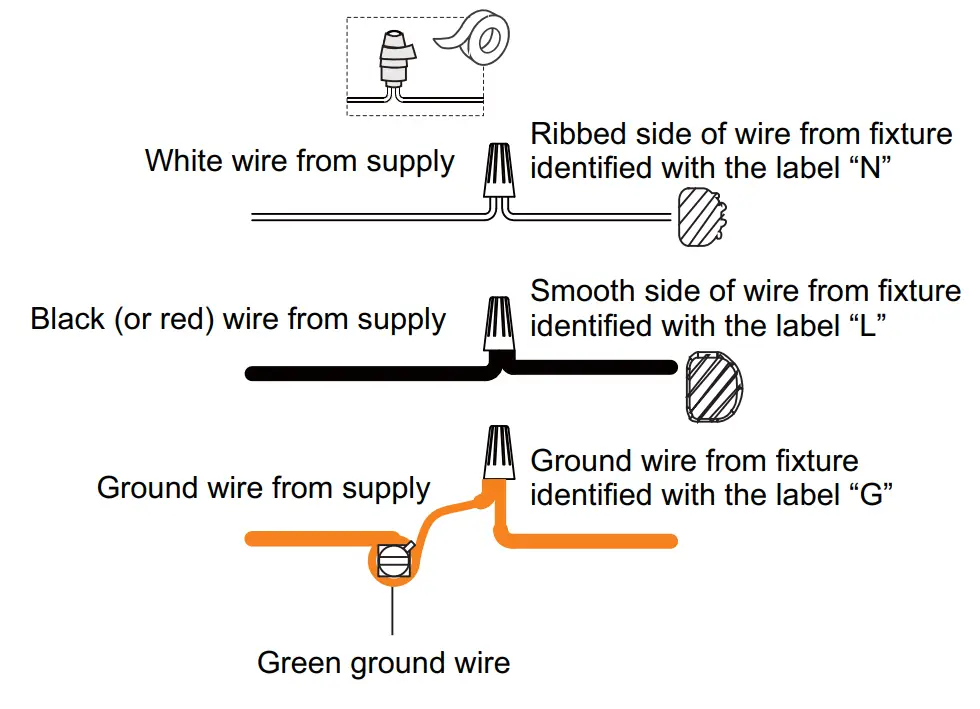

WiringInstall Ceiling Canopy* Ceiling Canopy shape is varies depends on item purchased.
Install Bulbs
Install five correct bulbs referring to fixture markings and/or labels for maximum wattage.

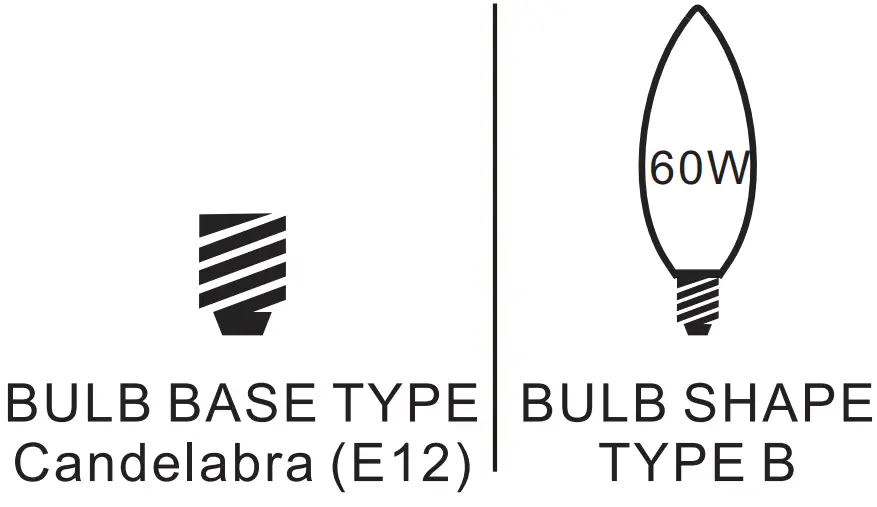

Recommended Bulb Type (not included):Your installation is now complete! Restore electricity and save this sheet for future reference.
