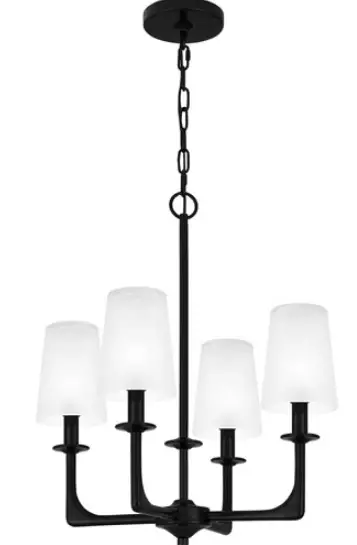

QUOIZEL HOG5018K Hough 4 Light 18 inch Mystic Black Chandelier Ceiling Light

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, install or operate the product.

WARNING

• RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
• RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.

CAUTION

• For your safety, read instructions completely before beginning installation.
• If in doubt about electrical installation, consult a licensed electrician.
• Turn off electricity to fixture before replacing the bulb(s).

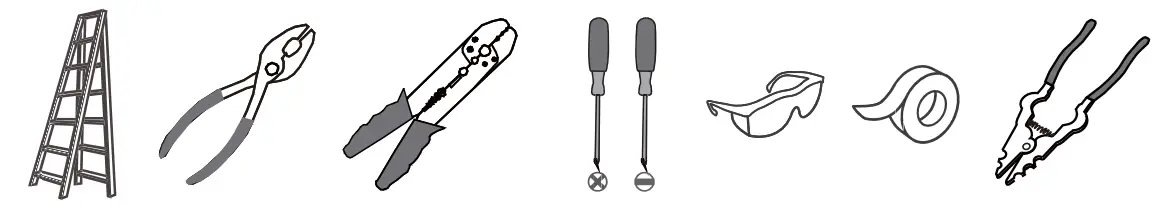

TOOLS REQUIRED

CARE AND MAINTENANCE

Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish. If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com.

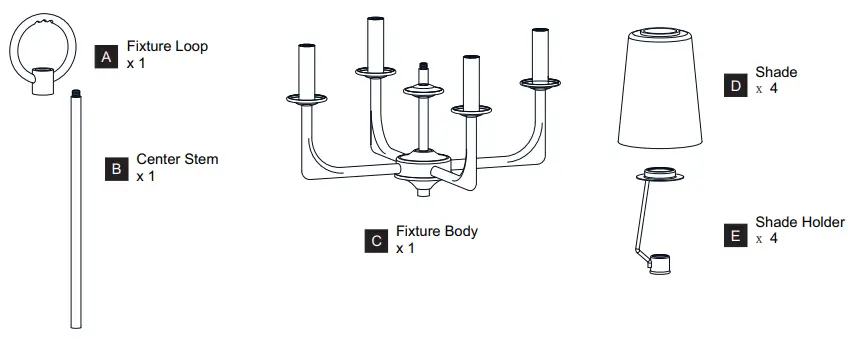

PACKAGE CONTENTS

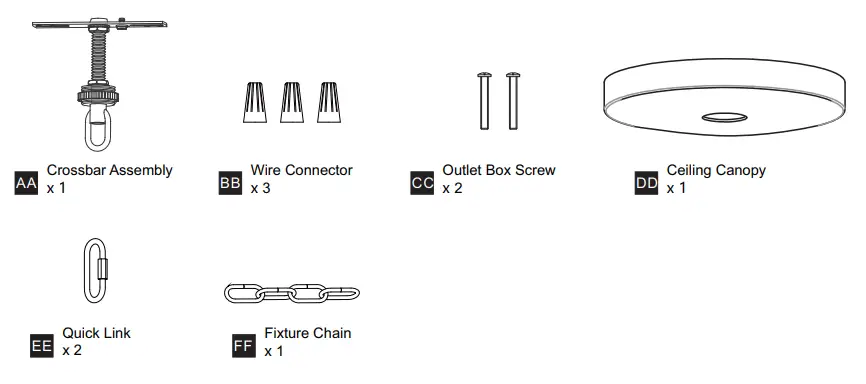

MOUNTING HARDWARE

INSTALLATION

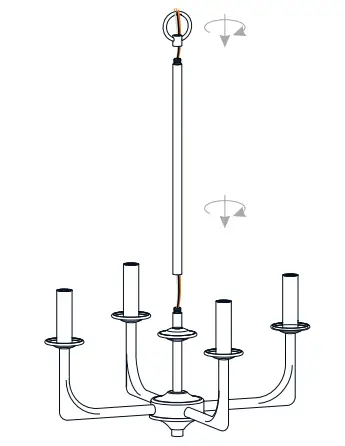

1. Install Fixture Loop, Center Stem to Fixture Body

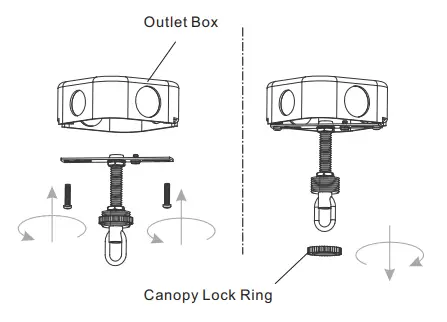

2. Install Crossbar Assembly

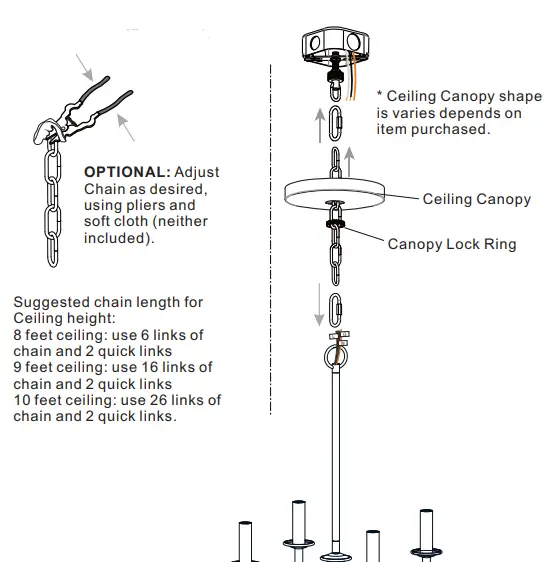

3. Install Fixture Chain

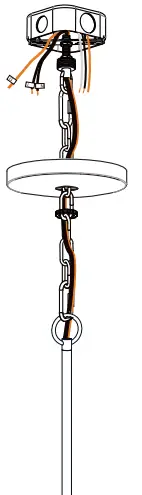

4. Pull Supply Wires
   Pull the supply wires with ground wire through the chain alternate links.

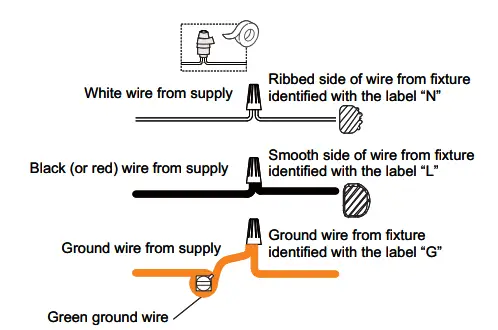

5. Wiring
6. Install Ceiling Canopy

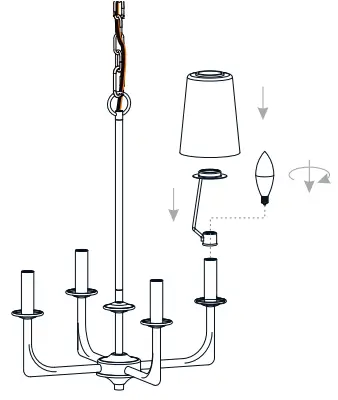

7. Install Shades and Bulbs
   Install four correct bulbs referring to fixture markings and/or labels for maximum wattage.
   Recommended Bulb Type (not included):

Your installation is now complete! Restore electricity and save this sheet for future reference.
