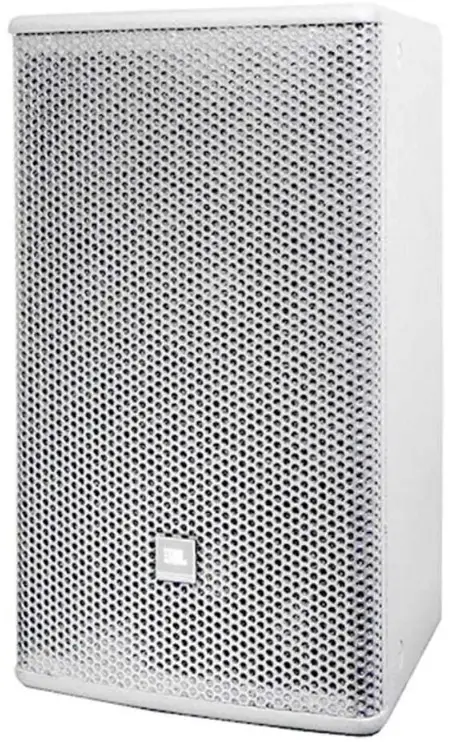

JBL Professional AC895-WH Two-Way Full-Range Loudspeaker
Key Features
- Compact enclosure
- 209 mm (8 in) LF transducer
- 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 25mm (1″) voice-coil compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple Attachment Points for Ultimate Flexibility
Applications
- Performing Spaces
- Clubs & Bars
- Houses of Worship
- Multi Media Spaces
- Retail & Hospitality Spaces
- Presentation Suites
- Educational Facilities
AC895 is a compact 2-way full-range loudspeaker system comprised of one 209 mm (8 in) low frequency driver and one 25 mm (1 in) exit/25 mm
(1 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response.
The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount® or similar type mounting.
AC895 is part of JBL’s AE Application Engineered Series, a versatile e family of loudspeakers for a wide variety of fixed installation applications.
JBL continually engages in research related to product improvement. Some materials, production methods and design refinements are introduced into existing products without notice as a routine expression of that philosophy. For this reason, any current JBL product may differ in some respect from its published description, but will always equal or exceed the original design specifications unless otherwise stated.
Specifications
| System: | |
| Frequency Range (-10 dB)1: | 70 Hz – 20 kHz |
| Frequency Response (±3 dB)1: | 90 Hz – 18kHz |
| System Sensitivity (1w @ 1m)1: | 94 dB |
| Nominal Impedance: | 8 ohms |
| Maximum SPL(1m)2: | 116 dB (122 dB peak) |
| Long-Term System Power Rating (IEC)3: | 150 W/300 W/600 W
(Continuous/Program/Peak) |
| 2 hr Power Rating4: System Power Rating (AES): | 250W (1000W peak), 2 hrs |
| Coverage Pattern: | 90° x 50° (H x V) |
| Crossover: | 2 kHz |
| Transducers: | |
| Low frequency driver: | 1 x 8″ woofer (P/N: 5055470), 209 mm (8 in) driver with 50 mm (2 in) voice-coil |
| High frequency driver: | 1 x 2414H-C driver with 25 mm (1 in) exit/25 mm (1 in) voice-coil |
| Physical: | |
| Input Connector: | Dual Neutrik NL4MP connectors plus covered bar- rier trip terminals |
| Enclosure: | 15 mm multi-ply hardwood plywood |
| Grille: | Powder coated, 1.5mm perforated steel, with acous- tically transparent black foam backing |
| Finish: | Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish. |
| Suspension / Mounting: | 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, overhead suspension bracket, and wall-mount bracket |
| Dimensions (H x W x D): | 470 mm x 265 mm x 254 mm
18.5 in x 10.4 in x 10.0 in |
| Net Weight: | 10.2 kg (22.4 lbs) |
- Full space (4π) conditions
- Calculated maximum SPL based on rated power handling
- IEC shaped pink noise with 6dB CF for 100hrs
- AES standard, one decade pink noise with 6 dB crest factor within device’s operational band, free air. Standard AES 2 hr. rating plus long-term 100 hr. rating are specified for low-frequency transducers.

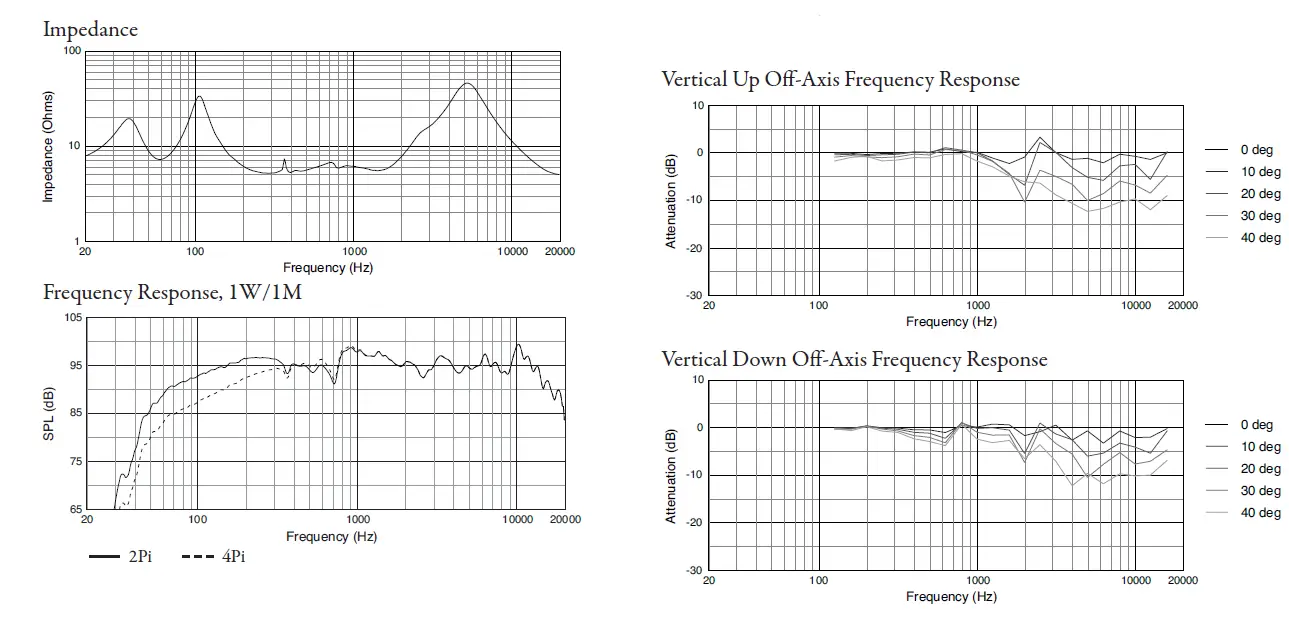

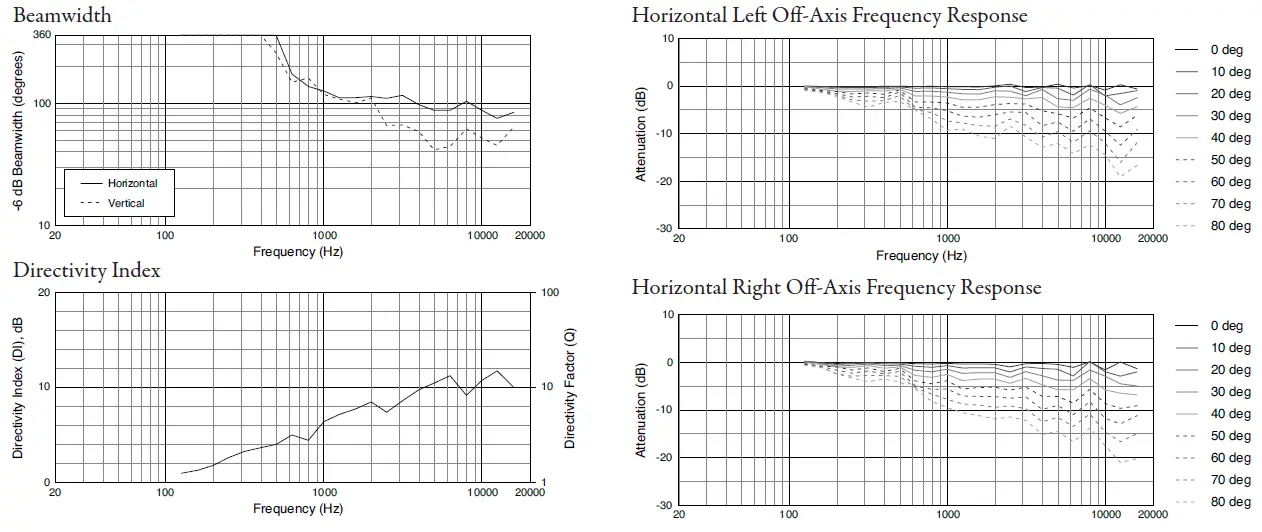

Graphs

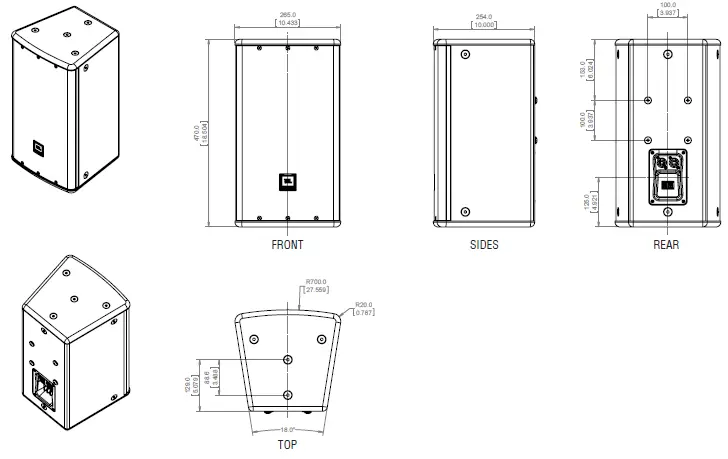

Dimensions
