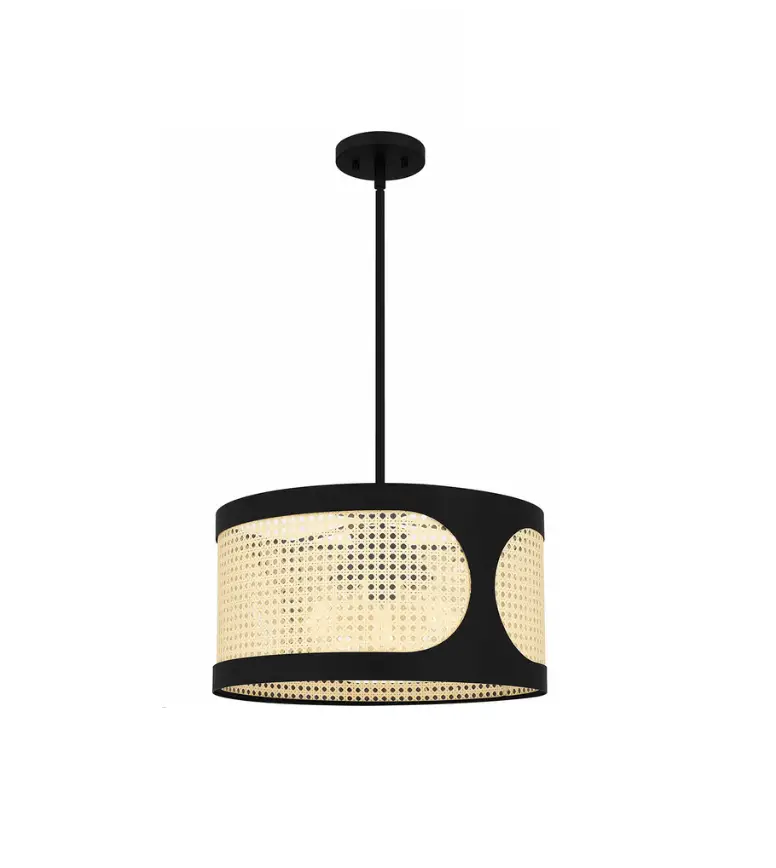

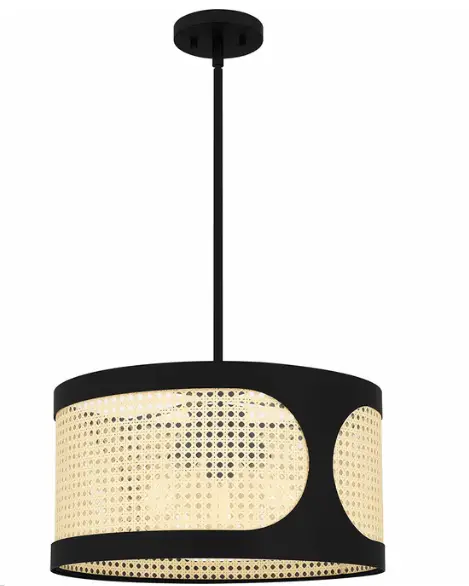

SYA2818BN Syrah 3 Light Brushed Nickel Pendant
Product Information
The SYA1718BN, SYA1718MBK, SYA2818BN, and SYA2818MBK are convertible fixtures that can be mounted as pendant lights or semi-flush lights. The package contents include 12L rods x2, ceiling canopy x1, 6L rod C x2, fixture body x1, crossbar assembly AA x1, wire connector BB x3, outlet box screw CC x2, and mounting hardware. The recommended bulb type for installation is medium (E26) type A with a maximum wattage of 100W. For further assistance, Quoizel Customer Care can be contacted at 1-800-645-3184 or visit www.quoizel.com.
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING
- RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
- RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.
CAUTION
- For your safety, read instructions completely before beginning installation.
- If in doubt about electrical installation, consult a licensed electrician.
- Turn off electricity to fixture before replacing the bulb(s).
TOOLS REQUIRED
CARE AND MAINTENANCE
- Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com.

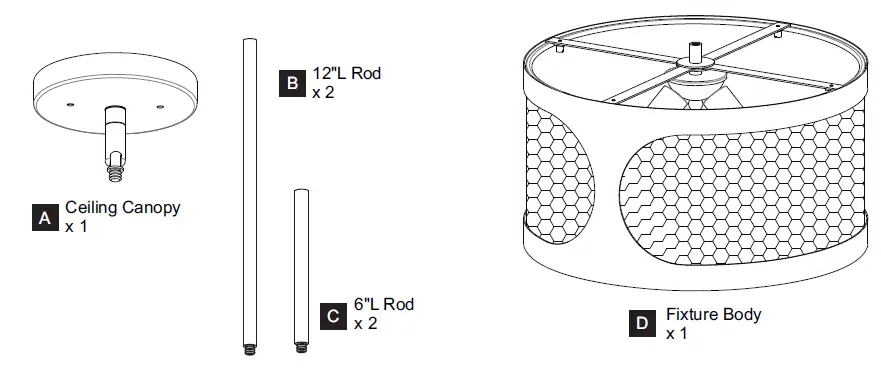

PACKAGE CONTENTS

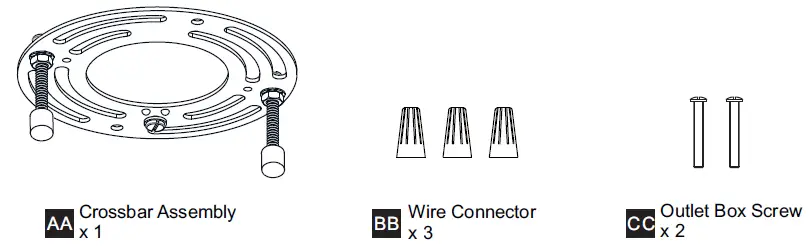

MOUNTING HARDWARE
INSTALLATION
OPTION 1: PENDANT – SYA2818BN, SYA2818MBK

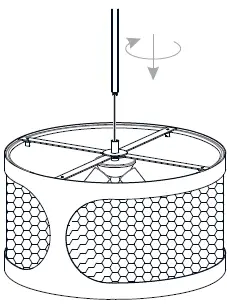

Install Rods

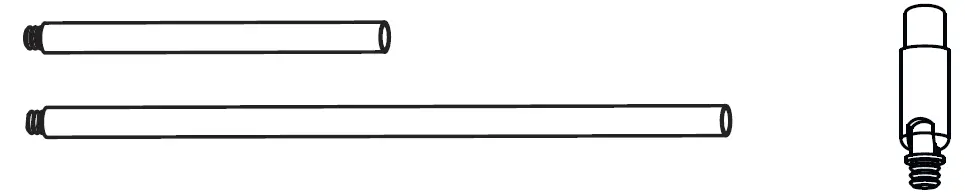

Optional Rods:
- 8 Feet Ceiling: (2) 12″L Rods.
- 9 Feet Ceiling: (2) 6″L Rods + (2) 12″L Rods.
Tighten hex nut inside of the Ceiling Canopy

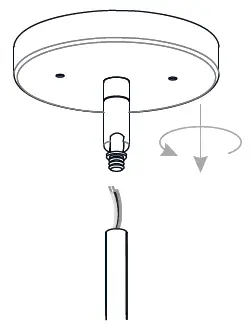

Install Ceiling Canopy to Upper Rod

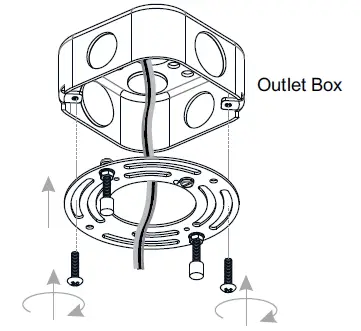

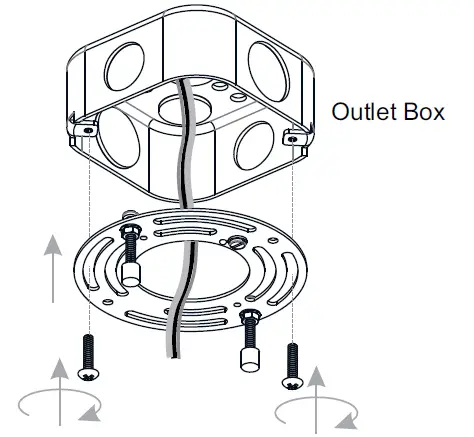

Install Crossbar Assembly

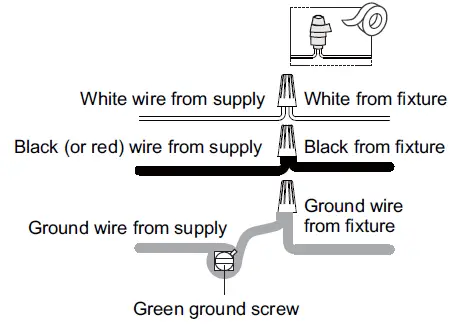

Wiring

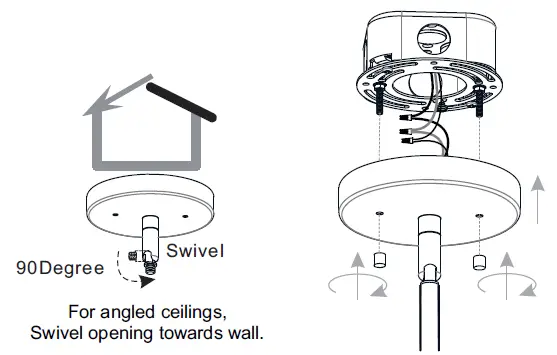

Install Ceiling Canopy to Crossbar Assembly

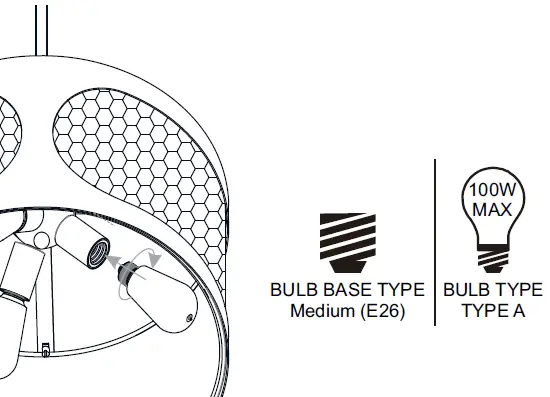

Install Bulbs
Install three correct bulbs referring to fixture markings and/or labels for maximum wattage. Recommended Bulb type (not included):
Your installation is now complete! Restore electricity and save this sheet for future reference.
IMPORTANT: This CONVERTIBLE fixture can be mounted as pendant light or semi-flush light. DO NOT CUT SUPPLY WIRES if you intend to
use it as pendant light.
OPTION 2: SEMI-FLUSH – SYA1718BN, SYA1718MBK
- Set aside (2) 6″L Rods and (2) 12″L Rods,swivel since they are not required for the semi-flush installation.

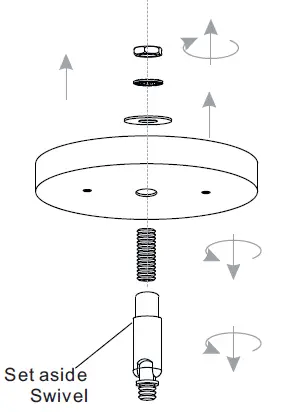

- Remove Swivel

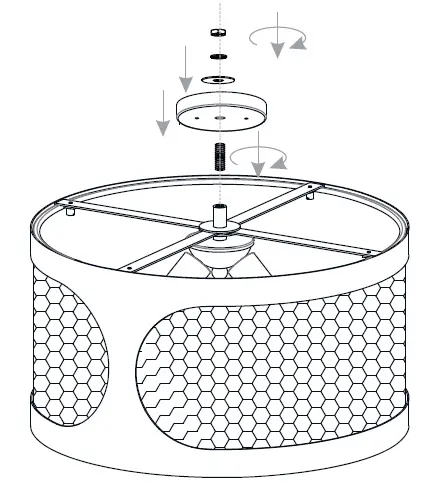

- Install Ceiling Canopy
- Install Crossbar Assembly

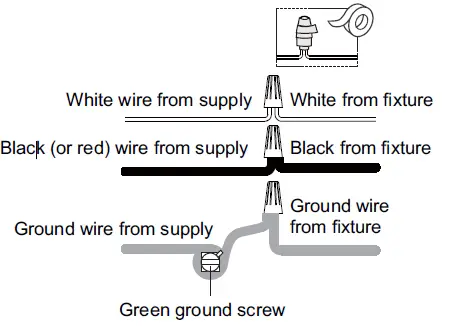

- Wiring

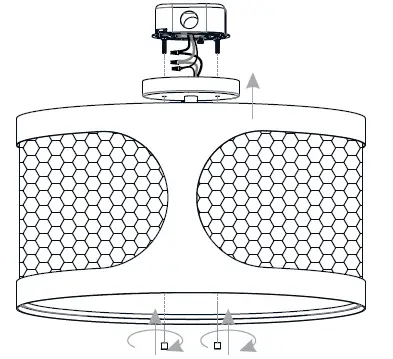

- Install Ceiling Canopy to Crossbar Assembly

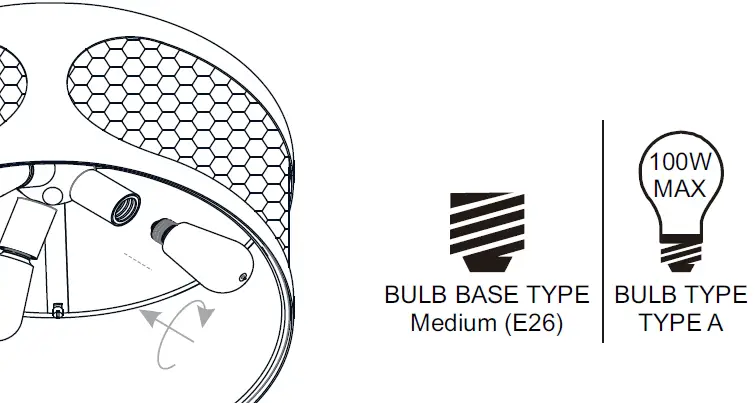

- Install Bulbs
Install three correct bulbs referring to fixture markings and/or labels for maximum wattage.
Recommended Bulb type (not included):
Your installation is now complete! Restore electricity and save this sheet for future reference.
Quoizel | Artisans In Lighting
