Quoizel Qp5361ab Rellie 3-light Aged Brass Cage Pendant Installation Guide

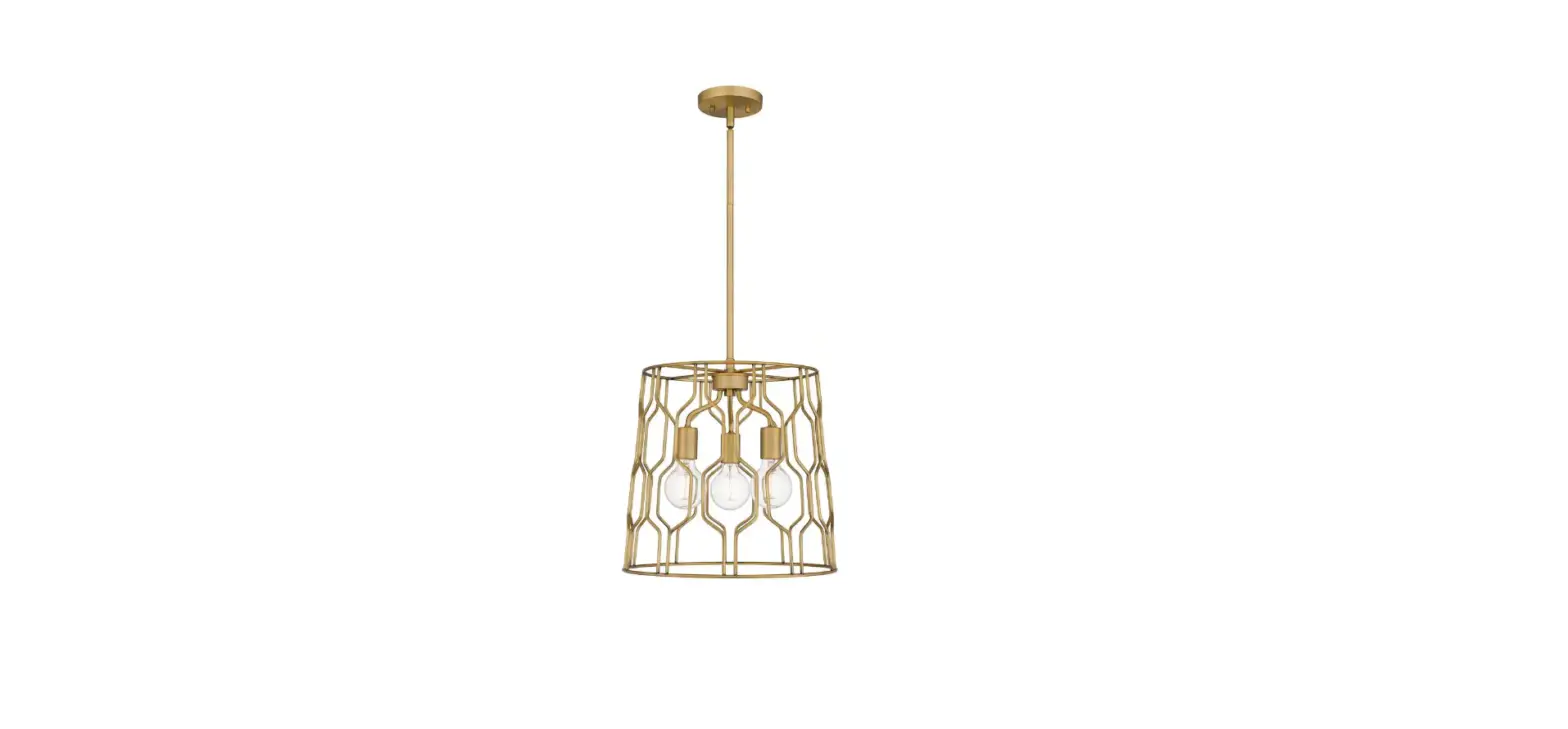

QUOIZEL QP5361AB Rellie 3-Light Aged Brass Cage Pendant

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, install or operate the product.

WARNING

• RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
• RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.

CAUTION

•  For your safety, read the instructions completely before beginning installation.
• If in doubt about electrical installation, consult a licensed electrician.
• Turn off electricity to fixture before replacing the bulb(s).

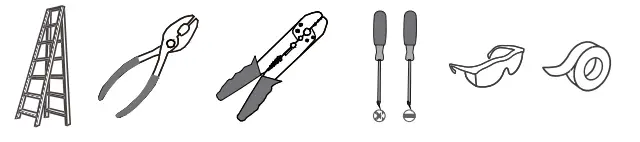

TOOLS REQUIRED

CARE AND MAINTENANCE

• Wipe clean using a soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
• If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00 am – 5:00 pm EST) or visit us online at www.quoizel.com.

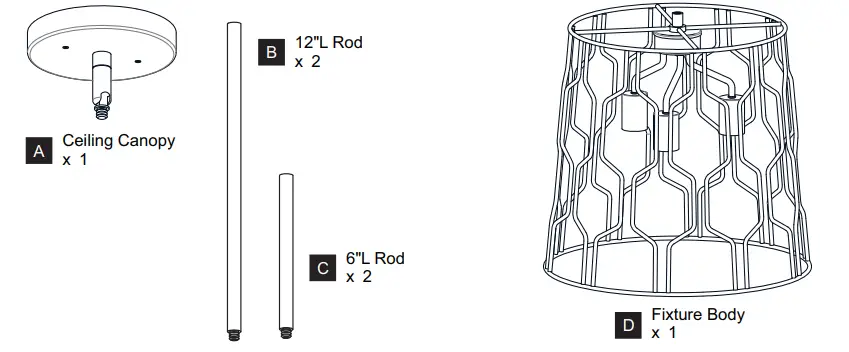

PACKAGE CONTENTS

MOUNTING HARDWARE

INSTALLATION

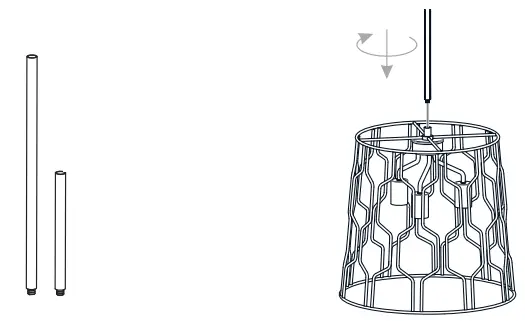

Install Rods

• Optional Rods:
• 8 Feet Ceiling:
• (1) 6″L Rod + (1) 12″L Rod. 9 Feet Ceiling:
• (1) 6″L Rod + (2) 12″L Rods. 10 Feet Ceiling:
• (2) 6″L Rods + (2) 12″L Rods.

1. Install Ceiling Canopy to Upper Rod
2. Install Crossbar Assembly

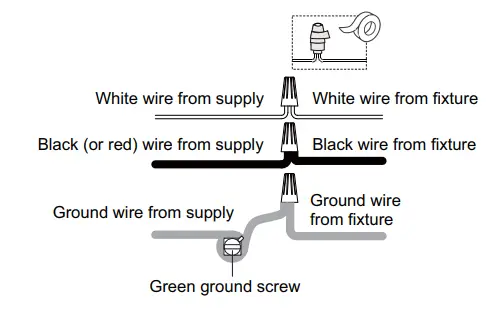

3. Wiring

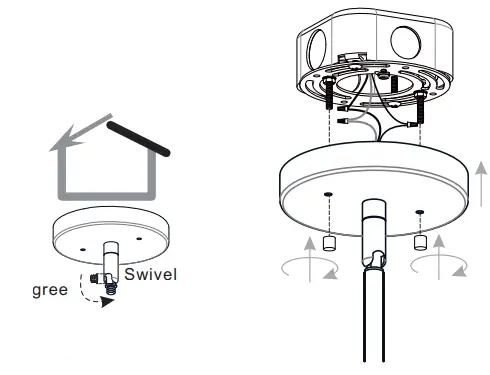

4. Install Ceiling Canopy to Crossbar AssemblyFor angled ceilings, Swivel opening towards the wall.

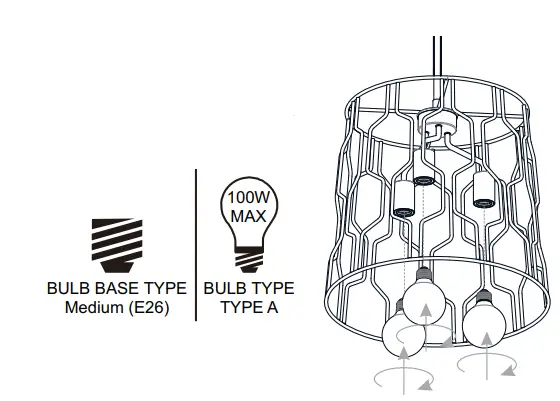

5. Install Bulbs

Install three correct bulbs referring to fixture markings and/or labels for maximum wattage.
Recommended Bulb Type (not included):

Your installation is now complete! Restore electricity and save this sheet for future reference.
