STERLING 5977-59 Deluxe Framed Sliding Shower Door
Features
- Framed, 1/8″ (3 mm) thick tempered glass.
- Towel bar.
- Tempered glass ensures maximum safety and durability.
Material
Anodized aluminum prevents rust and corrosion.
Installation
- Out-of-plumb adjustability simplifies installation.
- Not for use in hospitality.
- For residential use only.
Recommended Products/Accessories
K-23723 Faucet cleaner
Included Components
Additional Components: Hardware kit
Codes/Standards
ANSI Z97.1 CPSC 16CFR 1201
STERLING® Warranty – Bath and Shower Doors
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
S Silver
Available Glass Options
Code Description Ellipse

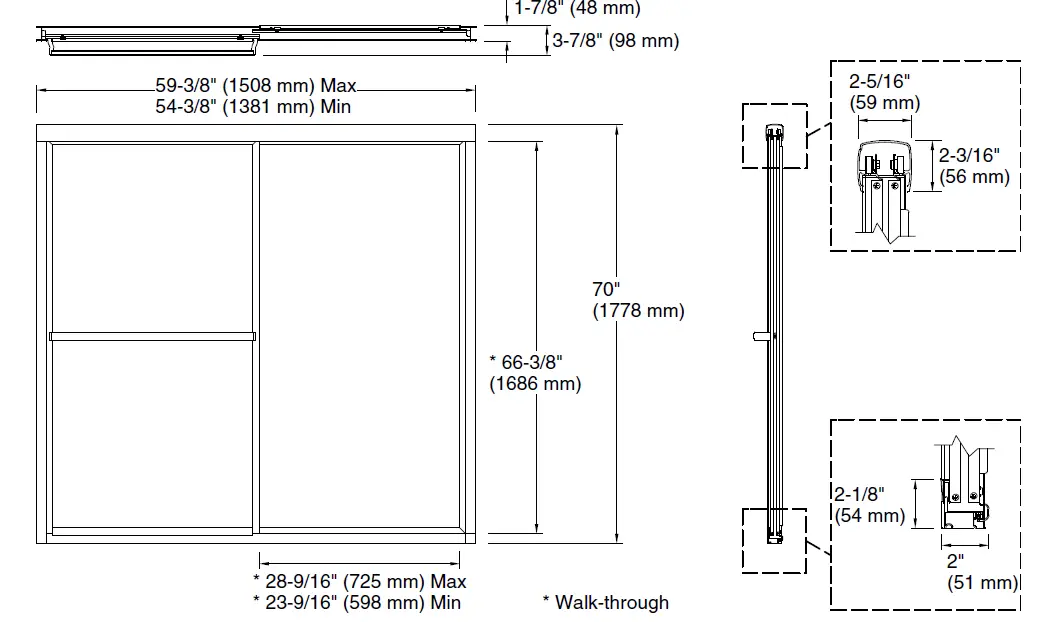

DIMENSION
Technical Information
All product dimensions are nominal
- Installation type: For shower base installation
- Opening Width – Min: 54-3/8″ (1381 mm)
- Opening Width – Max: 59-3/8″ (1508 mm)
- Walk-through – Min: 23-9/16″ (598 mm)
- Walk-through – Max: 28-9/16″ (725 mm)
- Radius – Max: Base-To-Wall 1/2″ (13 mm)
- Glass thickness: 1/8″ (3 mm)
Notes
Install this product according to the installation guide. The vertical opening should be a minimum of 71-3/8″ (1813 mm) to allow for installation clearance.
1-800-STERLING (1-800-783-7546) Kohler Co. reserves the right to make revisions without notice to product specifications. For the most current Specification Sheet, go to www.sterlingplumbing.com. 5-29-2021 07:06 – US//CA
