Kohler K-706000-l Levity Frameless Sliding Bath Door Instructions

Levity®
Frameless Sliding Bath Door
K-706000-L

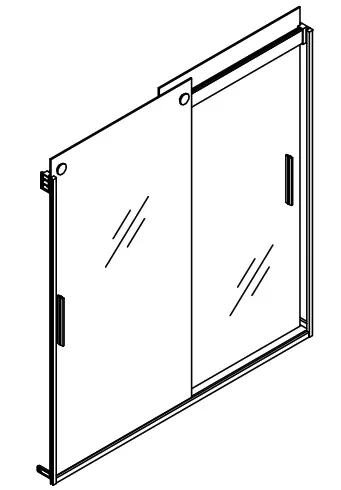

K-706000-L Levity Frameless Sliding Bath Door

Codes/Standards
CPSC 16CFR 1201
ANSI Z97.1
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.

Color	Code	Description
	SH	Bright Silver
	MX	Matte Nickel
	ABV 2MB	Anodized Brushed Bronze
	ABZ	Anodized Dark Bronze
	BL	Matte Black

Available Glass Options

Features

• Innovative roller design simplifies installation and provides out-of-plumb adjustability while glass is installed.
• Cushioned center guide provides smooth, quiet sliding action.
• Vertical blade handles accentuate the contemporary style.
• CleanCoat®+ glass coating creates a hydrophobic barrier that repels water, soap scum, and residue, saving time and protecting shower doors 10 times longer than original CleanCoat. (Based on 2021 internal wear/abrasion testing using a microfiber cloth.)
• Tempered glass ensures enhanced safety and durability.

Material

• Frameless, 1/4″ (6 mm) thick Crystal Clear tempered glass.
  Installation
• Sliding bath door.
• Not for use in hospitality.
  Included Components Additional Components: Hardware kit

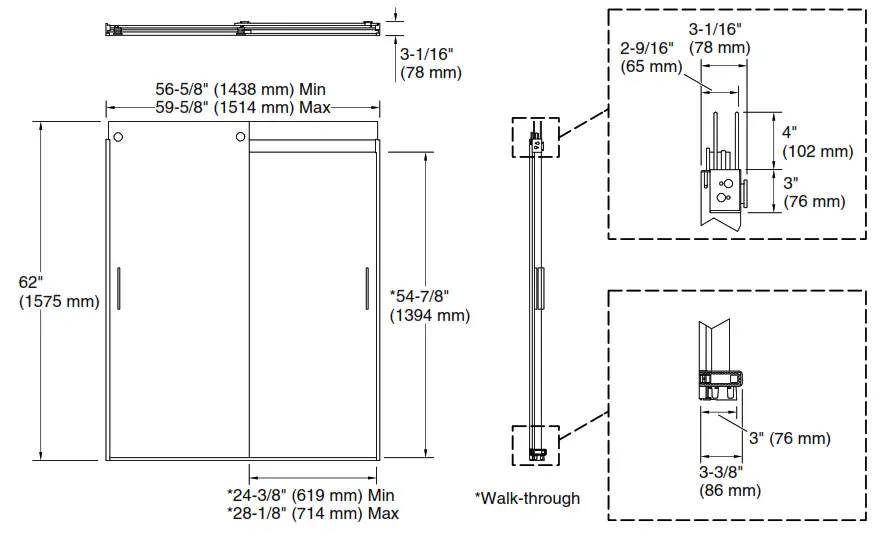

Technical Information

All product dimensions are nominal.

Base-To-Wall
Radius ± Max:

Notes
Install this product according to the installation guide.
If replacing a shower door, the narrow wall jamb design of this door may not cover the existing shower door holes.
The vertical opening should be a minimum of 64-1/2″ (1638 mm) to allow for installation clearance.

1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-1-2022 00:11 – US/CA/MX
