icar IK703 GPS Tracker
Preface
Congratulations on choosing the icar GPS IK703 4G GPS tracker. This manual shows how to easily program and setup the tracker for best results. Make sure to read this manual carefully before using this product, so as to avoid delays or confusion with it’s operation. Please note that specifications and instructions are subject to change without notice to facilitate product improvement. Updates and changes will be integrated into the latest release. The manufacturer assumes no responsibility for any errors or omissions in outdated documents.
Overview

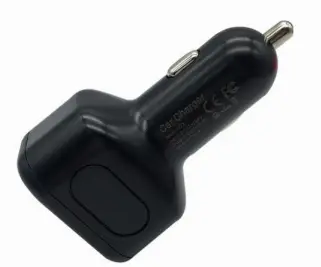

IK703 is 4G Asset GPS tracker.
Features
- Real-timing tracking
- GPS Positioning
- History record check
- Geo-Fence alarm
- Low battery alarm
- Power saving mode
- PC & Mobile App tracking
- Mini Hidden
- IP65 Water resistant
Applications
- Vehicle tracking
- Container tracking
- Asset tracking
Specifications
| Item | Specifications |
| Dimension | 41*69*67.7 mm |
| Weight | 40g |
| Charging mode | CAR Charger DC 12V/24V |
| Backup battery | 3.7 V 350mAh |
| Power consumption | 40mA standby current |
| Working temperature | -20°C to 65°C |
| Item | Specifications |
| Cellular Bands | GSM 850/900/1800/1900 MHz |
| Positioning | GPS, AGPS, LBS |
| Tracking Sensitivity | -162 dBm |
| Sensor | Accelerometer |
| LED | RED/GREEN/BLUE |
| SIM Card interface | Nano SIM |
| Waterproof | IP65 |
IK703 interface
In the box
- 1* IK703 GPS Tracker
- 1* Quick Start Guide
Installation
SIM Card installation
- Get ready a Micro Sim Card that support LTE with 30MB data per month
- Open the top housing
- Insert Sim card to sim card slot correctly
- Devices would turn on autoly (green led will blinking).
- After that the device will be ready.
LED Indications
| Flash | Fix | Off | |
| Green Light | GSM/GPRS conversation start | No GPRS signal | Power off or in sleep mode |
| Blue Light | GPS location successful | No GPRS signal | Power off or in sleep mode |
| Red Light | charging | Full battery or charged full |
SMS Commands List
| Function | Command Format | explain |
| APN | SL APNapn contecnt,apn user,apn pas sword | SL APNcmnet,, |
| Check locatio n |
SL LC |
admin123456 186******** |
| Domain | SL DPa.icargps.com#7700# | IP&port also ok |
| upload frequency(ti me) |
SL SC0,50 |
Upload location every 50s |
| upload frequency(dis tance) |
SL SC1,500 | Upload location every 500
m |
| Real time tra ck | SL GZ5,60 | Track 60s |
| Delete real tr ack | SL GZ0,60 | Delete real track |
| Restart Devic e | SL RT | Restart the device |
| Admin numb er | SL CP18948742396# | 18948742396 is the admin phone number |
| Back to facto ry | SL FT | Back to factory settings |
App & PC Tracking platform

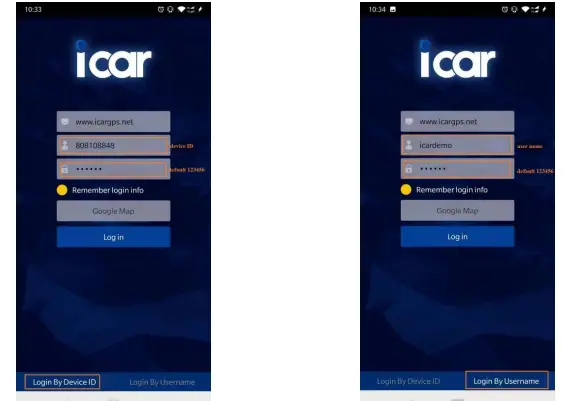

App install & Login
- Search “ICAR GPS” in Google Play or iOS store(or scan the following QR code) to download the Mobile APP;
- Choose the” Login by Device No.,
- Input your device’s ID number and password(default is 123456) to login.
- Choose the” Login by User name.,
- Input your user name and password(default is 123456) to login.
PC login

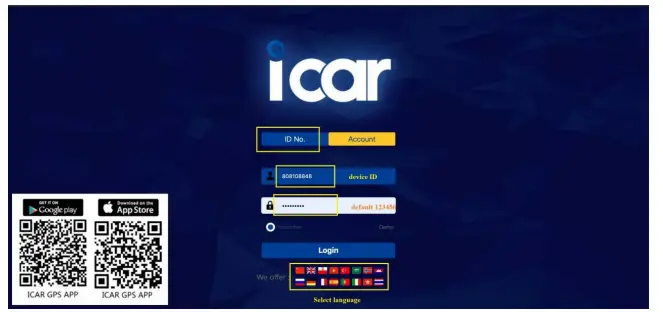

- Web: www.icargps.net, Choose “ID No.”
- Input your device’s ID number and password(default is 123456) to log in

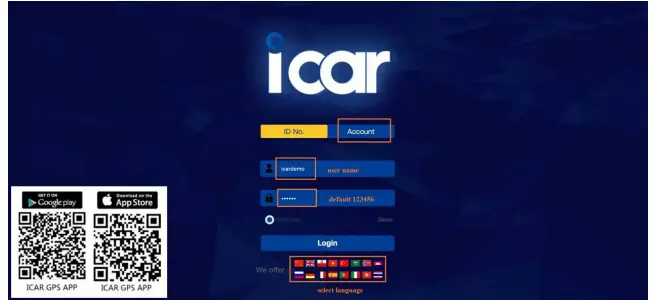

- Web: www.icargps.net, Choose “Account”
- Input user name and password(default is 123456) to log in
FAQ
- Q：Start up Fail?
- A：Check the device power on or not.
- Q：The device can not obtain location information?
- A：Place the unit at the open area to test.
- Q：How to choose SIM card?
- A: the SIM card must support GSM&GPRS，and ensure t hat the card has enough currency and credit.
- Q: How to use in the foreign countries?
- A：please set the APN before use，please edit the text “SL APNcmnet,, “ and send it to the SIM card of the device， CMNET is Chinese operator’s APN, Replace the correspon ding APN when use in other countries, APN details, please consult your local SIM card carrier.
