icar gps IK710 Car Tracker
Preface
Congratulations on choosing the icier GPS IK710 vehicle GPS tracker. This manual show show to easily program and setup the tracker for best results. Make sure to read this manual carefully before using this product, so as to avoid delays or confusion with it’s operation. Please note that specifications and instructions are subject to change without notice to facilitate product improvement. Updates and changes will be integrated into the latest release. The manufacturer assumes no responsibility for any errors or omissions in outdated documents.
Overview

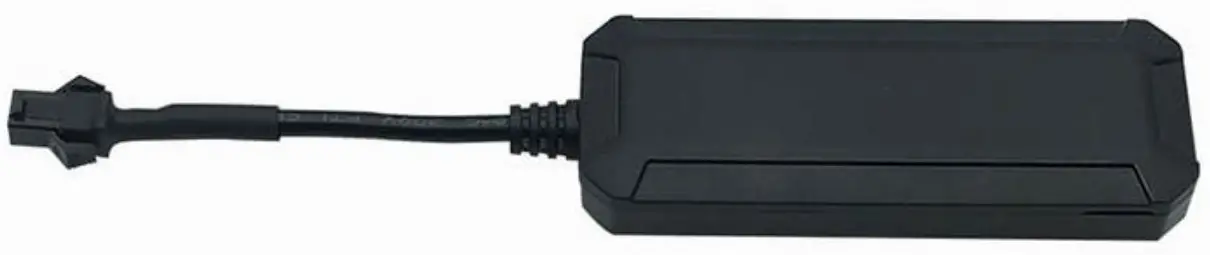

IK710 is a Vehicle GPS tracker.
Features
- Real-timing tracking
- GPS Positioning
- History record check
- Geo-Fence alarm
- Low battery alarm
- Power saving mode
- PC & Mobile App tracking
- Mini Hidden
- IP65 Water resistant
Applications
- Vehicle tracking
- Motorcycle tracking
- E-bike tracking
Specifications
Item | Specifications |
| Dimension | 74*25*13mm |
| Weight | 30g |
| Voltage Value | 10-100V |
| Backup battery | 3.7 V 140mAh |
| Power consumption | 40mA standby current |
| Working temperature | -20°C to 65°C |
Item | Specifications |
| Cellular Bands | GSM: 850/900/1800/1900Mhz |
| Positioning | GPS, AGPS, LBS |
| Tracking Sensitivity | -162 dBm |
| Sensor | Accelerometer |
| LED | RED/GREEN/BLUE |
| SIM Card interface | Micro SIM |
| Waterproof | IP65 |

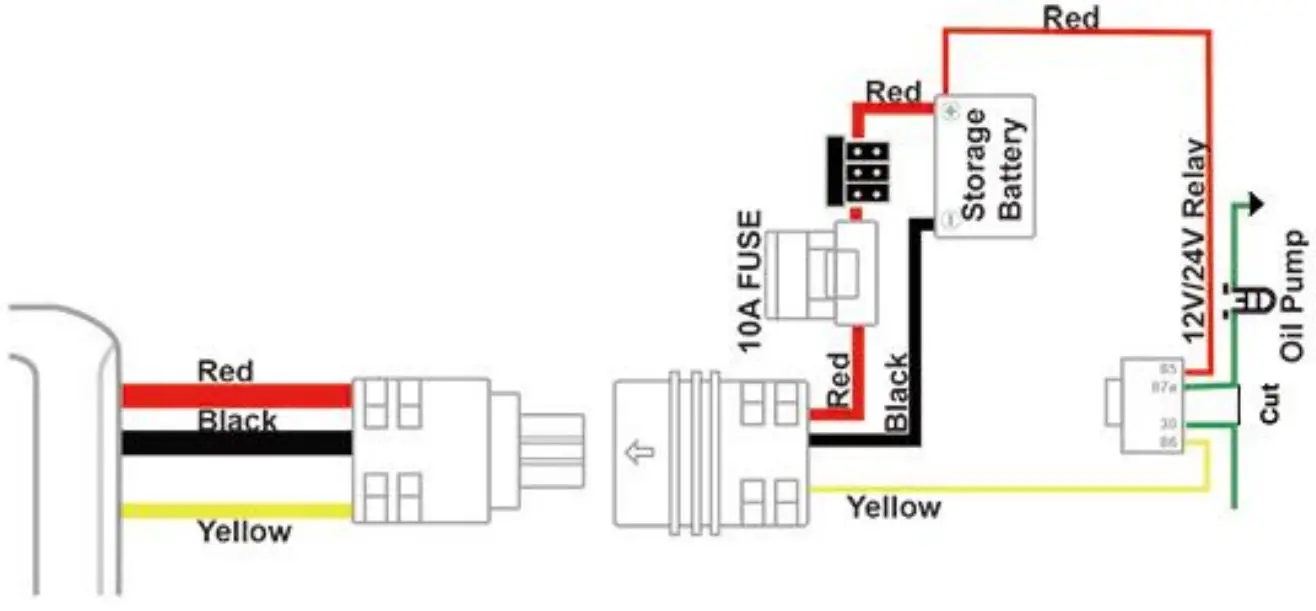

IK710 interface
In the box
- 1* IK710 GPS Tracker
- 1* Quick Start Guide
Installation
SIM Card installation
- Get ready a Micro Sim Card that support GSM&GPRS with 30MB data per month
- Open the top housing
- Insert Sim card to sim card slot correctly
- Devices would turn on autolyze (green led will blinking).
- After that the device will be ready
LED Indications
Flash | Fix | Off | |
Green Light | GSM/GPRS conversation start | No GPRS signal | Power off or in sleep mode |
Blue Light | GPS location successful | No GPRS signal | Power off or in sleep mode |
| Red Light | charging | Full battery or charged full |
SMS Commands List
Function | Command Format | Reply | for example | |
APN | apn+123456+space+content | apn ok | ||
| apnuser+123456+space+con tent | apnuser ok | |||
apnpasswd+123456+space+ content | apnpasswd ok | |||
admin n umber | admin123456+space+admin phone number | admin ok | noadmin123456 | |
time zon e | timezone+123456+space+G MT No. | timezone ok | ||
Power save(default) | sleep123456 time | sleep time o k | ||
shock sl eep | sleep123456 shock | sleep shock ok | ||
no sleep | sleep123456 off | sleep off ok | ||
| upload fr equency | upload123456+space+time | upload ok | ||
Cut and resume oil | 555 | Cut oil OK | 666 | |
Arm&Dis arm | 111 or SF | Arm delay i n 0s | 000 or CF | |
Position | G123456# or where | Google map | ||
App & PC Tracking platform
App install & Login
- Search “ICAR GPS” in Google Play or iOS store(or scan the following QR code) to download the Mobile APP;
ICAR GPS APP

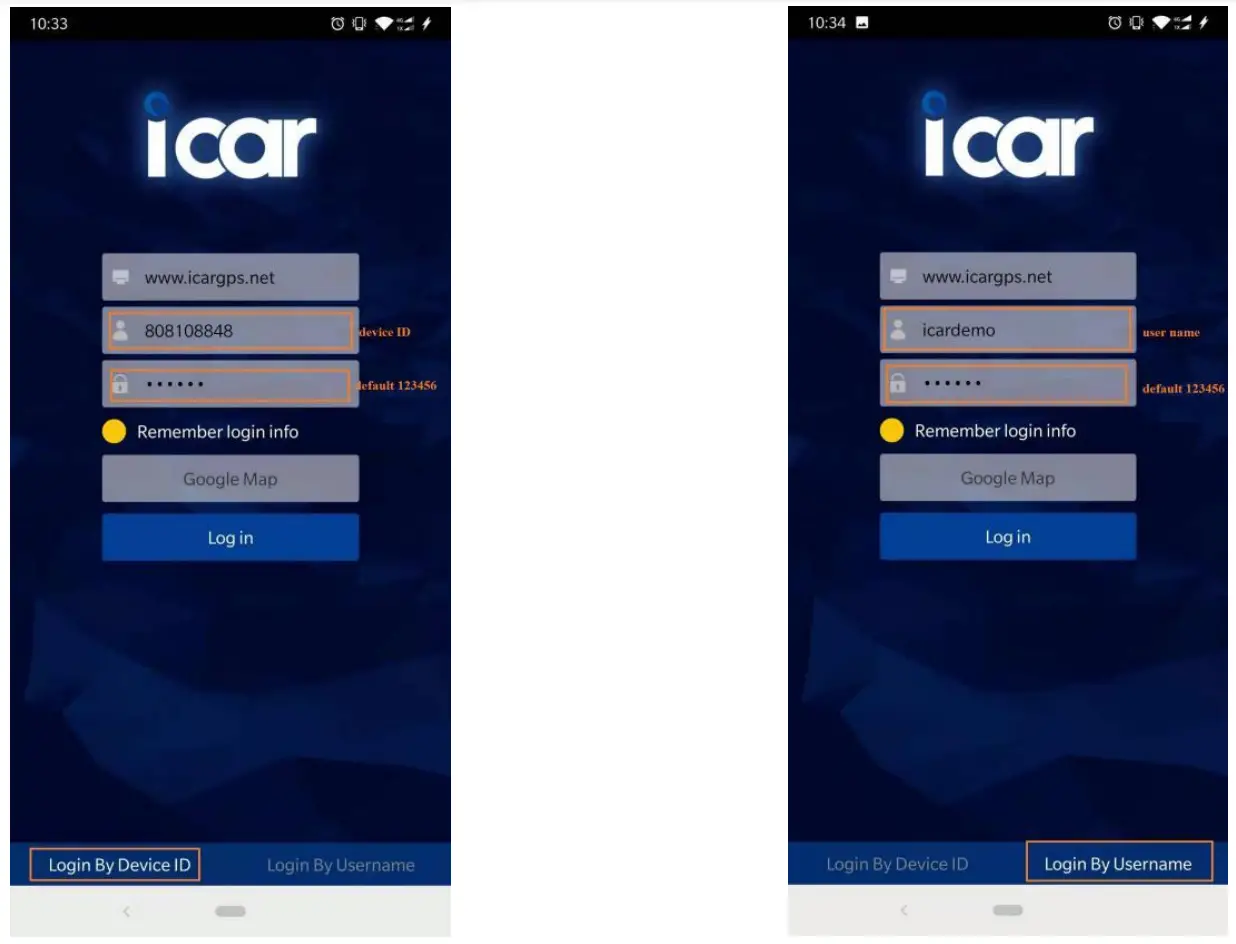

ICAR GPS APP - Choose the” Login by Device No.,
- Input your device’s ID number and password(default is 123456) to login
- Choose the” Login by User name.,
- Input your user name and password(default is 123456) to login.

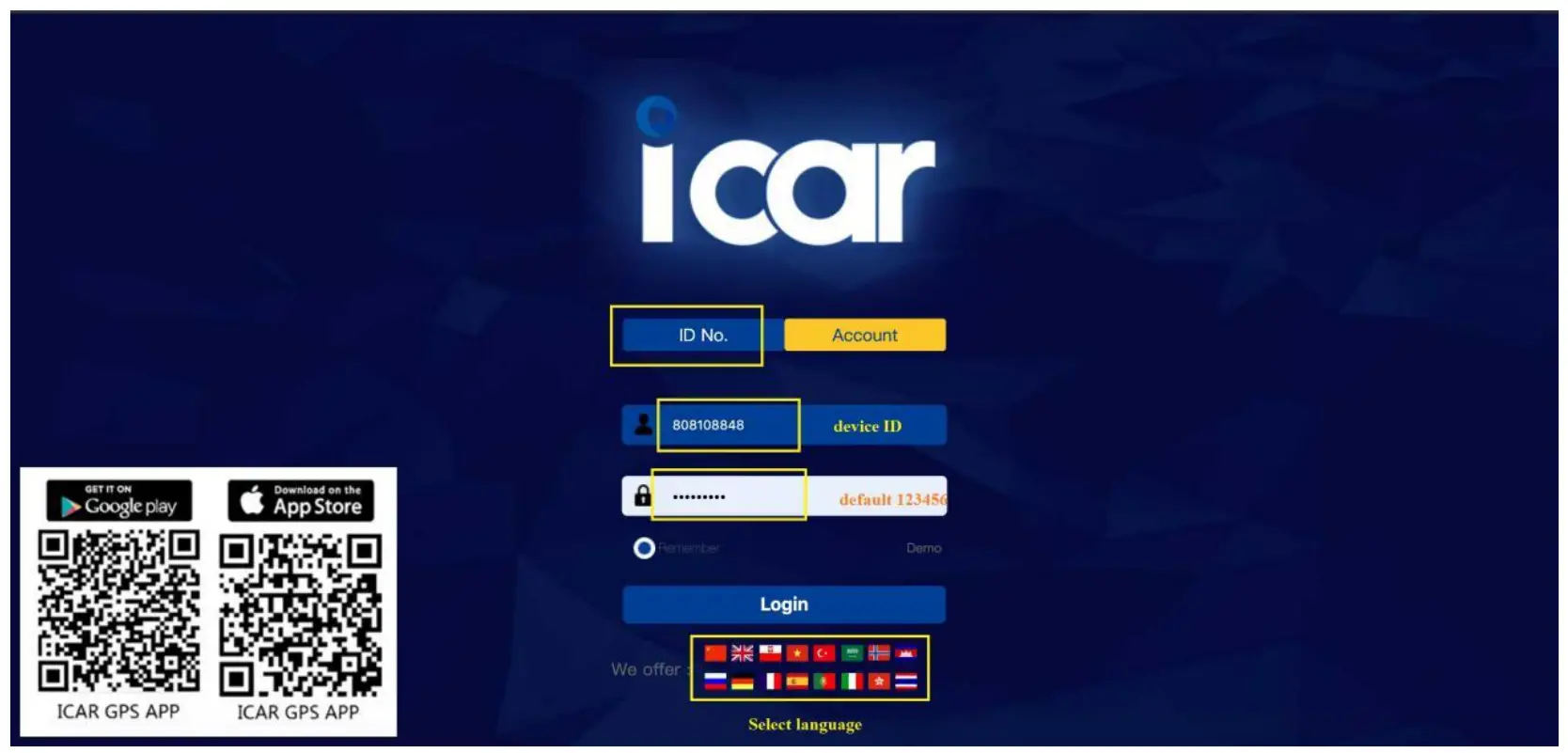

PC login
- Web: www.icargps.net,Choose“IDNo.”
- Input your device’s ID number and password(default is 123456) to log in

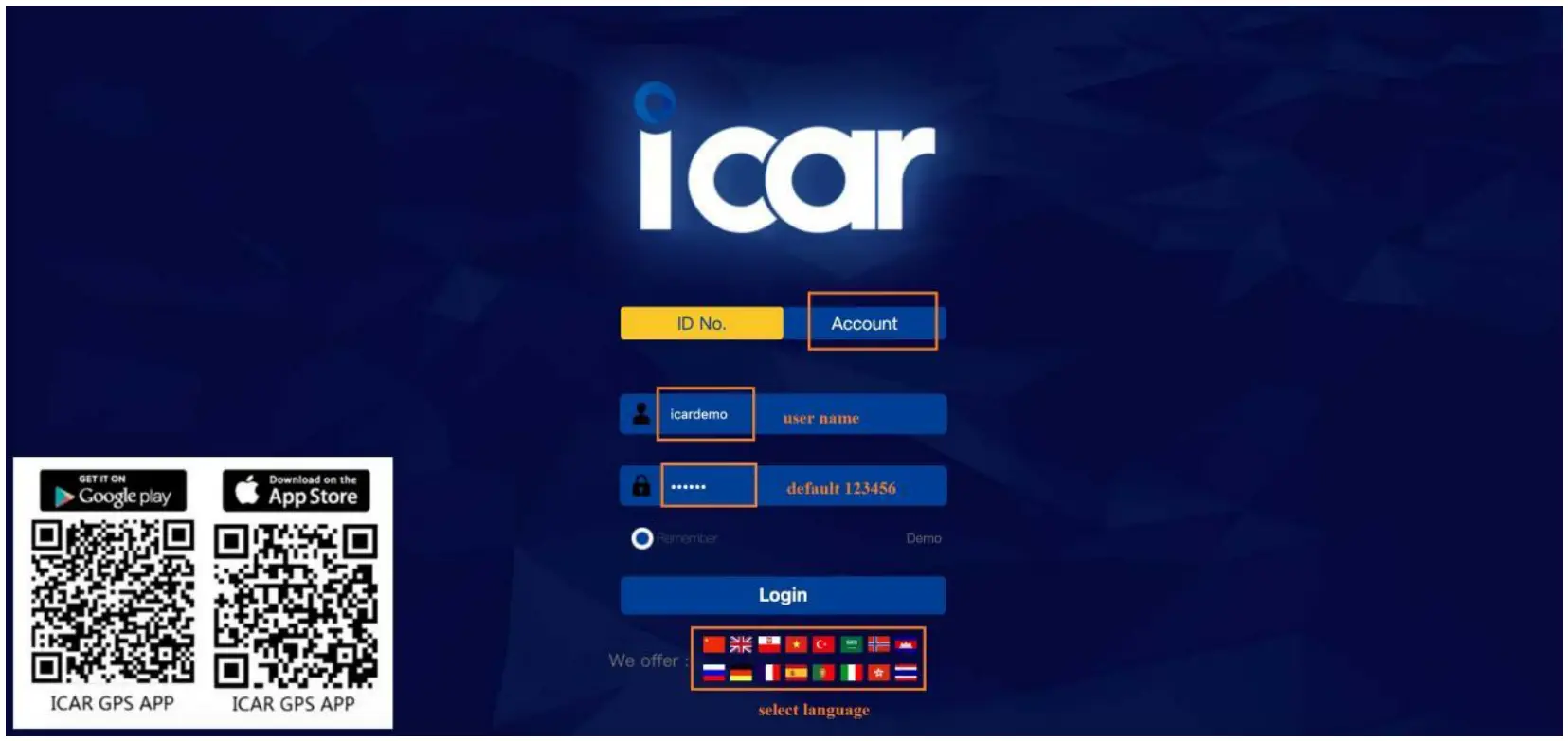

- Web: www.icargps.net,Choose“Account”
- Input user name and password(default is 123456) to log in
FAQ
A: Check the device power on or not.
A: Place the unit at the open area to test.
A: The SIM card must support GSM & GPRS and ensure that the card has enough currency and credit.
A: Please set the APN before use please edit the text “APN123456 CMNET “ and send it to the SIM card of the device CMNET is Chinese operator’s APN, Replace the core responding APN when use in other countries, APN details, please consult your local SIM card carrier.
