Icar Ik207 Gps Tracker User Manual (+ PDF)

Congratulations on choosing the icar GPS IK207 Card GPS tracker. This manual shows how to easily program and setup the tracker for best results. Make sure to read this manual carefully before using this product, so as to avoid delays or confusion with it’s operation. Please note that specifications and instructions are subject to change without notice to facilitate product improvement. Updates and changes will be integrated into the latest release. The manufacturer assumes no responsibility for any errors or omissions in outdated documents.

Overview

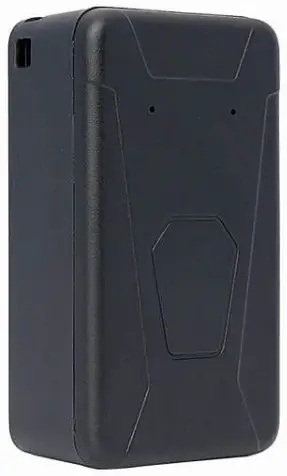

IK207 is a GPS tracker designed for asset tracking.

Features

Real-timing tracking
GPS+WiFi Positioning
History record check
Geo-Fence alarm
Low battery alarm
Power saving mode
PC & Mobile App tracking
Mini Hidden
IP65 Water resistant
One way communication

Applications

Car tracking
Bag tracking
Kids tracking
Asset tracking

Specifications

Item	Specifications
Dimension	482717 mm
Weight	27g
Charger	DC 5V/1A
Backup battery	3.7 V 800mAh
Power consumption	40mA standby current
Working temperature	-20°C to 65°C
Item	Specifications
Cellular Bands	GSM: 850/900/1800/1900Mhz
Positioning	GPS, AGPS, LBS
Tracking Sensitivity	-162 dBm

Sensor	Accelerometer
LED	RED/GREEN/BLUE
SIM Card interface	Nano SIM
Waterproof	IP65

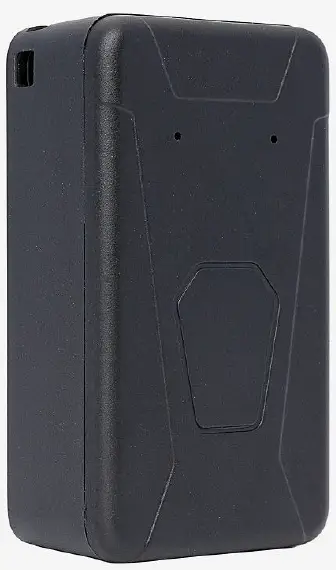

IK207 interface

In the box

1* IK207 GPS Tracker
1*External magnet
1* Quick Start Guide
1* Charge Cable

Installation

SIM Card installation

Get ready a Nano Sim Card that support GSM&GPRS with 30MB data per month
Open the top housing
Insert Sim card to sim card slot correctly
Devices would turn on after you press the power button.
After that the device will be ready.

LED Indications

	Flash	Fix	Off
Blue Light	GSM/GPRS conversation start	No GPRS signal	Power off or in sleep mode
Green Light	GPS location successful	No GPRS signal	Power off or in sleep mode
Red Light		charging	Full battery or charged full

SMS Commands List

Function	Command Format		Reply		for	example
APN	SL	APNapn content	apn	set ok	SL	APNcmnet
	SL APNapn content,apn user		Apn set ok
	SL APNapn content,apn user,apn user pas sword		Apn set ok
admin number	SL	CP186*********			SL	CP186********
Domain&IP P ort	SL DPa.icargps.net 7700				SL DPa.icargps.net 7700
upload frequency(ti me)	SL	SC0,50			50=50 seconds
upload frequency(dis tance)	SL	SC1,500			500=500 meters
Position	SL	LC	Google map Link		SL	LC

Restart Devic e

SL RT

Device would restart i mmediately

SL RT

Check

SL CX

SN:47120100939 SE

R:a.icargps.net 7700 APN:internet GSM:24

GPS:8 BAT:31

SL CX

Back to facto ry

SL FT

App & PC Tracking platform

App install & Login

Search “ICAR GPS” in Google Play or iOS store(or scan the following QR code) to download the Mobile APP;

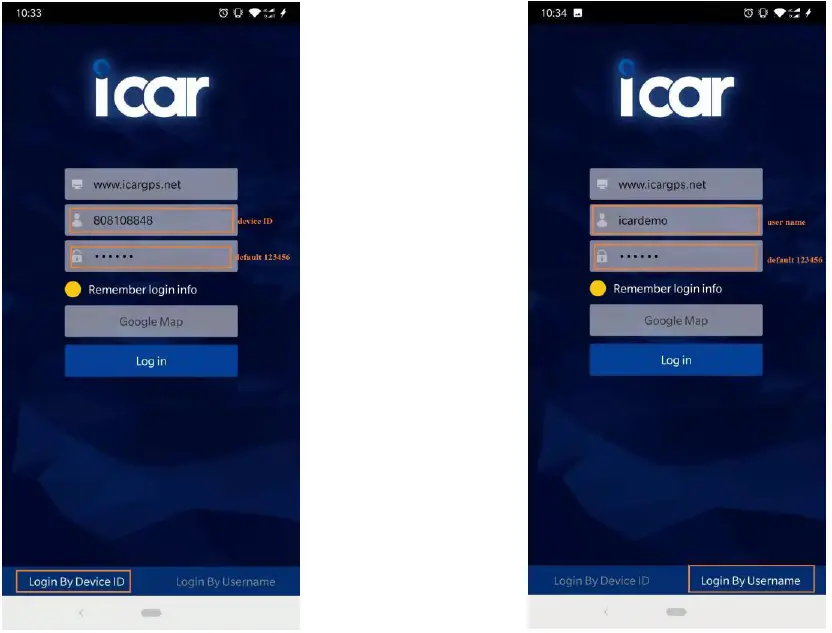

Choose the” Login by Device No.,
Input your device’s ID number and password(default is 123456) to login.
Choose the” Login by User name.
Input your username and password(default is 123456) to log in

PC login

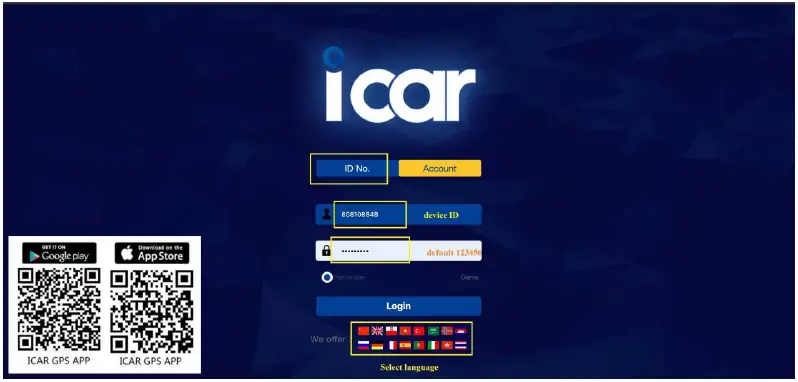

Web: www.icargps.net, Choose “ID No.”
Input your device’s ID number and password(default is 123456) to log in.

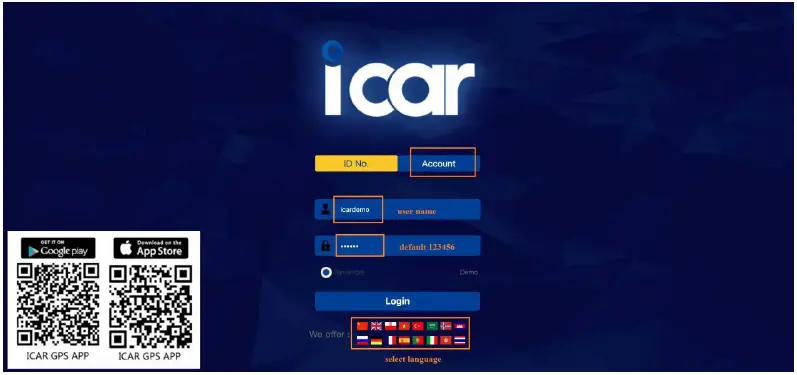

Web: www.icargps.net, Choose “Account”
Input the user name and password(default is 123456) to log in.

FAQ

Q: Start-up Fail?
A: Check whether the device is powered on or not.
Q: The device can not obtain location information.
A: Place the unit in the open area to test.
Q: How to choose a SIM card?
A: The SIM card must support GSM&GPRS, and ensure that the card has enough currency and credit.
Q: How to use it in foreign countries?
A: please set the APN before use, please edit the text “SL APNapn content, and user, and user password “ and send it to the SIM card of the device, CMNET is Chinese operate or APN, Replace the corresponding APN when using in other countries, APN details, please consult your local SIM card carrier.
