Preface
Congratulations on choosing the icar GPS IK209 Asset GPS tracker. This manual shows how to easily program and setup the tracker for best results. Make sure to read this manual carefully before using this product, so as to avoid delays or confusion with it’s operation. Please note that specifications and instructions are subject to change without notice to facilitate product improvement. Updates and changes will be integrated into the latest release. The manufacturer assumes no responsibility for any errors or omissions in outdated documents.

Overview

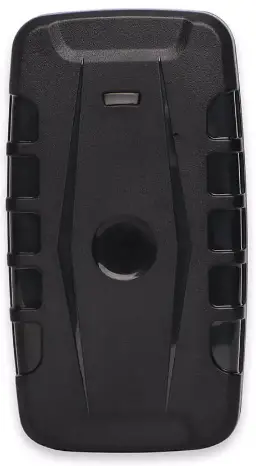

IK209 is an Asset GPS tracker.

Features

Real-timing tracking
GPS+WiFi Positioning
History record check
Geo-Fence alarm
Low battery alarm
Power saving mode
PC & Mobile App tracking
Mini Hidden
IP65 Water resistant
Remove Alarm
One way communication

Applications

Luggage tracking
Container tracking
Logistics tracking

Specifications

Item	Specifications
Dimension	1156525mm/1206535mm/1206550mm
Weight	175g/250g/365g (2G version) 192g/290g/444g (3Gversion)
Charger	DC 5V/1A
Backup battery	3.7V 6000mAh/10000mAh/20000mAh
Power consumption	40mA standby current
Working temperature	-20°C to 65°C
Item	Specifications
Cellular Bands	GSM: 850/900/1800/1900Mhz
Positioning	GPS, AGPS, LBS

Tracking Sensitivity	-162 dBm
Sensor	Accelerometer
LED	RED/GREEN/BLUE
SIM Card interface	Mini-SIM
Waterproof	IP67

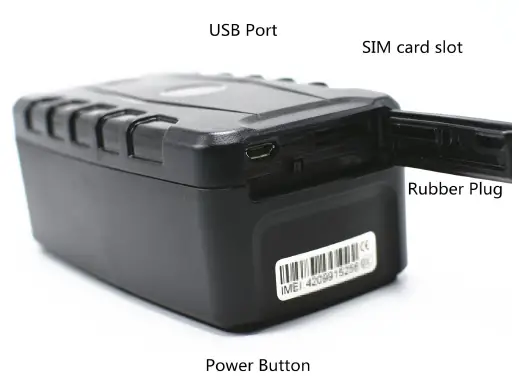

IK209 interface

In the box

1* IK209 GPS Tracker
1* Quick Start Guide
1* Screw Driver
1* Charge Cable

Installation

SIM Card installation

Get ready for a Mini Sim Card that supports GSM&GPRS with 30MB data per month
Open the top housing
Insert Sim card to sim card slot correctly
Devices would turn on autoly (green led will blink).
After that, the device will be ready.

LED Indications

	Flash	Fix	Off
Green Light	GSM/GPRS conversation start	No GPRS signal	Power off or in sleep mode

IK209 User Manual V1.0

Blue Light	GPS location successful	No GPRS signal	Power off or in sleep mode
Red Light		charging	Full battery or charged full

SMS Commands List

Function	Command Format	Reply	for example
APN	apn+123456+space+content	apn ok	apn123456 cmnet
	apnuser+123456+space+content	apnuser ok
	apnpasswd+123456+space+content	apnpasswd ok
admin number	admin123456+space+admin phone number	admin ok	admin123456 186********
Domain	SZCS,123456,DOMAIN=a.icargps.net:7700	Domain ok	SZCS,123456,DOMAIN=a.icargp s.net:7700
upload frequency	Upload123456 time(unit/s)	OK	Upload123456 10
Monitor	Monitor123456	monitor OK	Monitor123456
SOS	SOS,phone1 number,phone2 nu mber	SOS! S1: S2:	SOS,186****,189****
Position	where	Google map Link	where
Restart Device	RST	The device would restart immediately	RST
Check	Param1	details of device	Param1
Status	Status	Status of device	Status
Back to factory	Format	OK	Format

App & PC Tracking platform

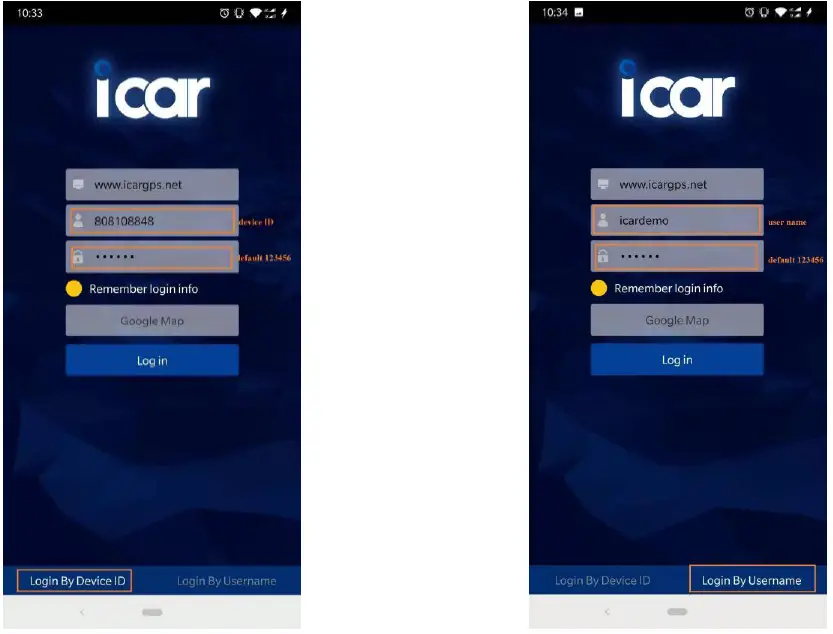

App install & Login

Search “ICAR GPS” in Google Play or iOS store(or scan the following QR code) to download the Mobile APP;
Choose the” Login by Device No.,
Input your device’s ID number and password(default is 123456) to login.
Choose the” Login by User name.,
Input your username and password(default is 123456) to log in.

PC login

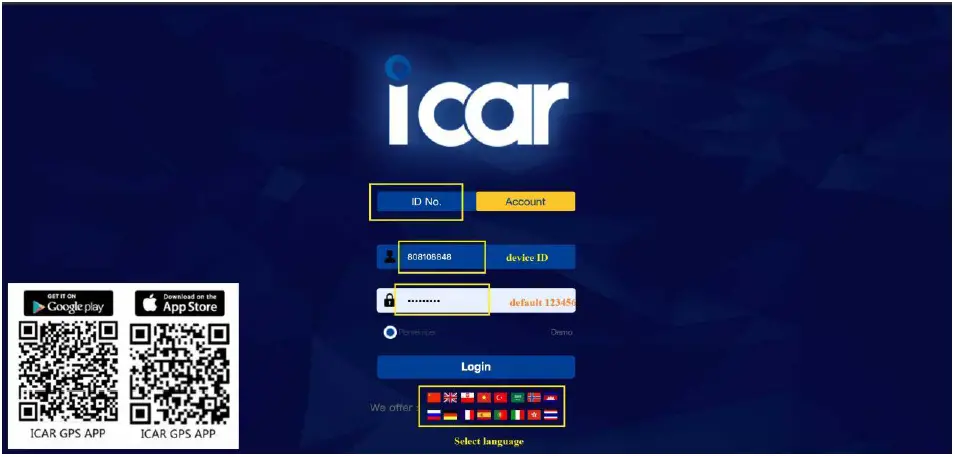

Web: www.icargps.net, Choose “ID No.”
Input your device’s ID number and password(default is 123456) to log in

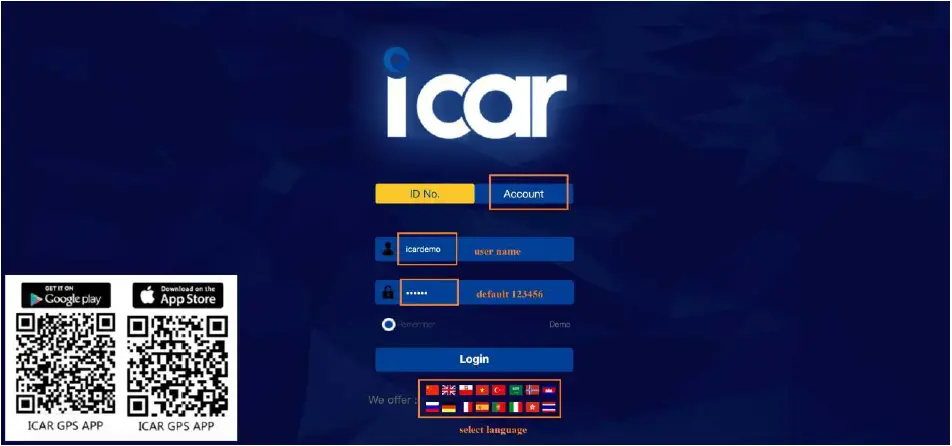

Web: www.icargps.net, Choose “Account”
Input the user name and password(default is 123456) to log in.

FAQ

Q: Start-up Fail?
A: Check whether the device is powered on or not.
Q: The device can not obtain location information.
A: Place the unit in the open area to test.
Q: How to choose a SIM card?
A: The SIM card must support GSM&GPRS, and ensure that the card has enough currency and credit.
Q: How to use it in foreign countries?
A: Please set the APN before use, please edit the text “A PN123456 CMNET “ and send it to the SIM card of the d device, CMNET is the Chinese operator’s APN, Replace the corresponding APN when used in other countries, APN details, please consult your local SIM card carrier.
