IK205 GPS Tracker
User Manual V1.0
IK205 GPS Tracker
Preface
Congratulations on choosing the icar GPS IK205 asset GPS tracker. This manual shows how to easily program and setup the tracker for best results. Make sure to read this manual carefully before using this product, so as to avoid delays or confusion with it’s operation. Please note that specifications and instructions are subject to change without notice to facilitate product improvement. Updates and changes will be integrated into the latest release.
The manufacturer assumes no responsibility for any errors or omissions in outdated documents.
Overview
IK205 is an Asset GPS tracker.
Features
- Real-timing tracking
- GPS+AGPS+LBS+GLONASS Positioning
- History record check
- Geo-Fence alarm
- Low battery alarm
- Shock Alarm
- Power saving mode
- PC & Mobile App tracking
- Long standby time
- IP67 Water resistant
Applications
- Bag tracking
- Luggage tracking
- Cow tracking
- Goat tracking
Specifications
| Item | Specifications |
| Dimension | 60*47.5*24 mm |
| Weight | 102g |
| Charging mode | USB charging DC 5V |
| Backup battery | 3.7 V 5000mAh |
| Power consumption | 40mA standby current |
| Working temperature | -20°C to 65°C |
| Item | Specifications |
| Cellular Bands | GSM: 850/900/1800/1900Mhz |
| Positioning | GPS, AGPS, LBS |
| Tracking Sensitivity | -162 dBm |
| Sensor | Accelerometer |
| LED | RED/GREEN/BLUE |
| SIM Card interface | Nano SIM |
| Waterproof | IP67 |

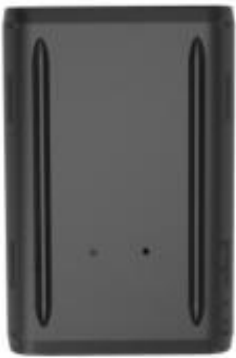

IK205 interface
In the box
- 1* IK205 GPS Tracker
- 1* charging cable
- 1* Quick Start Guide
Installation
7.1 SIM Card installation
- Get ready a Nano Sim Card that support GSM&GPRS with 30MB data per month
- Open the housing by screw driver
- Insert Sim card to sim card slot correctly
- Press power button for 3 seconds to power ON (green led will blinking).
- After that the device will be ready.
7.2 LED Indications Fix Flash Off Green Light GSM/GPRS conversation start No GPRS signal Power off or in sleep mode Blue Light GPS location successful No GPRS signal Power off or in sleep mode Red Light charging Full battery or charged full
SMS Commands List
| Function | Command Format | Reply | for example |
| APN | apn+123456+space+content | apn ok | apn123456 cmnet |
| apnuser+123456+space+content | apnuser ok | ||
| apnpasswd+123456+space+content | apnpasswd ok | ||
| admin number | admin123456+space+admin phone nu mber |
admin ok |
admin123456 186******** |
| Domain | IP+space+domain+space+port | Set IP ok | IP www.icargps.net 7700 |
| upload frequency | FREQ,123456,30 | OK | FREQ,123456,30 |
| Voice monitor | 88 | Monitor OK | 88 |
| Position | G123456 | Google map | |
| Restart GPS | CQGPS | GPS reset OK! | CQGPS |
| Restart Devic e | CQ | system reset OK! | CQ |
| Check | CXZT | details of device | CXZT |
| Back to facto ry | Format | OK |
App & PC Tracking platform
9.1 App install & Login
- Search “ICAR GPS” in Google Play or iOS store(or scan the following QR code) to download the Mobile APP;
 |  |
| https://play.google.com/store/apps/details?id=com.yw.acsh.icar&hl=en | https://apps.apple.com/cn/app/icargps/id1477021403 |

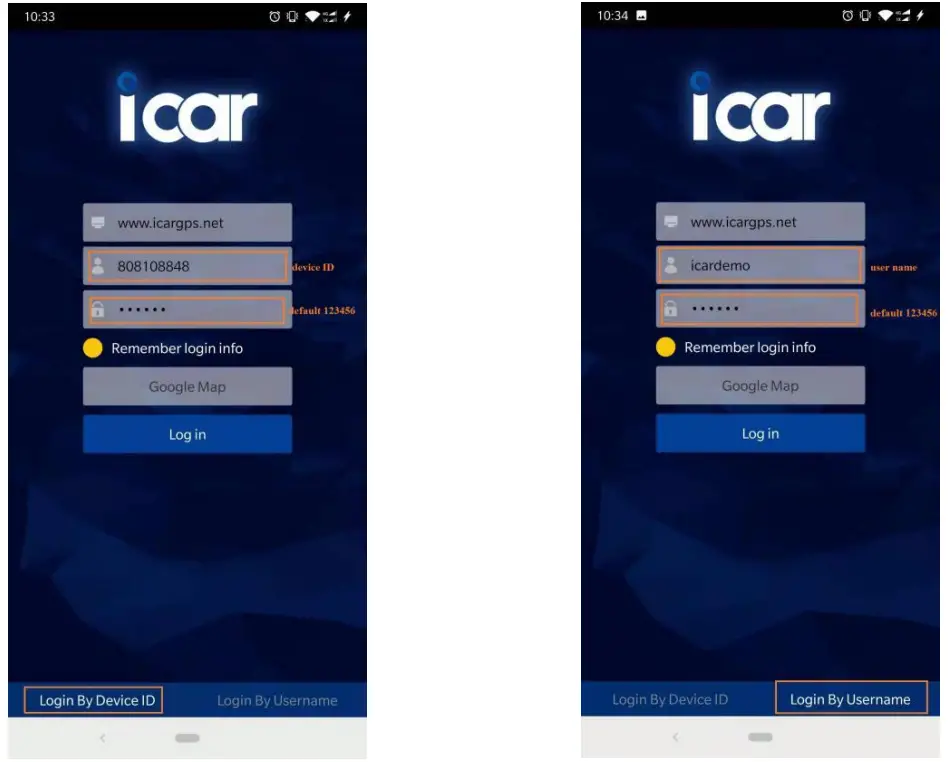

- Choose the” Login by Device No.,
- Input your device’s ID number and password(default is 123456) to login.
- Choose the” Login by User name.,
- Input your user name and password(default is 123456) to login.
9.2 PC login

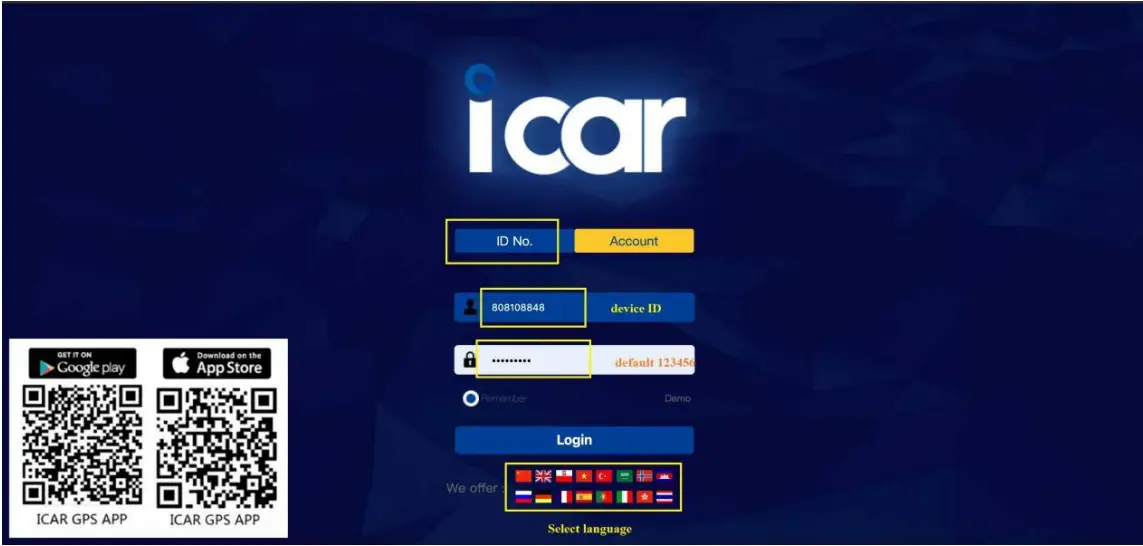

- Web: www.icargps.net, Choose “ID No.”
- Input your device’s ID number and password(default is 123456) to log in

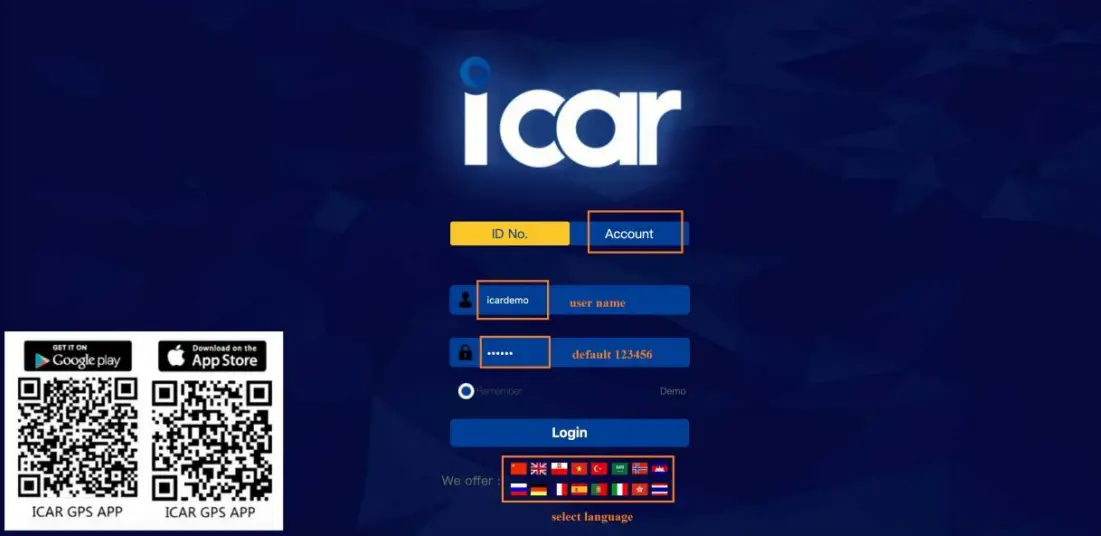

- Web: www.icargps.net, Choose “Account”
- Input user name and password(default is 123456) to log in
FAQ
– A：Check the device power on or not.
– A：Place the unit at the open area to test.
– A: the SIM card must support GSM&GPRS，and ensure that the card has enough currency and credit.
– A：please set the APN before use，please edit the text “A PN123456 CMNET “ and send it to the SIM card of the d evice，CMNET is Chinese operator’s APN, Replace the corr esponding APN when use in other countries, APN details, please consult your local SIM card carrier.
