icar gps IK713 Waterproof Car Tracker Preface
Congratulations on choosing the icar GPS IK713 vehicle GPS tracker. This manual shows how to easily program and setup the tracker for best results. Make sure to read this manual carefully before using this product, so as to avoid delays or confusion with it’s operation. Please note that specifications and instructions are subject to change without notice to facilitate product improvement. Updates and changes will be integrated into the latest release. The manufacturer assumes no responsibility for any errors or omissions in outdated documents.
IK713 User Manual V1.0
Overview
IK713 is a Vehicle GPS tracker.
Features
- Real-timing tracking
- GPS Positioning
- History record check
- Geo-Fence alarm
- Low battery alarm
- Power saving mode
- PC & Mobile App tracking
- Mini Hidden
- IP67 Water resistant
Applications
- Vehicle tracking
- Motorcycle tracking
- E-bike tracking
Specifications
|
Item | Specifications |
| Dimension | 87*33*15 mm |
| Weight | 65g |
| Voltage Value | 9-90V |
| Backup battery | 3.7 V 3000mAh |
| Power consumption | 40mA standby current |
| Working temperature | -20°C to 65°C |
|
Item | Specifications |
| Cellular Bands | GSM: 850/900/1800/1900Mhz |
| Positioning | GPS, AGPS, LBS |
| Tracking Sensitivity | -162 dBm |
| Sensor | Accelerometer |
| LED | RED/GREEN/BLUE |
| SIM Card interface | Mini SIM |
| Waterproof | IP67 |

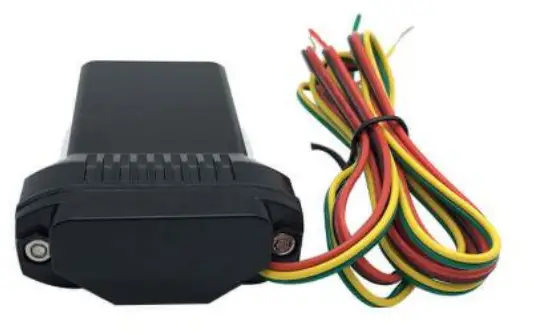

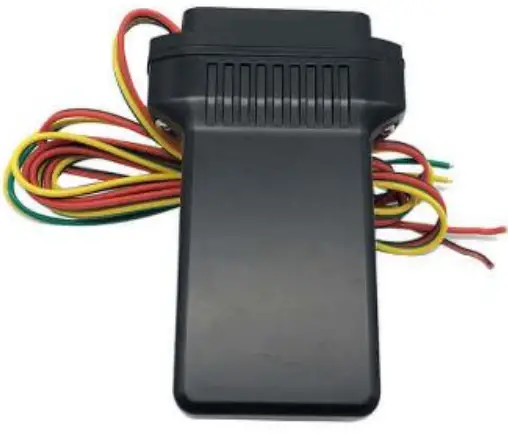

IK713 interface
In the box
- 1* IK713 GPS Tracker
- 1* Quick Start Guide
Installation
SIM Card installation
Get ready a Nano Sim Card that support GSM&GPRS with 30MB data per month Open the top housing Insert Sim card to sim card slot correctly Devices would turn on autoly (green led will blinking). After that the device will be ready.
LED Indications
| Flash | Fix | Off | |
| Blue Light | GSM/GPRS conversation start | No GPRS signal | Power off or in sleep mode |
| Green Light | GPS location successful | No GPRS signal | Power off or in sleep mode |
| Red Light | charging | Full battery or charged full |
SMS Commands List
| Function | Command Format | Reply | for example |
| APN | apn+123456+space+content | apn ok | apn123456 cmnet |
| apnuser+123456+space+content | apnuser ok | ||
| apnpasswd+123456+space+content | apnpasswd ok | ||
| admin number | admin123456+space+admin phone nu mber | admin ok | admin123456 186******** |
| Domain | IP+space+domain+space+port | Set IP ok | IP www.icargps.net 7700 |
| upload frequency | FREQ,123456,30 | OK | FREQ,123456,30 |
| Position | G123456 | Google map | |
| Restart GPS | CQGPS |
GPS reset OK! | CQGPS |
| Restart Devic e | CQ | system reset OK! | CQ |
| Check | CXZT | details of device | CXZT |
| Back to facto ry | Format | OK |
App & PC Tracking platform
App install & Login
- Search “ICAR GPS” in Google Play or iOS store(or scan the following QR code) to
download the Mobile APP;
- Choose the” Login by Device No.,
- Input your device’s ID number and password(default is 123456) to login.
- Choose the” Login by User name.,
- Input your user name and password(default is 123456) to login.
PC login

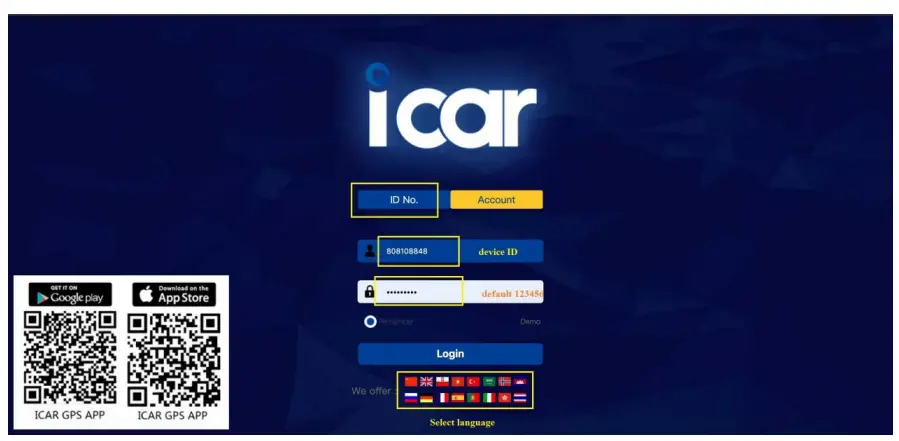

- Web: www.icargps.net, Choose “ID No.”
- Input your device’s ID number and password(default is 123456) to log in

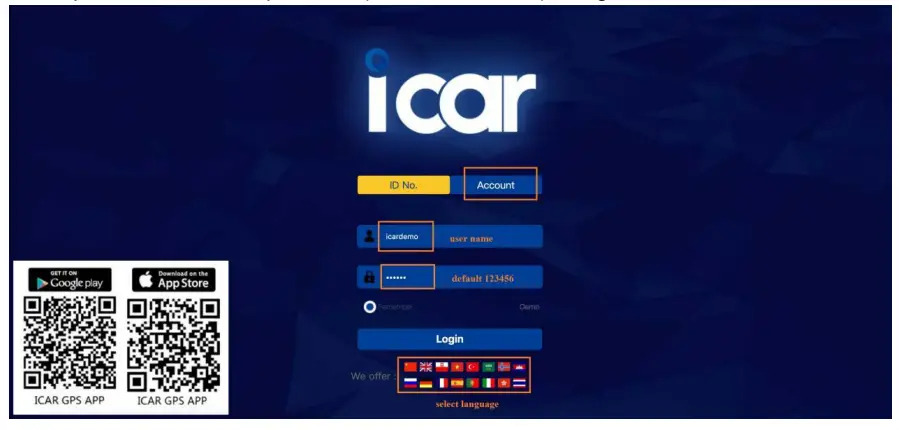

- Web: www.icargps.net, Choose “Account”
- Input user name and password(default is 123456) to log in
FAQ
Check the device power on or not.
Place the unit at the open area to test
the SIM card must support GSM & GPRS and ensure That the card has enough currency and credit.
please set the APN before use please edit the text “APN123456 CMNET “ and send it to the SIM card of the device CMNET is Chinese operator’s APN, Replace the corresponding APN when use in other countries, APN details, please consult your local SIM card carrier.
