Garin IK121 GPS Tracker
Preface
Congratulations on choosing the icar GPS IK121 Pet GPS tracker. This manual shows how to easily program and setup the tracker for best results. Make sure to read this manual carefully before using this product, so as to avoid delays or confusion with it’s operation. Please note that specifications and instructions are subject to change without notice to facilitate product improvement. Updates and changes will be integrated into the latest release. The manufacturer assumes no responsibility for any errors or omissions in outdated documents.
IK121 User Manual V1.0
Overview

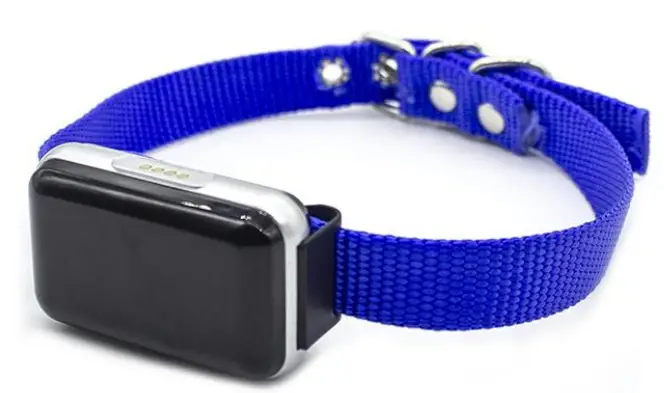

IK121 is a Hunter GPS tracker.
Features
- Real-timing tracking
- GPS+AGPS+LBS+GLONASS Positioning
- History record check
- Geo-Fence alarm
- Low battery alarm
- Power saving mode
- PC & Mobile App tracking
- Long standby time
- IP67 Water resistant
Applications
- Pet tracking
- Hunter tracking
- Cow tracking
- Goat tracking
Specifications
|
Item | Specifications |

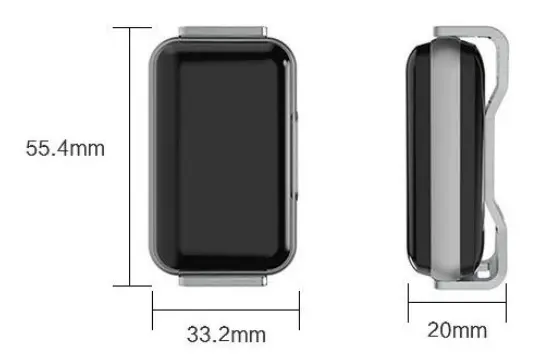

| Dimension | 55.4*33.2*20mm |
| Weight | 44g |
| Charging mode | USB charging DC 5V |
| Backup battery | 3.7 V 1500mAh |
| Power consumption | 40mA standby current |
| Working temperature | -20°C to 65°C |
|
Item | Specifications |
| Cellular Bands | GSM: 850/900/1800/1900Mhz |
| Positioning | GPS, AGPS, LBS |
| Tracking Sensitivity | -162 dBm |
| Sensor | Accelerometer |
| LED | RED/GREEN/BLUE |
| SIM Card interface | Nano SIM |
| Waterproof | IP67 |
IK121 interface
In the box
- 1* IK121 GPS Tracker
- 1* Magnet charging cable
- 1* Quick Start Guide
- 1* Collar
- 1* Screw Driver
Installation
SIM Card installation
- Get ready a Micro Sim Card that support GSM&GPRS with 30MB data per month
- Open the housing by screw driver
- Insert Sim card to sim card slot correctly
- Press power button for 3 seconds to power ON (green led will blinking).
- After that the device will be ready.
LED Indications
| Fix | Flash | Off | |
| Green Light | GSM/GPRS conversation start | No GPRS signal | Power off or in sleep mode |
| Blue Light | GPS location successful | No GPRS signal | Power off or in sleep mode |
SMS Commands List
| Command Format | Reply | for example |
| apn+123456+space+content | apn ok | apn123456 cmnet |
| apnuser+123456+space+content | apnuser ok | |
| apnpasswd+123456+space+content | apnpasswd ok | |
| admin123456+space+admin phone nu mber | admin ok | admin123456 186******** |
| IP+space+domain+space+port | Set IP ok | IP www.icargps.net 7700 |
| FREQ,123456,30 | OK | FREQ,123456,30 |
| 88 | Monitor OK | 88 |
| G123456 | Google map | |
| CQGPS | GPS reset OK! | CQGPS |
| CQ | system reset OK! | CQ |
|
CXZT | details of device | CXZT |
|
Format | OK |
App & PC Tracking platform
App install & Login
- Search “ICAR GPS” in Google Play or iOS store(or scan the following QR code) to
download the Mobile APP

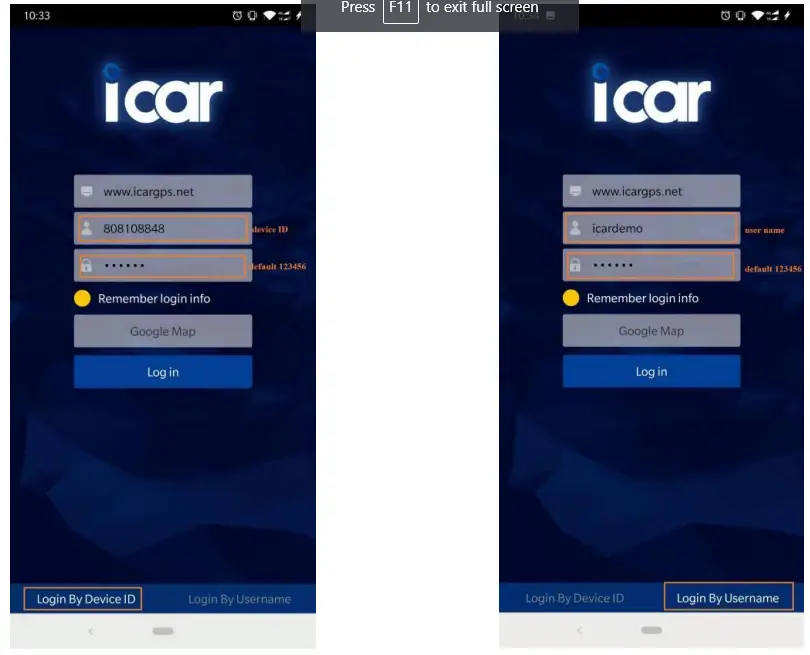

- Choose the” Login by Device No.,
- Input your device’s ID number and password(default is 123456) to login.
- Choose the” Login by User name.,
- Input your user name and password(default is 123456) to login.
PC login

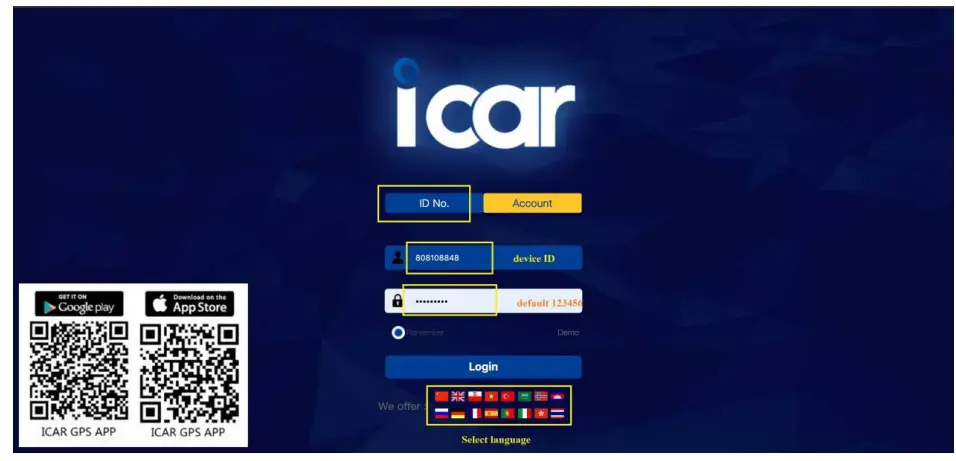

- Web: www.icargps.net, Choose “ID No.”
- Input your device’s ID number and password(default is 123456) to log in

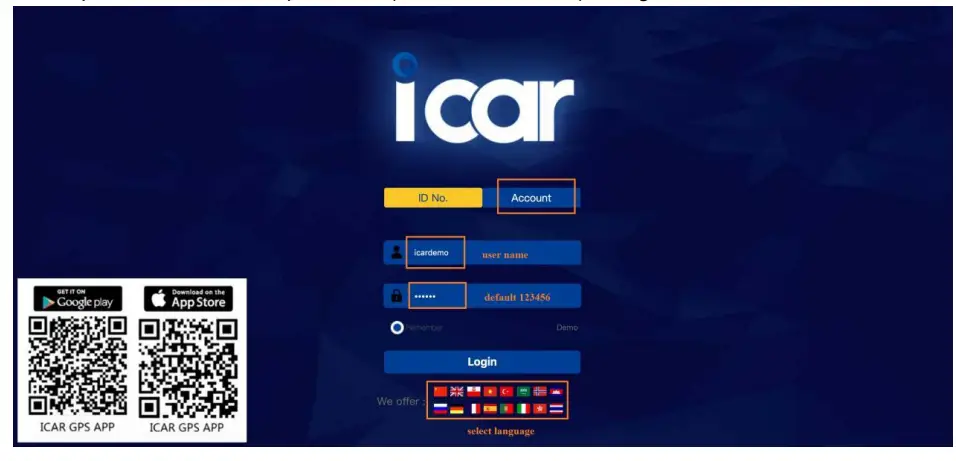

- Web: www.icargps.net, Choose “Account
- Input user name and password(default is 123456) to log in
FAQ
Check the device power on or not.
Place the unit at the open area to test.
the SIM card must support GSM & GPRS and ensure hat the card has enough currency and credit.
please set the APN before use plea se edit the text “APN123456 CMNET “ and send it to the SIM card of the device， CMNET is Chinese operator’s APN, Replace the corresponding APN when use in other countries, APN details, please consult your local SIM card carrier.
