83A Metro 1 Sculpted Finish

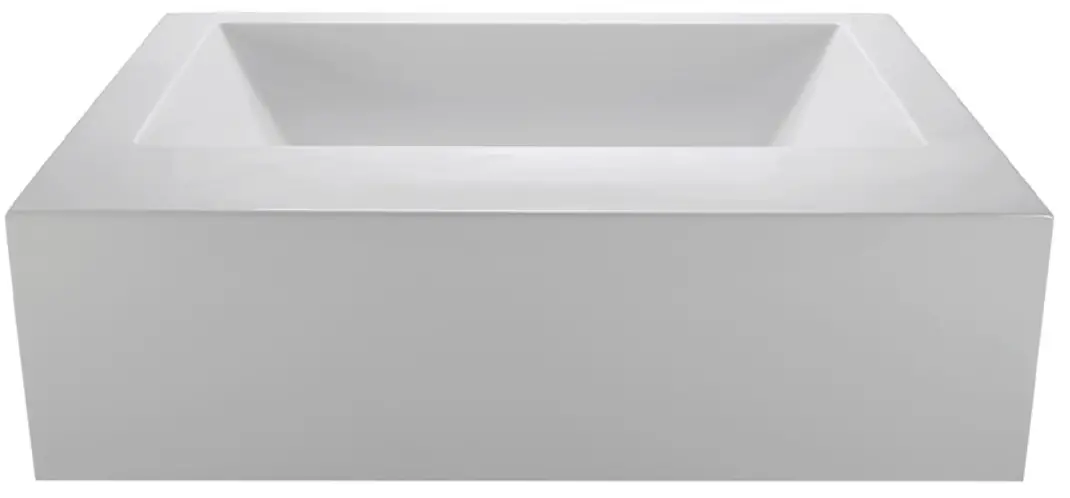

Available as a freestanding model or finished on 1, 2 or 3 sides for various installation applications.
Designer Collection Tubs
Metro 1 with Sculpted Finish®
| model 83A | |

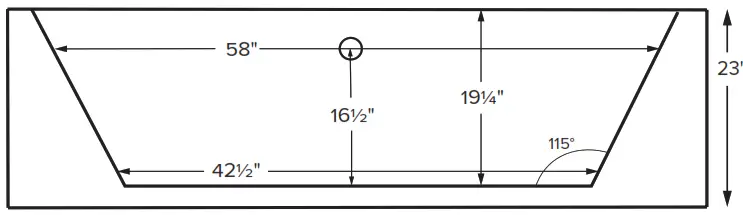

| 72″ x 42″ x 23″ | |
| FREESTANDING or ALCOVE 100 gal to overflow | |
| Acrylic CXLTM | DoloMatteTM |
| 180 lbs / 82 kg <soaker> 203 lbs / 92 kg | |
| Filling this tub to the maximum may require an above average size or dedicated water heater. | |

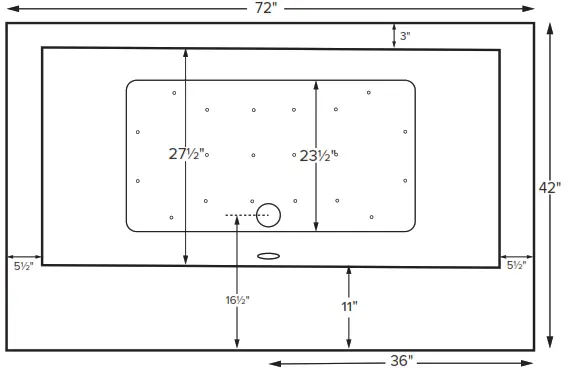

Features a flat 11” deck surface on the drain side for mounting faucetry. Drain kit sold separately.
Shown as Air Bath
| ELECTRICAL COMPONENTS & SPECIFICATIONS | ||
| Hydrotherapy Package | Components Included | GFCI/110V |
| Microbubbles | Microbubbles pump | 1-15 amp |
| Air Massage | heated blower | 1-15 amp |
| Microbubbles with Air | Microbubbles pump, heated blower | 1-20 amp |
| Air Massage Elite | heated blower, chromatherapy | 1-15 amp |
| Microbubbles with Air Elite | Microbubbles pump, heated blower, chromatherapy | 2-15 amp |
| Electrical requirements may change with the addition of optional therapy components. See specific option details or installation information. CSA Certified C/US; B45.5/IAPMO ANSI Z124.1 and ANSI 112.19.7 | ||
See the Installation & Operation Manual for more details.
MTI’s Customer Service: Monday-Friday 8am-6pm EST
800-783-8827 or [email protected]
- Options and accessories may be packaged inside the tub crate. Always check packaging before discarding.
- All product measurements are +1/2”.
- Specifications and configurations are subject to change without notice.
- Measurements herein supersede all others published prior to publication date below.
IMPORTANT ORDERING & INSTALLATION INFORMATION
- Before ordering or installing, please consider future access to equipment.
- Unless ordering Sculpted Finish on 4 sides, please include a diagram specifying which sides will need to be finished, along with location of optional tile flange(s).
- Drain is not included with this tub model.
- When ordering an air bath, the air blower must be remote mounted.
- Microbubbles system components must be installed on a non-Sculpted Finish side.
Components will extend beyond the perimeter of the tub. Call MTI for specific details regarding the desired installation before placing the order. - Radiance placed on floor locations will affect placement of air jets.
- Hydrotherapy equipment may ship loose for remote installation. See package content on the following page for details.Specifications and configurations are subject to change without notice.
- All tubs are compliant with ASTM C 1028-07 coefficient of friction. DoloMatte meets ANSI A137.1/A326.3 coefficient of friction and AS HB198:2014 slip tests.
For more information on hydrotherapy packages please visit: mtibaths.com/wellness/
Designer CollectionTubs
Metro 1 with Sculpted Finish® model 83A
72″ x 42″ x 23″
| Hydrotherapy Packages | Package Contents | Sculpted Finish Sides | Acrylic CXL™ | DoloMatte™ | ||
| Part # | MSRP | Part # | MSRP | |||
| Soaker | Soaking bath – no jets, pre-leveled foam base | 4-sides sculpted | S83A4 | $9,545 | S83D4 | $10,745 |
| 3-sides sculpted | S83A3 | $8,830 | S83D3 | $9,880 | ||
| 2-sides sculpted | S83A2 | $7,125 | S83D2 | $8,025 | ||
| 1-side sculpted | S83A1 | $6,705 | S83D1 | $7,455 | ||
| Microbubbles | 1 infusion port, microbubbles pump, pre-leveled foam base | 4-sides sculpted | n/a | n/a | n/a | n/a |
| 3-sides sculpted | M83A3 | $12,150 | M83D3 | $13,200 | ||
| 2-sides sculpted | M83A2 | $10,445 | M83D2 | $11,345 | ||
| 1-side sculpted | M83A1 | $10,025 | M83D1 | $10,775 | ||
| Air Massage | 20 air jets, heated air blower, pre-leveled foam base | 4-sides sculpted | AST83A4 | $13,195 | AST83D4 | $14,395 |
| 3-sides sculpted | AST83A3 | $12,480 | AST83D3 | $13,530 | ||
| 2-sides sculpted | AST83A2 | $10,775 | AST83D2 | $11,675 | ||
| 1-side sculpted | AST83A1 | $10,355 | AST83D1 | $11,105 | ||
| Air Massage Elite | 30 air jets, heated air blower, Chromatherapy LED lighting, Spa Mode, pre-leveled foam base | 4-sides sculpted | AE83A4 | $15,095 | AE83D4 | $16,295 |
| 3-sides sculpted | AE83A3 | $14,380 | AE83D3 | $15,430 | ||
| 2-sides sculpted | AE83A2 | $12,675 | AE83D2 | $13,575 | ||
| 1-side sculpted | AE83A1 | $12,255 | AE83D1 | $13,005 | ||
| Microbubbles with Air Massage | 1 infusion port, microbubbles pump, 20 air jets, heated air blower, pre-leveled foam base | 4-sides sculpted | n/a | n/a | n/a | n/a |
| 3-sides sculpted | ASTM83A3 | $15,200 | ASTM83D3 | $16,250 | ||
| 2-sides sculpted | ASTM83A2 | $13,495 | ASTM83D2 | $14,395 | ||
| 1-side sculpted | ASTM83A1 | $13,075 | ASTM83D1 | $13,825 | ||
| Microbubbles with Air Massage Elite | 1 infusion port, microbubbles pump, 30 air jets, heated air blower, Chromatherapy LED lighting, Spa Mode, pre-leveled foam base | 4-sides sculpted | n/a | n/a | n/a | n/a |
| 3-sides sculpted | AEM83A3 | $17,000 | AEM83D3 | $18,050 | ||
| 2-sides sculpted | AEM83A2 | $15,295 | AEM83D2 | $16,195 | ||
| 1-side sculpted | AEM83A1 | $14,875 | AEM83D1 | $15,625 | ||
Microbubbles system components must be installed on a non-Sculpted Finish® side.
Components will extend beyond the perimeter of the tub. Call MTI for specific details regarding the desired installation before placing order.
For more customized applications, additional hydrotherapies may possibly be integrated in Sculpted Finish® tubs, depending on the types of therapy and the installation application. Visit mtibaths.com or call MTI at 800.783.8827.
RECOMMENDED SENSORY THERAPIES
| Chromatherapy | Audiotherapy | Thermaltherapy |
| (LE) $800 underwater lighting 2 LED lights included | (STEREOBT) $1,390 2 transducers with bluetooth and amplifier (BTREMOTE) $600 bluetooth remote (STEREOH202) $1,575 4 transducers amplifier not included | (RAD100) $1,595 Radiance® 2 heated zones included Zones may be specified on Metro tub deck. |
For more information on options and accessories go to Acrylic Tub Options on mtibaths.com
Options
Must be ordered at time of purchase.
Standard Color White (CWH) gloss Acrylic CXL, matte DoloMatte
Textured, Slip-Resistant Bottom (TXTBTM) $105
DoloMatte™ exceeds ANSI A137.1/A326.3 and AS HB198 slip tests.
Ozonator (OZONE) $515
Virtual Spout high-flow integrated tub filler (FPMJ) $450
Ozonator (OZONE) $515
Virtual Spout high-flow integrated tub filler (FPMJ) $450
Ozonator (OZONE) $515
Virtual Spout high-flow integrated tub filler (FPMJ) $450
Must be located on same side as tub deck. Specify location when ordering.
Installation Options
Must be ordered at time of purchase.
Tile Flange
Factory Installed rigid ABS
- Side (TFK1) $175
- Sides (TFK2) $185
- Sides (TFK3) $200
Field Install Kit (TFKNI) $185 Includes rigid ABS & adhesive
IMPORTANT: Must specify flange location(s) on order of Factory-Installed Flange.
Accessories
Pillows from $180
Teak Bath Mat (TKMAT3018) $815
Custom sizes also available. Contact MTI for details and pricing.
Teak Tub Tray
Slatted (TK-TRAY1) $500 Solid (TK-TRAY2) $570
Floor-Mounted High-Flow Tub Filler
Contemporary
Chrome (FILLC) $1,480
Brushed Nickel (FILLBN) $1,710
Drains & Overflow Kits
| Cable Driven Drain Finishes – PVC Drain Kit White/Bone/Biscuit (WOCDW) $440 Chrome (WOCD) $410 Brushed Nickel (WOCDBN) $490 Polished Nickel (WOCDPN) $540 Oil-Rubbed Bronze† (WOCDOR) $550 Polished Brass (WOCDBR) $690 Special Finishes* (WOCDSF) $1,135 MTI does not offer a brass body cable drain kit. | Cable Driven Drain Finishes – PVC Drain Kit White/Bone/Biscuit (WOCDW) $440 Chrome (WOCD) $410 Brushed Nickel (WOCDBN) $490 Polished Nickel (WOCDPN) $540 Oil-Rubbed Bronze† (WOCDOR) $550 Polished Brass (WOCDBR) $690 Special Finishes* (WOCDSF) $1,135 MTI does not offer a brass body cable drain kit. |
Lift & Turn
Drain Finishes – PVC Drain Kit
Chrome (WOC) $185
White (WOW) $245
Brushed Nickel (WOBN) $305

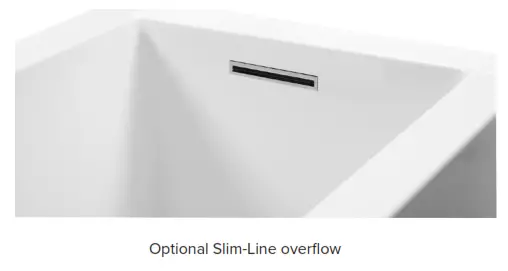

Slim-Line Overflow with Toe Tap Drain
Must be ordered at time of purchase.
- Low profile overflow is factory installed
- Overflow measures 4.5” x 1”
- Provides a deeper soak
- Not available for commercial applications
| Slim-Line Overflow with Toe Tap Drain PVC Drain Chrome (SLOTC) $500 Brushed Nickel (SLOTBN) $530 Polished Nickel (SLOTPN) $555 White (SLOTW) $430 | Slim-Line Overflow with Toe Tap Drain Solid Brass Drain Chrome (SLOTSBC) $930 Brushed Nickel (SLOTSBBN) $935 Polished Nickel (SLOTSBPN) $935 White (SLOTSBW) $965 |
† MTI has selected an oil-rubbed bronze finish that is compatible with Delta and many other manufacturers. To ensure best match, order as a Special Finish and submit a sample.
* Allow 2-4 weeks lead time for Special Finishes. Send sample for best match.
CSA # MTDS- 83A
CSA # MTDS- 83D
©2022 by MTI Baths, Inc. Modification Rights Reserved
Rev. 07 21 2022
