Mti Basics 84a Metro 2 With Sculpted Finish Instructions

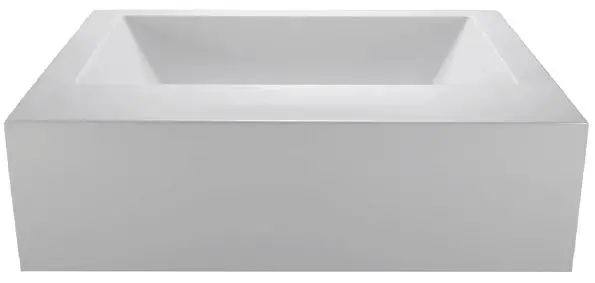

MTI BASICS 84A Metro 2 with Sculpted Finish

Available as a freestanding model or finished on 1, 2 or 3 sides for various installation applications.

Metro 2 with Sculpted Finish®

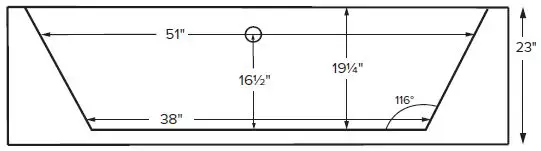

DIMENSION

Features a flat 11” deck surface on the drain side for mounting faucetry. Drain kit sold separately. Shown as Air Bath

ELECTRICAL COMPONENTS & SPECIFICATIONS

See the Installation & Operation Manual for more details. MTI’s Customer Service: Monday-Friday 8am-6pm EST 800-783-8827 or [email protected]

• Options and accessories may be packaged inside the tub crate. Always check packaging before discarding.
• All product measurements are +1/2”.
• Specifications and configurations are subject to change without notice.
• Measurements herein supersede all others published prior to publication date below.

IMPORTANT ORDERING & INSTALLATION INFORMATION

• Before ordering or installing, please consider future access to equipment.
• Unless ordering Sculpted Finish on 4 sides, please include a diagram specifying which sides will need to be finished, along with location of optional tile flange(s).
• Drain is not included with this tub model.
• When ordering an air bath, the air blower must be remote mounted.
  Microbubbles system components must be installed on a non-Sculpted Finish side. Components will extend beyond the perimeter of the tub. Call MTI for specific details regarding the desired installation before placing the order.
• Radiance placed on floor locations will affect placement of air jets.
• Hydrotherapy equipment may ship loose for remote installation. See package content on the following page for details.Specifications and configurations are subject to change without notice.
• All tubs are compliant with ASTM C 1028-07 coefficient of friction. DoloMatte meets ANSI A137.1/A326.3 coefficient of friction and AS HB198:2014 slip tests.

Microbubbles system components must be installed on a non-Sculpted Finish® side.
Components will extend beyond the perimeter of the tub. Call MTI for specific details regarding the desired installation before placing order.
For more customized applications, additional hydrotherapies may possibly be integrated in Sculpted Finish® tubs, depending on the types of therapy and the installation application. Visit mtibaths.com or call MTI at 800.783.8827.

RECOMMENDED SENSORY THERAPIES

Chromatherapy
(LE) $800 underwater lighting 2 LED lights included

Audiotherapy
(STEREOBT) $1,390 2 transducers with bluetooth and amplifier (BTREMOTE) $600 bluetooth remote (STEREOH202) $1,575 4 transducers amplifier not included

Thermaltherapy
(RAD100) $1,595 Radiance® 2 heated zones included Zones may be specified on Metro tub deck.

Options Must be ordered at time of purchase

• Standard Color White (CWH) gloss Acrylic CXL, matte DoloMatte
• Textured, Slip-Resistant Bottom (TXTBTM) $105
  DoloMatte™ exceeds ANSI A137.1/A326.3 and AS HB198 slip tests.
• Ozonator (OZONE) $515
• Virtual Spout high-flow integrated tub filler (FPMJ) $450
  Must be located on same side as tub deck. Specify location when ordering.

Installation Options Must be ordered at time of purchase

Tile Flange

Factory Installed rigid ABS

• 1 Side (TFK1) $175
• 2 Sides (TFK2) $185
• 3 Sides (TFK3) $200
  Field Install Kit (TFKNI) $185 Includes rigid ABS & adhesive

IMPORTANT: Must specify flange location(s) on order of Factory-Installed Flange.

Accessories

• Pillows from $180
• Teak Bath Mat (TKMAT3018) $815
  Custom sizes also available. Contact MTI for details and pricing.
• Teak Tub Tray
  Slatted (TK-TRAY1) $500 Solid (TK-TRAY2) $570
• Floor-Mounted High-Flow Tub Filler
  • Contemporary
    • Chrome (FILLC) $1,480
    • Brushed Nickel (FILLBN) $1,710

Drains & Overflow Kits

• Cable Driven
  • Drain Finishes – PVC Drain Kit
  • White/Bone/Biscuit (WOCDW) $440
  • Chrome (WOCD) $410
  • Brushed Nickel (WOCDBN) $490
  • Polished Nickel (WOCDPN) $540
  • Oil-Rubbed Bronze† (WOCDOR) $550
  • Polished Brass (WOCDBR) $690
  • Special Finishes* (WOCDSF) $1,135
  • MTI does not offer a brass body cable drain kit.
• Lift & Turn
  • Drain Finishes – PVC Drain Kit
  • Chrome (WOC) $185
  • White (WOW) $245
  • Brushed Nickel (WOBN) $305
• Toe Tap Rectangular Overflow must be ordered at time of purchase
  • Toe Tap
    • Round Overflow – PVC Drain Kit
      • Chrome (WOTTC) $380
      • Brushed Nickel (WOTTBN) $385
      • Polished Nickel (WOTTPN) $385
      • Special Finishes* (WOTTSF) $1,145
    • Round Overflow – Solid Brass Drain
      • Chrome (WOTTSBC) $810
      • Brushed Nickel (WOTTSBBN) $810
      • Polished Nickel (WOTTSBPN) $810
    • Rectangular Overflow – PVC Drain Kit
      • Chrome (WOTRC) $470
      • Brushed Nickel (WOTRBN) $430
      • White (WOTRW) $525
• Slim-Line Overflow with Toe Tap Drain Must be ordered at time of purchase.
  • Low profile overflow is factory installed
  • Overflow measures 4.5” x 1”
  • Provides a deeper soak
  • Not available for commercial applications
• Slim-Line Overflow with Toe Tap Drain
  • PVC Drain
  • Chrome (SLOTC) $500
  • Brushed Nickel (SLOTBN) $530
  • Polished Nickel (SLOTPN) $555
  • White (SLOTW) $430
• Slim-Line Overflow with Toe Tap Drain
  Solid Brass Drain
  Chrome (SLOTSBC) $930
  Brushed Nickel (SLOTSBBN) $935
  Polished Nickel (SLOTSBPN) $935
  White (SLOTSBW) $965

MTI has selected an oil-rubbed bronze finish that is compatible with Delta and many other manufacturers. To ensure best match, order as a Special Finish and submit a sample.
* Allow 2-4 weeks lead time for Special Finishes. Send sample for best match

For more information on hydrotherapy packages
please visit: mtibaths.com/wellness/
