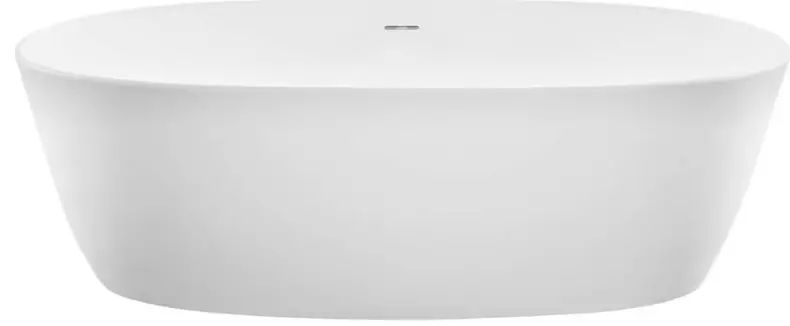

mti 220 Boutique Collection Tubs
Features an integrated overflow and half rolled rim. Also available with tub cradle. 220C with Cradle
Elena
| model 220 |
| 220R 65″ x 32″ x 22.5″ 220F 65″ x 32″ x 21.5″ |
| FREESTANDING 102 gal to overflow |
| SculptureStone® |
| 270 lbs / 122 kg soaker 300 lbs / 136 kg airbath |
| Filling this tub to the maximum may require an above average size or dedicated water heater. |
| ELECTRICAL COMPONENTS & SPECIFICATIONS Required Electrical Service – 110 Volt | ||
| Hydrotherapy Package | Components Included | GFCI |
| Air Massage | heated blower | 1-15 amp |
| Electrical requirements may change with the addition of optional therapy components. See specific option details or installation information. CSA Certified C/US; ANSI Z124.1 and ANSI 112.19.7 and ANSI 112.19.7 | ||
See the Installation & Operation Manual for more details.
MTI’s Customer Service: Monday-Friday 8am-6pm EST
800-783-8827 or [email protected]
- Before discarding tub crate, check for accessories that may be packaged inside.
- All product measurements are +1/2”.
- Specifications and configurations are subject to change without notice.
- Measurements herein supersede all others published prior to publication date below.
IMPORTANT ORDERING & INSTALLATION INFORMATION
- Before ordering or installing, please consider future access to equipment.
- Includes an integrated overflow with toe tap drain in chrome finish. May be specified without an overflow (see local codes before ordering without an overflow).
- Air baths require job site preparation for remote installation of the blower and required check valve. Check valve must be installed higher than the rim of the tub.
- Waterproof remote control included with air bath. Keypad shipped loose may be remote mounted on nearby surface/wall.
- Faucet valves cannot be mounted on this tub model.
Elena
model #: 220

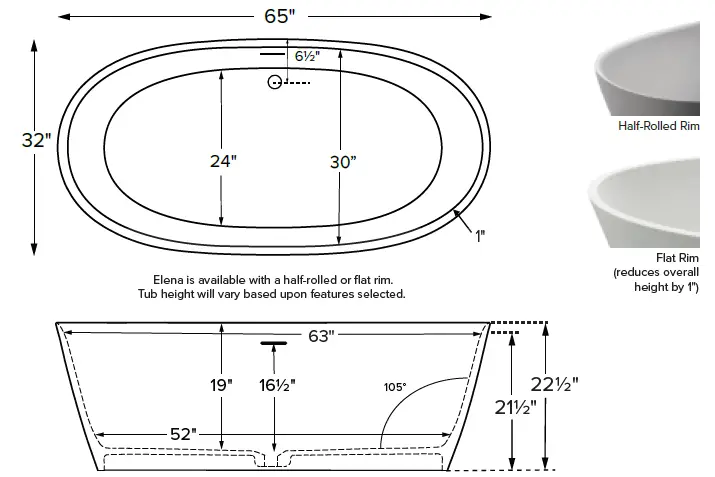

220R 65″ x 32″ x 22.5″
220F 65″ x 32″ x 21.5″
For more information on options and accessories go to SculptureStone® Tubs Options on mtibaths.com
- Blower & required check valve for airpath must be remote mounted.
- Check valve must be installed higher than the rim of the tub.
- See the Installation & Operation Manual for more details.
| Hydrotherapy | Package Contents | Part # | MSRP |
| Soaker | Soaking bath – no jets. Includes an integrated slotted overflow with a toe-tap drain kit. | S220R (Half-Rolled Rim) | $8,855 |
| S220F (Flat Rim) | |||
| Air Bath | 20 air jets, heated air blower, keypad, waterproof remote control. Includes an integrated slotted overflow with a toe-tap drain kit. | AST220R (Half-Rolled Rim) | $14,245 |
| AST220F (Flat Rim) |
| Options Must be ordered at time of purchase | |
| Quick Ship (QSPRI2) $1,025 reduces lead time Please call for availability | |
| Standard Color White, matte finish Biscuit Color Upgrade (SSBI) $310 matte finish | |
| Hand-Polished Deep Gloss Finish (SSGLOSS) $1,140 upcharge For white or biscuit | |
| Exterior Color $1,760 (SSCOLTG) Gloss Finish (SSCOLTM) Matte Finish Must specify color code: Sapphire Blue (SB), Blue Lagoon (BL), Terracotta (TC), Onyx (OX), Stratus Gray (TG), Stormgray (SG) Adds 20 business days to standard lead time | |
Accessories | |
| Teak Bath Mat (TKMAT3018) $815 Measures 30″ x 17.5″ x 1″ Custom sizes also available. Contact MTI for details. | |
| Floor-Mounted High-Flow Tub Filler Contemporary Chrome (FILLC) $1,480 Brushed Nickel (FILLBN) $1,710 | |
| SculptureStone® Tub Tray Without Stemware Holder (SSTRAY1) $340 With Stemware Holder (SSTRAY2) $450 Color and finish will come matched with tub | |
| Teak Tub Tray Slatted (TK-TRAY1) $500 Solid (TK-TRAY2) $570Order with tub for best fit | |
| Drains & Overflow Kits Must be ordered at time of purchase | |
Boutique AccessoriesPackaging / Handling Fee Applies |
| SculptureStone® Bathroom Table (TABLE) $825 matte finish +$430 gloss finish upcharge (SSGLOSSSNK) Order with tub for best color match |
| SculptureStone® Standard Faucet Stand Small – 3-hole capacity Large – 5-hole capacity 14¼” w x 21¾” h 22″ w x 21¾” h Matte (STAND) $725 Matte (STANDL) $855 +$430 gloss finish upcharge (SSGLOSSSNK) |
| SculptureStone® Premium Faucet Stand 15″ w x 39” h 10″ w x 39” h Matte (SSFSR3915MT) $2,365 Matte (SSFSR3910MT) $2,135Gloss (SSFSR3915GL) $2,720 Gloss (SSFSR3910GL) $2,525 20″ w x 23” h 15″ w x 23” h Matte (SSFSR2320MT) $1,930 Matte (SSFSR2315MT) $1,825 Gloss (SSFSR2320GL) $2,315 Gloss (SSFSR2315GL) $2,180 |
| SculptureStone® Premium Component Stand |
| 20″ l x 22.5″ h Matte (SSPX1MT) $2,000 Gloss (SSPX1GL) $2,640 Compatible with select tub models. Go to www.mtibaths.com |
Drains & Overflow Kits Must be ordered at time of purchase
Toe Tap Drain Cover Finishes
PVC drain – Chrome included
- +$50 upcharge Br. Nickel (WIOBN), Pol. Nickel (WIOPN)
- +$85 upcharge Matte Black (WIOMB)
- +$105 upcharge Oil-Rubbed Bronze† (WIOOR)
- +$640 upcharge Special Finish* (WIOSF)
- Send finish sample to MTI Baths for best match.
Toe Tap SculptureStone® Drain Cover Finishes
Upgrade is in lieu of standard chrome to tap drain cover.
White only
- +$90 upcharge Matte Finish (SSWIOMT)
- +$110 upcharge Gloss Finish (SSWIOGL)
- Brass Tailpiece (WIOBS) $85 in addition to finish charge listed above
- Quick Drain Kit (WOQ) $460
† MTI has selected an oil-rubbed bronze finish that is compatible with Delta and many other manufacturers. To ensure best match, order as a Special Finish and submit a sample.
CSA # MTCT- 220
©2022 by MTI Baths, Inc. Modification Rights Reserved
* Allow 2-4 weeks lead time for Special Finishes. Send sample for best match.
