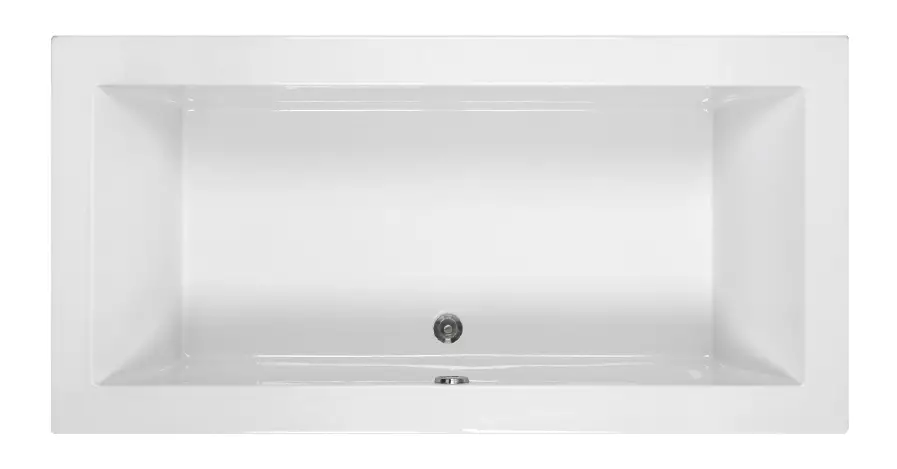

mti Andrea 8 Designer Collection Tubs
| Andrea® 8 | |
| model 98 | |
| 71.625″ x 36″ x 19.75″ | |
| DROP-IN or UNDERMOUNT 78 gal to overflow | |
| Acrylic CXLTM | DoloMatteTM |
| 100 lbs / 45 kg <soaker> 113 lbs / 51 kg 135 lbs / 61 kg <plumbed> 152 lbs / 69 kg | |
| Filling this tub to the maximum may require an above average size or dedicated water heater. | |

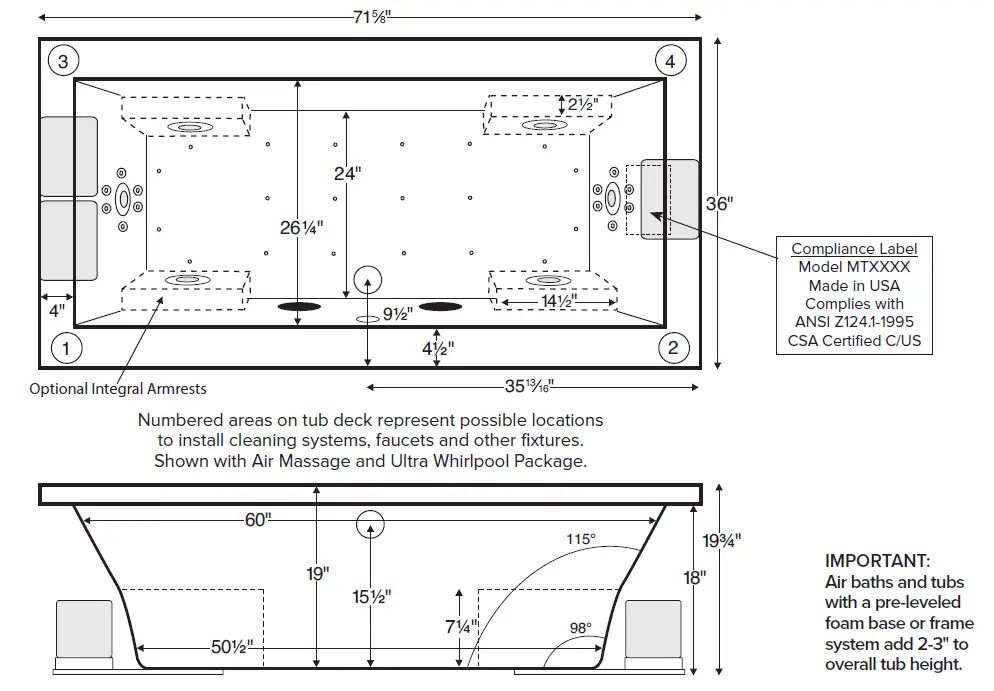

DIMENSION
IMPORTANT ORDERING & INSTALLATION INFORMATION
- Before ordering or installing, please consider future access to equipment.
- Add proper bedding compound to fully level and support bottom of tub.
- When equipped with an air bath package, pre-leveled foam base or frame system, overall tub height is increased by approx. 2-3” and is designed to install on a flat, level subfloor.
- Radiance placed on airbath floor will affect placement of air jets.
- System components may extend beyond the perimeter of deck.
- Please measure tub on-site before building tub decking.
- Advise MTI when planning to use a glass enclosure. Relocation of controls may be necessary.
- Suction and control locations may vary.
ELECTRICAL COMPONENTS & SPECIFICATIONS
| Hydrotherapy Package | Components Included | GFCI / 110V |
| Standard Whirlpool | 2-bhp pump | 1-15 amp |
| Stream Bath | ½-bhp, ozone | 1-20 amp |
| Microbubbles | Microbubbles pump | 1-15 amp |
| Ultra Whirlpool | 2-bhp pump x 2, inline heater, ozone | 2-20 amp |
| Air Massage | heated blower | 1-15 amp |
| Air Massage Elite | heated blower, chromatherapy | 1-15 amp |
| Air Massage w/ Stream Bath | ½-bhp pump, heated blower, ozone | 1-20 amp |
| Air Massage Elite w/ Stream Bath | ½-bhp pump, heated blower, chromatherapy, ozone | 1-20 amp |
| Electrical requirements may change with the addition of optional therapy components. See specific option details or installation information. CSA Certified C/US; ANSI Z124.1 and ANSI 112.19.7 | ||
| Hydrotherapy Package | Components Included | GFCI / 110V |
| Microbubbles with Air | Microbubbles pump, heated blower | 1-20 amp |
| Microbubbles with Air Elite | Microbubbles pump, heated blower, chromatherapy | 2-15 amp |
| Air with Whirlpool | 2-bhp pump, heated blower | 2-15 amp |
| Air with Ultra Whirlpool | 2-bhp pump x 2, inline heater, heated blower, ozone | 2-20 amp |
| Air Elite with Whirlpool | 2-bhp pump, heated blower, chromatherapy | 2-15 amp |
| Air Elite with Ultra Whirlpool | 2-bhp pump x 2, inline heater, heated blower, chromatherapy, ozone | 2-20 amp |
See the Installation & Operation Manual for more details. MTI’s Customer Service Monday-Friday 8am-6pm EST 800-783-8827 or [email protected]
- Before discarding tub crate, check for accessories that may be packaged inside.
- All product measurements are +1/2”.
- Specifications and configurations are subject to change without notice.
- Measurements herein supersede all others published prior to publication date below.
- Aromatherapy is eliminated for undermount applications
- Air Baths, Pre-Leveled Foam Base or Frame Systems increase overall height by 2-3″.
model 98
| Hydrotherapy Packages | Package Contents | Acrylic CXL™ | DoloMatte™ | ||
| Part # | MSRP | Part # | MSRP | ||
| Soaker | Soaking bath – no jets | S98-DI | $2,990 | S98DM-DI | $3,590 |
| S98-UM | S98DM-UM | ||||
| Stream Bath | 6 side vents, 2 end vents, 1/2 bhp pump, Ozone | SM98-DI | $5,535 | SM98DM-DI | $6,135 |
| SM98-UM | SM98DM-UM | ||||
| Microbubbles | 1 microbubbles infusion port and pump | M98-DI | $6,310 | M98DM-DI | $6,910 |
| M98-UM | M98DM-UM | ||||
| Air Massage | 20 air jets, heated air blower, Aromatherapy, pre-leveled foam base | AST98-DI | $6,640 | AST98DM-DI | $7,240 |
| AST98-UM | AST98DM-UM | ||||
| Air Massage Elite | 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, pre-leveled foam base | AE98-DI | $8,540 | AE98DM-DI | $9,140 |
| AE98-UM | AE98DM-UM | ||||
| Stream Bath with Air Massage | 6 side vents, 2 end vents, 1/2 bhp pump, Ozone, 20 air jets, heated air blower, Aromatherapy, pre-leveled foam base | ASTSM98-DI | $8,685 | ASTSM98DM-DI | $9,285 |
| ASTSM98-UM | ASTSM98DM-UM | ||||
| Stream Bath with Air Massage Elite | 6 side vents, 2 end vents, 1/2 bhp pump, Ozone, 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, pre-leveled foam base | AESM98-DI | $10,785 | AESM98DM-DI | $11,385 |
| AESM98-UM | AESM98DM-UM | ||||
| Microbubbles with Air Massage | 1 microbubbles infusion port and pump, 20 air jets, heated air blower, Aromatherapy, pre-leveled foam base | ASTM98-DI | $9,360 | ASTM98DM-DI | $9,960 |
| ASTM98-UM | ASTM98DM-UM | ||||
| Microbubbles with Air Massage Elite | 1 microbubbles infusion port and pump, 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, pre-leveled foam base | AEM98-DI | $11,160 | AEM98DM-DI | $11,760 |
| AEM98-UM | AEM98DM-UM | ||||
| Standard Whirlpool | 6 point-massage jets, 2-bhp pump | P98-DI | $5,355 | P98DM-DI | $5,955 |
| P98-UM | P98DM-UM | ||||
| Ultra Whirlpool | 6 point-massage jets, 12 micro-jets with Tsubo massage, 2 2-bhp pumps, inline heater, Ozone | P98U-DI | $7,350 | P98UDM-DI | $7,950 |
| P98U-UM | P98UDM-UM | ||||
| Air Massage with Standard Whirlpool | 6 point-massage jets, 2-bhp pump, 20 air jets, heated air blower, Aromatherapy, pre-leveled foam base | AW98-DI | $9,005 | AW98DM-DI | $9,605 |
| AW98-UM | AW98DM-UM | ||||
| Air Massage with Ultra Whirlpool | 6 point-massage jets, 12 micro-jets with Tsubo massage, 2 2-bhp pumps, inline heater, 20 air jets, heated air blower, Aromatherapy, Ozone, pre-leveled foam base | AU98-DI | $11,000 | AU98DM-DI | $11,600 |
| AU98-UM | AU98DM-UM | ||||
| Air Massage Elite with Standard Whirlpool | 6 point-massage jets, 2-bhp pump, 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, pre-leveled foam base | AEAP98-DI | $10,905 | AEAP98DM-DI | $11,505 |
| AEAP98-UM | AEAP98DM-UM | ||||
| Air Massage Elite with Ultra Whirlpool | 6 point-massage jets, 12 micro-jets with Tsubo massage, 2 2-bhp pumps, inline heater, 30 air jets, heated air blower, Aromatherapy, Ozone, Chromatherapy LED lighting, Spa Mode, pre-leveled foam base | AEAP98U-DI | $12,000 | AEAP98UDM-DI | $12,600 |
| AEAP98U-UM | AEAP98UDM-UM | ||||
For more information on options and accessories go to Acrylic Tub Options at mtibaths.com
| Options Must be ordered at time of purchase. |
| Standard Colors White (CWH) Biscuit (CBS) Please call for availability of special colors. |
| Quick Ship reduces lead time (QSPRI) $430 Please call for availability |
| Inline Heater maintains water temperature For Soaker or Air Baths (HTISOAK) $825 Includes a recirculating pump Cannot be combined with Microbubbles. |
| Virtual Spout high-flow integrated tub filler (FPMJ) $450 Must specify stub-out location on order. See page 1 for location options. |
| Grab Bars from $330 Selections vary. Personalization available. |
| Textured, Slip-Resistant Bottom (TXTBTM) $105 Compliant with ASTM C 1028-07 friction coefficient. |
| Low-Profile Rim – reduces rim height to 1” (LPR) $265 |
| Integral Armrests – 1 pair (INTARM) $140 end drain tub models Integral Armrests – 2 pair (INTARM2) $295 center drain tub models |
| Accessories |
| Pillows from $180 |
| Teak Bath Mat (TKMAT3018) $815 Custom sizes also available. Contact MTI for details and pricing. |
| Teak Tub Tray Slatted (TK-TRAY1) $500 Solid (TK-TRAY2) $570 |
| Teak Seat (TK-REMSEAT) $660 For use with armrests only. |
| Hydrotherapy Equipment & Cleaning Systems Must be ordered at time of purchase. |
| Inline Heater maintains water temperature For Whirlpools or Stream Bath (HTI) $570 Uses existing pump Cannot be combined with Microbubbles. |
| Whirlpool Cleaning Systems Fill-Flush (FFSO) $590 Simple Touch (FFE) $1,020 Must specify stub-out location on order. See page 1 for location options. |
| Whirlpool Jets Pump upgrade may be advisable for optimal performance when adding jets. Point-Massage Jet Extra Point-Massage Jet (EJ) $315 Micro-Jet from $360 Jet styles and packages vary. Personalization available. Pump Upgrade – 3-bhp (PUMP3) $315 |
| Jet Trim Kits For Standard Whirlpool Chrome (TRC) $270, Brushed Nickel (TRBN) $725 For Ultra Whirlpool Chrome (TRCU) $370, Brushed Nickel (TRBNU) $960 Other finishes available. |
| Ozonator (OZONE) $515 Cannot be added to soakers or airbaths without combination hydrotherapy package or HTISOAK. |
Installation Options
Must be ordered at time of purchase.
- Pre-Leveled Foam Base (PLFOAM) $295
- All airbaths include a pre-leveled foam base.
- Pre-Leveled Frame and Foam Base (PLF) $740
- Pre-Leveled Frame and Foam Base with Skirting (Acrylic CXL™ tubs only) For pricing and details go to mtibaths.com
- Tile Flange Factory-Installed on 3 sides – rigid ABS (TFK3) $200
- Field Install Kit – includes rigid ABS & adhesive (TFKNI) $185
IMPORTANT: Must specify flange location(s) on order of Factory-Installed Flange. Not available with optional Low-Profile Rim.
Drains & Overflow Kits
Cable Driven
- Drain Finishes – PVC Drain Kit
- White/Biscuit (WOCDW) $440
- Chrome (WOCD) $410
- Brushed Nickel (WOCDBN) $490
- P olished Nickel (WOCDPN) $540
- Oil-Rubbed Bronze† (WOCDOR) $550
- P olished Brass (WOCDBR) $690
- Special Finishes* (WOCDSF) $1,135
Toe Tap
- Round Overflow – PVC Drain Kit
- Chrome (WOTTC) $380
- Brushed Nickel (WOTTBN) $385
- Polished Nickel (WOTTPN) $385
- Special Finishes* (WOTTSF) $1,145
Round Overflow – Solid Brass Drain Chrome (WOTTSBC) $810
- Brushed Nickel (WOTTSBBN) $810
- Polished Nickel (WOTTSBPN) $810
Rectangular Overflow – PVC Drain Kit
- Chrome (WOTRC) $470
- Brushed Nickel (WOTRBN) $430
- White (WOTRW) $525
Lift & Turn
- Drain Finishes – PVC Drain Kit
- Chrome (WOC) $185
- White (WOW) $245
- Brushed Nickel (WOBN) $305
Slim-Line Overflow with Toe Tap Drain
- Low profile overflow is factory installed
- Overflow measures 4.5” x 1”
- Provides a deeper soak
- Not available for commercial applications
Slim-Line Overflow with Toe Tap Drain
- PVC Drain
- Chrome (SLOTC) $500
- Brushed Nickel (SLOTBN) $530
- Polished Nickel (SLOTPN) $555
- White (SLOTW) $430
Solid Brass Drain
- Chrome (SLOTSBC) $930
- Brushed Nickel (SLOTSBBN) $935
- Polished Nickel (SLOTSBPN) $935
- White (SLOTSBW) $965
Audiotherapy Thermaltherapy
- (RAD100) $1,595 Radiance®
- 2 heated zones included
- (HTISOAK) $825
- (STEREOH202) $1,575 4 transducers
amplifier not included
- (LE) $800 underwater lighting
- 2 LED lights included
- (STEREOBT) $1,390 2 transducers
- with bluetooth and amplifier
- (BTREMOTE) $600 bluetooth remote
