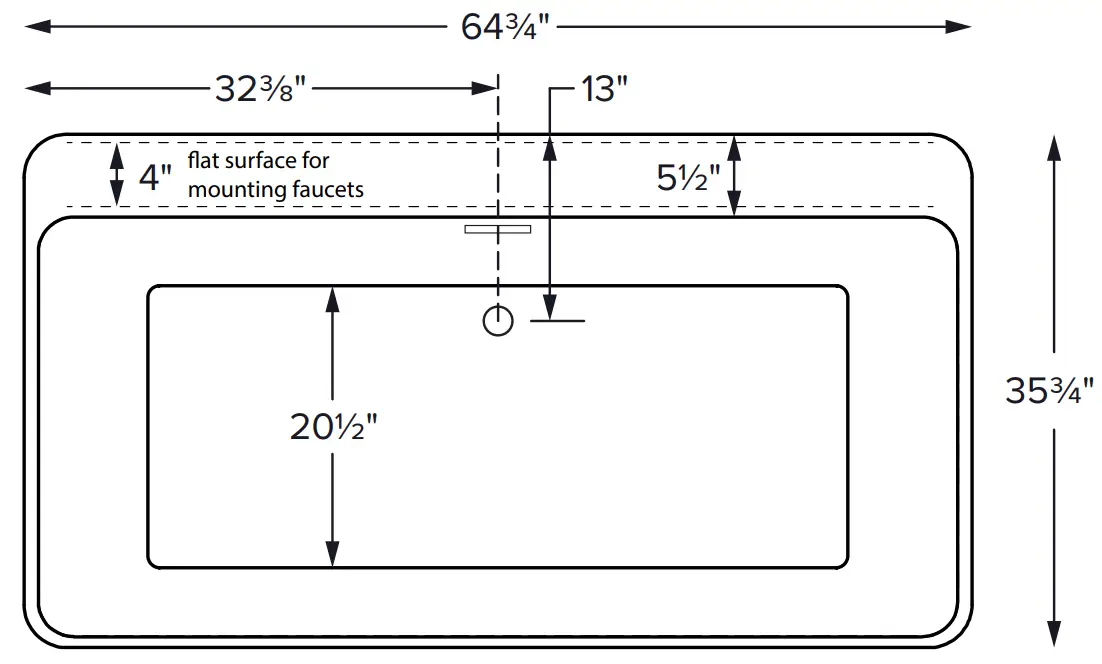

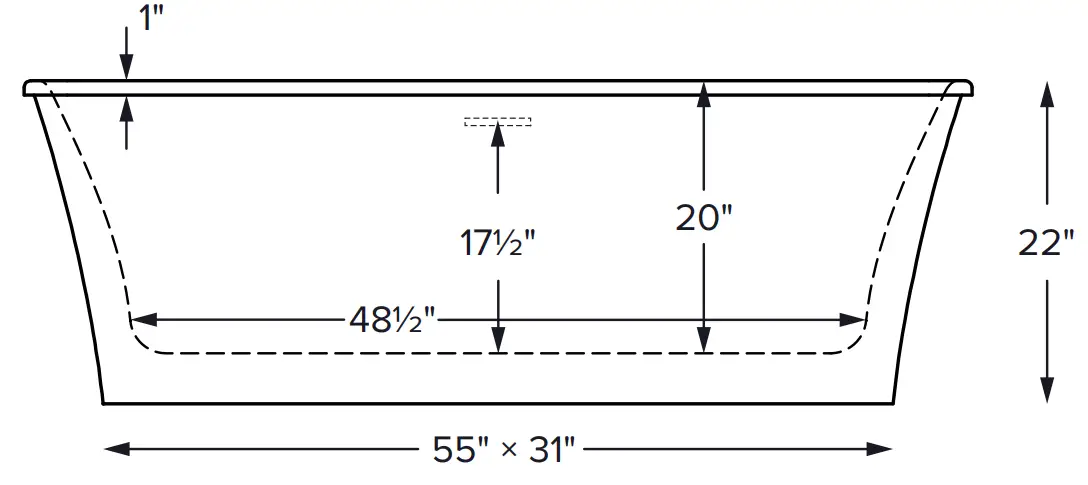

Dimension

Features a 4″-wide flat deck surface on the drain side for mounting faucetry.
The drain and overflow assembly is concealed between the walls of the tub, eliminating the need for an exposed drain kit.

NOTE: Tub includes an access panel (standard), for installation of valves and toe tap drain assembly. Depending on how the tub is positioned, the panel may be visible.

ELECTRICAL COMPONENTS & SPECIFICATIONS

Hydrotherapy Package	Components Included	110V GFCI
Air Massage	heated blower	1-15 amp
Electrical requirements may change with the addition of optional therapy components. See specific option details or installation information. CSA Certified C/US; ANSI Z124.1 and ANSI 112.19.7

Before discarding tub packaging, check for accessories that may be inside.
All product measurements are +1/2”.
Specifications and configurations are subject to change without notice.
Measurements herein supersede all others published prior to publication date below.

IMPORTANT ORDERING & INSTALLATION INFORMATION

Before ordering or installing, please consider future access to equipment.
This tub comes equipped with an access panel to facilitate installation of valves and toe tap drain.
Tub features linear Slim-Line integrated overflow with toe tap drain.
Air baths require job site preparations for remote mounting the blower.
Hydrotherapy equipment may ship loose for remote installation depending on tub model. See package content on the following page for details.
Radiance placed on floor locations will affect placement of air jets.
All tubs are in accordance with CSA B45.5/IAPMO Z124 standard and compliant with ASTM C 1028-07 coefficient of friction. Dolomatte meets ANSI A137.1/A326.3 coefficient of friction and AS HB198:2014 pendulum slip resistance testing.

Package Contents

Hydrotherapy Packages	Package Contents	Acrylic CXLTM		DoloMatteTM
Hydrotherapy Packages	Package Contents	Part #	MSRP	Part #	MSRP
Soaker	Soaking bath – no jets; textured bottom, includes a pre-leveled foam base. White Slim Line overflow and Toe-Tap drain standard; chrome, brushed nickel, and polished nickel available upon request.	PDIS551	$3,750	PDIS551DM	$4,550
Air Massage	20 air jets, heated air blower, textured bottom, pre-leveled foam base. White Slim Line overflow and Toe-Tap drain standard; chrome, brushed nickel, and polished nickel available upon request. Blower and control boxes must be remote located.	PDIAST551	$7,400	PDIAST551DM	$8,200

Options Must be ordered at time of purchase Accessories

Standard Colors

White (CWH) DoloMatte available in matte white only.
Biscuit (CBS) Not available for DoloMatte.

If ordering Biscuit, you must select a drain kit in Chrome, Brushed Nickel or Polished Nickel.

Virtual Spout high-flow integrated tub filler (FPMJ) $450

Grab Bars – 9” Curved, set of 2

Acrylic – color-matched with tub standard colors only (GB) $330
Metal – Chrome (GBMC), Brushed Nickel (GBMBN) $360

Decorative Towel Bar
Chrome (CHTOWEL) $545, Brushed Nickel (BNTOWEL) $545

Drain Kits

Toe-Tap with Slim-Line Integrated Overflow
White (SLOTWH) included
Chrome (SLOTC) no charge
Brushed Nickel (SLOTBN) no charge
Polished Nickel (SLOTPN) no charge

Accessories

Pillows from $180
Teak Bath Mat (TKMAT3018) $815 Custom sizes also available. Contact MTI for details and pricing.
Teak Tub Tray Slatted (TK-TRAY1) $500 Solid (TK-TRAY2) $570
Floor-Mounted High-Flow Tub Filler two designs available
Contemporary Chrome (FILLC) $1,480 Brushed Nickel (FILLBN) $1,710	Traditional Chrome (FILLTC) $1,505 Brushed Nickel (FILLTBN) $1,745
Faucet Stand SculptureStone® Standard
Small 3-hole capacity 14¼” w x 21¾” h Matte (STAND) $725	Large 5-hole cpacity 22″ w x 21¾” h Matte (STANDL) $855
+$430 gloss finish upcharge (SSGLOSSSNK)
