mti 70 Designer Collection Tubs
| model 70 | |
| 71.5″ x 37.25″ x 23.75″ | |
| DROP-IN (cannot be undermounted) Not recommended as a tub / shower combination 87 gal to overflow | |
| Acrylic CXLTM | DoloMatterTM |
| 100 lbs / 45 kg <soaker> 113 lbs / 51 kg 185 lbs / 84 kg <plumbed> 208 lbs / 84 kg | |
| Filling this tub to the maximum may require an above average size or dedicated water heater. | |

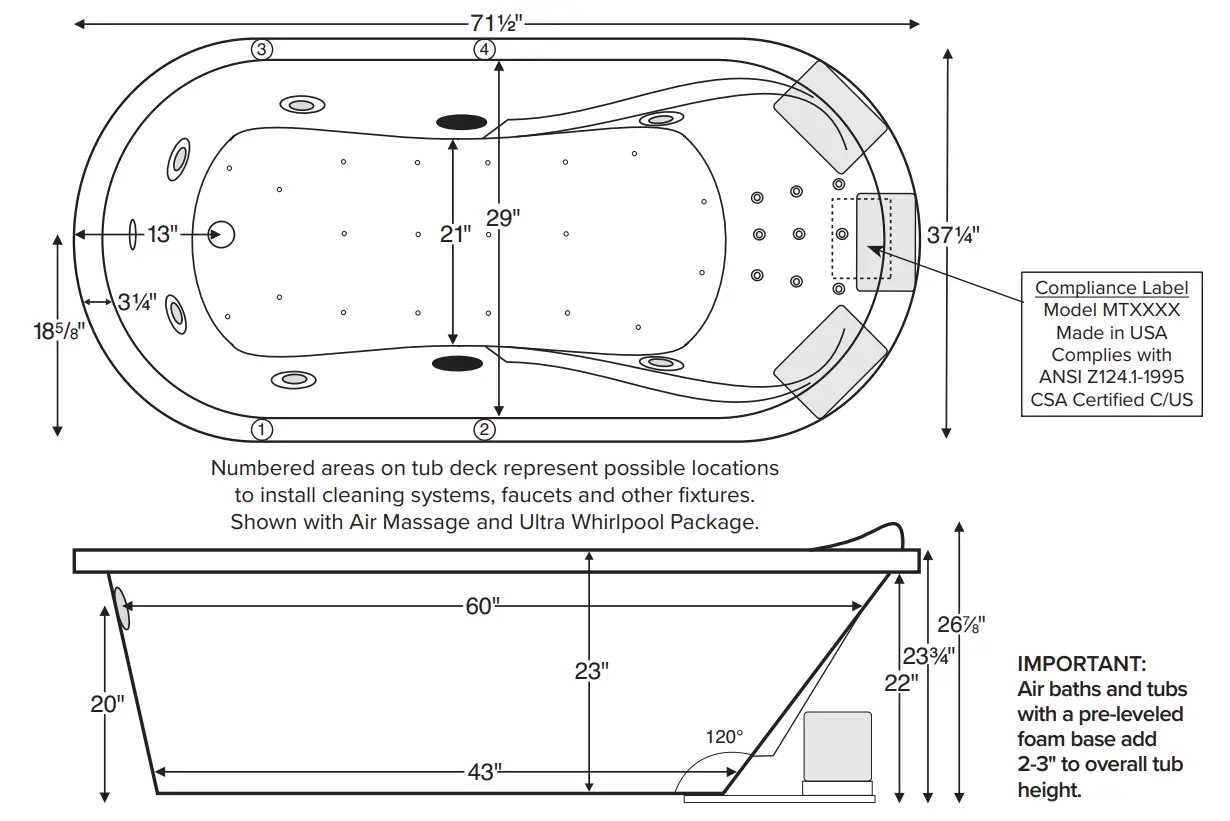

DIMENSION
IMPORTANT ORDERING & INSTALLATION INFORMATION
- Before ordering or installing, please consider future access to equipment.
- Add proper bedding compound to fully level and support bottom of tub.
- When equipped with an air bath package, pre-leveled foam base or frame system, overall tub height is increased by approx. 2-3” and is designed to install on a flat, level subfloor.
- Radiance placed on airbath floor will affect placement of air jets.
- System components may extend beyond the perimeter of deck.
- Please measure tub on-site before building tub decking.
- Advise MTI when planning to use a glass enclosure. Relocation of controls may be necessary.
- Suction and control locations may vary.
- All tubs are compliant with ASTM C 1028-07 coefficient of friction. DoloMatte meets ANSI A137.1/ A326.3 coefficient of friction and AS HB198:2014 slip tests.
ELECTRICAL COMPONENTS & SPECIFICATIONS
| Hydrotherapy Package | Components Included | GFCI / 110V |
| Standard Whirlpool | 2-bhp pump | 1-15 amp |
| Stream Bath | ½-bhp, ozone | 1-20 amp |
| Microbubbles | Microbubbles pump | 1-15 amp |
| Ultra Whirlpool | 2-bhp pump x 2, inline heater, ozone | 2-20 amp |
| Air Massage | heated blower | 1-15 amp |
| Air Massage Elite | heated blower, Chroma therapy | 1-15 amp |
| Air Massage w/ Stream Bath | ½-bhp pump, heated blower, ozone | 1-20 amp |
| Electrical requirements may change with the addition of optional therapy components. See specific option details or installation information. CSA Certified C/US; B45.5/IAPMO ANSI Z124.1 and ANSI 112.19.7 | ||
| Air Massage Elite w/ Stream Bath | ½-bhp pump, heated blower, Chroma therapy, ozone | 1-20 amp |
| Microbubbles with Air | Microbubbles pump, heated blower | 1-20 amp |
| Microbubbles with Air Elite | Microbubbles pump, heated blower, Chroma therapy | 2-15 amp |
| Air with Whirlpool | 2-bhp pump, heated blower | 2-15 amp |
| Air with Ultra Whirlpool | 2-bhp pump x 2, inline heater, heated blower, ozone | 2-20 amp |
| Air Elite with Whirlpool | 2-bhp pump, heated blower, Chroma therapy | 2-15 amp |
| Air Elite with Ultra Whirlpool | 2-bhp pump x 2, inline heater, heated blower, Chroma therapy, ozone | 2-20 amp |
See the Installation & Operation Manual for more details.
MTI’s Customer Service Monday-Friday 8am-6pm EST
800-783-8827 or [email protected]
- Before discarding tub crate, check for accessories that may be packaged inside.
- All product measurements are +1/2”.
- Specifications and configurations are subject to change without notice.
- Measurements herein supersede all others published prior to publication date below.
- Aromatherapy is eliminated for undermount applications
- Air Baths, Pre-Leveled Foam Base or Frame Systems increase overall height by 2-3″.
| Hydrotherapy Packages | Package Contents | Acrylic CXL™ | DoloMatte™ | ||
| Part # | MSRP | Part # | MSRP | ||
| Soaker | Soaking bath – no jets | S70 | $3,175 | S70DM | $3,775 |
| Stream Bath | 6 side vents, 2 end vents, 1/2 bhp pump, Ozone | SM70 | $5,720 | SM70DM | $6,320 |
| Microbubbles | 1 microbubbles infusion port and pump | M70 | $6,495 | M70DM | $7,095 |
| Air Massage | 20 air jets, heated air blower, Aromatherapy, pre-leveled foam base | AST70 | $6,825 | AST70DM | $7,425 |
| Air Massage Elite | 30 air jets, heated air blower, Aromatherapy, Chroma therapy LED lighting, Spa Mode, pre-leveled foam base | AE70 | $8,725 | AE70DM | $9,325 |
| Stream Bath with Air Massage | 6 side vents, 2 end vents, 1/2 bhp pump, Ozone, 20 air jets, heated air blower, Aromatherapy, pre-leveled foam base | ASTSM70 | $8,870 | ASTSM70DM | $9,470 |
| Stream Bath with Air Massage Elite | 6 side vents, 2 end vents, 1/2 bhp pump, Ozone, 30 air jets, heated air blower, Aromatherapy, Chroma therapy LED lighting, Spa Mode, pre-leveled foam base | AESM70 | $10,970 | AESM70DM | $11,570 |
| Microbubbles with Air Massage | 1 microbubbles infusion port and pump, 20 air jets, heated air blower, Aromatherapy, pre-leveled foam base | ASTM70 | $9,545 | ASTM70DM | $10,145 |
| Microbubbles with Air Massage Elite | 1 microbubbles infusion port and pump, 30 air jets, heated air blower, Aromatherapy, Chroma therapy LED lighting, Spa Mode, pre-leveled foam base | AEM70 | $11,345 | AEM70DM | $11,945 |
| Standard Whirlpool | 7 point-massage jets, 2-bhp pump | P70 | $5,540 | P70DM | $6,140 |
| Ultra Whirlpool | 6 point-massage jets, 9 micro-jets with Tsubo massage, 2 2-bhp pumps, inline heater, Ozone | P70U | $7,535 | P70UDM | $8,135 |
| Air Massage with Standard Whirlpool | 7 point-massage jets, 2-bhp pump, 20 air jets, heated air blower, Aromatherapy, pre-leveled foam base | AW70 | $9,190 | AW70DM | $9,790 |
| Air Massage with Ultra Whirlpool | 6 point-massage jets, 9 micro jets with Tsubo massage, 2 2-bhp pumps, inline heater, 20 air jets, heated air blower, Aromatherapy, Ozone, pre-leveled foam base | AU70 | $11,185 | AU70DM | $11,785 |
| Air Massage Elite with Standard Whirlpool | 7 point-massage jets, 2-bhp pump, 30 air jets, heated air blower, Aromatherapy, Chroma therapy LED lighting, Spa Mode, pre-leveled foam base | AEAP70 | $11,090 | AEAP70DM | $11,690 |
| Air Massage Elite with Ultra Whirlpool | 6 point-massage jets, 9 micro-jets with Tsubo massage, 2 2-bhp pumps, inline heater, 30 air jets, heated air blower, Aromatherapy, Ozone, Chroma therapy LED lighting, Spa Mode, pre-leveled foam base | AEAP70U | $12,185 | AEAP70UDM | $12,785 |
For more information on options and accessories go to Acrylic Tub Options at mtibaths.com
RECOMMENDED SENSORY THERAPIES
Chroma therapy
(LE) $800 underwater lighting 2 LED lights included
Audiotherapy
(STEREOBT) $1,390 2 transducers with Bluetooth and amplifier
(BTREMOTE) $600 Bluetooth remote
(STEREOH202) $1,575 4 transducers amplifier not included
Thermaltherapy
(RAD100) $1,595 Radiance® 2 heated zones included (HTISOAK) $825
| Options Must be ordered at time of purchase. |
| Standard Colors White (CWH) DoloMatte available in matte white only. Biscuit (CBS) Not available for DoloMatte. |
| Quick Ship reduces lead time (QSPRI) $430 Please call for availability |
| Inline Heater maintains water temperature For Soaker or Air Baths (HTISOAK) $825 Includes a recirculating pump Cannot be combined with Microbubbles. |
| Virtual Spout high-flow integrated tub filler (FPMJ) $450 Must specify stub-out location on order. See page 1 for location options. |
| Grab Bars from $330 Selections vary. Personalization available. |
| Textured Bottom (TXTBTM) AcrylicCXL™only$105 DoloMatte™ exceeds ANSI A137.1/A326.3 and AS HB198 slip tests. |
| Accessories |
| Pillows from $180 |
| Teak Bath Mat (TKMAT3018) $815 Custom sizes also available. Contact MTI for details and pricing. |
| Teak Tub Tray Slatted (TK-TRAY1) $500 Solid (TK-TRAY2) $570 |
| Hydrotherapy Equipment & Cleaning Systems Must be ordered at time of purchase. |
| Inline Heater maintains water temperature For Whirlpools or Stream Bath (HTI) $570 Uses existing pump Cannot be combined with Microbubbles. |
| Whirlpool Cleaning Systems Fill-Flush (FFSO) $590 Simple Touch (FFE) $1,020 Must specify stub-out location on order. See page 1 for location options. |
| Whirlpool Jets Pump upgrade may be advisable for optimal performance when adding jets. Point-Massage Jet Extra Point-Massage Jet (EJ) $315 Micro-Jet from $360 Jet styles and packages vary. Personalization available. Pump Upgrade – 3-bhp (PUMP3) $315 |
| Jet Trim Kits For Standard Whirlpool Chrome (TRC) $270, Brushed Nickel (TRBN) $725 For Ultra Whirlpool Chrome (TRCU) $370, Brushed Nickel (TRBNU) $960 |
| Ozonator (OZONE) $515 Cannot be added to soakers or airbaths without combination hydrotherapy package or HTISOAK. |
Installation Options Must be ordered at time of purchase.
Pre-LeveledFoamBase (PLFOAM) $295
All airbaths include a pre-leveled foam base.
Drains & Overflow Kits
Cable Driven
Drain Finishes – PVC Drain Kit
White/Bone/Biscuit (WOCDW) $440
Chrome (WOCD) $410
Brushed Nickel (WOCDBN) $490
Polished Nickel (WOCDPN) $540
Oil-Rubbed Bronze† (WOCDOR) $550
Polished Brass (WOCDBR) $690
Special Finishes* (WOCDSF) $1,135
MTI does not offer a brass body cable drain kit.
Lift & Turn
Drain Finishes – PVC Drain Kit
Chrome (WOC) $185
White (WOW) $245
Brushed Nickel (WOBN) $305
Toe Tap
Round Overflow – PVC Drain Kit
Chrome (WOTTC) $380
Brushed Nickel (WOTTBN) $385
Polished Nickel (WOTTPN) $385
Special Finishes* (WOTTSF) $1,145
Round Overflow – Solid Brass Drain
Chrome (WOTTSBC) $810
Brushed Nickel (WOTTSBBN) $810
Polished Nickel (WOTTSBPN) $810
† MTI has selected an oil-rubbed bronze finish that is compatible with Delta and many other manufacturers. To ensure best match, order as a Special Finish and submit a sample.
