MTI Baths 50 Designer Collection Tubs
Designer Collection Tubs

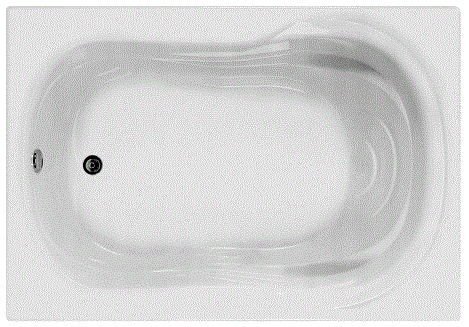

Reflection 3

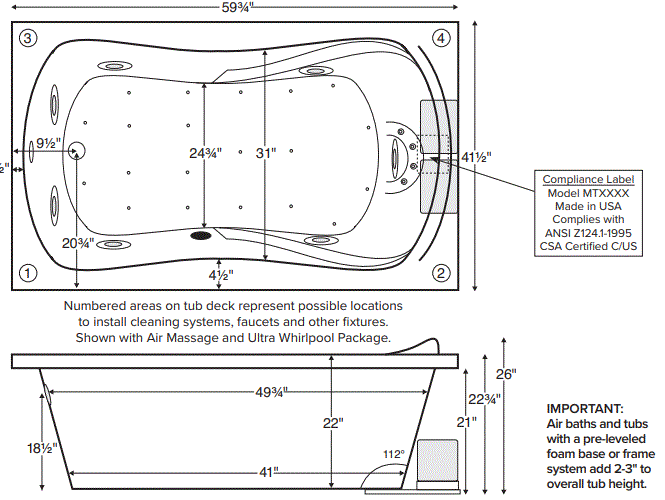

| model 50 | |
| 59.75″ x 41.5″ x 22.75″ | |
| DROP-IN (cannot be undermounted) Not recommended as a tub / shower combination 85 gal to overflow | |
| Acrylic CXLTM | DoloMatteTM |
| 100 lbs / 45 kg <soaker> 113 lbs / 51 kg 150 lbs / 68 kg <plumbed> 163 lbs / 74 kg | |
| Filling this tub to the maximum may require an above average size or dedicated water heater. | |
IMPORTANT ORDERING & INSTALLATION INFORMATION
- Before ordering or installing, please consider future access to equipment.
- Add proper bedding compound to fully level and support bottom of tub.
- When equipped with an air bath package, pre-leveled foam base or frame system, overall tub height is increased by approx. 2-3” and is designed to install on a flat, level subfloor.
- Radiance placed on airbath floor will affect placement of air jets.
- System components may extend beyond the perimeter of deck.
- Please measure tub on-site before building tub decking.
- Advise MTI when planning to use a glass enclosure. Relocation of controls may be necessary.
- Suction and control locations may vary.
- All tubs are compliant with ASTM C 1028-07 coefficient of friction. DoloMatte meets ANSI A137.1/ A326.3 coefficient of friction and AS HB198:2014 slip tests.
ELECTRICAL COMPONENTS & SPECIFICATIONS
| Hydrotherapy Package | Components Included | GFCI / 110V |
| Standard Whirlpool | 2-bhp pump | 1-15 amp |
| Stream Bath | ½-bhp, ozone | 1-20 amp |
| Microbubbles | Microbubbles pump | 1-15 amp |
| Ultra Whirlpool | 3-bhp pump, inline heater, ozone | 2-15 amp |
| Air Massage | heated blower | 1-15 amp |
| Air Massage Elite | heated blower, chromatherapy | 1-15 amp |
| Air Massage w/ Stream Bath | ½-bhp pump, heated blower, ozone | 1-20 amp |
| Air Massage Elite w/ Stream Bath | ½-bhp pump, heated blower, chromatherapy, ozone | 1-20 amp |
| Electrical requirements may change with the addition of optional therapy components. See specific option details or installation information. CSA Certified C/US; B45.5/IAPMO ANSI Z124.1 and ANSI 112.19.7 | ||
CSA#MTDS-50
CSA#MTDS-50DM
| Hydrotherapy Package | Components Included | GFCI / 110V |
| Microbubbles with Air | Microbubbles pump, heated blower | 1-20 amp |
| Microbubbles with Air Elite | Microbubbles pump, heated blower, chromatherapy | 2-15 amp |
| Air with Whirlpool | 2-bhp pump, heated blower | 2-15 amp |
| Air with Ultra Whirlpool | 3-bhp pump, inline heater, heated blower, ozone | 2-20 amp |
| Air Elite with Whirlpool | 2-bhp pump, heated blower, chromatherapy | 2-15 amp |
| Air Elite with Ultra Whirlpool | 3-bhp pump, inline heater, heated blower, chromatherapy, ozone | 2-20 amp |
See the Installation & Operation Manual for more details.
MTI’s Customer Service Monday-Friday 8am-6pm EST
800-783-8827 or [email protected]
- Before discarding tub crate, check for accessories that may be packaged inside.
- All product measurements are +1/2”.
- Specifications and configurations are subject to change without notice.
- Measurements herein supersede all others published prior to publication date below.
- Aromatherapy is eliminated for undermount applications
- Air Baths, Pre-Leveled Foam Base or Frame Systems increase overall height by 2-3″.
model 50 59.75″ x 41.5″ x 22.75″
| Hydrotherapy Packages | Package Contents | Acrylic CXL™ | DoloMatte™ | ||
| Part # | MSRP | Part # | MSRP | ||
| Soaker | Soaking bath – no jets | S50 | $2,755 | S50DM | $3,355 |
| Stream Bath | 6 side vents, 2 end vents, 1/2 bhp pump, Ozone | SM50 | $5,300 | SM50DM | $5,900 |
| Microbubbles | 1 microbubbles infusion port and pump | M50 | $6,075 | M50DM | $6,675 |
| Air Massage | 20 air jets, heated air blower, Aromatherapy, pre-leveled foam base | AST50 | $6,405 | AST50DM | $7,005 |
| Air Massage Elite | 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, pre-leveled foam base | AE50 | $8,305 | AE50DM | $8,905 |
| Stream Bath with Air Massage | 6 side vents, 2 end vents, 1/2 bhp pump, Ozone, 20 air jets, heated air blower, Aromatherapy, pre-leveled foam base | ASTSM50 | $8,450 | ASTSM50DM | $9,050 |
| Stream Bath with Air Massage Elite | 6 side vents, 2 end vents, 1/2 bhp pump, Ozone, 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, pre-leveled foam base | AESM50 | $10,550 | AESM50DM | $11,150 |
| Microbubbles with Air Massage | 1 microbubbles infusion port and pump, 20 air jets, heated air blower, Aromatherapy, pre-leveled foam base | ASTM50 | $9,125 | ASTM50DM | $9,725 |
| Microbubbles with Air Massage Elite | 1 microbubbles infusion port and pump, 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, pre-leveled foam base | AEM50 | $10,925 | AEM50DM | $11,525 |
| Standard Whirlpool | 5 point-massage jets, 2-bhp pump | P50 | $5,120 | P50DM | $5,720 |
| Ultra Whirlpool | 7 point-massage jets, 4 micro-jets, 3-bhp pump, inline heater, Ozone | P50U | $7,115 | P50UDM | $7,715 |
| Air Massage with Standard Whirlpool | 5 point-massage jets, 2-bhp pump, 20 air jets, heated air blower, Aromatherapy, pre-leveled foam base | AW50 | $8,770 | AW50DM | $9,370 |
| Air Massage with Ultra Whirlpool | 7 point-massage jets, 4 micro-jets, 3-bhp pump, inline heater, 20 air jets, heated air blower, Aromatherapy, Ozone, pre-leveled foam base | AU50 | $10,765 | AU50DM | $11,365 |
| Air Massage Elite with Standard Whirlpool | 5 point-massage jets, 2-bhp pump, 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, pre-leveled foam base | AEAP50 | $10,670 | AEAP50DM | $11,270 |
| Air Massage Elite with Ultra Whirlpool | 7 point-massage jets, 4 micro-jets, 3-bhp pump, inline heater, 30 air jets, heated air blower, Aromatherapy, Ozone, Chromatherapy LED lighting, Spa Mode, pre-leveled foam base | AEAP50U | $11,765 | AEAP50UDM | $12,365 |
RECOMMENDED SENSORY THERAPIES
Chromatherapy
(LE) $800 underwater lighting
2 LED lights included
Audiotherapy
(STEREOBT) $1,390 2 transducers with bluetooth and amplifier
(BTREMOTE) $600 bluetooth remote
(STEREOH202) $1,575 4 transducers amplifier not included
Thermaltherapy
(RAD100) $1,595 Radiance®
2 heated zones included
(HTISOAK) $825
For more information on options and accessories go to Acrylic Tub Options at mtibaths.com
| Options Must be ordered at time of purchase. |
| Standard Colors White (CWH) DoloMatte available in matte white only. Biscuit (CBS) Not available for DoloMatte. |
| Quick Ship reduces lead time (QSPRI) $430 Please call for availability |
| Inline Heater maintains water temperature For Soaker or Air Baths (HTISOAK) $825 Includes a recirculating pump Cannot be combined with Microbubbles. |
| Virtual Spout high-flow integrated tub filler (FPMJ) $450 Must specify stub-out location on order. See page 1 for location options. |
| Grab Bars from $330 Selections vary. Personalization available. |
| Textured Bottom (TXTBTM) AcrylicCXL™only$105 DoloMatte™ exceeds ANSI A137.1/A326.3 and AS HB198 slip tests. |
| Accessories |
| Pillows from $180 |
| Teak Bath Mat (TKMAT3018) $815 Custom sizes also available. Contact MTI for details and pricing. |
| Hydrotherapy Equipment & Cleaning Systems Must be ordered at time of purchase. |
| Inline Heater maintains water temperature For Whirlpools or Stream Bath (HTI) $570 Uses existing pump Cannot be combined with Microbubbles. |
| Whirlpool Cleaning Systems Fill-Flush (FFSO) $590 Simple Touch (FFE) $1,020 Must specify stub-out location on order. See page 1 for location options. |
| Whirlpool Jets Pump upgrade may be advisable for optimal performance when adding jets. Point-Massage Jet Extra Point-Massage Jet (EJ) $315 Micro-Jet from $360 Jet styles and packages vary. Personalization available. Pump Upgrade – 3-bhp (PUMP3) $315 |
| Jet Trim Kits For Standard Whirlpool Chrome (TRC) $270, Brushed Nickel (TRBN) $725 For Ultra Whirlpool Chrome (TRCU) $370, Brushed Nickel (TRBNU) $960 |
| Ozonator (OZONE) $515 Cannot be added to soakers or airbaths without combination hydrotherapy package or HTISOAK. |
Installation Options
Must be ordered at time of purchase.
- Pre-Leveled Foam Base (PLFOAM) $295
All airbaths include a pre-leveled foam base. - Pre-Leveled Frame and Foam Base (PLF) $740
- Pre-Leveled Frame and Foam Base with Skirting (Acrylic CXL™ tubs only)
For pricing and details go to mtibaths.com
Tile Flange
- Factory-Installed on 3 sides – rigid ABS (TFK3) $200
- Field Install Kit – includes rigid ABS & adhesive (TFKNI) $185
IMPORTANT: Must specify flange location(s) on order of Factory-Installed Flange.
Not available with optional Low-Profile Rim.
Drains & Overflow Kits
Cable Driven
- Drain Finishes – PVC Drain Kit
- White/Bone/Biscuit (WOCDW) $440
- Chrome (WOCD) $410
- Brushed Nickel (WOCDBN) $490
- Polished Nickel (WOCDPN) $540
- Oil-Rubbed Bronze† (WOCDOR) $550
- Polished Brass (WOCDBR) $690
- Special Finishes* (WOCDSF) $1,135
- MTI does not offer a brass body cable drain kit.
Lift & Turn
- Drain Finishes – PVC Drain Kit
- Chrome (WOC) $185
- White (WOW) $245
- Brushed Nickel (WOBN) $305
Toe Tap
- Round Overflow – PVC Drain Kit
- Chrome (WOTTC) $380
- Brushed Nickel (WOTTBN) $385
- Polished Nickel (WOTTPN) $385
- Special Finishes* (WOTTSF) $1,145
- Round Overflow – Solid Brass Drain
- Chrome (WOTTSBC) $810
- Brushed Nickel (WOTTSBBN) $810
- Polished Nickel (WOTTSBPN) $810
† MTI has selected an oil-rubbed bronze finish that is compatible with Delta and many other manufacturers.
To ensure best match, order as a Special Finish and submit a sample.
* Allow 2-4 weeks lead time for Special Finishes. Send sample for best match.
©2022 by MTI Baths, Inc. Modification Rights Reserved
