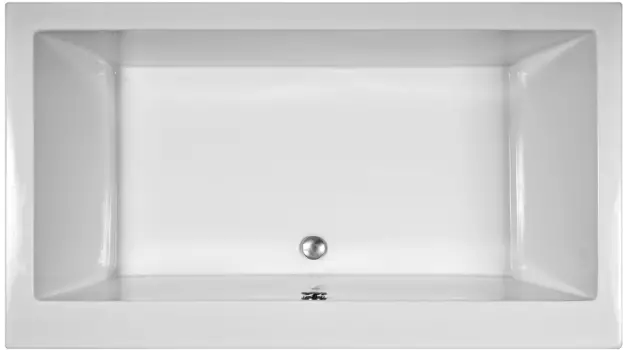

mti Kahlo 2 Designer Collection Tubs

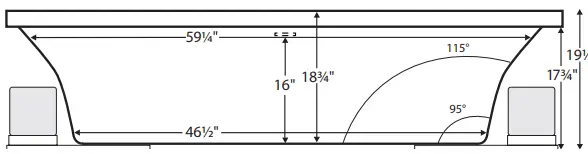

DIMENSION
| Kahlo 2 | |
| model 142 | |
| 66″ x 36″ x 19.5″ | |
| DROP-IN or UNDERMOUNT 85 gal to overflow | |
| Acrylic CXLTM | DoloMatteTM |
| 90 lbs / 41 kg <soaker> 101 lbs / 46 kg 120 lbs / 54 kg <plumbed> 131 lbs / 59 kg | |
| Filling this tub to the maximum may require an above average size or dedicated water heater. | |

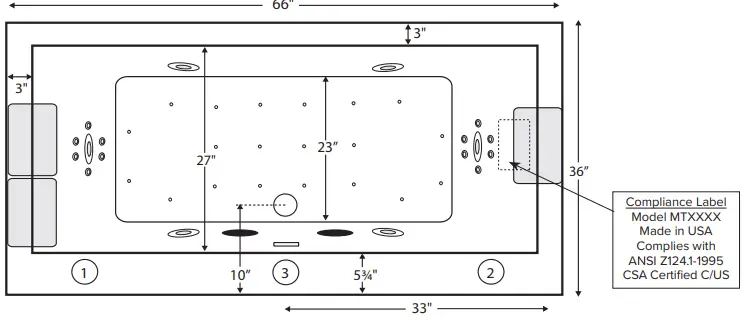

The tub features a round integrated overflow with direct toe tap drain connection directly above rough-in pipe. Numbered areas on tub deck represent possible locations to install cleaning systems, faucets and other fixtures. Shown with Air Massage and Ultra Whirlpool Package.
IMPORTANT:
Air baths and tubs with a pre-leveled foam base or frame system add 2-3″ to overall tub height.
IMPORTANT ORDERING & INSTALLATION INFORMATION
- Before ordering or installing, please consider future access to equipment.
- Add proper bedding compound to fully level and support bottom of tub.
- When equipped with an air bath package, pre-leveled foam base or frame system, overall tub height is increased by approx. 2-3” and is designed to install on a flat, level subfloor.
- Radiance placed on airbath floor will affect placement of air jets.
- System components may extend beyond the perimeter of deck.
- Please measure tub on-site before building tub decking.
- Advise MTI when planning to use a glass enclosure. Relocation of controls may be necessary.
- Suction and control locations may vary.
ELECTRICAL COMPONENTS & SPECIFICATIONS
| Hydrotherapy Package | Components Included | GFCI / 110V |
| Standard Whirlpool | 2-bhp pump | 1-15 amp |
| Stream Bath | ½-bhp, ozone | 1-20 amp |
| Microbubbles | Microbubbles pump | 1-15 amp |
| Ultra Whirlpool | 2-bhp pump x 2, inline heater, ozone | 2-20 amp |
| Air Massage | heated blower | 1-15 amp |
| Air Massage Elite | heated blower, chromatherapy | 1-15 amp |
| Air Massage w/ Stream Bath | ½-bhp pump, heated blower, ozone | 1-20 amp |
| Air Massage Elite w/ Stream Bath | ½-bhp pump, heated blower, chromatherapy, ozone | 1-20 amp |
| Electrical requirements may change with the addition of optional therapy components. See specific option details or installation information. CSA Certified C/US; ANSI Z124.1 and ANSI 112.19.7 | ||
| Hydrotherapy Package | Components Included | GFCI / 110V |
| Microbubbles with Air | Microbubbles pump, heated blower | 1-20 amp |
| Microbubbles with Air Elite | Microbubbles pump, heated blower, chromatherapy | 2-15 amp |
| Air with Whirlpool | 2-bhp pump, heated blower | 2-15 amp |
| Air with Ultra Whirlpool | 2-bhp pump x 2, inline heater, heated blower, ozone | 2-20 amp |
| Air Elite with Whirlpool | 2-bhp pump, heated blower, chromatherapy | 2-15 amp |
| Air Elite with Ultra Whirlpool | 2-bhp pump x 2, inline heater, heated blower, chromatherapy, ozone | 2-20 amp |
See the Installation & Operation Manual for more details. MTI’s Customer Service Monday-Friday 8am-6pm EST 800-783-8827 or [email protected]
- Before discarding tub crate, check for accessories that may be packaged inside.
- All product measurements are +1/2”.
- Specifications and configurations are subject to change without notice.
- Measurements herein supersede all others published prior to publication date below.
- Aromatherapy is eliminated for undermount applications
- Air Baths, Pre-Leveled Foam Base or Frame Systems increase overall height by 2-3″.
Hydrotherapy Packages Package Contents Acrylic CXL™ DoloMatte™ Part # MSRP Part # MSRP Soaker Soaking bath – no jets S142-DI $2,975 S142DM-DI $3,575 S142-UM S142DM-UM Stream Bath 6 side vents, 2 end vents, 1/2 bhp pump, Ozone SM142-DI $5,520 SM142DM-DI $6,120 SM142-UM SM142DM-UM Microbubbles 1 microbubbles infusion port and pump M142-DI $6,295 M142DM-DI $6,895 M142-UM M142DM-UM Air Massage 20 air jets, heated air blower, Aromatherapy, pre-leveled foam base AST142-DI $6,625 AST142DM-DI $7,225 AST142-UM AST142DM-UM Air Massage Elite 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, pre-leveled foam base AE142-DI $8,525 AE142DM-DI $9,125 AE142-UM AE142DM-UM Stream Bath with Air Massage 6 side vents, 2 end vents, 1/2 bhp pump, Ozone, 20 air jets, heated air blower, Aromatherapy, pre-leveled foam base ASTSM142-DI $8,670 ASTSM142DM-DI $9,270 ASTSM142-UM ASTSM142DM-UM Stream Bath with Air Massage Elite 6 side vents, 2 end vents, 1/2 bhp pump, Ozone, 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, pre-leveled foam base AESM142-DI $10,770 AESM142DM-DI $11,370 AESM142-UM AESM142DM-UM Microbubbles with Air Massage 1 microbubbles infusion port and pump, 20 air jets, heated air blower, Aromatherapy, pre-leveled foam base ASTM142-DI $9,345 ASTM142DM-DI $9,945 ASTM142-UM ASTM142DM-UM Microbubbles with Air Massage Elite 1 microbubbles infusion port and pump, 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, pre-leveled foam base AEM142-DI $11,145 AEM142DM-DI $11,745 AEM142-UM AEM142DM-UM Standard Whirlpool 6 point-massage jets, 2-bhp pump P142-DI $5,340 P142DM-DI $5,940 P142-UM P142DM-UM Ultra Whirlpool 6 point-massage jets, 12 micro-jets with Tsubo massage, 2 2-bhp pumps, inline heater, Ozone P142U-DI $7,335 P142UDM-DI $7,935 P142U-UM P142UDM-UM Air Massage with Standard Whirlpool 6 point-massage jets, 2-bhp pump, 20 air jets, heated air blower, Aromatherapy, pre-leveled foam base AW142-DI $8,990 AW142DM-DI $9,590 AW142-UM AW142DM-UM Air Massage with Ultra Whirlpool 6 point-massage jets, 12 micro-jets with Tsubo massage, 2 2-bhp pumps, inline heater, 20 air jets, heated air blower, Aromatherapy, Ozone, pre-leveled foam base AU142-DI $10,985 AU142DM-DI $11,585 AU142-UM AU142DM-UM Air Massage Elite with Standard Whirlpool 6 point-massage jets, 2-bhp pump, 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, pre-leveled foam base AEAP142-DI $10,890 AEAP142DM-DI $11,490 AEAP142-UM AEAP142DM-UM Air Massage Elite with Ultra Whirlpool 6 point-massage jets, 12 micro-jets with Tsubo massage, 2 2-bhp pumps, inline heater, 30 air jets, heated air blower, Aromatherapy, Ozone, Chromatherapy LED lighting, Spa Mode, pre-leveled foam base AEAP142U-DI $11,985
AEAP142UDM-DI $12,585
AEAP142U-UM AEAP142UDM-UM
RECOMMENDED SENSORY THERAPIES
- Chromatherapy
(LE) $800 underwater lighting 2 LED lights included - Audiotherapy
(STEREOBT) $1,390 2 transducers with bluetooth and amplifier
(BTREMOTE) $600 bluetooth remote
(STEREOH202) $1,575 4 transducers amplifier not included - Thermaltherapy
(RAD100) $1,595 Radiance® 2 heated zones included
(HTISOAK) $825
For more information on options and accessories go to Acrylic Tub Options at mtibaths.com
| Options Must be ordered at time of purchase. |
| Standard Colors White (CWH) Biscuit (CBS) Please call for availability of special colors. |
| Quick Ship reduces lead time (QSPRI) $430 Please call for availability |
| Inline Heater maintains water temperature For Soaker or Air Baths (HTISOAK) $825 Includes a recirculating pump Cannot be combined with Microbubbles. |
| Virtual Spout high-flow integrated tub filler (FPMJ) $450 Must specify stub-out location on order. See page 1 for location options. |
| Grab Bars from $330 Selections vary. Personalization available. |
| Textured, Slip-Resistant Bottom (TXTBTM) $105 Compliant with ASTM C 1028-07 friction coefficient. |
| Accessories |
| Pillows from $180 |
| Teak Bath Mat (TKMAT3018) $815 Custom sizes also available. Contact MTI for details and pricing. |
| Teak Tub Tray Slatted (TK-TRAY1) $500 Solid (TK-TRAY2) $570 |
| Hydrotherapy Equipment & Cleaning Systems Must be ordered at time of purchase. |
| Inline Heater maintains water temperature For Whirlpools or Stream Bath (HTI) $570 Uses existing pump Cannot be combined with Microbubbles. |
| Whirlpool Cleaning Systems Fill-Flush (FFSO) $590 Simple Touch (FFE) $1,020 Must specify stub-out location on order. See page 1 for location options. |
| Whirlpool Jets Pump upgrade may be advisable for optimal performance when adding jets. Point-Massage Jet Extra Point-Massage Jet (EJ) $315 Micro-Jet from $360 Jet styles and packages vary. Personalization available. Pump Upgrade – 3-bhp (PUMP3) $315 |
| Jet Trim Kits For Standard Whirlpool Chrome (TRC) $270, Brushed Nickel (TRBN) $725 For Ultra Whirlpool Chrome (TRCU) $370, Brushed Nickel (TRBNU) $960 Other finishes available. |
| Ozonator (OZONE) $515 Cannot be added to soakers or airbaths without combination hydrotherapy package or HTISOAK. |
Installation Options
Must be ordered at time of purchase.
- Pre-Leveled Foam Base (PLFOAM) $295
All airbaths include a pre-leveled foam base. - Pre-Leveled Frame and Foam Base (PLF) $740
- Pre-Leveled Frame and Foam Base with Skirting (Acrylic CXL™ tubs only)
For pricing and details go to mtibaths.com - Tile Flange
Factory-Installed on 3 sides – rigid ABS (TFK3) $200
Field Install Kit – includes rigid ABS & adhesive (TFKNI) $185
IMPORTANT: Must specify flange location(s) on order of Factory-Installed Flange. Not available with optional Low-Profile Rim.
Drains & Overflow Kits
Must be ordered at time of purchase
Integrated Toe Tap
- Slotted Overflow
PVC drain – Chrome (SLOTIOC) included - Finish Upcharge
Brushed Nickel (SLOTIOBNU) +$65
Polished Nickel (SLOTIOPNU) +$105
White (SLOTIOWHU) +$65 - Round Overflow
Chrome (RIOBC) may substitute slotted overflow - Finish Upcharge
Brushed Nickel (RIOBN) +$120
Polished Nickel (RIOPN) +$120
White (RIOWH) +$120
