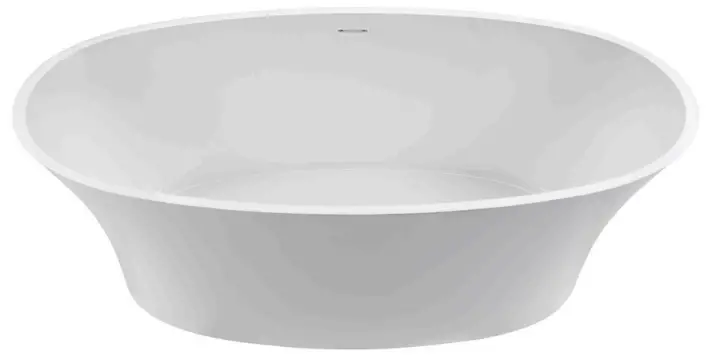

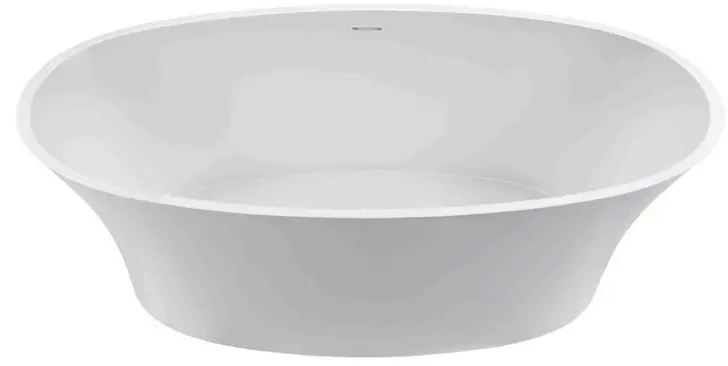

Designer Collection Tubs

Adeline

model 401

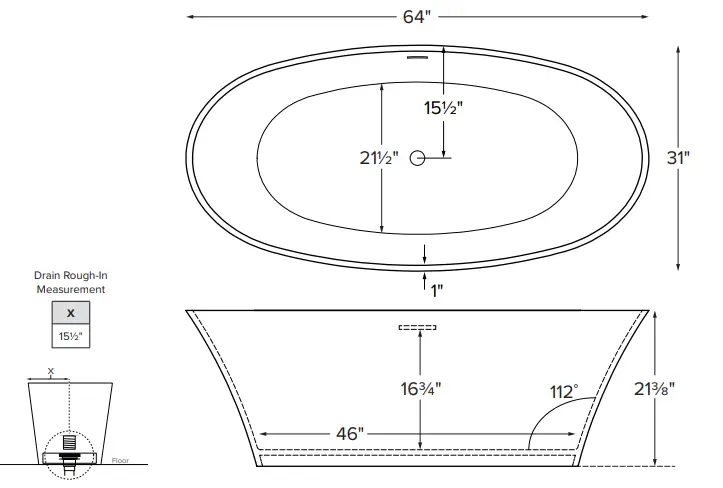

64″ x 31″ x 21.375″

FREESTANDING

71 gal to overflow

Mineral Composite

150 lbs / 68 kg soaker

Filling this tub to the maximum may require an above average size or dedicated water heater.

ELECTRICAL COMPONENTS & SPECIFICATIONS Required Electrical Service – 110 Volt
Hydrotherapy Package	Components Included	GFCI
Air Massage	heated blower	1-15 amp
Electrical requirements may change with the addition of optional therapy components. See specific option details or installation information. CSA Certified C/US; B45.5/IAPMO ANSI Z124.1 and ANSI 112.19.7

See the Installation & Operation Manual for more details. MTI’s Customer Service: Monday-Friday 8am-6pm EST 800-783-8827 or [email protected]

Options and accessories may be packaged inside the tub crate. Always check packaging before discarding.
All product measurements are +1/2”.
Specifications and configurations are subject to change without notice.
Measurements herein supersede all others published prior to publication date low

Before ordering or installing, please consider future access to equipment.
Integrated overflow with toe tap drain included. May also be specified without an overflow (see local codes).
Air baths require job site preparations for remote mounting the blower and required check valve. Check valve must be installed higher than the rim of the tub.
Waterproof remote control included. Keypad is shipped loose and may be mounted nearby.
Faucet valves cannot be installed on this tub model.

For more information on options and accessories go to Designer Mineral Composite Tubs Options on mtibaths.com

Adeline
model # 401 64″ x 31″ x 21.375″

Hydrotherapy	Package Contents	Part #	MSRP
Soaker	Soaking bath – no jets. Includes an integrated slotted overflow with toe-tap drain kit.	S401	$7,360
Air Bath	20 air jets, heated air blower, keypad, waterproof remote control, integrated slotted overflow with toe-tap drain kit.	AST401	$11,785

Options Must be ordered at time of purchase

Standard Colors White, gloss finish only

Quick Ship reduces lead time (QSPRI) $430

Please call for availability

Drains Must be ordered at time of purchase

Integrated Overflow and Toe-Tap Drain Kit Finishes

PVC drain – White (included with tub)

Substitute Finish – No Charge

Chrome (MCIOC) Brushed Nickel (MCIOBN) Polished Nickel (MCIOPN)

Brass Tailpiece (WIOBS) $85 in addition to finish charge listed above

Quick Drain Kit (WOQ) $460


Floor-Mounted High-Flow Tub Filler two designs available
Contemporary Chrome (FILLC) $1,480 Brushed Nickel (FILLBN) $1,710	Traditional Chrome (FILLTC) $1,505 Brushed Nickel (FILLTBN) $1,745
Pillows from $180
Teak Bath Mat (TKMAT3018) $815 Custom sizes also available. Contact MTI for details and pricing.
Tub Tray SculptureStone® – Available in white only Solid without stemware holder (SSTRAY1) $340 Solid with Stemware Holder (SSTRAY2) $450
Bathroom Table SculptureStone® Packaging / Handling Fee Applies (TABLE) $825 available in white only +$430 gloss finish upcharge (SSGLOSSSNK)
Faucet Stand SculptureStone® Standard Packaging / Handling Fee Applies
Small 3-hole capacity 14¼” w x 21¾” h Matte (STAND) $725	Large 5-hole capacity 22″ w x 21¾” h Matte (STANDL) $855
+$430 gloss finish upcharge (SSGLOSSSNK)
Premium Faucet Stand SculptureStone® Packaging / Handling Fee Applies 15″ w x 39” h 10″ w x 39” h Matte (SSFSR3915MT) $2,365 Matte (SSFSR3910MT) $2,135 Gloss (SSFSR3915GL) $2,720 Gloss (SSFSR3910GL) $2,525 20″ w x 23” h 15″ w x 23” h Matte (SSFSR2320MT) $1,930 Matte (SSFSR2315MT) $1,825 Gloss (SSFSR2320GL) $2,315 Gloss (SSFSR2315GL) $2,180
